Dozer Rakes

Name: Dozer Rakes
Brand: Kenco
SKU: 10124
Availability: InStock

Call for Pricing

Shipping calculated at checkout.

Safe & Secure Payments.

Dozer Rakes

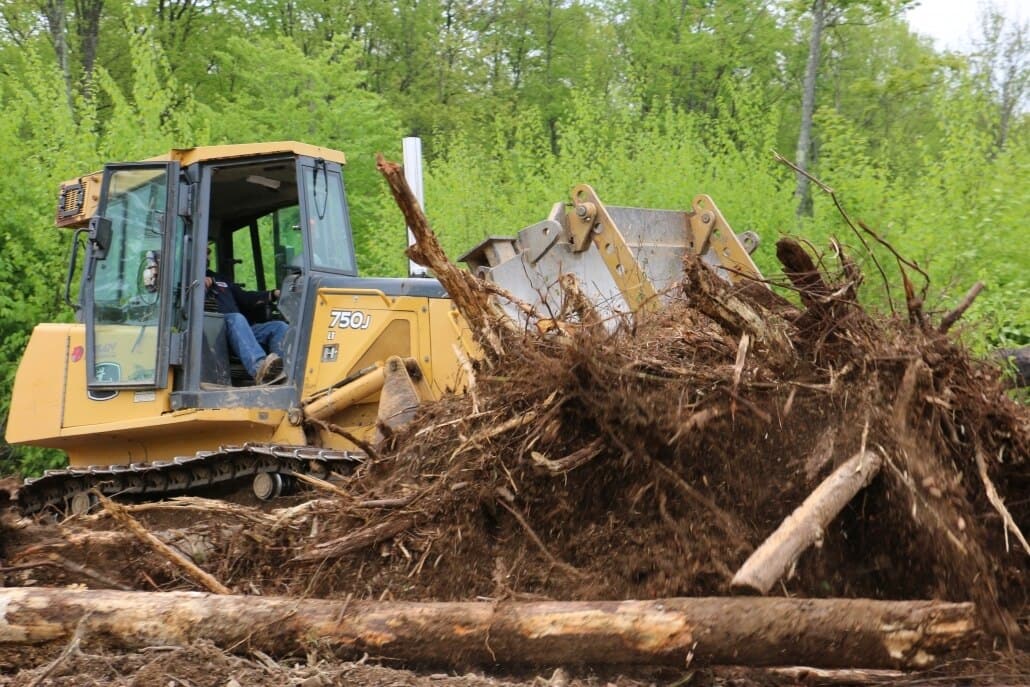

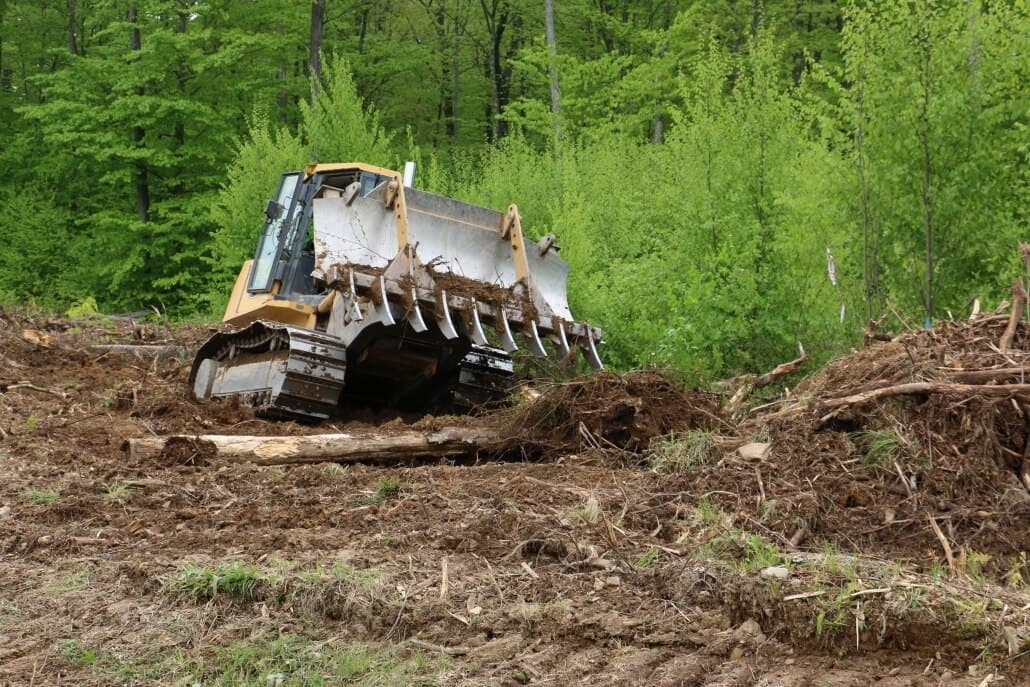

Dozer Rakes are designed for typical land clearing operations.

Kenco's dozer rake attachments are available for your crawler dozer as either a Standard Moldboard, Extreme Service Moldboard or C-Frame Full Dozer Brush Rake. Each dozer rake for sale assists in the piling of brush and debris while leaving the soil or dirt behind, to permit clean burn operations.

Dozer root rakes are useful for a wide variety of tasks:

Forestry operations
Separating debris from dirt
Land clearing

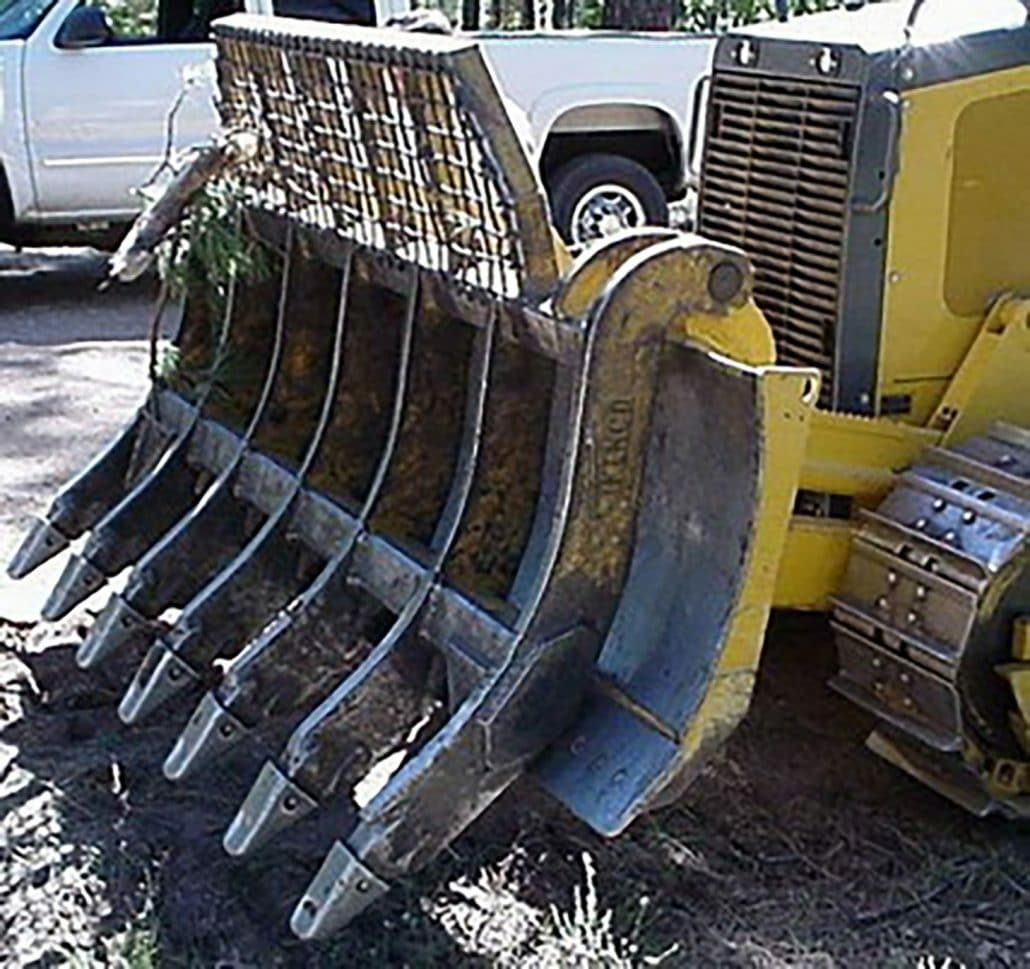

Standard Moldboard Rake

Standard Moldboard Rake - Installed

The Kenco Moldboard Rake is installed using two brackets welded to the existing blade. There are quick removal pins for ease of installation or removal when not in use. These same pins can be positioned to achieve more penetration of the soil. The rake retains the original function of your blade while gaining the ability to clear stumps, roots and other obstructions.

SPECIFICATIONS:

A400 steel tines
Available Sizes: 96", 108", 120", and 144" widths
Quick turnaround time

FEATURES AND BENEFITS:

Various widths to match machine size from D3 to D8 Dozers
Tine design allows for minimum ground clearance
Varying penetration depths on each rake widths

Extreme Service Moldboard Rake

The Kenco Extreme Service Clip-On Moldboard Rake is installed to the existing blade. The tines of the Extreme Moldboard extend to the entire height of the blade. Each is built to your specific machine's blade and retains the original function of the blade while gaining the ability to clear brush and debris efficiently. A brush guard is also available.

SPECIFICATIONS:

T-100 (A-514) steel tines

FEATURES AND BENEFITS:

Multi-tine design with curved profile to promote brush collection
Increase machine utilization over manual labor
Optional brush guard
Extended tine height
Replaceable teeth
Each Extreme Service Moldboard Rake is built specific to your machine

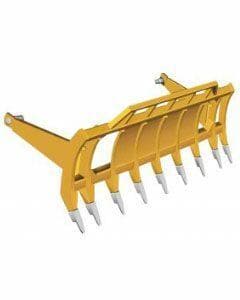

C Frame Mount Brush Rake

Kenco C Frame Mount Brush Rake is designed for heavy duty land clearing operations. They are used to pile brush and debris, leaving the soil and dirt behind to permit clean burn and cleanup. The multi-tine design installs in place of the dozer blade on the C-frame and works like a rake by gathering loose roots, stumps, brush, etc. and allowing the soil and dirt to pass through it.

STANDARD SPECIFICATIONS:
