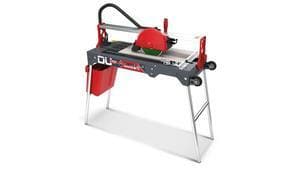

The RUBI DU-200-L is a tile saw with a mobile head, designed for renovations and light work.

The RUBI DU-200-L is a tile saw with a mobile head, designed for renovations and light work.

It's perfect for general ceramic tile cutting. The DU-200-L tile saw is especially suitable for cutting floor BIII type tiles and glazed stoneware (BIIa type) tiles.

The RUBI DU-200-L tile saw is equipped with a 1 hp (0.73 kW) direct-drive motor and thermal protector.


The head of the RUBI DU-200-L tile saw has four sliding bearings, and is foldable to 45º to perform miter cuts.

The RUBI DU-200-L tile saw includes a Ø 200 mm continuous rim diamond blade, for general cutting of ceramic tiles (CEV-PRO type). 8W water pump refrigeration of the blade with flow control valve to adapt the flow rate to each type of ceramic material.

Thanks to the 17-litre tank, the professional using the DU-200-L tile saw can make a lot of cuts without having to constantly replenish the water in the tank.

The RUBI DU-200-L tile saw can be equipped with a folding support table (ref. 25966), which, besides providing the tool with greater stability, offers professionals a working height of 90 cm. The DU-200-L tile saw has an aluminum table with a working surface of 60 x 37 cm. These tables can also be removed for easy cleaning of the equipment.

The handle that allows the movement of the head on the DU-200-L tile saw can change position, being adapted to both right-handed and left-handed users.

The DU-200-L tile saw incorporates a millimetric aluminum square as standard, and an adjustable lateral stop for repetitive and angular cuts, with a range of action from 0 ° to 45 °.

  • Ref. - 54975
  • EAN-13 -8413797549751
  • Cutting length - 85 cm
  • Diagonal cutting length - 60x60 cm
  • Cutting height - 35 mm
  • Miter Thickness cut -20 mm
  • Power supply - 230V-50Hz.
  • Revolutions per minute - 2790
  • With blade -
  • Outside diameter -200 mm
  • Length Width Height (machine overall dimensions) -136x39x102 cm
  • Net weight without packaging - 27,2 kg
  • Units per box - 1
  • Units per pallet - 6
