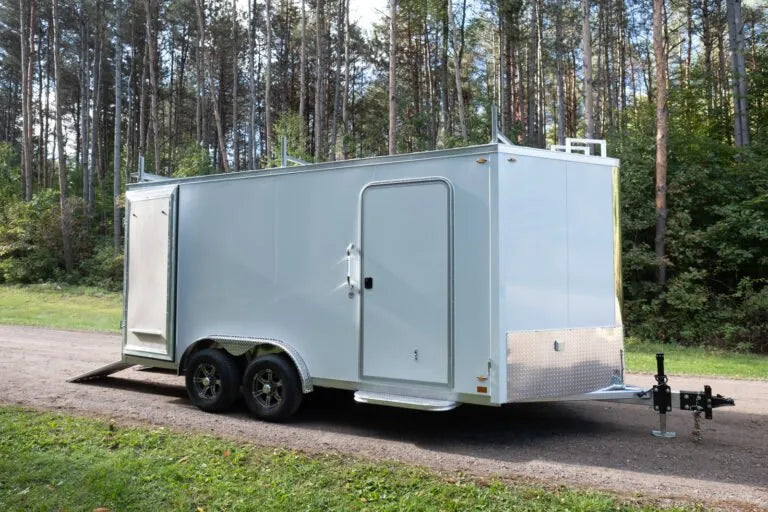

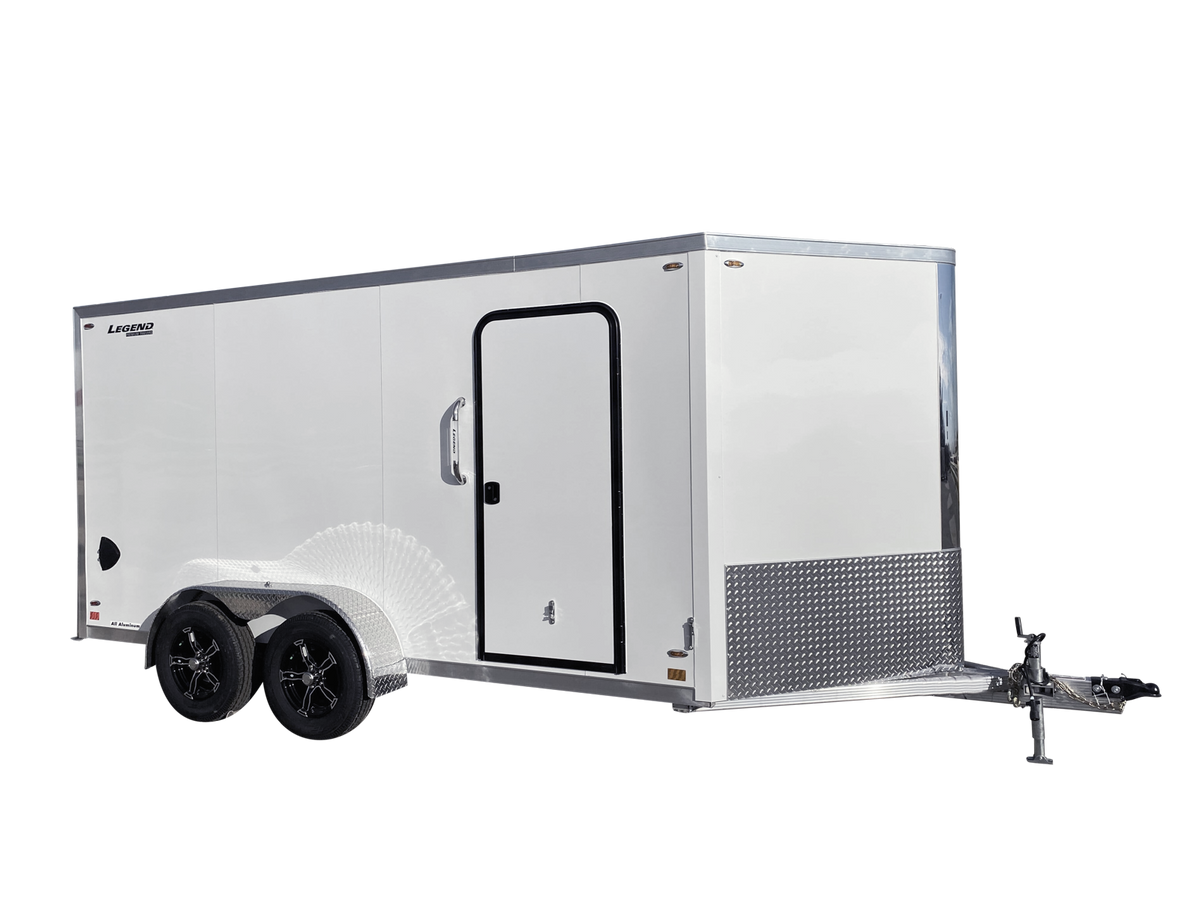

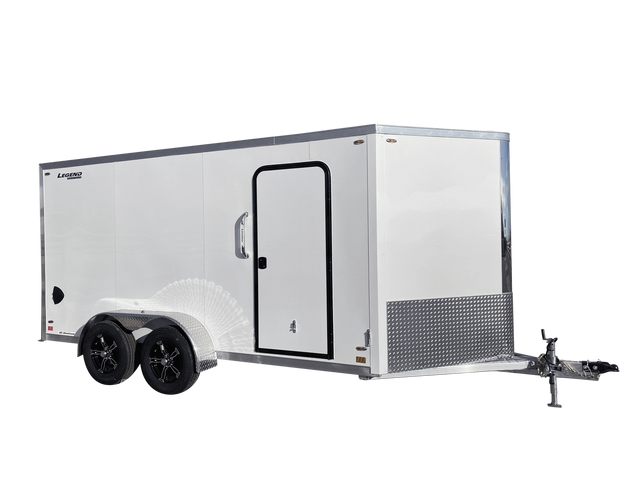

Flat Top V-Nose Aluminum Enclosed Cargo Trailer

Flat Top V-Nose Aluminum Enclosed Cargo Trailer — Premium Construction with Exclusive Features

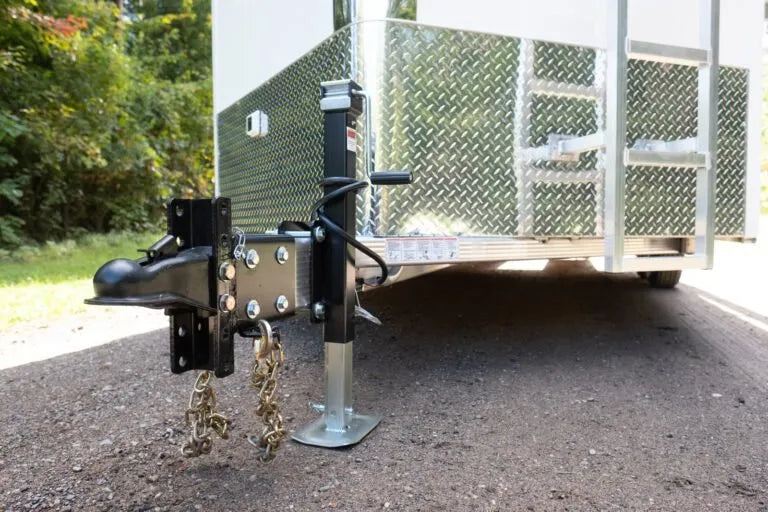

The Legend Flat Top V-Nose (FTV) aluminum enclosed cargo trailer is a premium-grade hauling solution engineered for contractors, tradespeople, and powersports enthusiasts who demand more from their equipment. Built on a fully welded aluminum frame with tighter structural spacings than competing brands, the FTV is available in single and tandem axle configurations to match a wide range of payload and size requirements. Distinctive features include a 3"x6" scalloped triple tongue design, a 3' radius V-nose trimmed in polished bright aluminum, a lighted grab handle at the RV-style side door, and Legend's exclusive self-mating rear ramp door with stainless steel hardware. Backed by a 10-year structural warranty and a 25-year aluminum roof warranty, this trailer is purpose-built for demanding commercial use.

Technical Specifications

Single Axle Dimensional Specifications

Tandem Axle Dimensional Specifications

Warranty Coverage

The Legend FTV stands apart from competing enclosed trailers through its combination of exclusive design elements — including the 3"x6" scalloped triple tongue, polished bright aluminum V-nose trim, lighted grab handle, and self-mating rear ramp door with stainless steel hardware — that are not found on other brands. The tighter 16" OC wall stud and roof bow spacing, combined with standard aluminum wheels, deliver a structural integrity and finish quality that most trailers in this class reserve as upgrades. The 10-year structural warranty and 25-year aluminum roof warranty reflect Legend's confidence in the long-term durability of this platform.

Key Features & Benefits

Exclusive Self-Mating Rear Ramp Door with Stainless Steel Hardware

Legend's proprietary self-mating rear ramp door design provides a tighter, more weather-resistant seal than conventional ramp doors, reducing the risk of water intrusion and cargo exposure. Stainless steel hardware resists corrosion in harsh jobsite and road environments, extending the service life of the door assembly without requiring frequent hardware replacement.

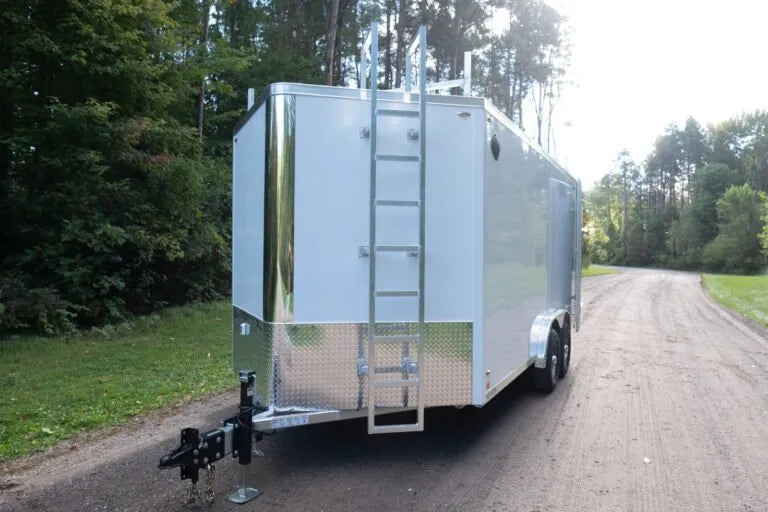

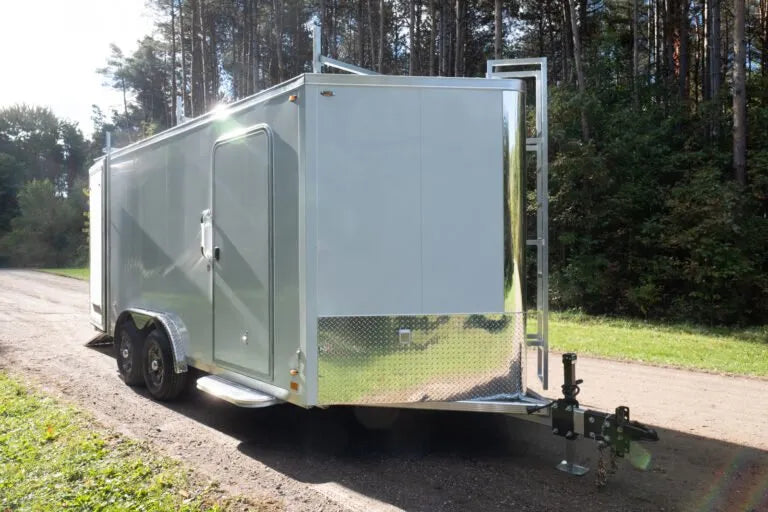

3' Radius V-Nose with Polished Bright Aluminum Trim

The large 3' radius V-nose improves aerodynamics during highway transport and provides additional interior storage space at the front of the trailer. The polished bright aluminum trim finish adds a professional appearance while protecting the nose from road debris and weathering.

Bonded, Screwless .030 Aluminum Exterior Skin

The bonded, screwless exterior eliminates exposed fasteners that can loosen, corrode, or create leak points over time — a common failure mode on lower-grade trailers. This construction method produces a cleaner exterior surface and reduces long-term maintenance demands for contractors who keep trailers in continuous service.

Tighter 16" OC Wall Stud and Roof Bow Spacing

Wall studs and roof bows spaced at 16" on center — tighter than many competing brands — provide a stiffer, more rigid structure that better withstands the racking forces encountered during loading, unloading, and transport over rough terrain. This spacing also provides more attachment points for interior accessories and shelving.

EZ-Lube Torsion Axles

EZ-Lube torsion axles simplify routine bearing maintenance by allowing grease to be added without disassembling the hub, reducing service downtime. Torsion-style suspension provides independent wheel articulation for a smoother ride and improved load stability compared to leaf spring setups.

Standard Aluminum Wheels

Gunmetal or black aluminum wheels are included as standard equipment — not an upgrade — reducing unsprung weight and providing a corrosion-resistant alternative to steel wheels. This is a feature that many competing trailers charge extra for, adding value at the base price.

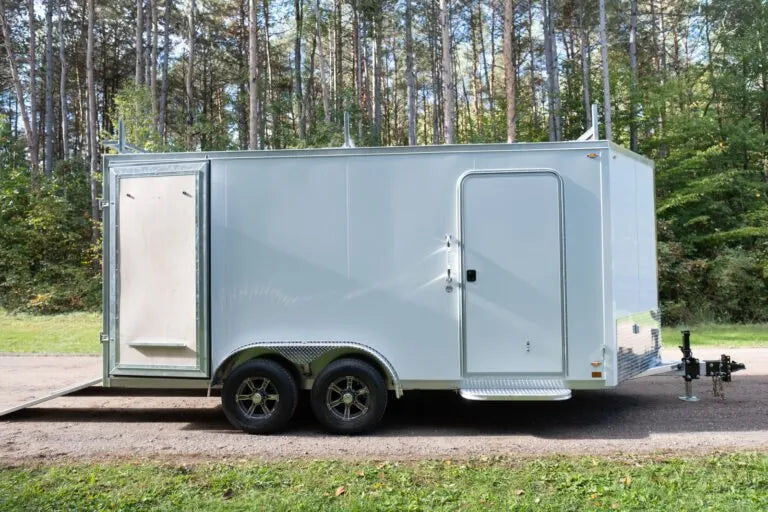

30" Curbside RV-Style Side Door with Lighted Grab Handle

The 30" curbside RV-style door with flush lock and aluminum holdback provides secure, convenient access to the trailer interior without opening the rear ramp. The lighted grab handle — an exclusive Legend feature — improves safety and usability during low-light jobsite conditions.

LED Interior and Exterior Lighting

Two 12V rectangular LED dome lights with a wall switch provide reliable interior illumination for loading and unloading in low-light conditions. Surface-mount LED exterior lighting delivers long service life and low power draw compared to incandescent alternatives.

4 – 1,000# D-Ring Tie Downs Included

Four 1,000# D-rings are included loose with the trailer, giving contractors immediate cargo securing capability without purchasing additional hardware. The D-rings can be positioned as needed to accommodate varying load configurations.

Common Applications

General Cargo Hauling

The FTV's enclosed aluminum construction protects tools, materials, and equipment from weather and theft during transport between jobsites, making it a versatile daily-use trailer for contractors across trades.

ATV / UTV Transport

The self-mating rear ramp door and wide interior widths (up to 79" interior) accommodate side-by-side UTVs and ATVs, while the 4 included D-rings provide immediate tie-down points for securing powersports equipment.

Powersports

The enclosed, weather-tight construction protects motorcycles, snowmobiles, and other powersports equipment from road debris and weather during transport, with the RV-style side door providing convenient walk-in access.

Lawn & Landscape Operations

Landscape contractors can load mowers, blowers, trimmers, and hand tools through the rear ramp door, keeping equipment secured and protected from weather between jobs throughout the workday.

Construction Jobsite Use

The FTV serves as a mobile tool and material storage unit on active construction sites, with the flush-lock side door and enclosed aluminum body providing a level of security and weather protection appropriate for valuable trade equipment.

Compatible Materials

• General cargo and boxed freight
• ATVs and UTVs (side-by-sides)
• Motorcycles and powersports equipment
• Lawn and landscape equipment (mowers, trimmers, blowers)
• Construction tools and materials
• Snowmobiles and recreational equipment

Product Documents

• Flat Top V-Nose | Single Axle | Product Guide PDF
• Flat Top V-Nose | Tandem Axle | Product Guide PDF
• Manufacturer's Limited Warranty Information

Frequently Asked Questions

Q: What is the difference between the single axle and tandem axle configurations?
A: The single axle FTV has a GVWR of 2,990# and is available in 6x13, 6x15, and 7x15 sizes with 1 idler brake and a 2" straight coupler. The tandem axle FTV has a GVWR of 7,000#–8,500# and is available in sizes from 6x15 up to 7x23, with 2 electric brakes and a 2 5/16" straight coupler.

Q: What warranty does the Flat Top V-Nose carry?
A: The FTV is covered by a 10-year limited structural warranty, a 25-year aluminum roof warranty (covering corrosion and deterioration), and a 1-year commercial use warranty. The warranty is non-transferable and applies to the original retail purchaser. Warranty registration must be completed within 15 days of purchase.

Q: Are the aluminum wheels standard or an upgrade?
A: Gunmetal or black aluminum wheels are standard equipment on the FTV — not an optional upgrade.

Q: What components are excluded from the Legend Limited Warranty?
A: Tires, axles, brake components, suspension components, couplers, jacks, doors, windows, engineered wood and wooden flooring, lights and other electrical fixtures, batteries, and other components are warranted by their respective manufacturers and are excluded from the Legend Limited Warranty. Trailers used as rental units or dealer demos are warranted for 90 days only.

Q: What is the interior height of the FTV?
A: All FTV models — both single and tandem axle, across all sizes — have a 78" interior height.

Q: Are ceiling finishes included as standard?
A: Ceiling finishes are listed as optional on the FTV. The floor is standard 3/4" engineered wood panel and interior walls are standard 3/8" engineered wood panel across all models.
