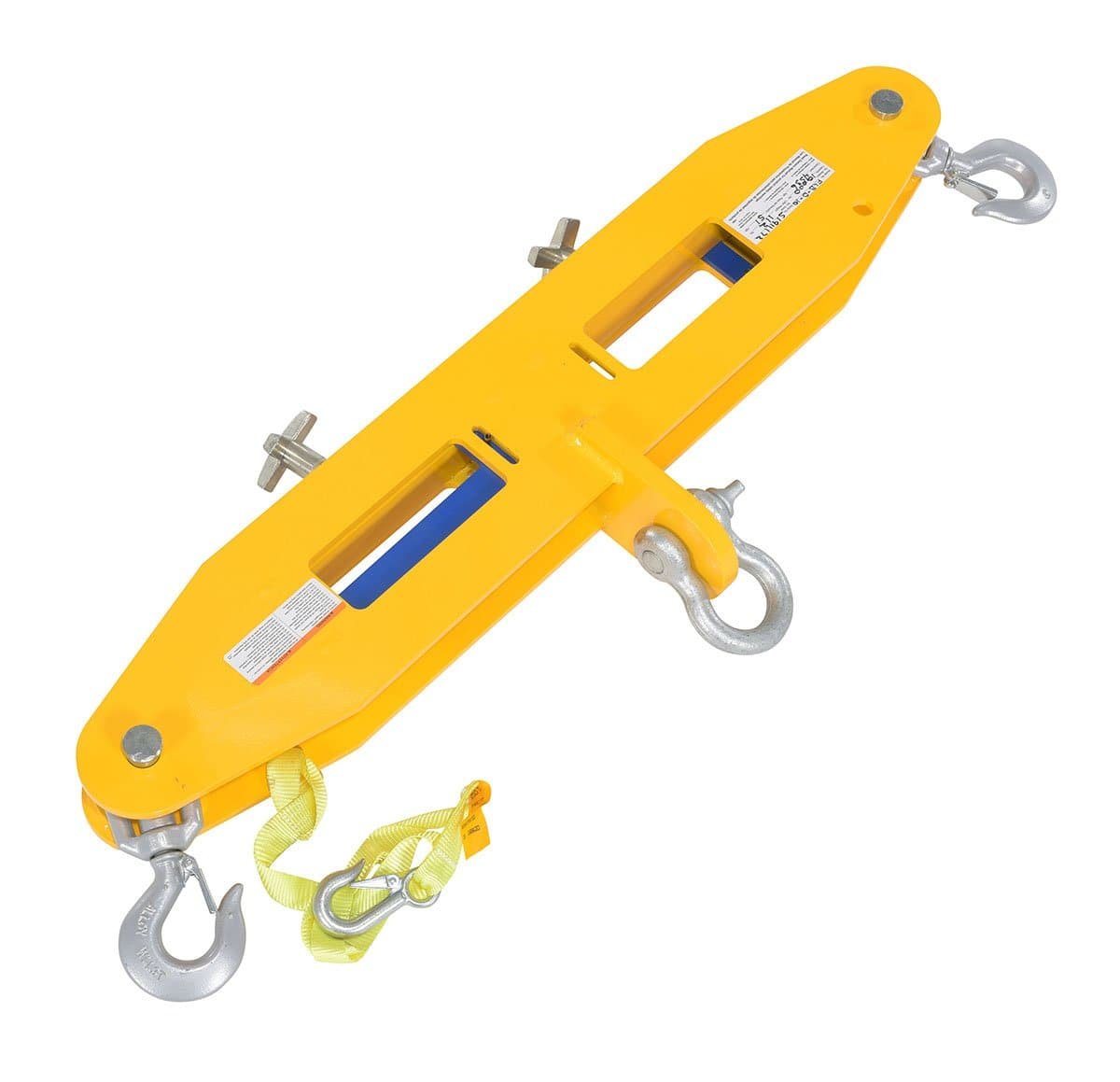

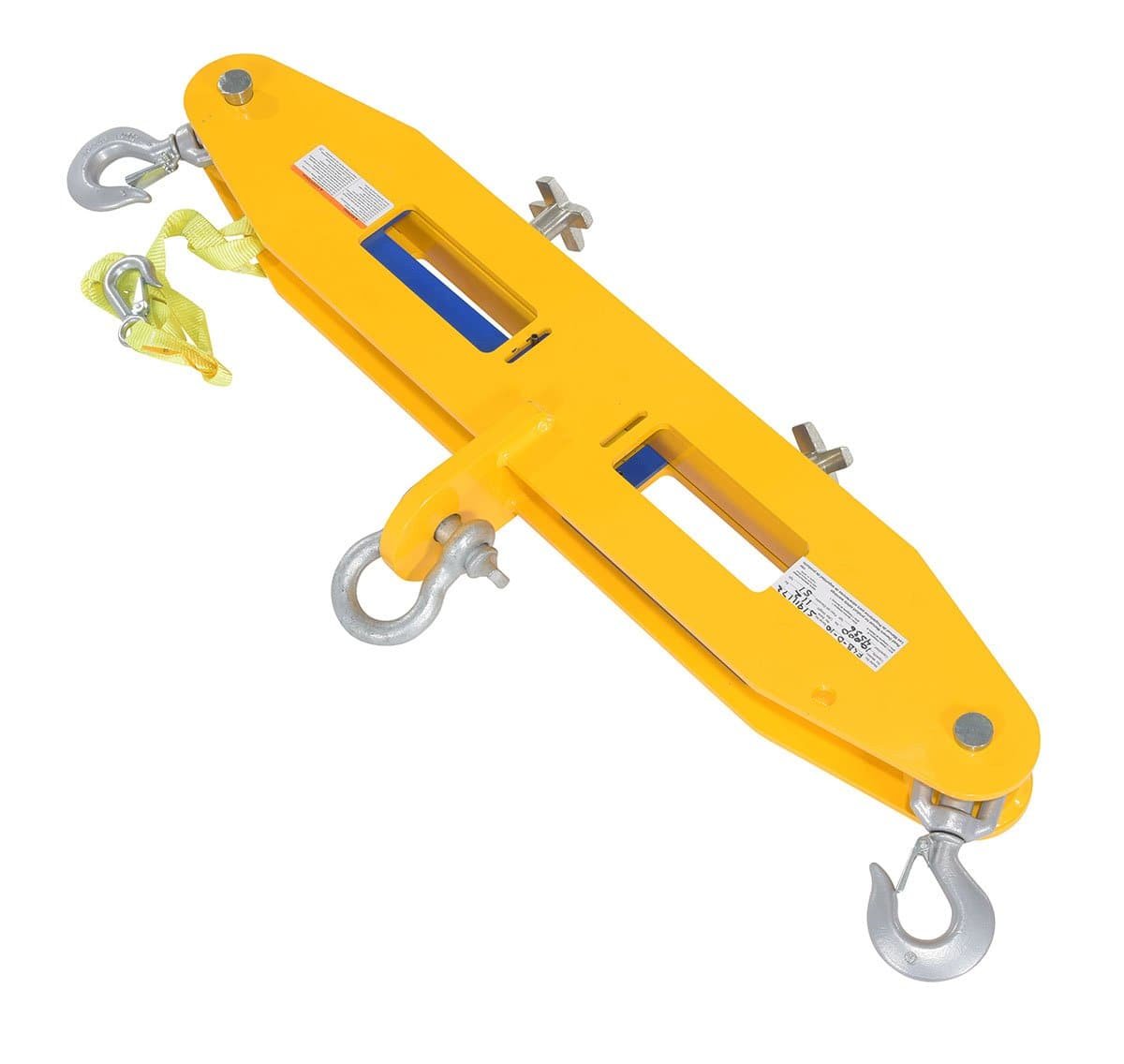

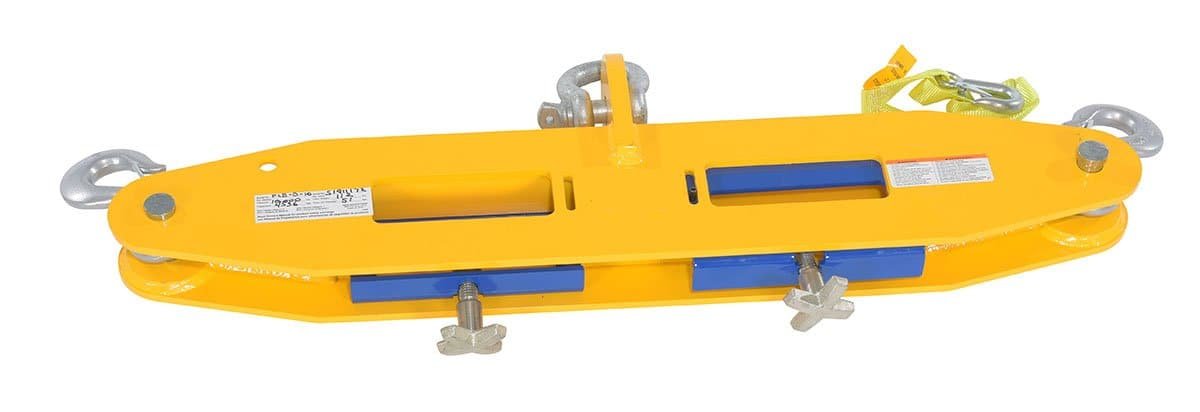

Forklift Lifting Beam

A Forklift Lifting Beam is the perfect asset for maneuvering and transferring heavy objects.

The centrally located hook between two fork pockets allow the user to safely attach to the unit and transport to the desired location. Hooks are also attached to the outside of the unit for a more secure lifting experience. The strong steel construction with a bright finish enables high visibility from both near and far. Secure to the fork truck by means of a 48" long safety restraint and screw clamps.

• Large fork openings for easy attachment
• Durable construction for long term use
• Smooth finish for easy handling
• Yellow surface color for clear visibility

Fork Lifting Beam
Model	Image	PDF's	Overall Size (WxLxH)	Usable Fork Pocket Size (WxH)	Capacity (lbs)	Wt. (lbs)
FLB-D-4			4-7/8"x40"x17-1/16"	7" x 2-1/2" (13" centers)	4,000	100
FLB-D-6			4-7/8"x40"x17-1/16"	7" x 2-1/2" (13" centers)	6,000	105
FLB-D-10			4-3/4"x40"x15"	7" x 2-1/2" (13" centers)	10,000	112

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
