The original and most modern solution in pipe and sewage drilling for house connections and surface water with GÖLZ KB 350 and Stihl-2-stroke-engine

  • Most advanced design
  • Top class components by magnesium high-pressure die casting compact and leightweight design, approved to operate under constricted space
  • Proven STIHL-Engine technology combined with GÖLZ Equipment concept
  • esure highest reliabiltiy, efficiency and safety in operation
  • Independant operation- where no public power supply is available.

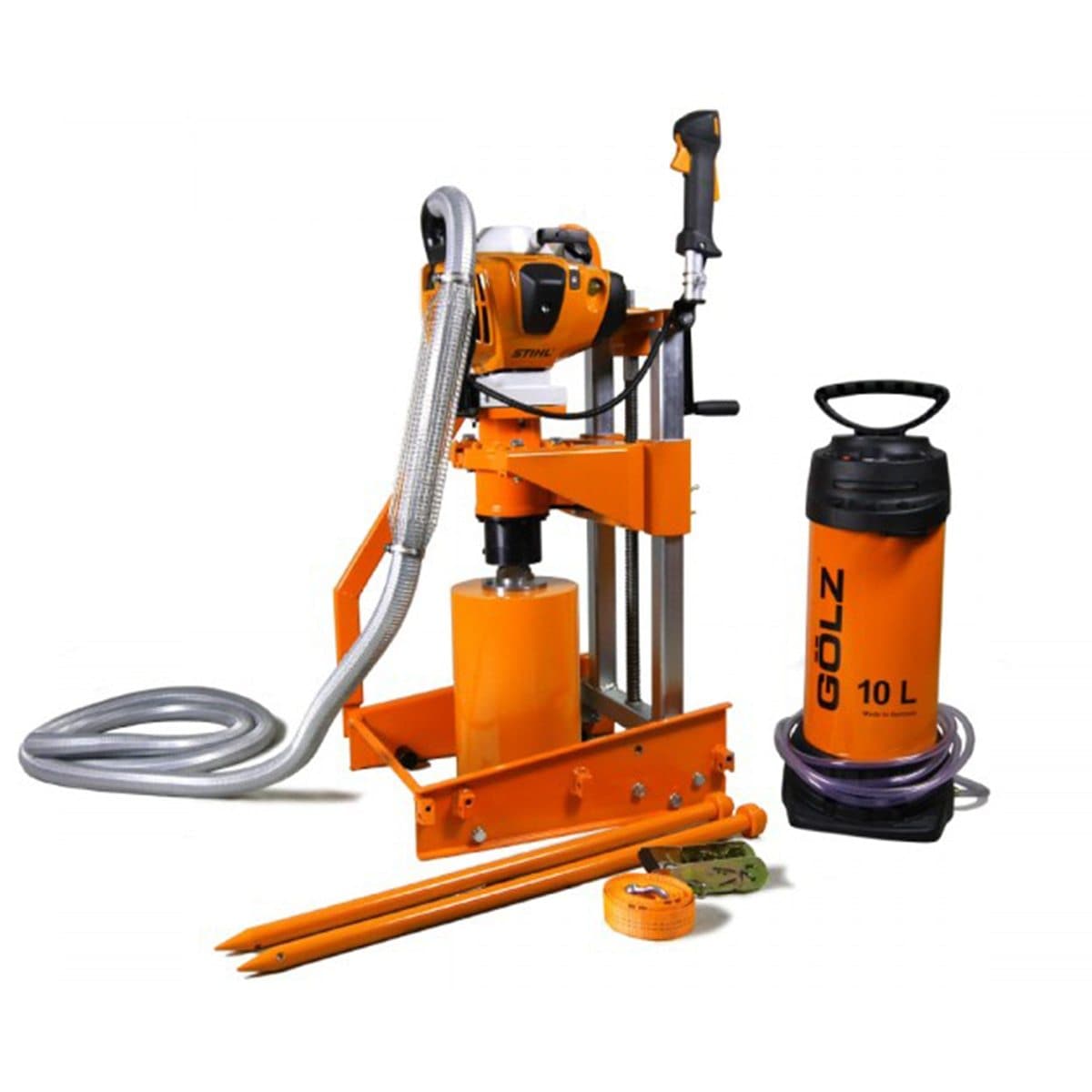

Gölz KB 350 standard package

  • Drill stand, travel length 18" (450 mm),
  • Pipe base, self centering
  • Ground frame with 2 ground fixing spikes
  • Fastening strap 2,1 meter with clamping ratchet for fixing directly on sewage pipe
  • STIHL 2-stroke-engine, 2,8 kW (3,8 PS)
  • Exhaust gas hose, 4m
  • Gearbox with water swivel, 300 rpm
  • Drilling diameter: max в€љв€Џ 14" (354 mm)
  • Drill bit connection: 1¼” UNC
  • Pressurized 10 liter water tank
  • Total weight with Stihl engine: 45 kg

The KB350 drill stand is available with petrol-. hydraulic-, air- or electric motor.


KB350 - STIHL 2-stroke-engine
Motor STIHL 2-stroke-engine
Power 2,8 kW (3,8 PS)
RPM 300 min-1
Drilling Diameter Ø 14" (354 mm)
Drill bit connection 1¼” UNC
Water connection Brass gland
Order number 0295 353 2000
