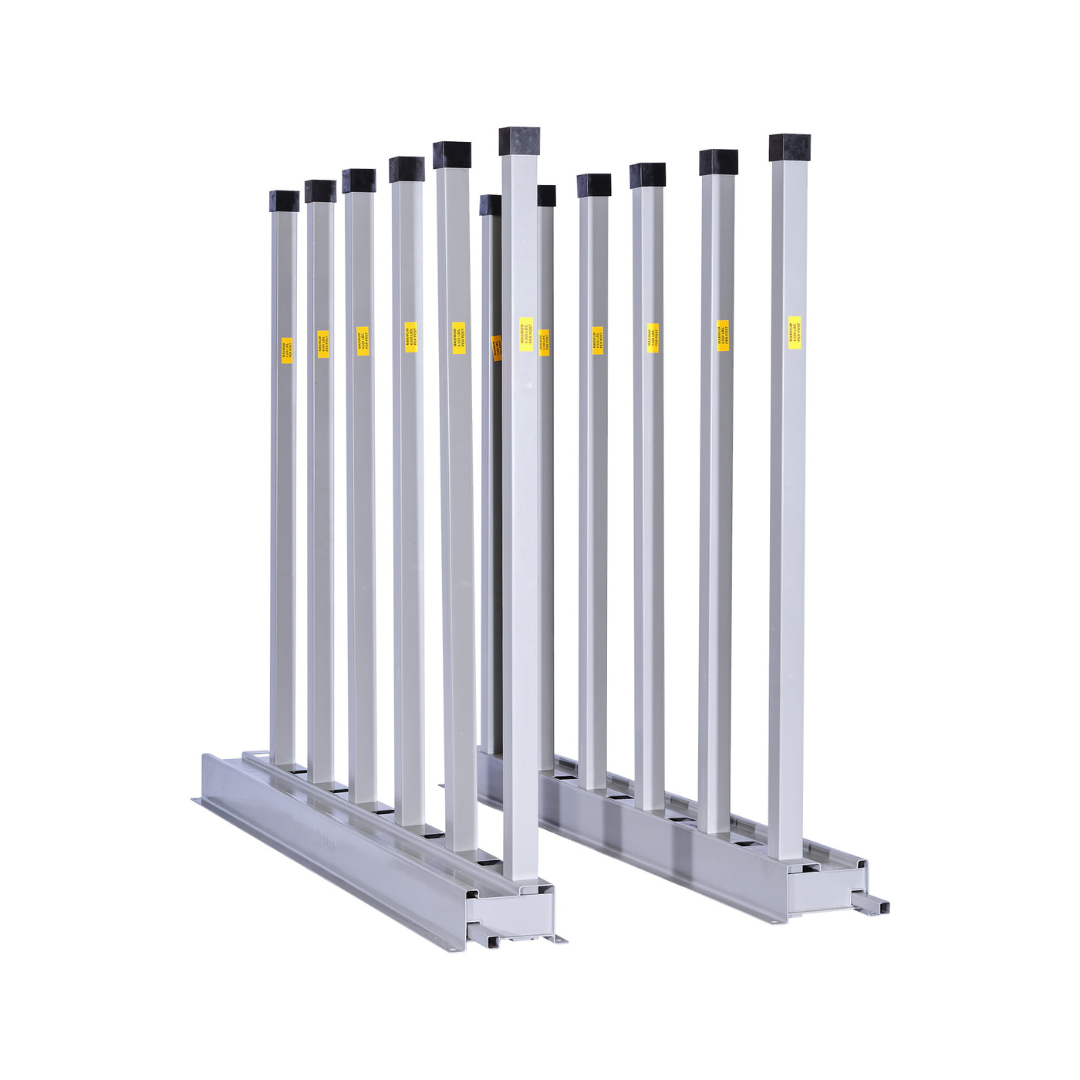

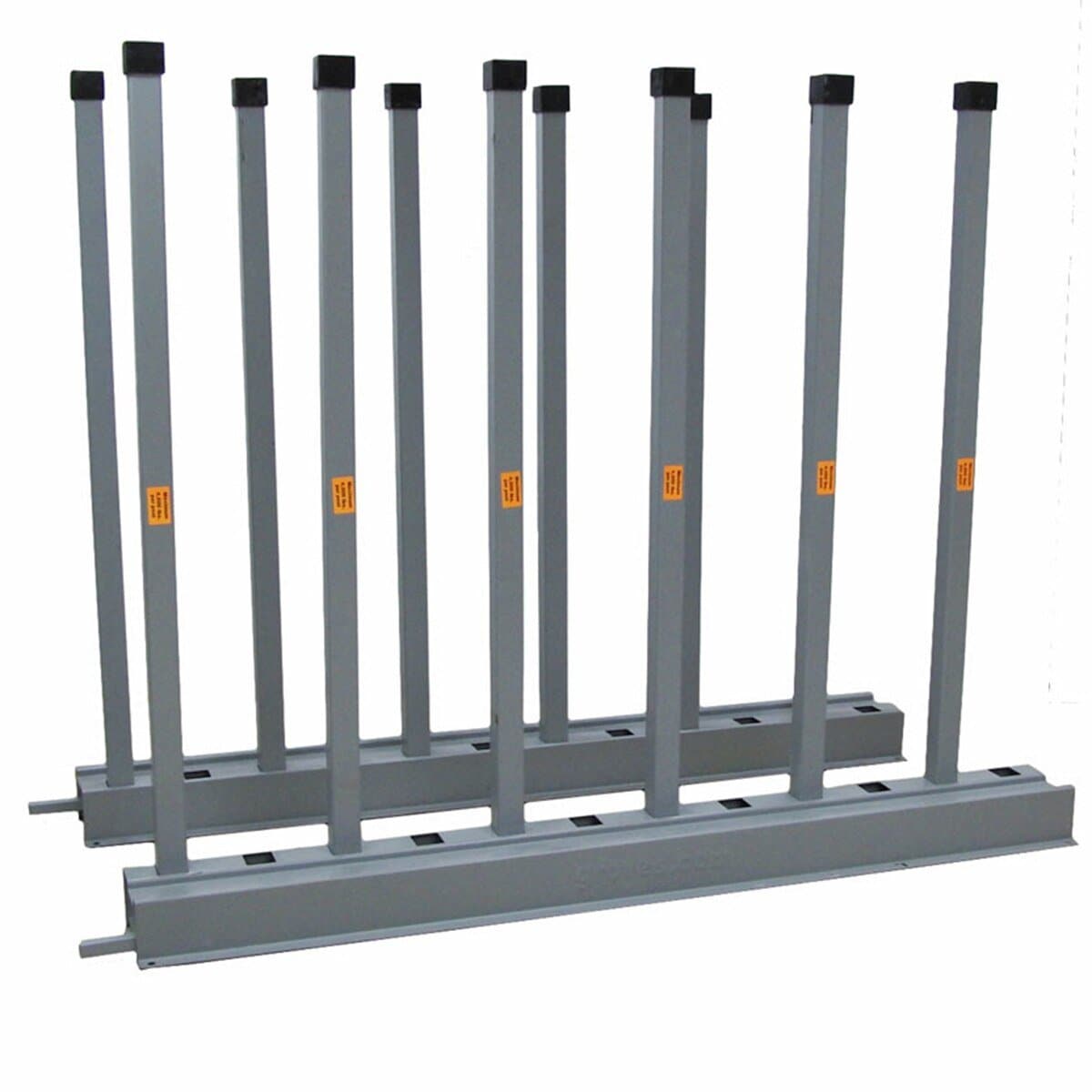

Groves Heavy Duty Bundle Rack Long

$1,660⁰⁰

Shipping calculated at checkout.

Groves Bundle Long Options

Bundle Rack (Base Rail) - 7.5' | 5 Openings Bundle Rack (Base Rail) - 15' | 11 Openings Bundle Rack (Base Rail) - 30' | 23 Openings Bundle Rack (Base Rail) - 45' | 35 Openings Bundle Rack (Base Rail) - 60' | 47 Openings Bundle Rack (Base Rail) - 75' | 59 Openings Bundle Rack (Post) - 11" wide x 5.5" high x 90" Bundle Rack (Post) - 2.5" x 2.5" x 72" Rubber Cap Fits 2.5" x 2.5" Post

Product variants

Safe & Secure Payments.

9,000 Lb. Capacity Bundle Rack for storing slabs

Patent # 7143901
Heavy duty powder coated outside rails are designed with slots to hold 2 x 4
2 x 4
Outside rails have 2.5" square holes spaced 5" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.

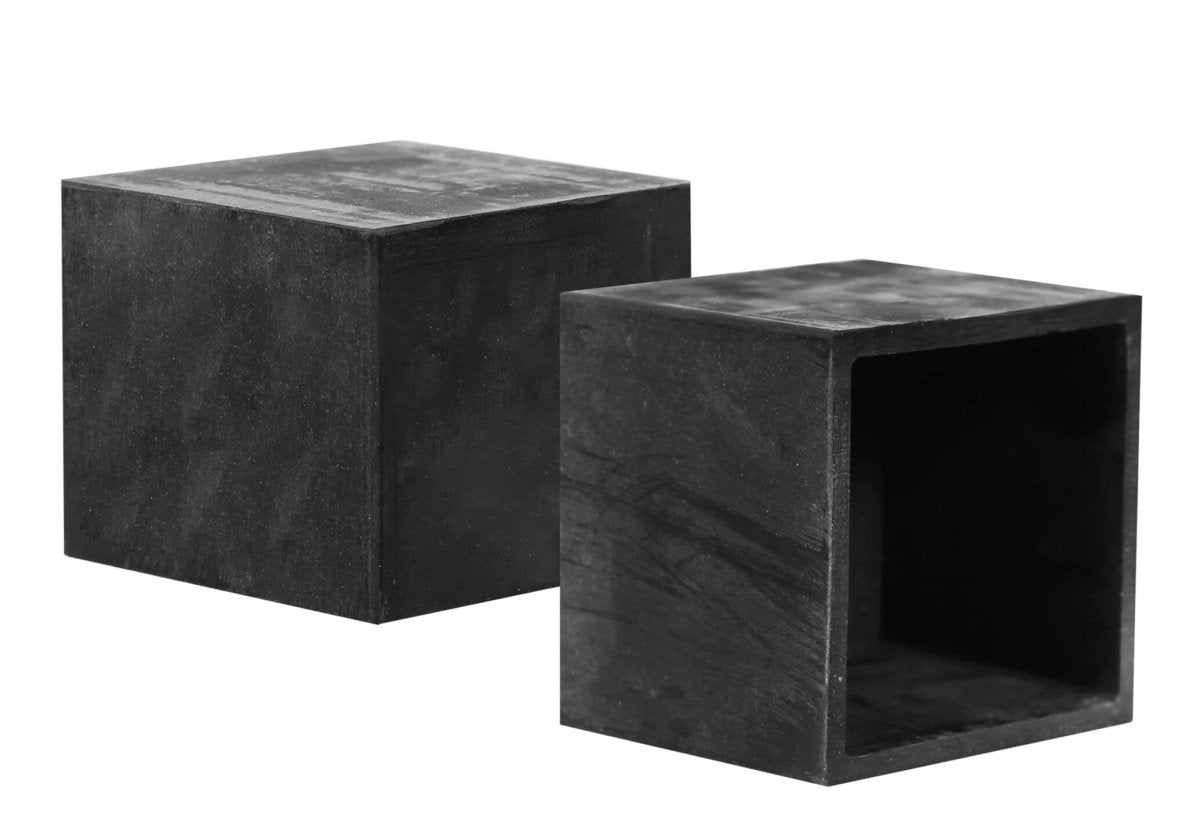

2.5" square tube posts with 2.5" square rubber post caps are used to prevent scratches.
Rails shipped with 11" connector tube for butting rails together in a straight line.
Note: When assembled the overall usable height of the post is 5.5" less than listed. Example: A 72" post will be 66.5" above the top of the outside rail.

Description

Store bundles or slabs up to 9,000 lbs. between posts. (4,500 lb. capacity per post.). SAFETY WARNING: Use .5" holes located on bottom flange for securing rails to the floor. MAXIMUM WEIGHT ALLOWED PER BUNDLE: 9,000 LBS. (4,500 LBS. PER POST)

The Heavy-Duty Bundle Rack is designed to utilize its 90″ rails for jumbo size stone bundles!

SUGGESTED PACKAGES FOR HEAVY DUTY BUNDLE RACK – LONG
Part No.	Length	Openings	Parts in Package	Weight lbs.
5-H7290	7.5″	5	2 BR2.5-90, 12 SP-72	558
11-H7290	15’	11	4 BR2.5-90, 24 SP-72	1,116
23-H7290	30’	23	8 BR2.5-90, 48 SP-72	2,232
35-H7290	45’	35	12 BR2.5-90, 72 SP-72	3,348
47-H7290	60’	47	16 BR2.5-90, 96 SP-72	4,464
59-H7290	75’	59	20 BR2.5-90, 120 SP-72	5,840

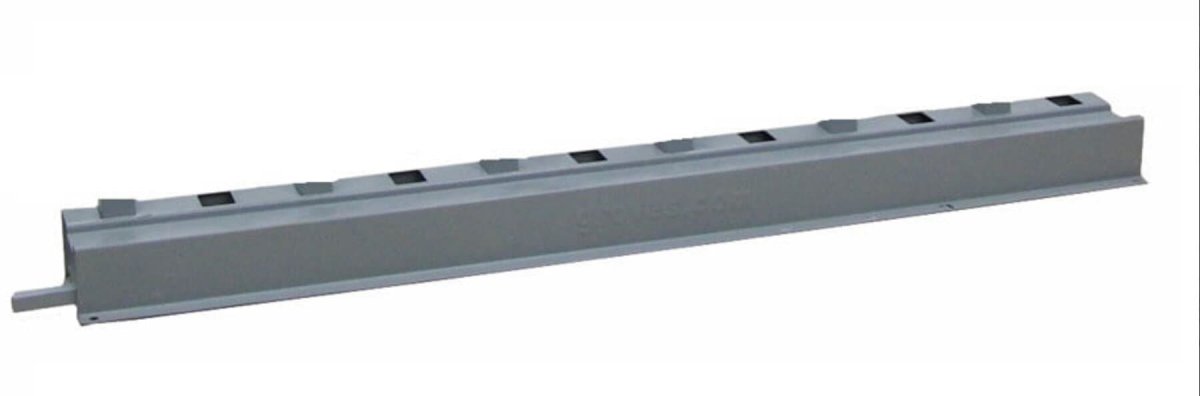

Outside Rail For 9,000 Lb. Capacity Heavy Duty Bundle Rack Long - BR2.5-90

Patent # 7143901
Heavy duty powder coated outside rails are designed with slots to hold 2 x 42 x 4
Outside rails have 2.5" square holes spaced 5" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
Note: When assembled the overall usable height of the post is 5.5" less than listed. Example: A 72" post will be 66.5" above the top of the outside rail.
Rails shipped with 11" connector tube for butting rails together in a straight line.

Dimensions: 11" wide x 5.5" high x 90" long butt together for desired length.

Weight: 107 Lbs.

SAFETY WARNING: Use .5" holes located on bottom flange for securing rails to the floor. MAXIMUM WEIGHT ALLOWED PER BUNDLE: 9,000 LBS. (4,500 LBS. PER POST)

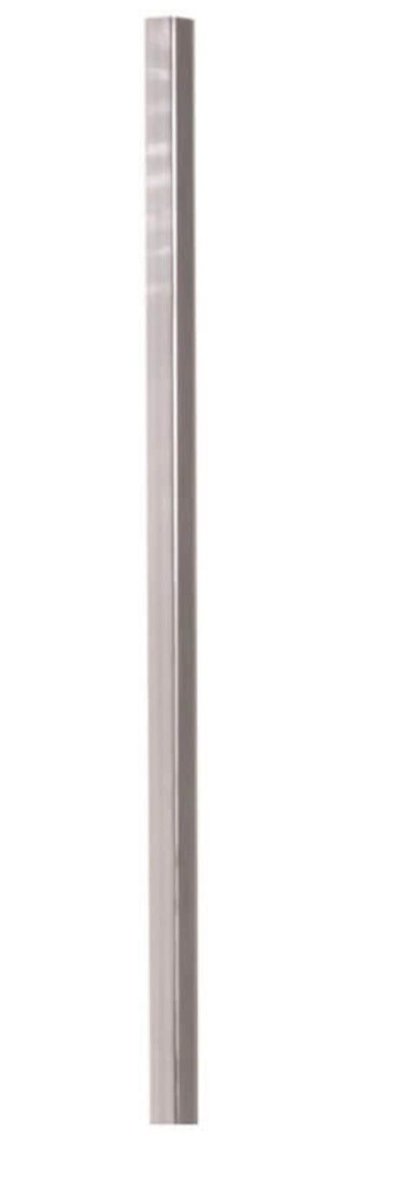

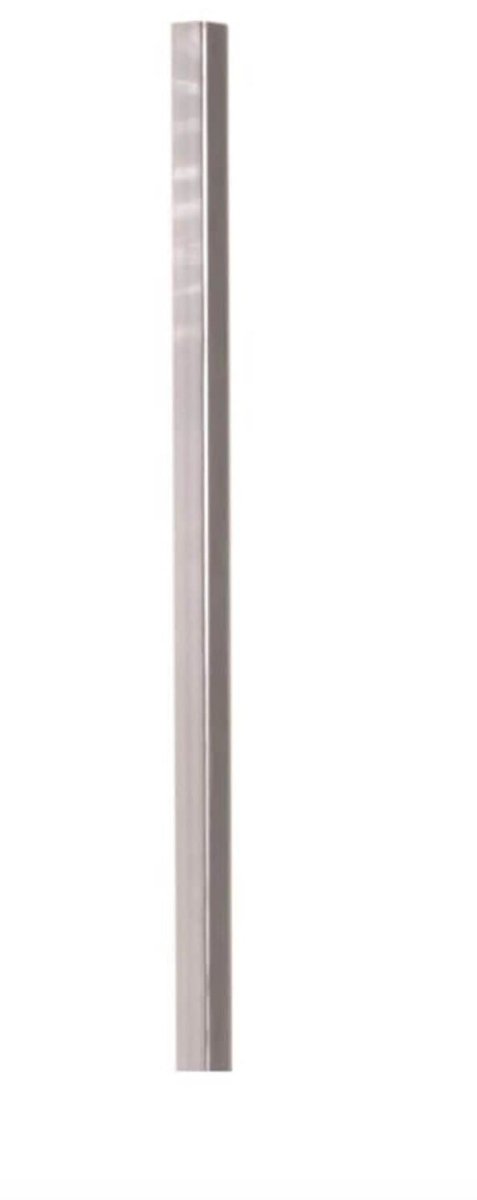

72" Post for Heavy Duty Bundle Racks

For storing taller oversized slabs
Comes complete with 2.5" x 2.5" Post Caps
4,500 lb. capacity per post (when using two next to each other the opening is 9,000 lbs.)
Heavy-duty powder coated finish
NOTE WITH BUNDLE RACK PACKAGES: When assembled the overall height of the posts are 5.5" less then listed (EXAMPLE: 72" post will be 66.5" above the top of the rail)

Dimensions: 2.5" x 2.5" x 3/16" wall thickness, Weight: 29 Lbs.

Description: Designed to work with our BR2.5 & BR2.5-90 Heavy Duty Bundle Rails (Posts come complete with Bundle Rack packages but are also sold separate).
