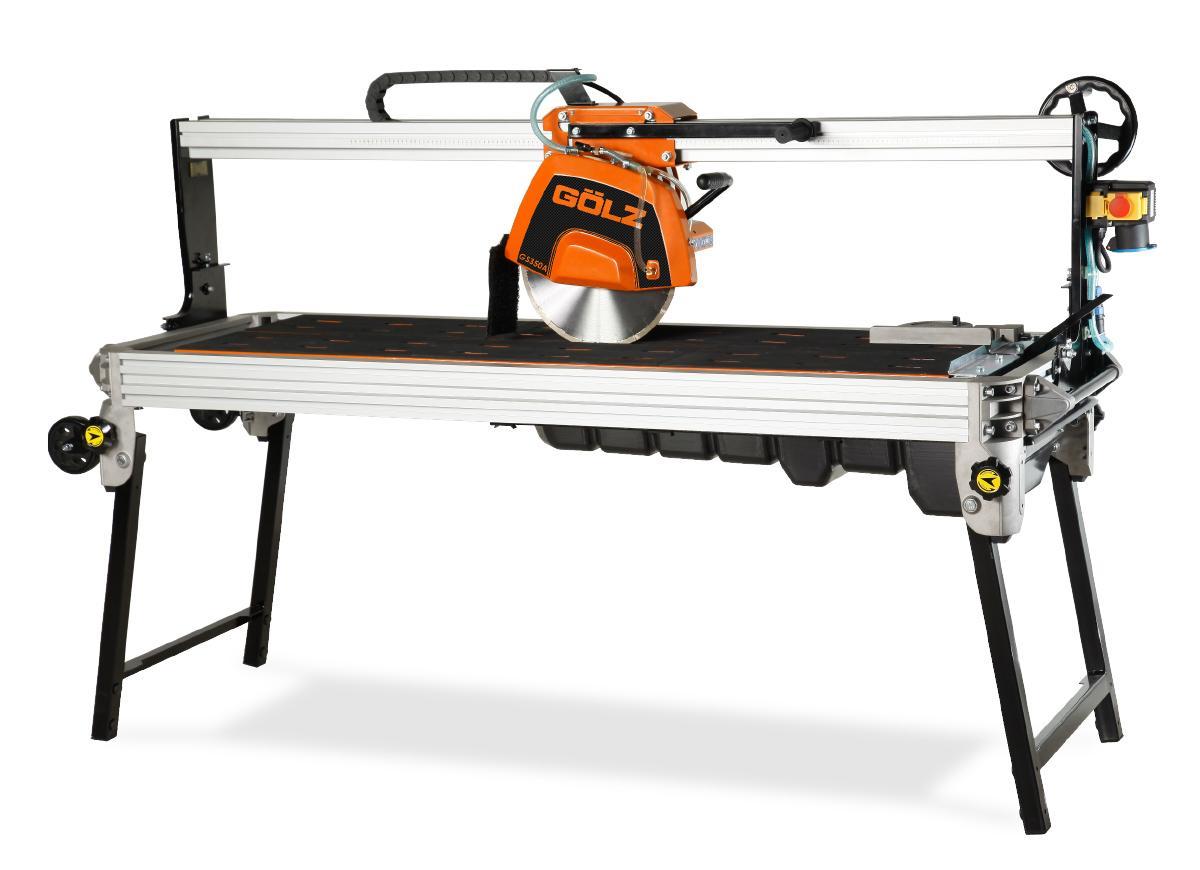

GS350A Bridge Tile Saw
SKU# GS350A
$4,91571
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
GS350A Bridge Tile Saw
From
$4,91571
Unit price
/
Make a Selection
Professional aluminium bridge saw! The professional solution for long granite and natural stones.
Aluminium Bridge Saw Cutting length 59 in. (2,000 mm) Blade-14 in. (350 mm) or 78.75 in. (2,000 mm) Blade-14 in. (350 mm)
- Much more stronger aluminium structure
- Cutting head adjustable up to 45°
- Max. cutting length up to 2 meter
- Removable water tub, easy for cleaning
- Electric water pump with quick coupling, easy for changing the pump
- Foldable legs
- Transport wheel, easy for moving and loading
- Adjustable cutting length
- The front shield prevents operator against water spray
- Embedded cable protection chain, protects cables against damage
- Pluggable blade guard for easy changing of diamond blade
- Handle wheel feeding system, easy for long cutting
- Special water nozzle for optimized water cooling
- Removable cutting table, easy for cleaning
Specifications
| GS350A-XL | GS350A | ||
| Motor | Electric, 110V, 20A, 50Hz, IP54 | Electric, 110V, 20A, 50Hz, IP54 | |
| Power | 2,2 kW |
|
|
| Max. depth | 4.375 in. (110 mm) | 4.375 in. (110 mm) | |
| Max. blade size | 14 in. (350 mm) |
|
|
| Arbor hole | 1 in. (25,4 mm) | 1 in. (25,4 mm) | |
| Cutting length | 70.875×78.75 in. (1800×2000 mm) |
|
|
| Shaft speed | 2,800 min-1 | 2,800 min-1 | |
| 45° miter-cut | Built-In | Built-In | |
| Water pump | S2, 110V, 50 Hz, 55W | S2, 100V, 20A, 50 Hz, 55W | |
| Blade flange size | 3.5 in. (90 mm) | 3.5 in. (90 mm) | |
| Transport wheels | yes | yes | |
| Cutting table (LxW) | 78.75×20.875 in. (2000×529 mm) | 59×20.875 in. (1650×529 mm) | |
| Dimensions (LxWxH) | 91×29×58.875 in. (2310×740×1490 mm) | 71.25×29×58.625 in. (1810×740×1490 mm) | |
| Weight | 297lbs (135 kg | 249lbs (113 kg) |
