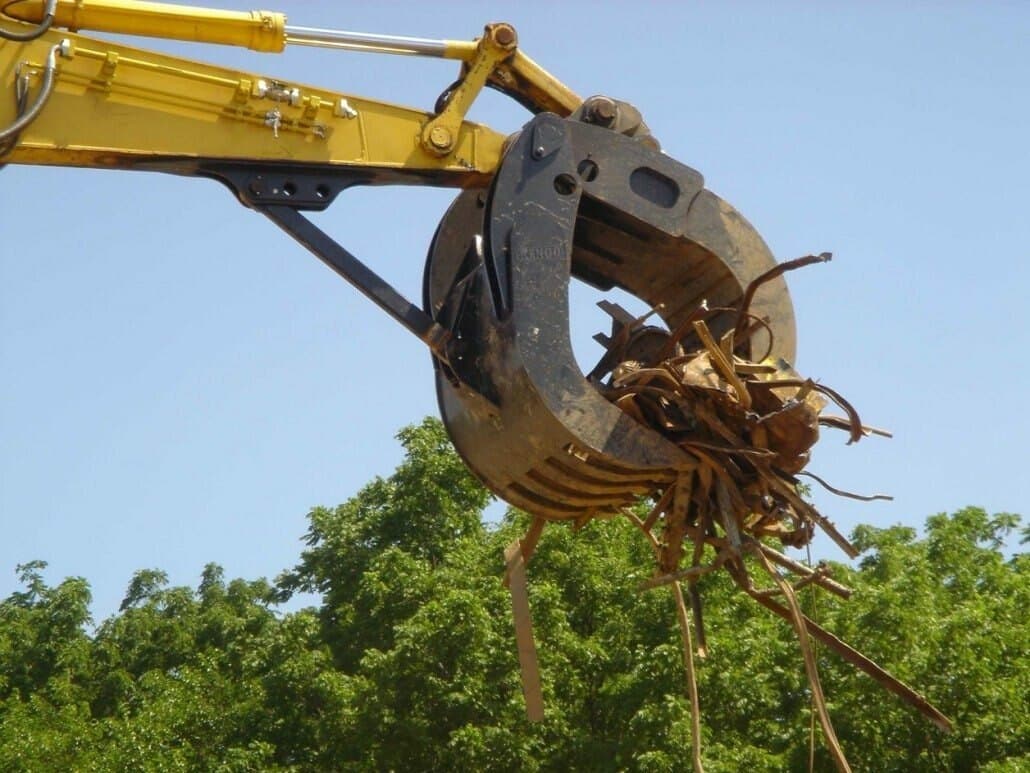

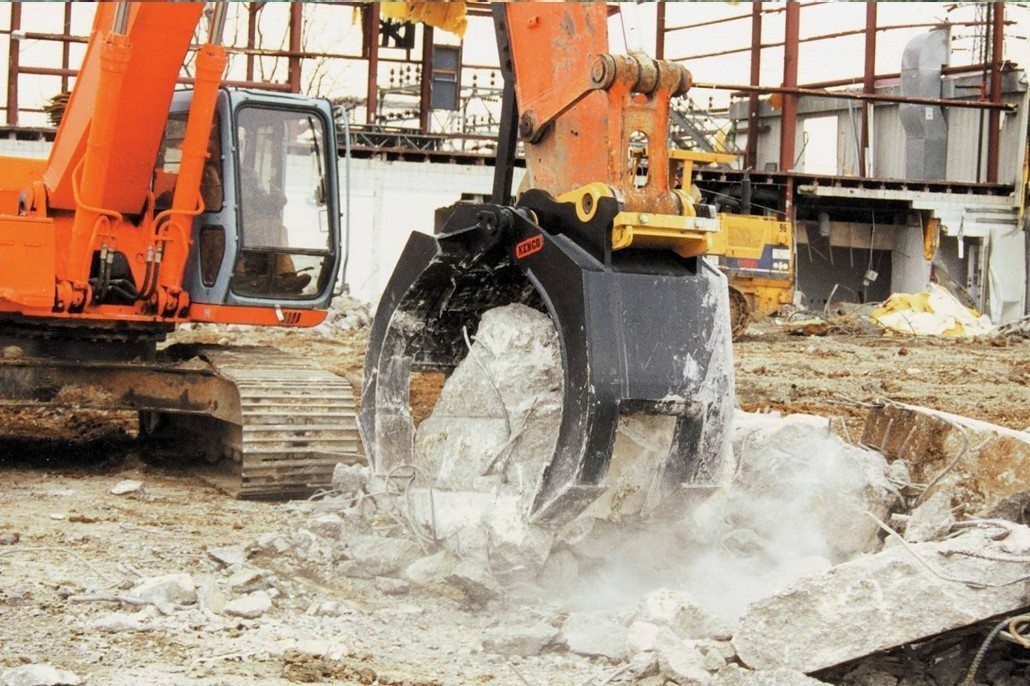

Grab and Load any material and handle the toughest demolition projects

Kenco extreme duty demolition Hardrock Grapples are designed and constructed to provide years of service - in the toughest conditions. Only Kenco builds an excavator grapple that maintains proper curl when working with a coupler.

This demolition grapple is available to fit direct pin-on, pin grabber, or our Wedgebolt Coupler for fast and easy attachment changes.

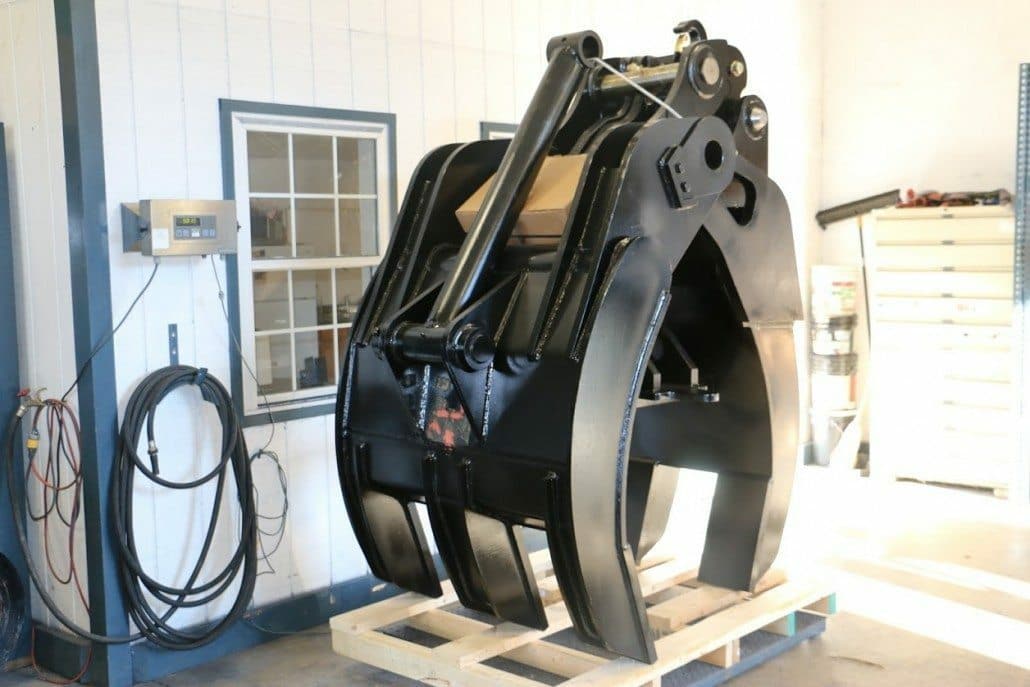

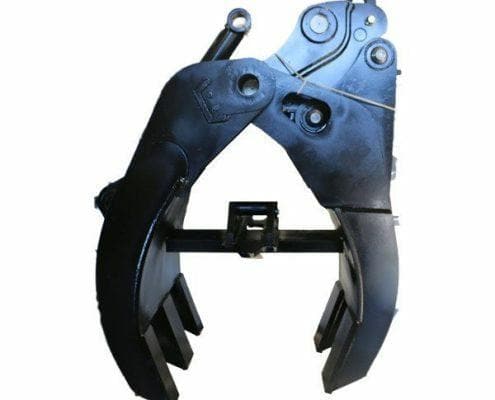

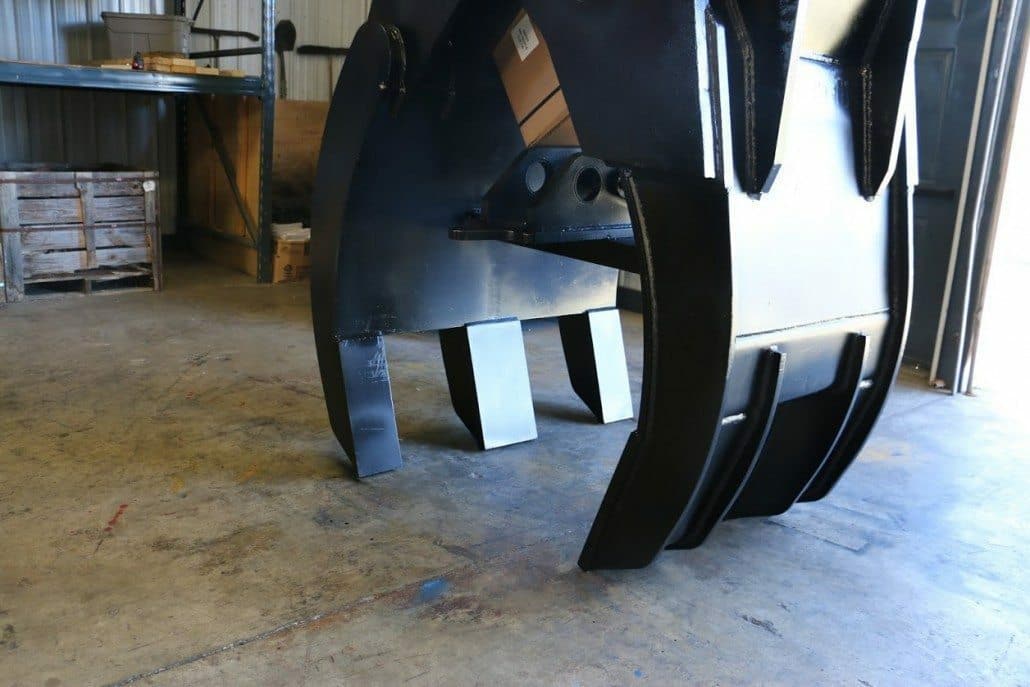

Standard two over three tine configuration, with custom tine arrangements available on request. Kenco Hardrock Grapples are built with AR 400 Steel for a long service life. View photos of our excavator grapples for sale below.

Standard 2 over 3 tine configuration, with custom configurations available upon request.

Replaceable tips extend production life of the attachment.

SPECIFICATIONS

Series/category EX150 Series EX200 Series EX250 Series EX300 Series EX400 Series EX500 Series
Jaw OPEN 90 inches 105 inches 105 inches 117 inches 133.25 inches 151 inches
Jaw CLOSED 8 inches 10 inches 10 inches 10 inches 15.5 inches 15.5 inches
Width FRONT 28 inches 28 inches 30 inches 30 inches 32 inches 37 inches
Width Rear 44 inches 44 inches 48 inches 48 inches 52 inches 60 inches
Height 47 inches 53 inches 53 inches 60 inches 70 inches 80.625 inches
Tip Size (in) 15 X 6.5 X 1 15 X 6.5 X 1.25 15 X 7.5 X 1.50 15 X 7.5 X 1.50 20 X 8.25 X 2 23 X 10 X 2.5
Inner Plate 1/2 inch 1/2 inch 5/8 inch 5/8 inch 5/8 inch 3/4 inch
Outer Plate 3/8 inch 1/2 inch 1/2 inch 5/8 inch 5/8 inch 3/4 inch
Ext. Plate 1/2 inch 5/8 inch 3/4 inch 1 inch 1 - 1/4 inch 1 - 1/2 inch
Web Plate 3/8 inch 1/2 inch 5/8 inch 5/8 inch 5/8 inch 3/4 inch
Total Weight 2000 lbs 2600 lbs 2900 lbs 3950 lbs 5420 lbs 7400 lbs
