Heavy Duty Thickness Planer Ip-2209-HD

SKU 1014767
Save $2,212.80 Save $2,212.80
Original price $11,893.80
Original price $11,893.80 - Original price $11,893.80
Original price $11,893.80
Current price $9,681.00
$9,681.00 - $9,681.00
Current price $9,681.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

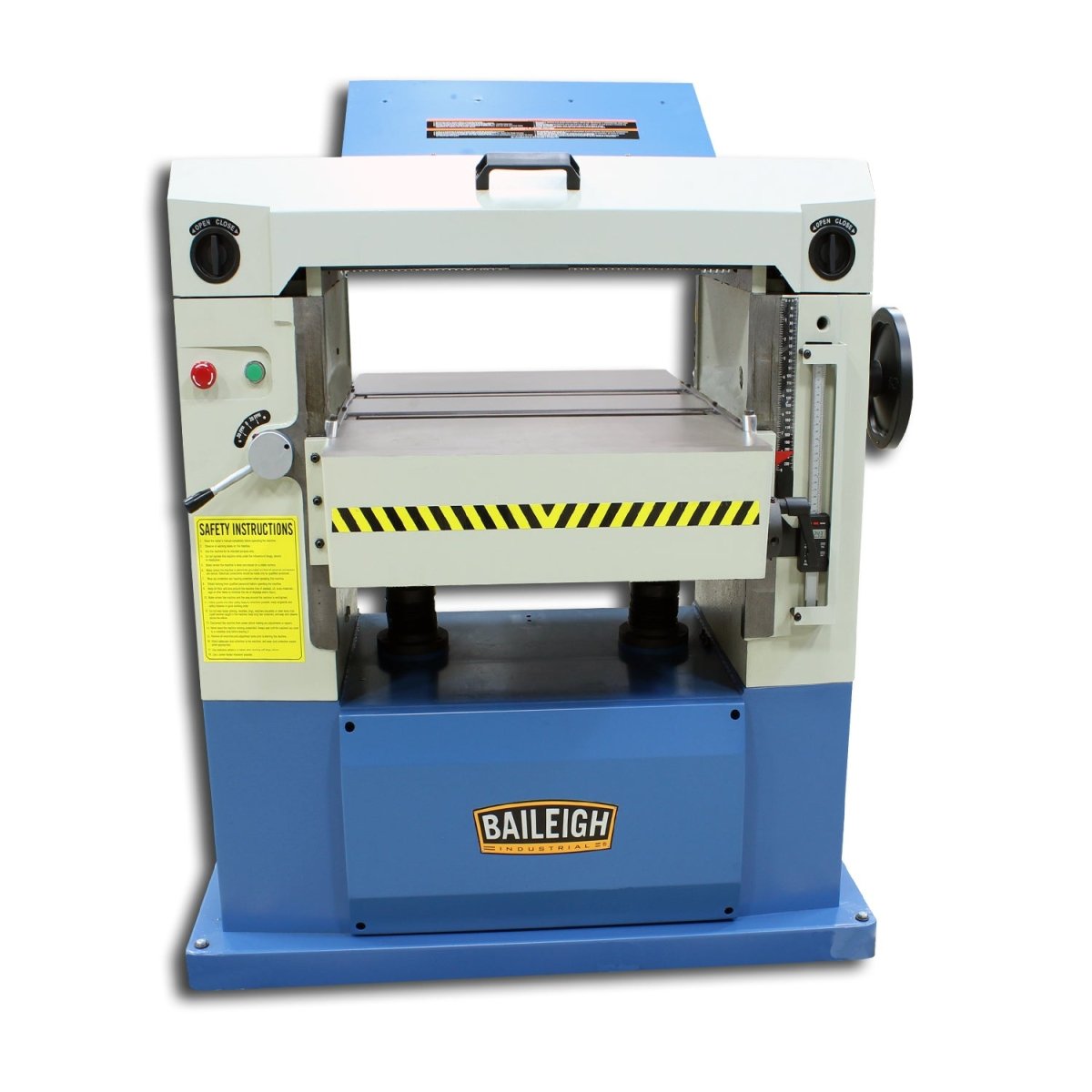

With a 22” width and a segmented infeed roll, this industrial wood planer lets you smooth multiple boards with different heights at once. A cast iron table and columns help a wood thickness planer last for years.

  • Massive 10 hp motor spins the cutter at 5,000 rpm.
  • Comes standard with a 5-row spiral cutter head with rotatable carbide blades that last much longer than a straight-knife blade.
  • .25” maximum depth of cut.
  • Runs on 220-volt 3-phase power.

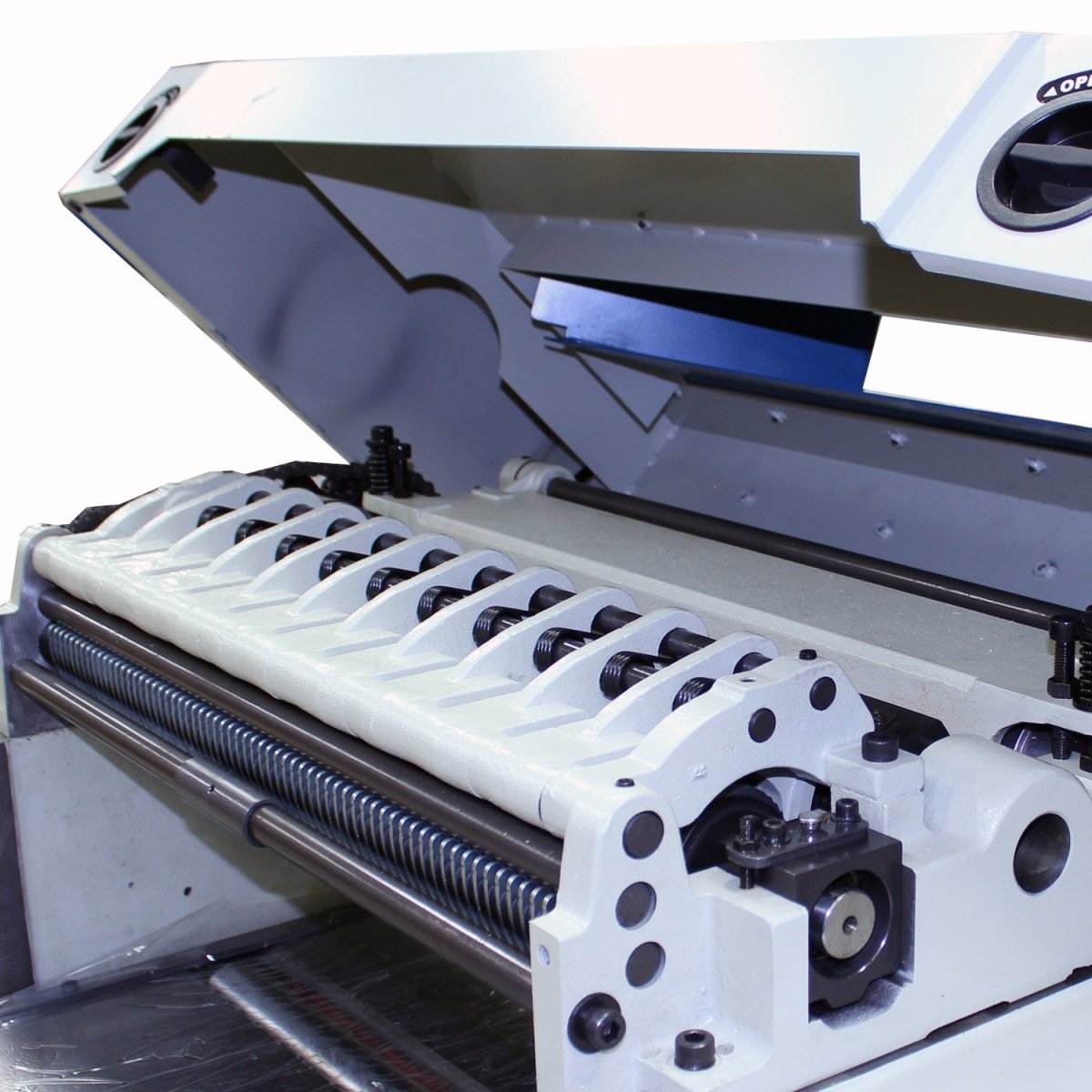

  • Spring-loaded segmented steel infeed roll automatically adjusts to different board heights side by side.

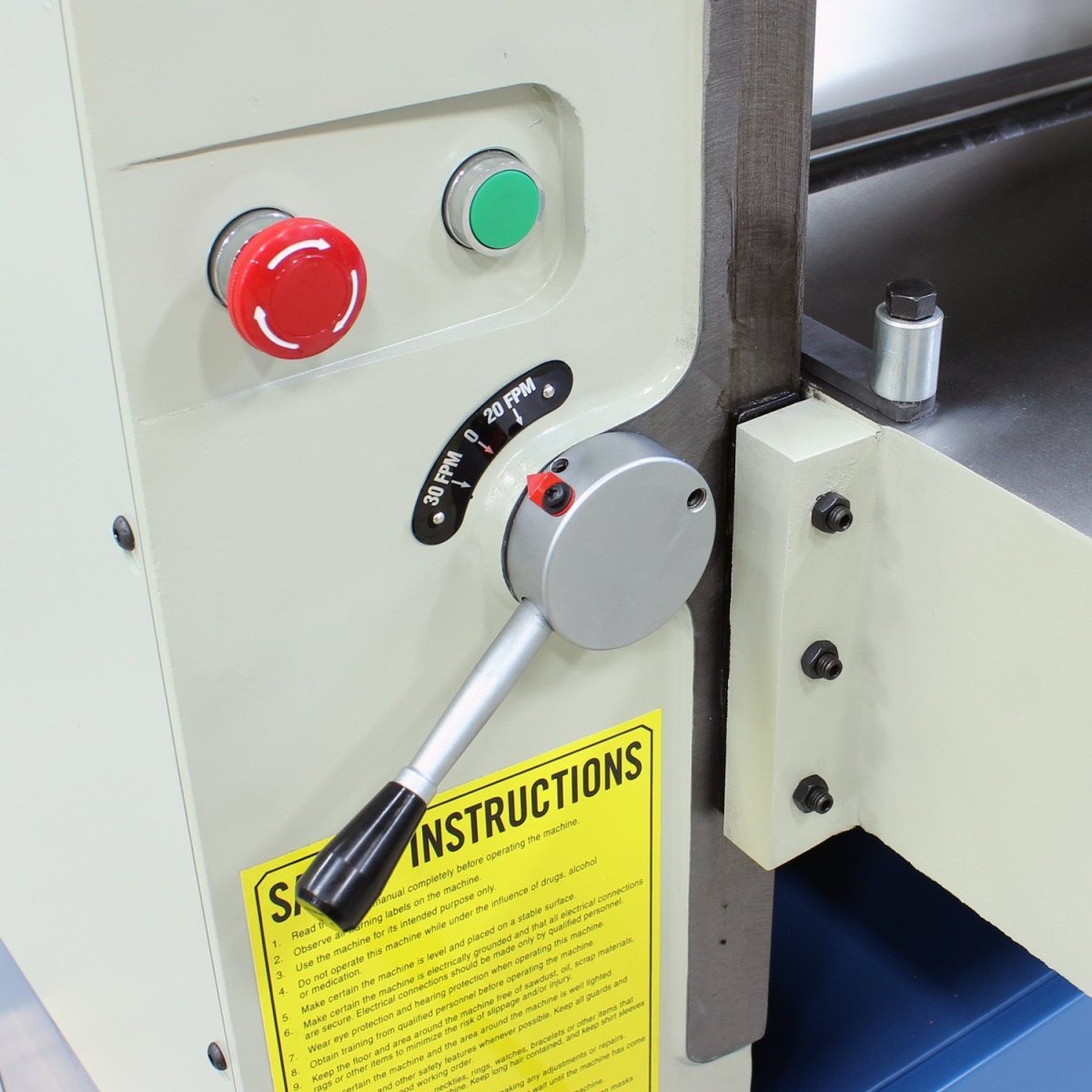

  • Switch between 2 feeding speedsfor better results on different types of wood:
    • 30 feet per minute for softer materials (or jobs where a refined surface is less important).
    • 20 feet per minute for hardwoods or materials prone to chipping. This speed gives you a smoother finish.
  • 32" x 22" cast iron table supports the material, reduces vibrations, and ensures accuracy.
  • 2 heavy columns raise or lower the table and stabilize the machine.

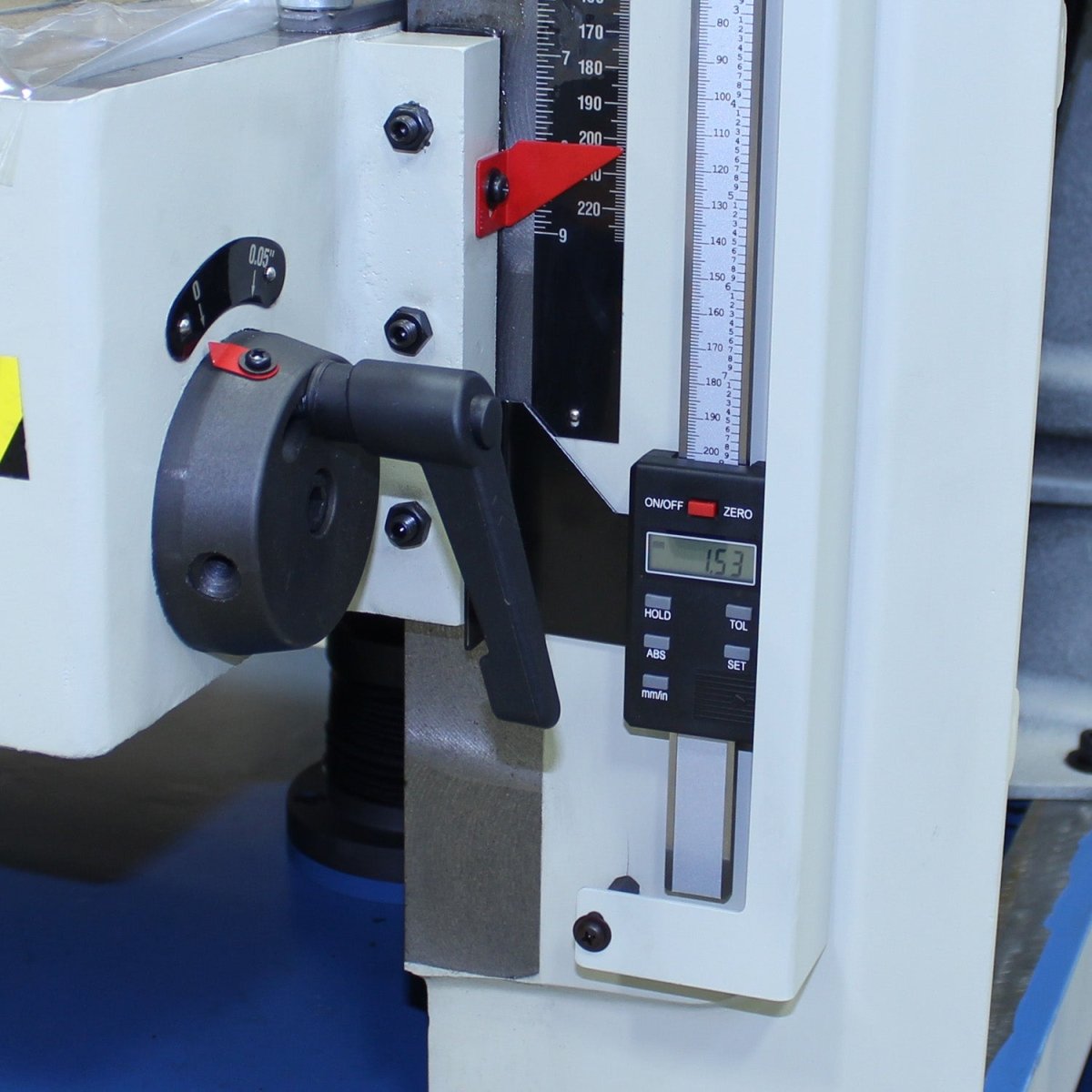

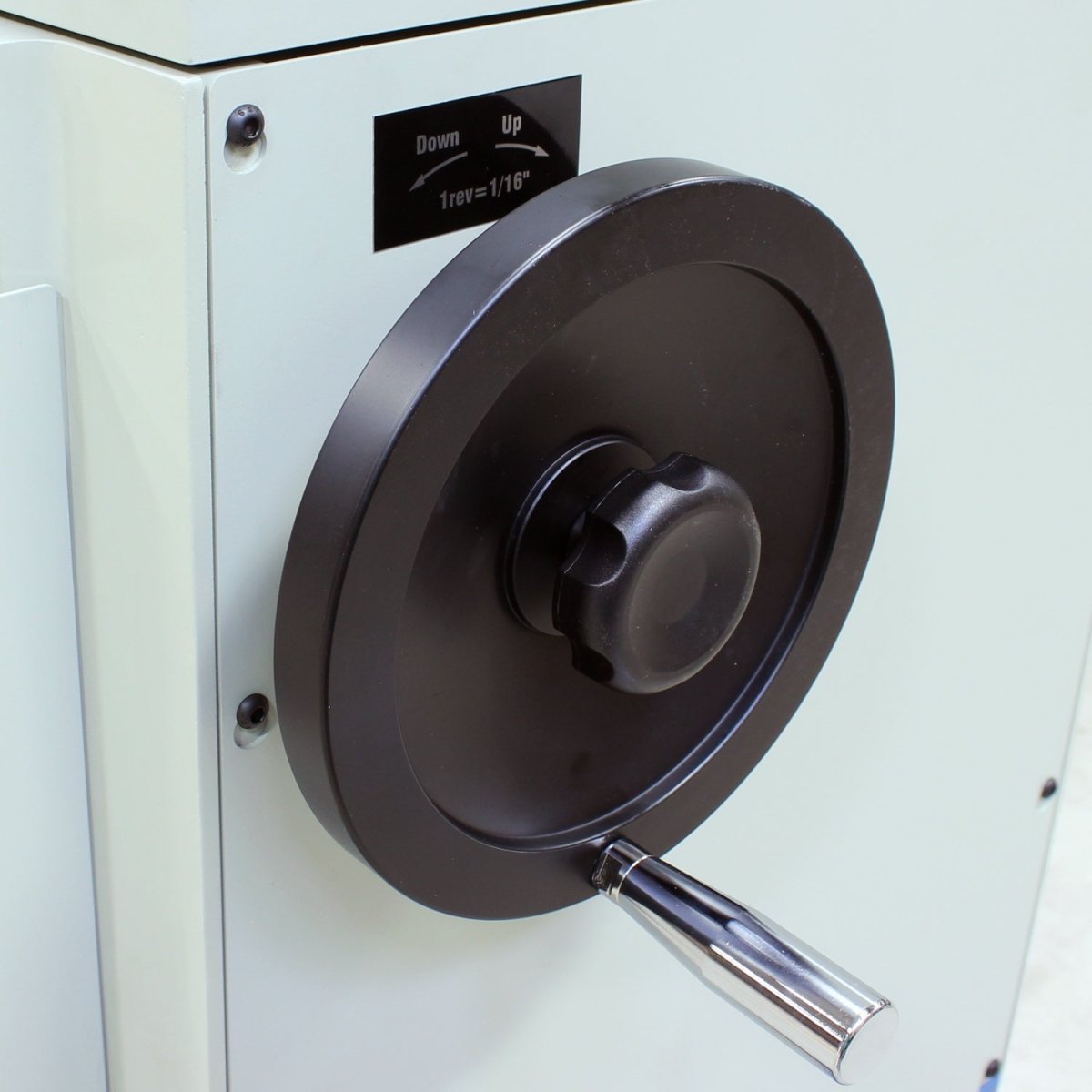

  • Handwheel lets you adjust the table elevation. Digital readout shows the changes for easy repeatability.
  • Segmented chip breaker stops debris from clogging the industrial wood planer (or your dust collector).
  • Chip breaker also prevents wood from chipping by holding the material down right in front of the cutter head.
  • Solid iron pressure bar maintains even force across the planed stock.
  • Steel outfeed roll moves the material consistently and reliably for fast production.
  • Quick-adjust bed rolls reduce friction.
  • You can set the bed rolls high to keep rough-sawn stock from getting stuck, or set them lower to produce the straightest, smoothest boards possible.
  • Anti-kickback fingers safely grip the material so that it’s less likely to shoot backwards if the cutter jams.
  • Covered by a 1-year parts warranty.
  • If you ever need replacement parts, we keep them in stock so we can ship them without delay.
  • We offer lifetime technical support by phone from a team of woodworking specialists, all with hands-on machine experience.



Heavy duty thickness planer recommended for: Cabinet shops, lumber yards, or anyone who needs to process wide boards.

Specs

Item Number IP-2209-HD
Country of Manufacture Taiwan
Shipping Weight 1630lbs
Table Size (Length) 32""
Table Size (Width) 22"
RPM 5000
Maximum Depth of Cut (Resaw) 1/4"
Cutter Head Diameter 3-1/4"
Max Stock Width 22"
Number of Knives 5 Row Spiral
Maximum Stock Height 9"
Minimum Stock Thickness 1/2"
Minimum Stock Length 9"
Feed Speed 2 Speed 20 & 30 fpm
Table Elevation Manual with Digital Readout
Power 220V Three Phase
Horse Power 10
Weight (lbs) 1760
Shipping Dimensions (Inches) 60x44x66

* specifications subject to change without notice.
