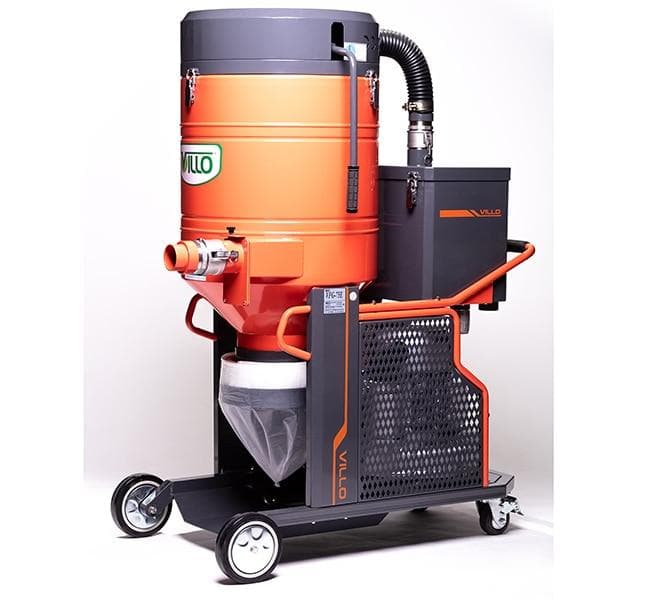

Hepa Dust Extractor For Concrete - VFG-86E

VFG-86E Vacuum cleaner is special designed for matching with big grinders in the floor preparation industry. With the characteristic as below:

• Strong suction, two-stage filter unit, stable and reliable. Can match grinders @15kw power;

• Suitable for worksites with three phase power available;

• Suitable for worksites that require continuous workload;

• Can separate a large amount of fine dust particles;

• Suitable for large or difficult projects, requiring a higher level of dust collection

Model: VFG-86E
Voltage (V/Hz): Three phase 380V/50Hz
Power: 10hp/7.5kw
Max Air flow: 700m3/h
Max pressure: 2800mmH2O
1st stage filter: star shaped filter bag
2nd stage filter: HEPA filter cartridge
Air inlet: Ø75MM (3inches)
Noisy (dB): 83±2
Filter area: 2.1+3.4m2
Cleaning method: manual cleaning (half-automatically pulse jetting)
Dimension: 1270x730x1620mm

VFG-86E is considered to the best partner with floor grinders as below:

HTC650,
Innovatech; P3200
Sase; PDG8000
Diamatic: 735Pro-R, 780Pro-R
Husqvarna: PG680,
Prepmaster: STI3030,
Lavina: 30G-S, 30L-S, 32-S
EDCO: CPM-10-7.5B, CPM-10-13H,
Terrco: Terrco 2000, 701S, Edger
Levetec: Averger 600,
Werkmaster: Colossos XT
Scanmaskin: Scancombiflex 650
