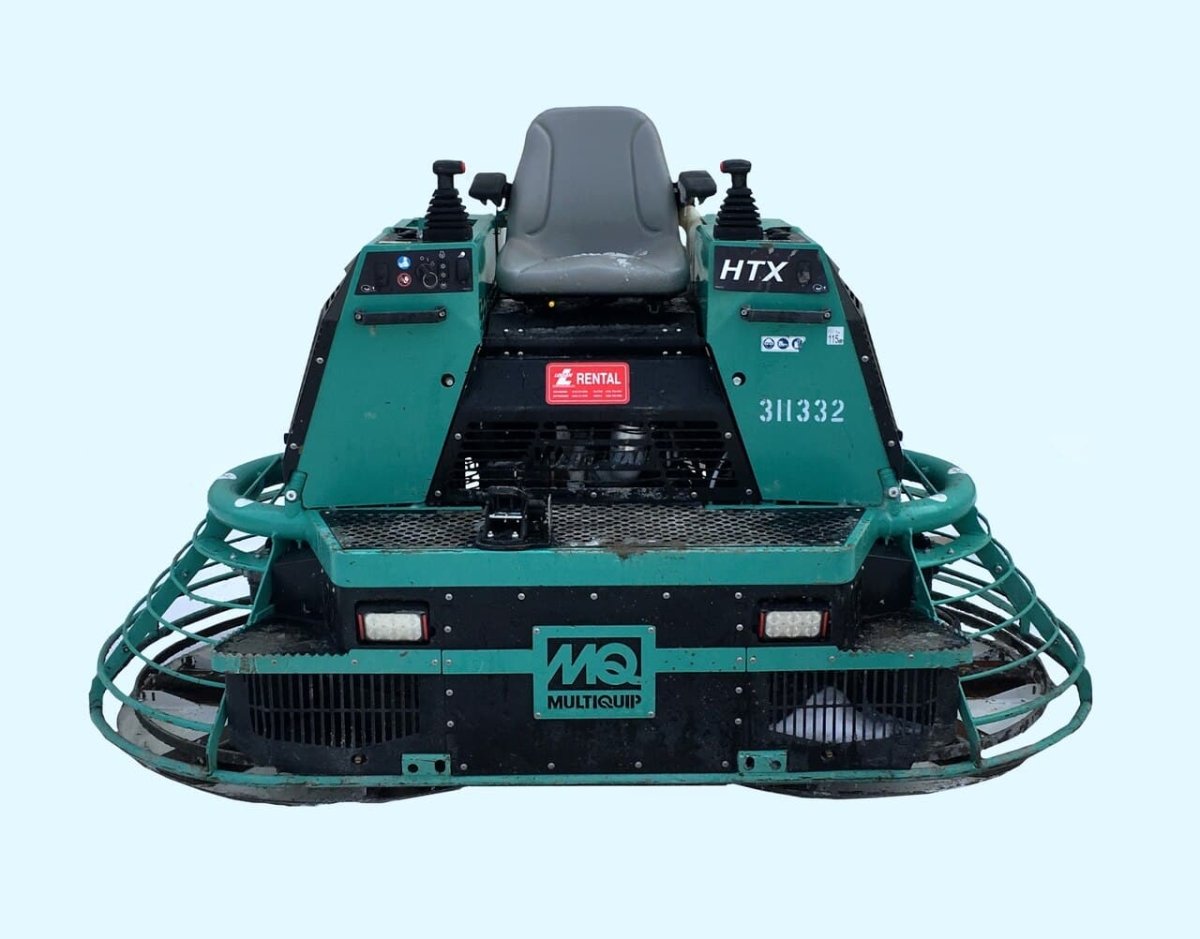

HTX6H Hydrostatic-Drive Ride-On Trowel Best to call for pricing and availability.

70-HP Hatz Tier 4 Final Turbo Diesel, 8' Non-overlap, twin six blade rotors

The HTX series 8-foot hydraulic trowel features innovative technology, operator comfort and ease of operation that contractors expect from the industry leader.

Drive System

  • 70HP Hatz 4H50TIC turbo diesel engine complies with US EPA Tier 4 Final emission requirements
  • Patented Engine Power Management senses engine load and adjusts hydraulic pump stroke to allow the engine to operate at peak performance
  • Six blade spider assemblies assure the flattest floors possible with 33% more blade contact

Operator Controls

  • Cruise control reduces operator fatigue during low speed operations
  • 6 LED lights provide state of the art illumination for night time or indoor work
  • Retardant spray system actuated by the controls located on the steering handles, provides uniform coverage of the slab surface
  • Proportional hydraulic steering has been enhanced and offers improved responsiveness with minimal operator effort
  • SmartPitch control synchronizes blade pitch for both rotors with single button
  • Multifunction display provides the operator with easy-to-read data including engine speed, fuel levels and alerts
  • 12 Volt outlet and drink holder for charging your electronic devices and operator convenience


  • Clamshell deign simplifies maintenance and permits convenient access to all service items
  • Automatic Shut-down stops the rotors from turning if the operator stands up while the engine is running
  • Increased chassis rigidity and stability achieved by lower center of gravity, reduces body roll and improves steering feedback and operator control
Unit Specifications
Engine Hatz 4H50TIC turbo diesel engine
Engine Cooling Liquid
Blades per Rotor 6
Rotor RPM 10-160 RPM
Path Width 92 in 2336 mm
Fuel Tank Capacity 10 gal 37.8 L
Run Time 3.2 gal/hr


Dimensions & Weights

Operating Weight 2345 lb 1063 kg
Shipping Weight 2845 lb 1290.4 kg
Notice: Features and equipment specifications are subject to change without notice.
