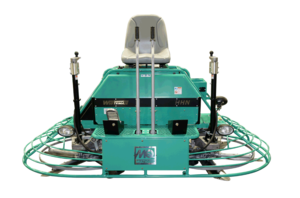

HHNG5 Whiteman Mechanical-Drive Ride-On Trowel - Best to call for pricing and availability.

35-HP Briggs & Stratton V-Twin, 8' Non-overlap, twin five-blade rotors

The HHNG5 mechanical ride-on power trowel is powered by a 35 HP Briggs and Stratton Vanguard Air Cooled V-Twin engine that includes several new features that raise the performance bar.

Drive System

  • Powerful 35 HP Briggs and Stratton Vanguard air cooled V-twin engine meets EPA Phase 3 standards
  • Continuously variable transmission (CVT) provides superior performance by continually adjusting the drive ratio to obtain optimum torque and speed during all phases of finishing from low speed high torque to high speed burnishing
  • Automotive constant velocity joints ensures smooth and consistent
    power is being transferred to the gearboxes
  • Helical gearboxes are the industry's most efficient, coolest
    running trouble free design. These gearboxes are also backed with a three year warranty
  • Spider assemblies feature long lasting wear plates and spider hubs and can be economically rebuilt. Standard model comes with 5 blade configuration


  • TwinPitch control enables the operator to simultaneously
    control the pitch of both rotors with minimal effort, yet still
    allows for individual pitch control
  • Lifting points are built in to the machinefor balanced lifting. (Lifting straps included)

Operator Controls

  • LED lighting provides state of the art illumination for night time or indoor work
  • Steering assist prevents operator fatigue and makes
    controlling the machine remarkably easy even with float pans.
Unit Specifications
Engine 35 HP Vanguard Commercial
Engine Cooling Air
Blades per Rotor 5
Rotor RPM 0 - 180
Path Width 92 in 2336 mm
Fuel Tank Capacity 7 gal 26.4 L
Run Time 2.51 gal/hr
Dimensions & Weights
Operating Weight 1083 lb 491 kg


Notice: Features and equipment specifications are subject to change without notice.
