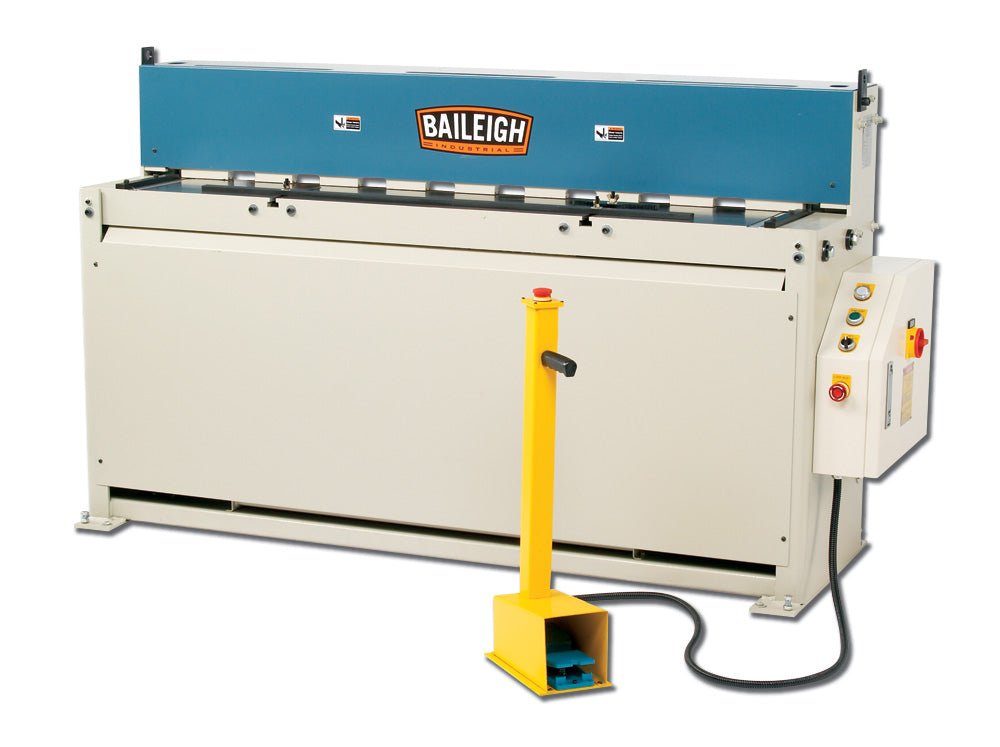

At a blistering 30 strokes a minute, this hydraulic shear will save you time and money. Made of fully integrated and welded steel plate, the SH-6014 can run at full capacity all day long.

  • 60” length.
  • 14 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • 3 hp motor runs on 220-volt 3-phase power.

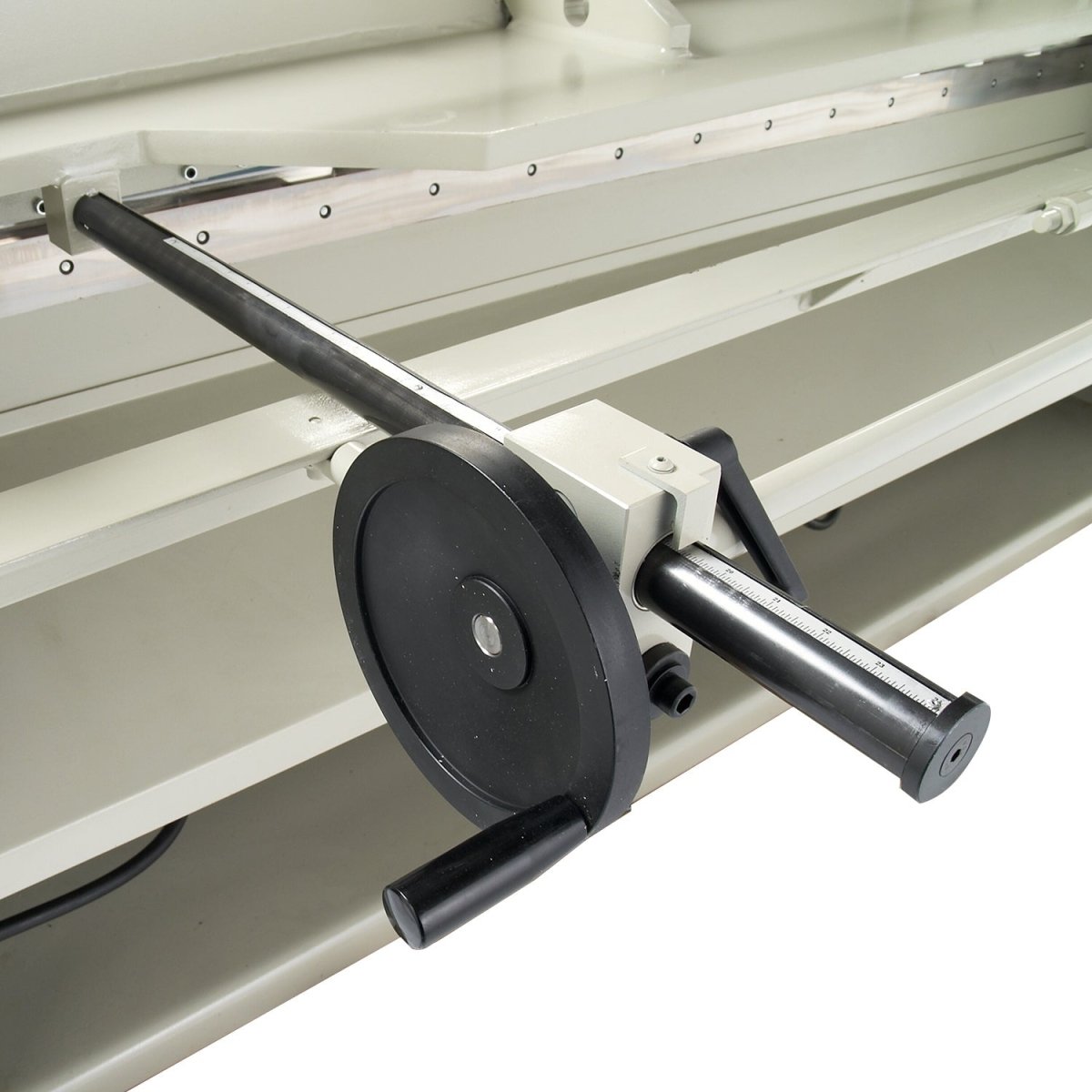

  • Adjustable 24” backgauge ensures precise repeatability.

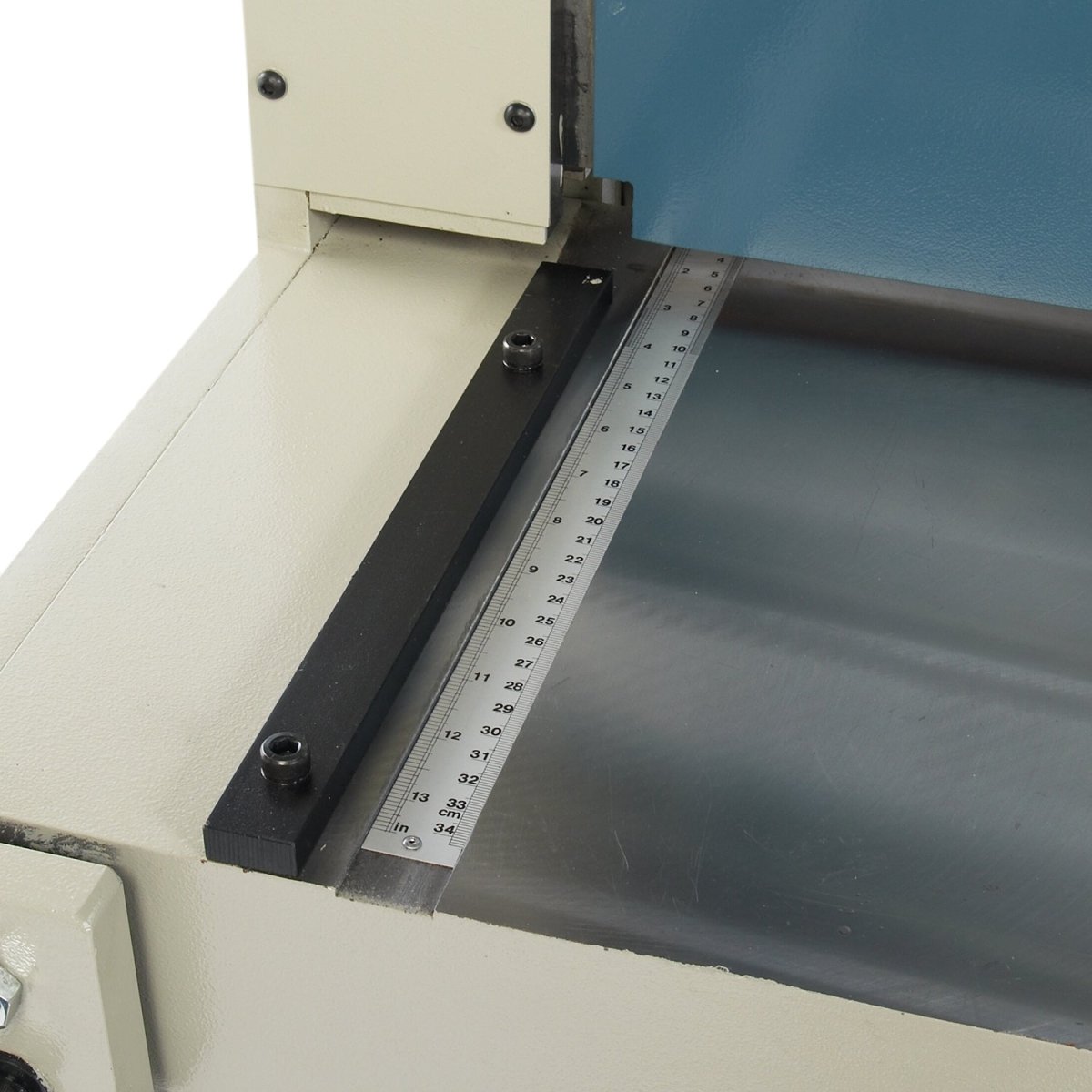

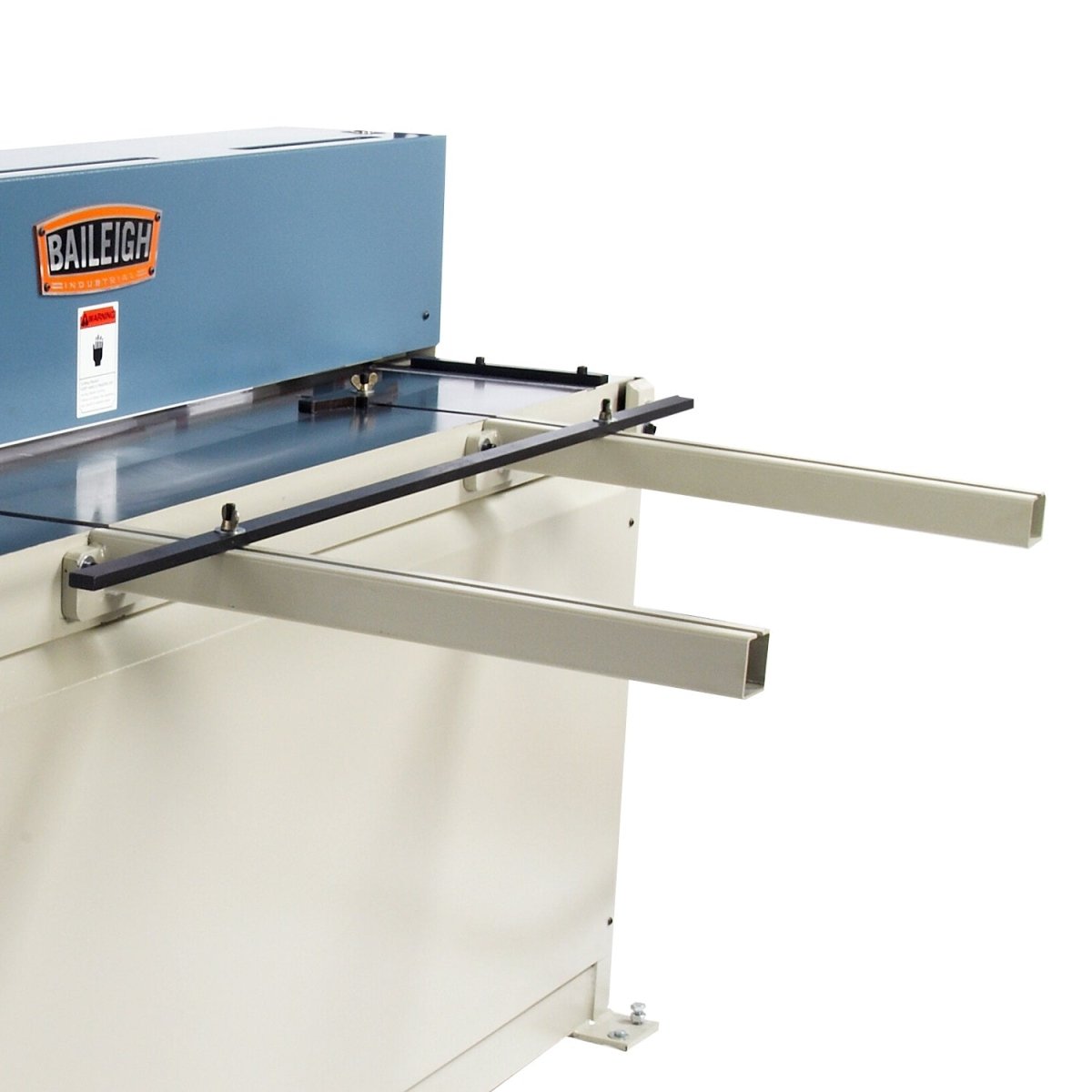

  • Front support arms and table guides keep the material square to the blade.

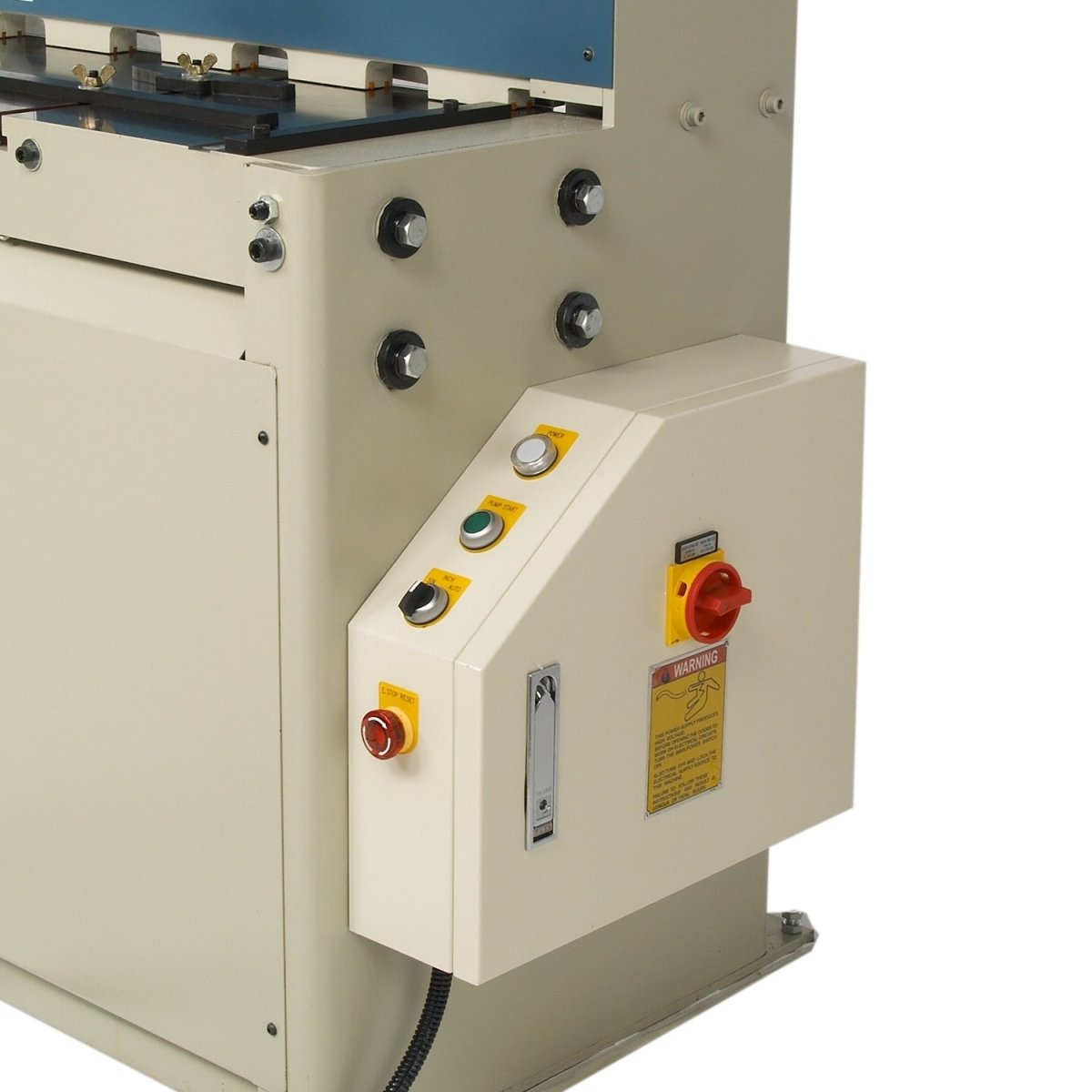

  • 3 modes on the operator console:
    • Inch mode: Jog the control and ease the blade down to the material.
    • Single mode: Make one cut cycle per foot pedal push.

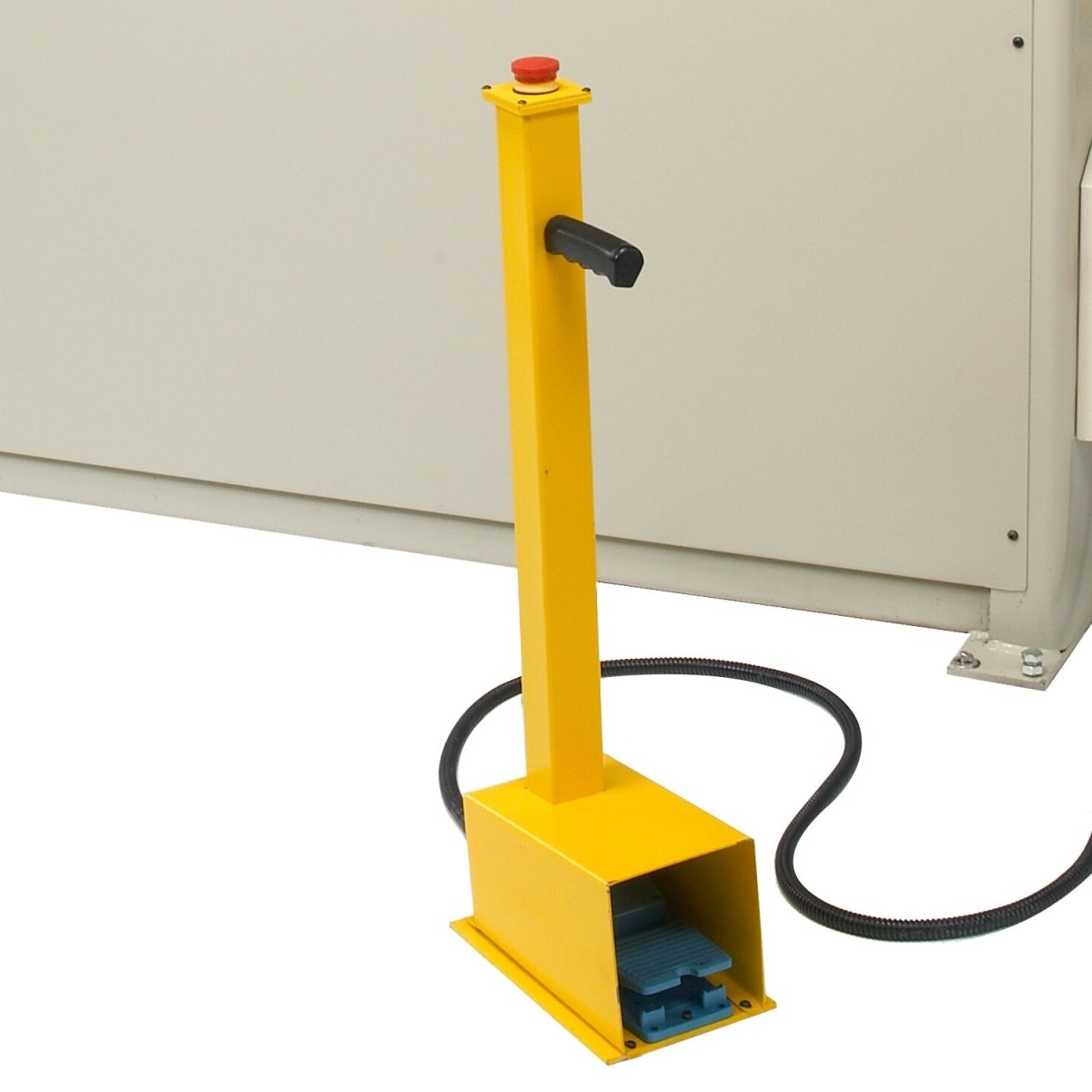

    • Auto mode: Continue cycling as you hold the pedal down.
  • Comes standard with high carbon chromium blades.
  • Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
  • Hold-down carriage with 9 fingers clamps the sheet metal firmly against the infeed table, improving blade life.

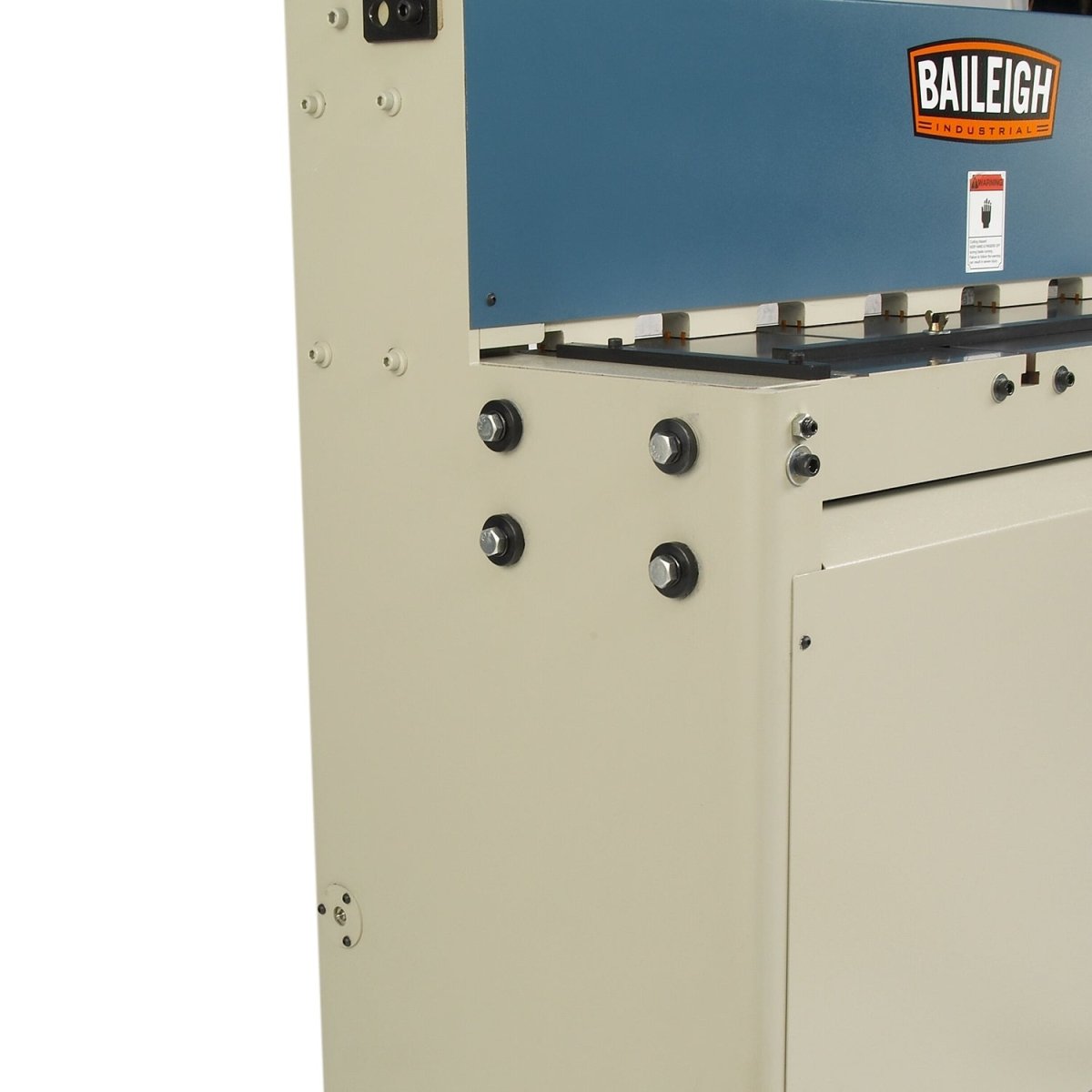

  • Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
  • Covered by a 1-year parts warranty.
    Item Number SH-6014
    Back Gauge Length 24"
    Shear Length 60"
    Motor 3 hp
    Thickness (SS) 14 ga. (18 ga.)
    Strokes Per Minute 30
    Front Gauge Length 24"
    Blade Angle
    Power 220V / 3-phase
    Shipping Weight 2150lbs
    Minimum Material Thickness 24ga
    Shipping Dimensions (Inches) 85x35x54

    * specifications subject to change without notice.
