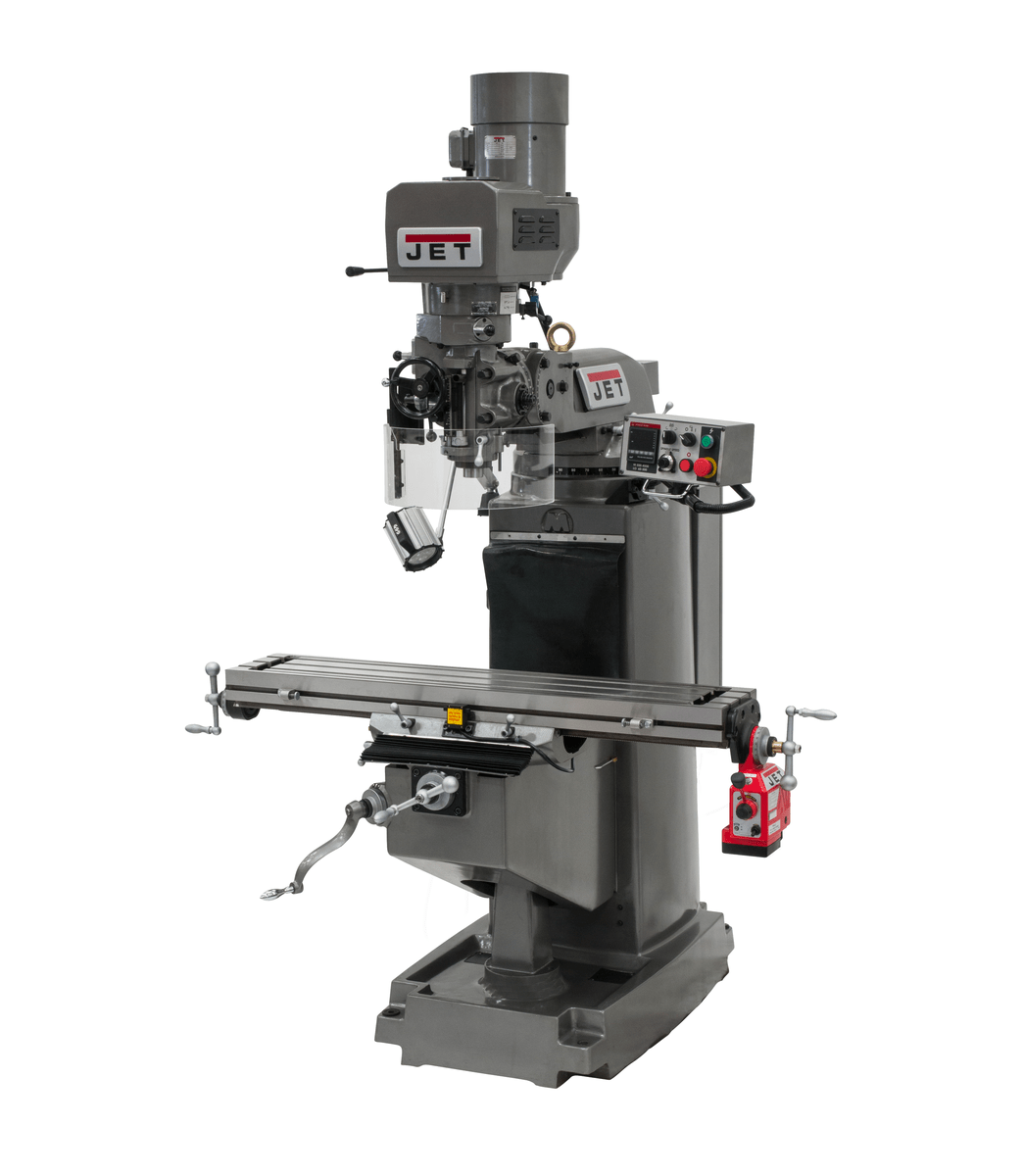

JTM-1050EVS2/230 Mill With 3-Axis Acu-Rite MilPwr G2 CNC Controller

Name: JTM-1050EVS2/230 Mill With 3-Axis Acu-Rite MilPwr G2 CNC Controller
Brand: Jet
SKU: JT9-690676
Price: 50729.00 USD
Availability: InStock

$50,729⁰⁰ ~~$62,324²⁰~~

Shipping calculated at checkout.

Safe & Secure Payments.

Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs

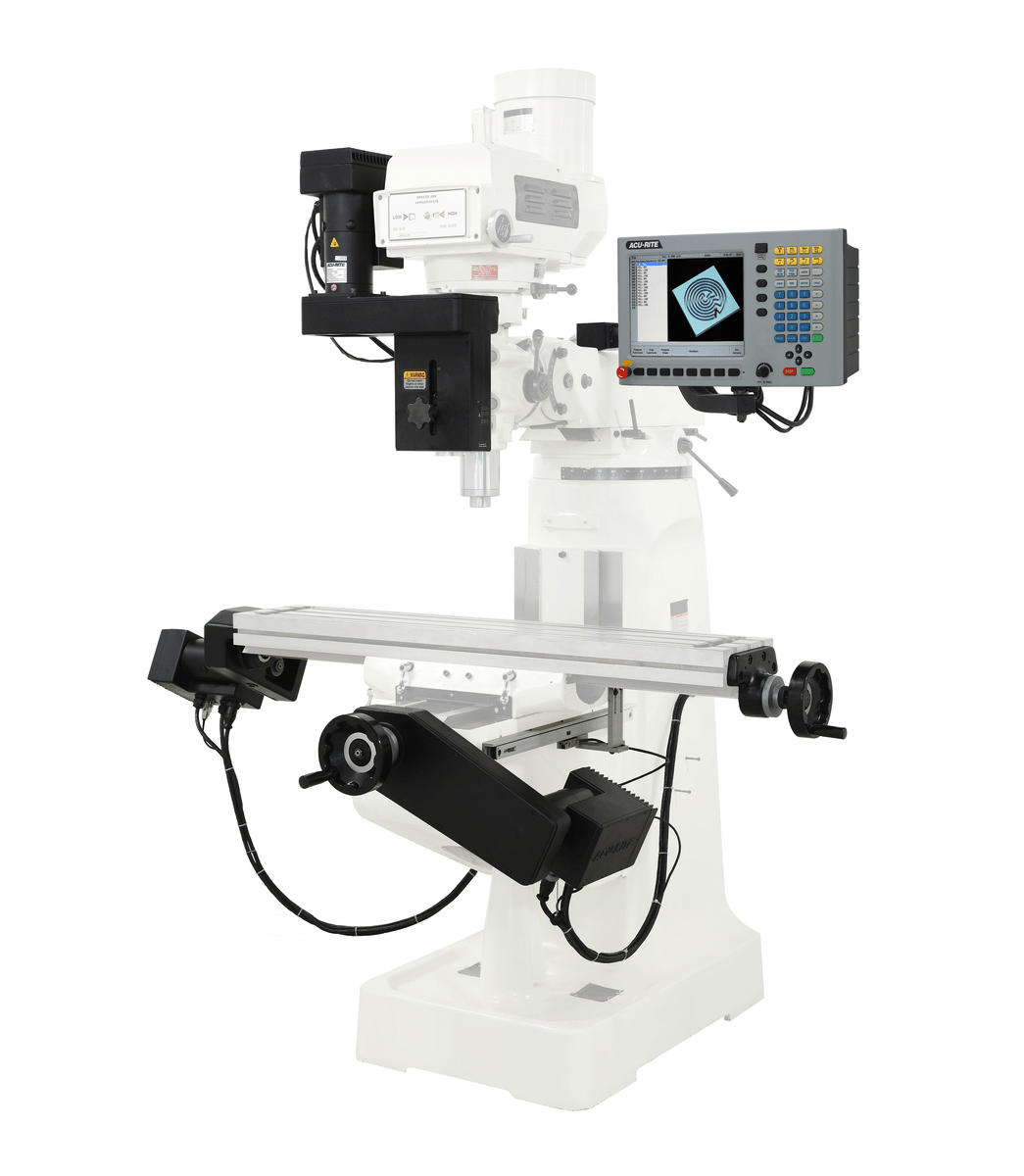

JET offers complete, factory-installed CNC packages with your choice of 2- or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Features

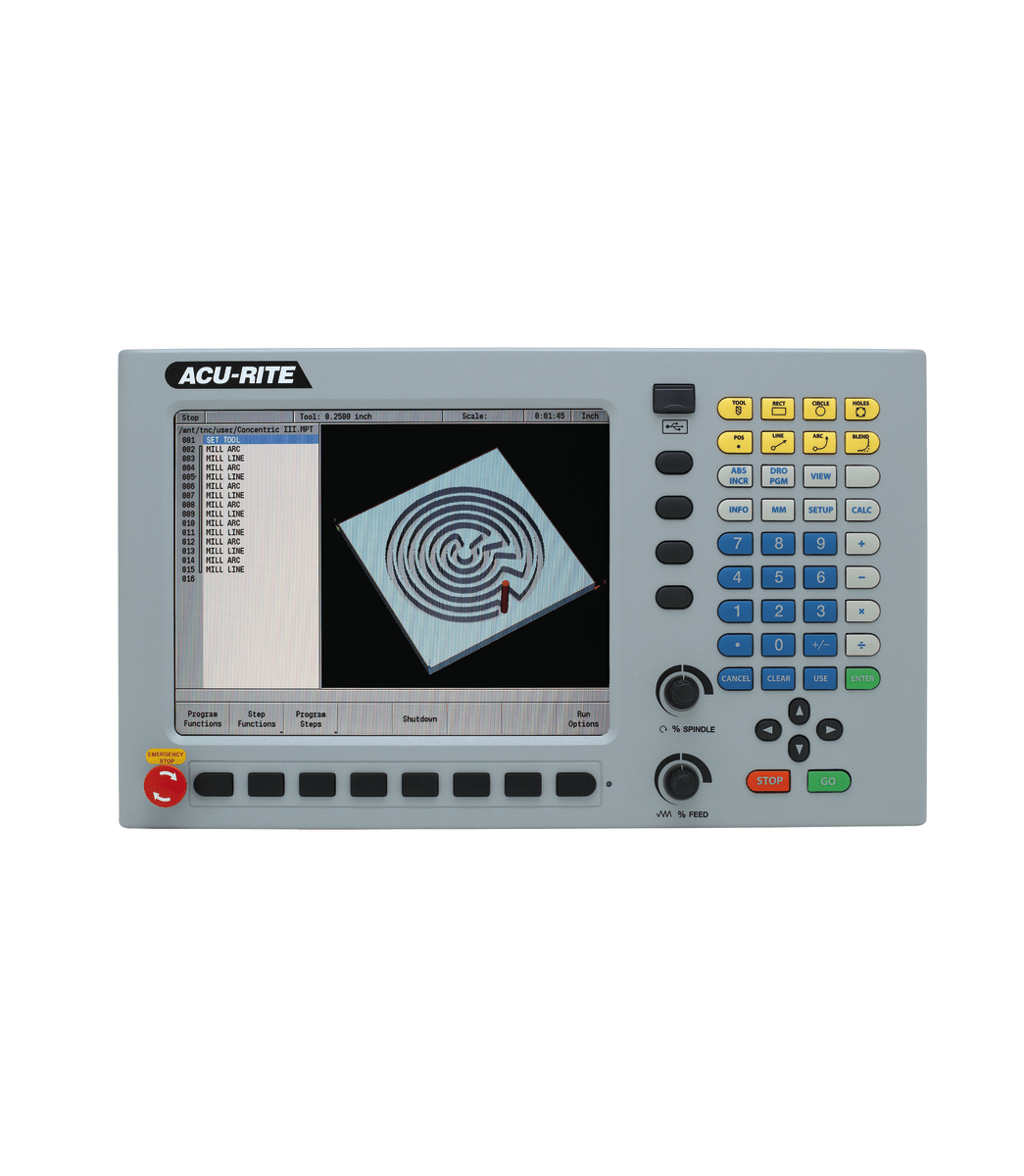

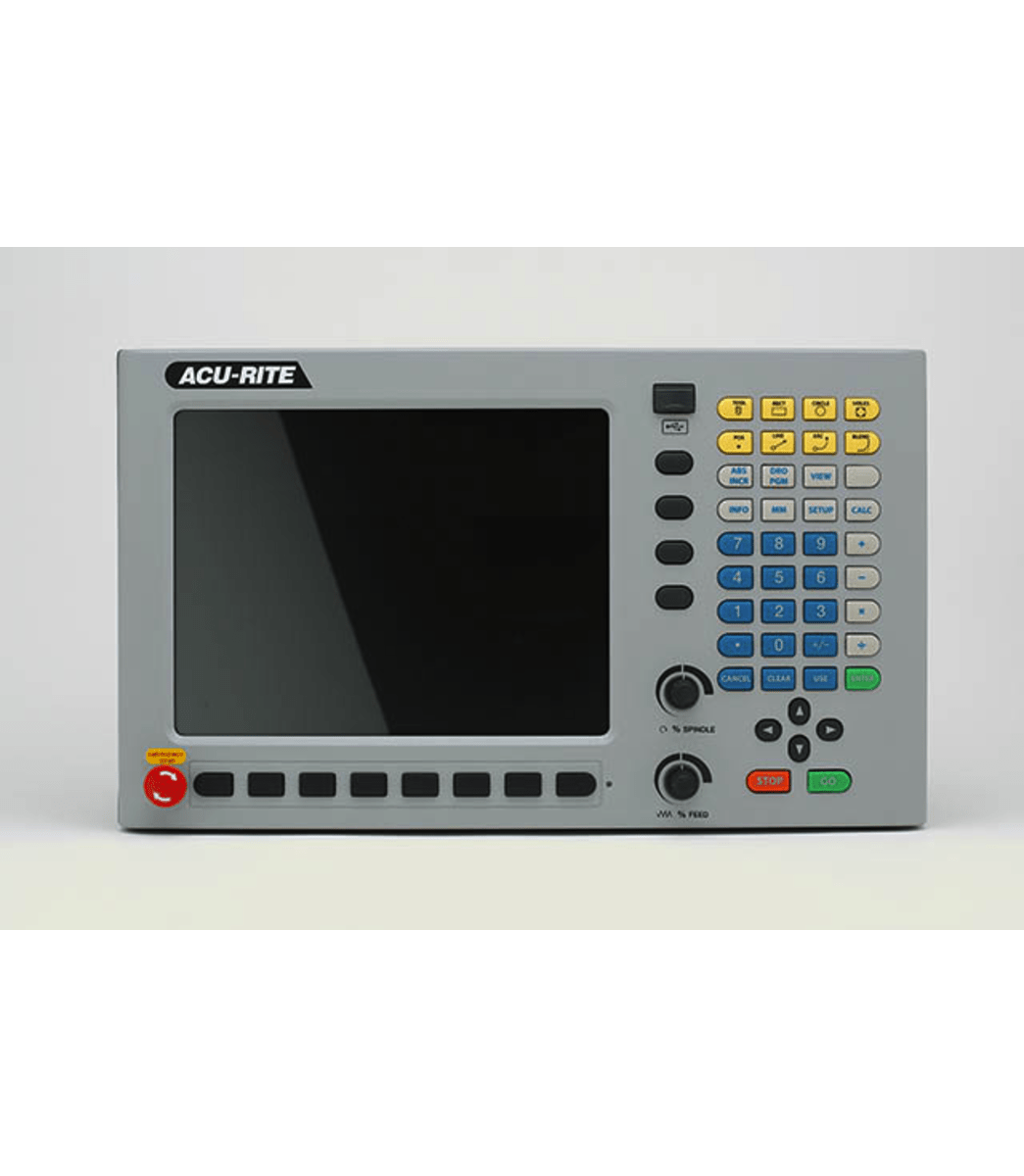

12.1" High resolution display (1024 x 768) with 3D graphics
Available offline software
Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
CNC electronic variable speed vertical milling machine package for JTM-1050EVS
Estimated run time feature
Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously

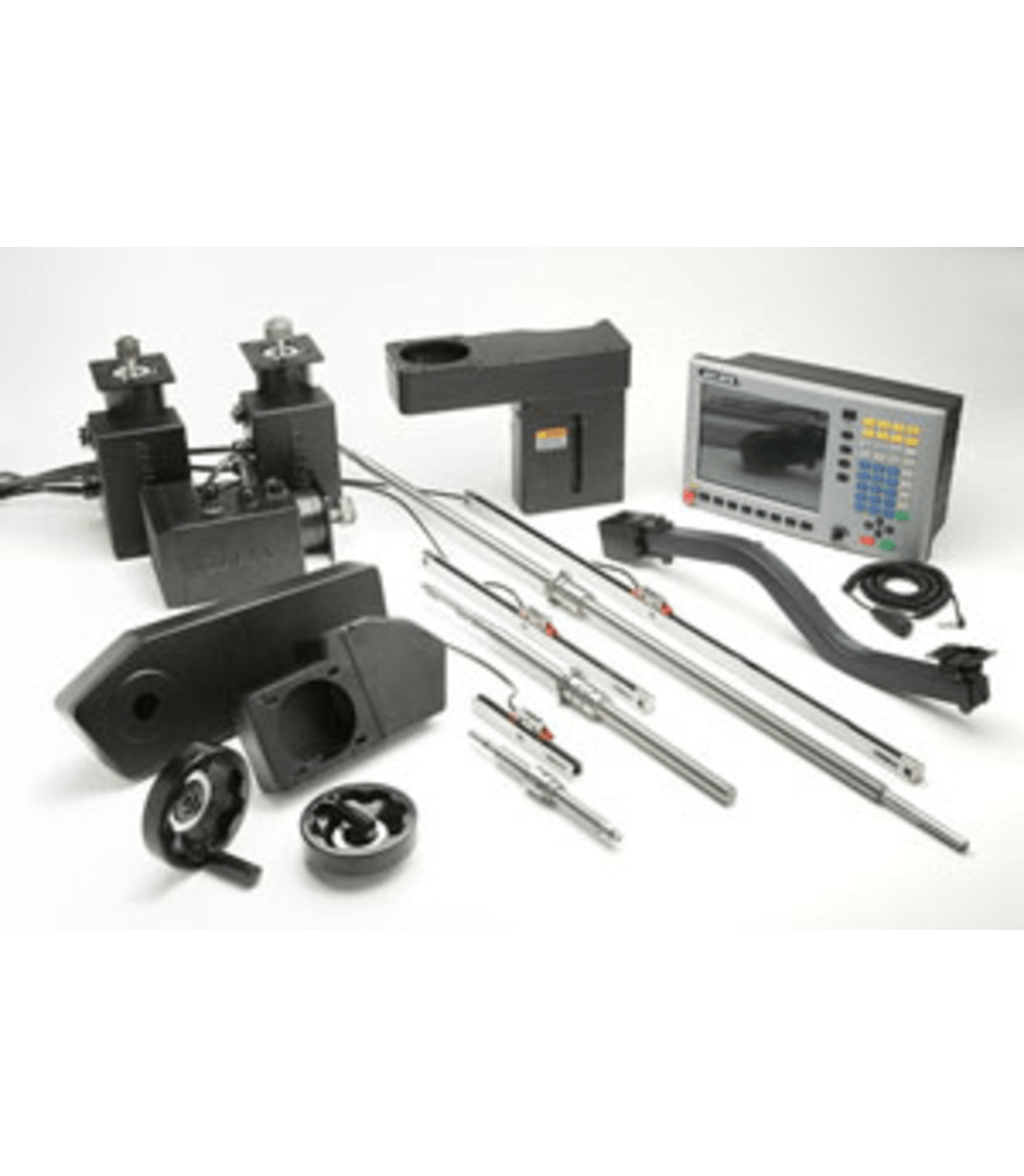

Powerful DC Servo motor assemblies that include mounting castings and hardware
Precision ground ball screws eliminate backlash for precise lateral movements
USB + Ethernet compatible

Specs

More Information
Stock Number	690676
CNC Package	ACU-RITE MILLPWR® G2
Collet Capacity	1/8 - 7/8
Column Width (In.)	20
Distance Spindle to Column (Max.) (In.)	26-3/4
Inverter Type	Delta, B
Max Distance Spindle to Table (In.)	20-3/4
Motor (HP)	3 HP, 230V, 3Ph
Number of Axis	3
Overall Dimensions (L x W x H) (In.)	66 x 63 x 87
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	60 - 4,500
Saddle Width (In.)	11-1/2
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	CNC
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	14-3/4
Table Longitudinal Travel (In.)	35-1/3
Table Longitudinal Travel With Powerfeed (In.)	29-7/8
Table Size (L x W) (In.)	10 x 50
Travel of Knee (In.)	16-1/8
Travel of Ram (In.)	15-7/8
Weight (Lbs.)	2860
Work Table Weight Capacity (Lbs.)	840
