Jet | SKU: JT9-691940

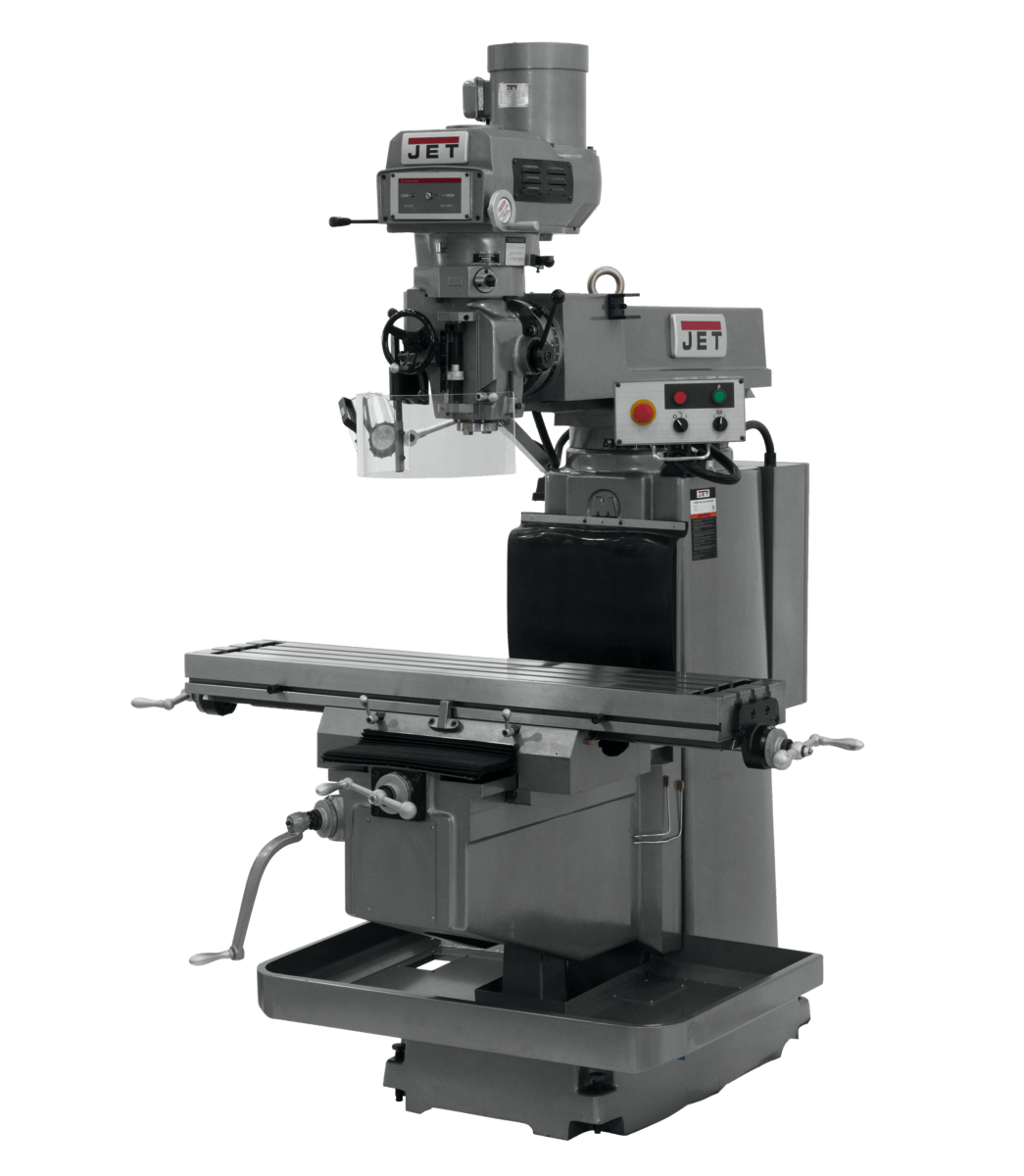

JTM-1254VS with 2-Axis ACU-RITE G-2 MILLPOWER CNC

Name: JTM-1254VS with 2-Axis ACU-RITE G-2 MILLPOWER CNC
Brand: Jet
SKU: JT9-691940
Price: 44759.00 USD
Availability: InStock

$44,759⁰⁰ ~~$54,989⁶³~~

Shipping calculated at checkout.

Safe & Secure Payments.

CSA/CUS Certified. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Features

12.1" High resolution display (1024 x 768) with 3D graphics
Adjustable gibs throughout
Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
Available offline software
Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
Estimated run time feature
Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
Precision bored and honed milling head
Two 115V outlets on electrical box for Powerfeeds only
USB + Ethernet compatible

More Information
Stock Number	691940
Column Width (In.)	14-1/4
Distance Spindle to Column (Max.) (In.)	27-3/4
Max Distance Spindle to Table (In.)	23
Motor (HP)	5HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)	104-1/4 x 79-7/8 x 92-1/8
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	4-1/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	80 - 3,800
Saddle Width (In.)	25-5/8
Spindle Taper (In. x TPI)	NST #40
Spindle Travel (In.)	5
Style (Type)	CNC
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	15-1/3
Table Longitudinal Travel (In.)	33-7/8
Table Size (L x W) (In.)	12 x 54
Travel of Knee (In.)	19-1/4
Travel of Ram (In.)	25
Weight (Lbs.)	3696
Work Table Weight Capacity (Lbs.)	925
