Kenco Brush Grapple
SKU# 10132Call for Pricing
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
Kenco Brush Grapple
Call for Pricing

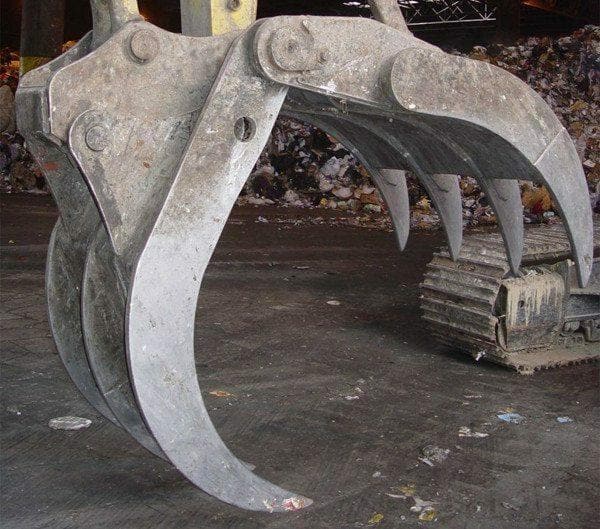

Kenco Brush Grapple
The Kenco Brush Grapple is available in 3 over 4 or 4 over 5 tine configurations and is designed to stand up to the most severe land clearing operations.
This backhoe grapple attachment for excavators is available to fit direct pin-on, pin grabber, or our Wedgebolt Coupler mount for fast and easy attachment changes.
Kenco Brush Grapple features:
- T-1 and AR-400 high performance steel construction to ensure durability and years of service

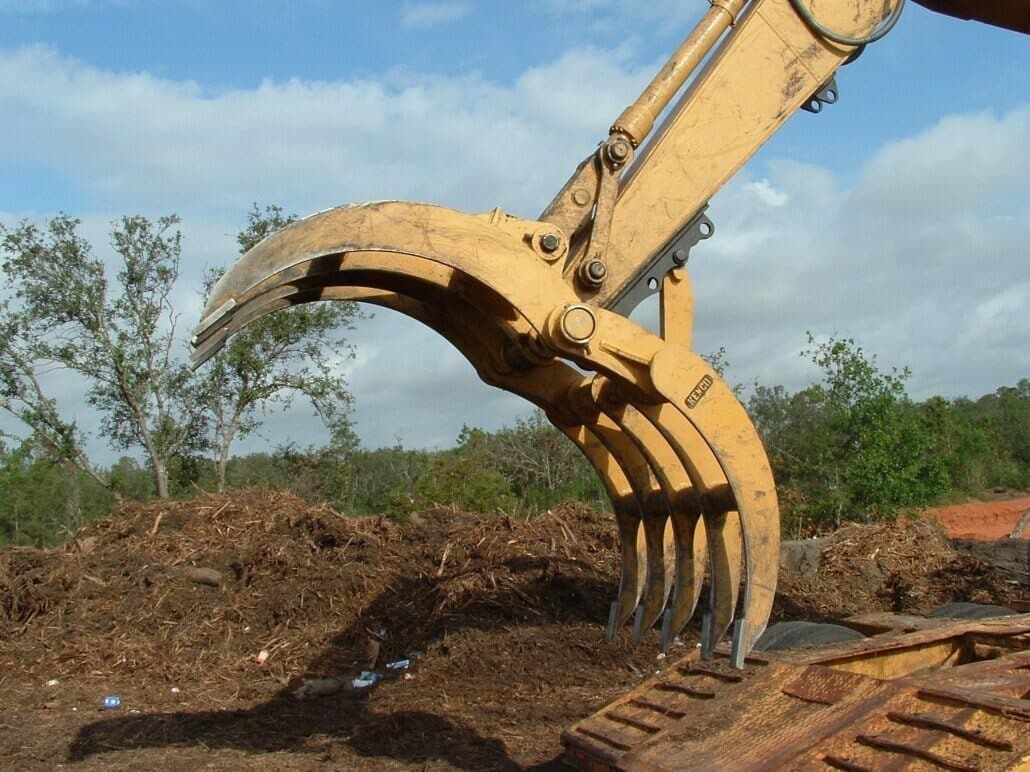

- Backhoe grapple attachment has a standard tine configuration is 4 over 5 tines (pictured above)
- Tine configurations for the excavator grapple are also available in 3 over 4 tines, or 5 over 6 tines
- Individual tine tips are changeable to ensure an even longer production life of the grapple

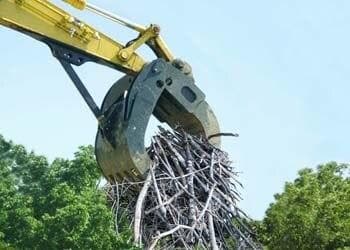

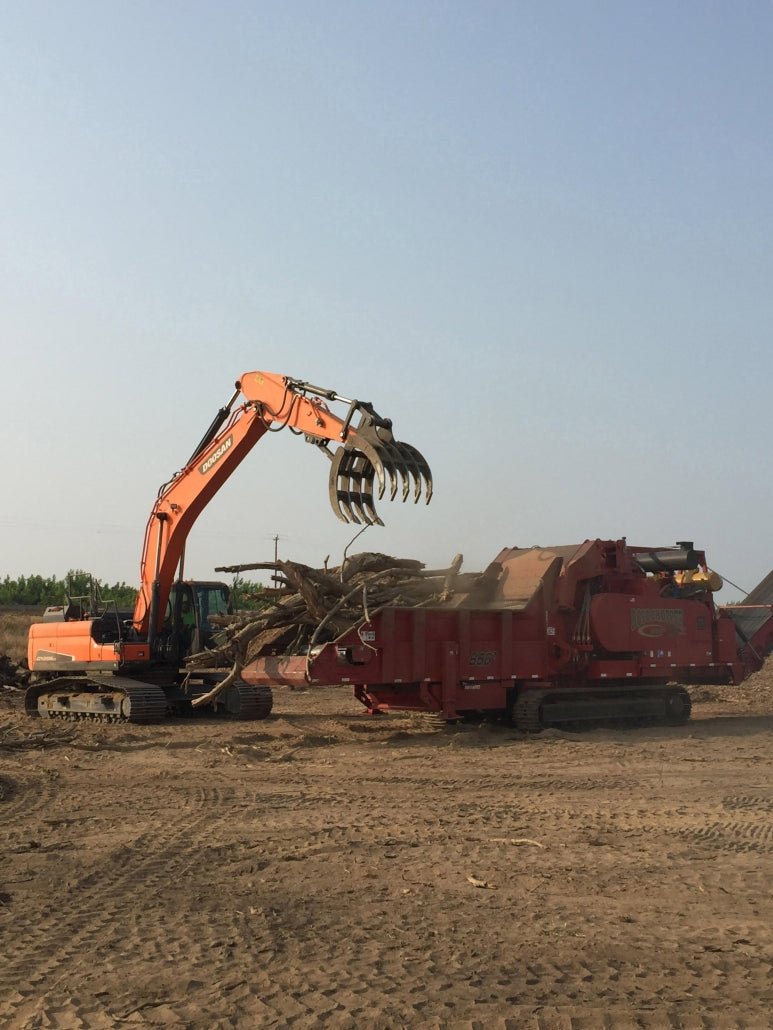

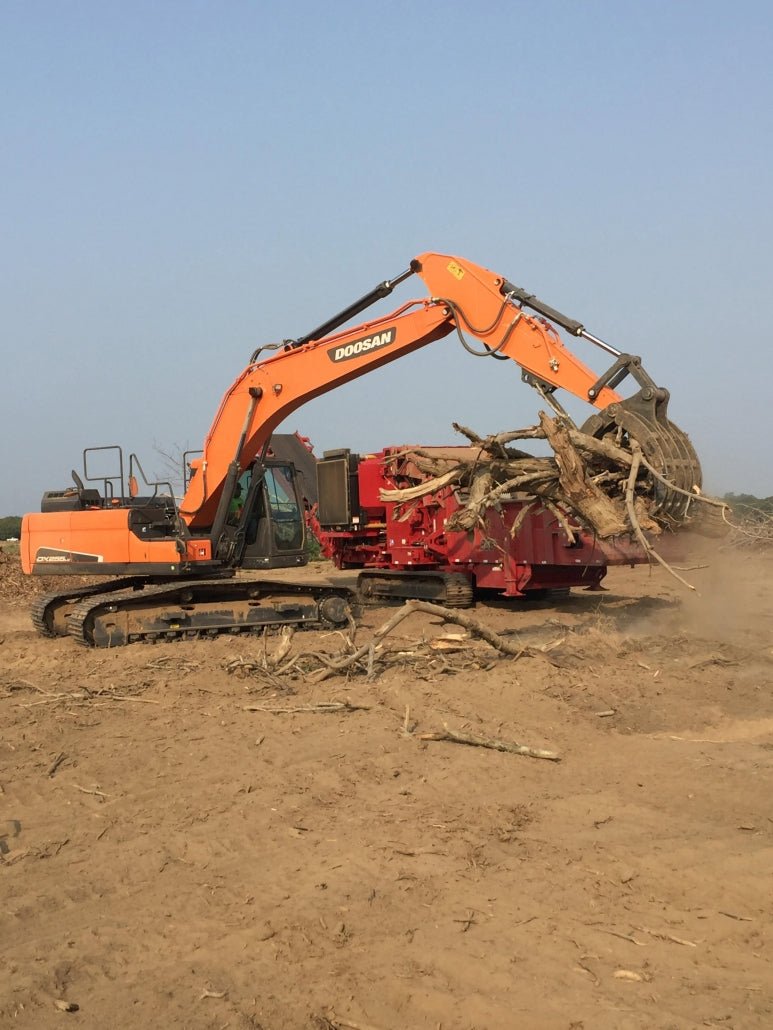

The Brush Grapple attachment is an excellent tool that has been specifically designed for the most rugged duty in land clearing applications. The Kenco Brush Grapple is available in 3 over 4 tine, 4 over 5 tine, and other configurations. The number of tines will vary according to the size of the machine it is being used on.
| MACHINE CLASS | MACHINE WEIGHT (lbs) | Height (inches) | Width (inches) | Tine Thickness (inches) | Approx Weight (lbs) |
| CEX 80 Class | 11,000 to 18,000 | 42" | 25" | 3/2" | 1400 |
| EX120 Class | 19,000 to 29,000 | 50" | 30" | 4/3" | 1800 |
| EX150 Class | 30,000 to 40,000 | 58" | 36" | 5/4" | 2600 |
| EX200/250 Class | 41,000 to 59,000 | 68" | 42" | 5/4" | 3200 |
| EX300 Class | 60,000 to 79,000 | 74" | 48" | 5/4" | 4000 |
| EX400 Class | 80,000 to 110,000 | 80" | 55" | 5/4" | 5000 |
