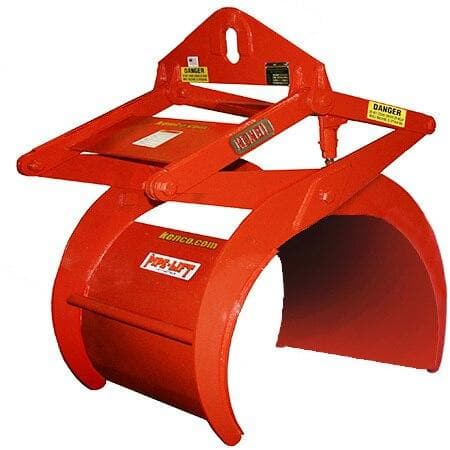

Kenco PL2750 Pipe Lift
SKU: PL2750
Kenco PL2750 Pipe Lift has a 2750 pound capacity lifting tools will handle outside diameter pipe sizes from 18.00 to 25.80 inches
- 2750 pound capacity
- Fits O.D 18.00 to 25.80 inches
- 18" and 24" PVC and STEEL, 18", 20", or 24" DI and C900 PVC or RCP ID sizes: 15" and 18"
DESCRIPTION
PL2750 PIPE LIFT - PATENT: 6012752

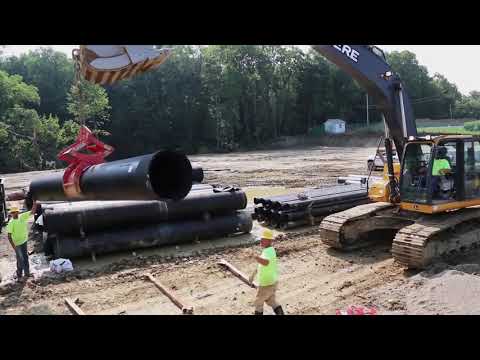

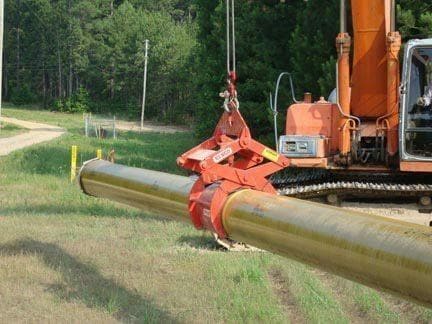

The PL2750 Pipe Lift uses the power of gravity to allow the scissor action of this lifter to clamp securely on PVC, iron or concrete pipe. If you have ever tried to move pipe using straps or teacups, you'll appreciate how these pipe lifting tools increase productivity. One operator can use these concrete pipe tongs to grab, lift and move pipe without assistance.

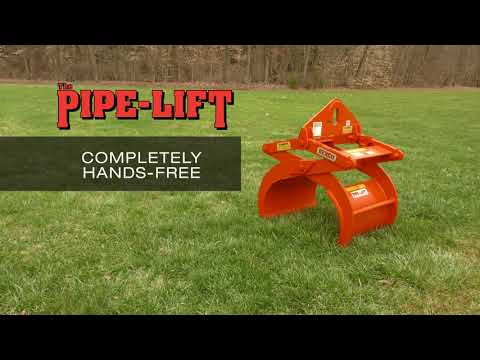

Double your production output versus the sling and chain methods with lifting clamps. The Pipe Lift's unique, wide scissor-grip design permits a secure lift - even when the pipe is not centered. The machine operator simply sets the pipe lifting tools down over the pipe. The legs will automatically grab and hold on tightly until the pipe is set down firmly into position.
The 2750 pound capacity lifting tools will handle outside diameter pipe sizes from 18.00 to 25.80 inches. Lifts 18" and 24" PVC and STEEL, or lift 18", 20", and 24" Ductile Iron and C900 PVC or RCP ID sizes: 15" (19.50" OD) and 18" (23.00" OD).
PL1500 Through PL3500 are 30" wide. The PL4500, PL7000 and PL8500 are 36" wide.
Note: There may be pipe tongs lifting devices not listed. Pipe outside diameter and weight are the determining factors for choosing the correct lifter.
ADDITIONAL INFORMATION
| WEIGHT | 410 lbs |
|---|---|
| DIMENSIONS | 42 × 42 × 42 in |
| MODEL | OD RANGE INCHES/CM |
PVC, STEEL, ID / OD (TYP.) | DUCTILE/ C900 PVC ID/OD (TYP.) | RCP ID/OD (TYP.) | CAPACTIY LBS/KG | A | B | C | WEIGHT LBS./KG |
| PL1500 |
4.50" - 9.05" 11.43 - 22.98 |
4"/4.50" 6"/6.63" 8"/8.63" |
4"/4.80" 6"/6.90" 8"/9.05" |
N/A | 1500 / 680.5 | 25.75 | 19.25 | 11.75 | 115/52.3 |
| PL2000 |
8.63" - 13.20" 21.92 - 33.52 |
8"/8.63" 10"/10.75" 12"/12.75" |
8"/9.05" 10"/11.10" 12"/13.20" |
N/A | 2000 / 907.2 | 29 | 22 | 16 | 150 / 68.2 |
| PL2150 |
10.75" - 15.30" 27.30 - 38.86 |
10"/10.75" 12"/12.75" 14"/14.00" |
10"/11.10" 12"/13.20" 14"/15.30" |
N/A | 2150 / 975.2 | 35 | 26 | 17.5 | 180 / 81.8 |
| PL2250 |
12.75" - 17.40" 32.38 - 44.19 |
12"/12.75" 14"/14.00" 16"/16.00" |
12"/13.20" 14"/15.30" 16"/17.40" |
12"/16.00" | 2250 / 1021 | 37.25 | 32 | 18.75 | 270 / 122.7 |
| PL2500 |
14.00" - 23.00" 35.56 - 58.42 |
14"/14.00" 16"/16.00" |
14"/15.30" 16"/17.40" 18"/19.50" 20"/21.60" |
12"/16.00" 15"/19.50" 18"/23.00" |
2500 / 1134 | 43.5 | 35.75 | 25.25 | 320 / 145.5 |
| PL2750 |
18.00" - 25.80" 45.72 - 65.53 |
18"/18.00" 24"/24.00" |
18"/19.50" 20"/21.60" 24"/25.80" |
15"/19.50" 18"/23.00" |
2750 / 1247 | 46.5 | 38.5 | 28.25 | 350 / 159.1 |
| PL3000 |
23.00" - 32.00" 58.42 - 81.28 |
24"/24.00" 30"/30.00" |
24"/25.80" 30"/32.00" |
18"/23.00" 21"/26.50" 24"/31.50" |
3000 / 1361 | 52.75 | 48 | 33.25 | 500 / 227.3 |
| PL3500 |
30.00" - 38.50" 76.20 - 97.79 |
30"/30.00" 36"/36.00" |
30"/32.00" 36"/38.30" |
24"/31.50" 27"/35.00" 30"/38.50" |
3500 / 1688 | 52.75 | 54.75 | 41 | 580 / 263.6 |
| PL4500 |
36.00" - 45.50" 91.44 - 115.57 |
36"/36.00" 42"/42.00" |
36"/38.30" 42"/44.50" |
30"/38.50" 36"/45.50" |
4500 / 2041 | 66.5 | 72 | 50 | 1240 / 563.6 |
| PL7000 |
42.00" - 52.50" 106.68 - 133.35 |
42"/42.00" 48"/48.00" |
42"/44.50" 48"/50.80" |
36"/45.50" 42"/52.50" |
7000/3175 | 72.75 | 74.5 | 55.25 | 1380/627.3 |
| PL8500 |
48.00" - 59.50" 121.92 - 151.13 |
48"/48.00" 54"/54.00" |
48"/50.80" 54"/57.56" |
42"/52.50" 48"/59.50" |
8500/3856 | 77 | 84.5 | 62.75 | 1530/695.5 |
