KL9000 Barrier Lift

Lift Barrier Walls Quickly and Safely with the Kenco Barrier Lift

Specifications

• Capacity Rating: 9000 lbs
• Grip Range: 6" - 12"
• Wall Length: Up to 16" in length
• Lifter Weight: 600 lbs
• Shipping Dimensions: 40" x 24" x 40"
• Pad Size: 6" x 24"
• Actuator: Medium
• Recommended Rigging: KRM16800 Rigmax™

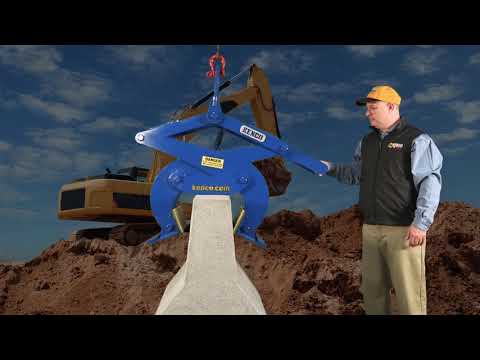

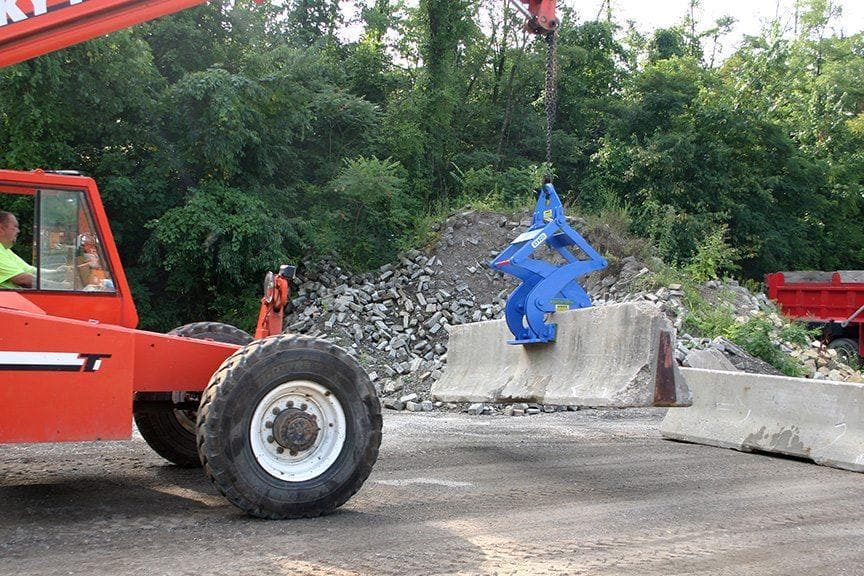

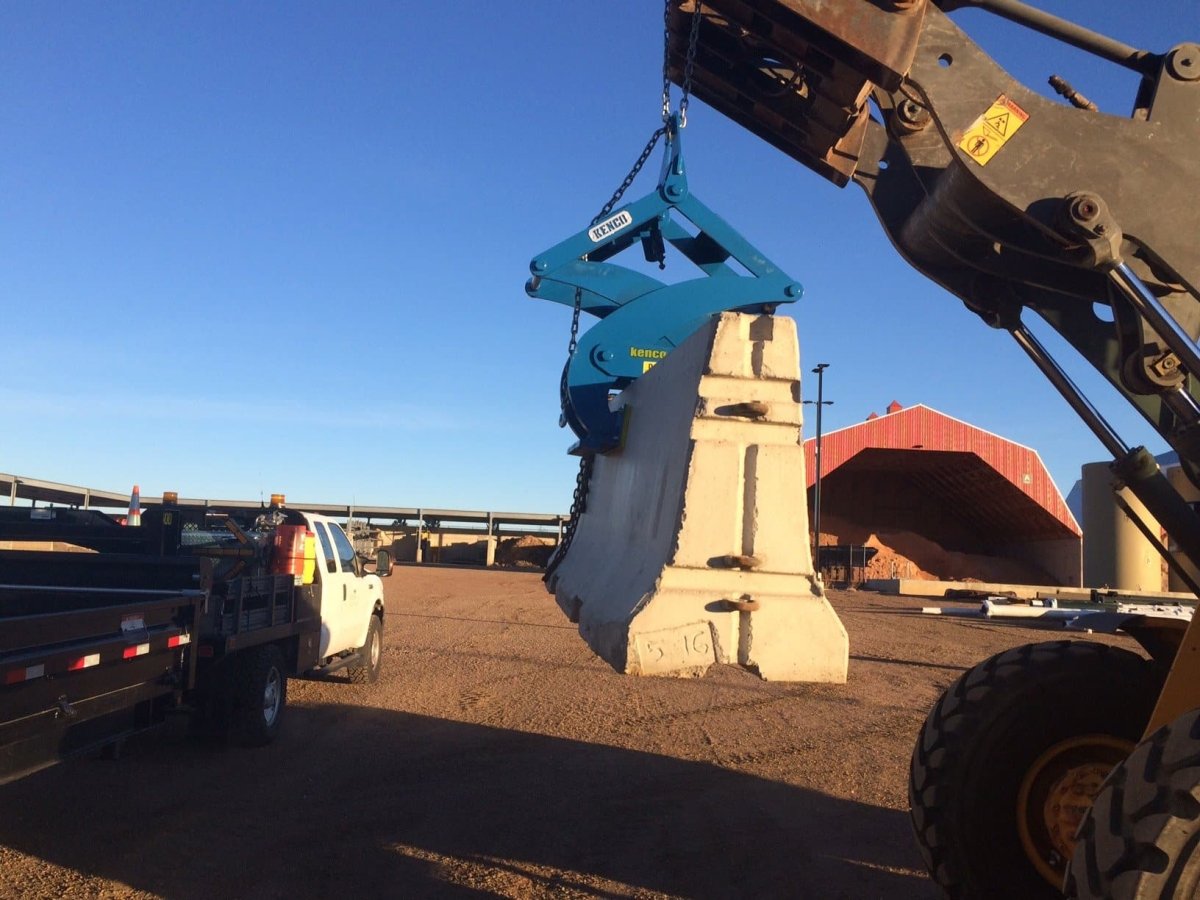

The Kenco Barrier Lift is the industry’s leading solution for moving precast concrete barriers—trusted by contractors and government agencies nationwide for over 30 years.

Designed for efficiency, this automatic lifting device grips and releases concrete barriers without the need for hydraulic hookups, cutting project time in half. It’s strong, safe, and reliable—perfect for highway, safety, and construction applications.

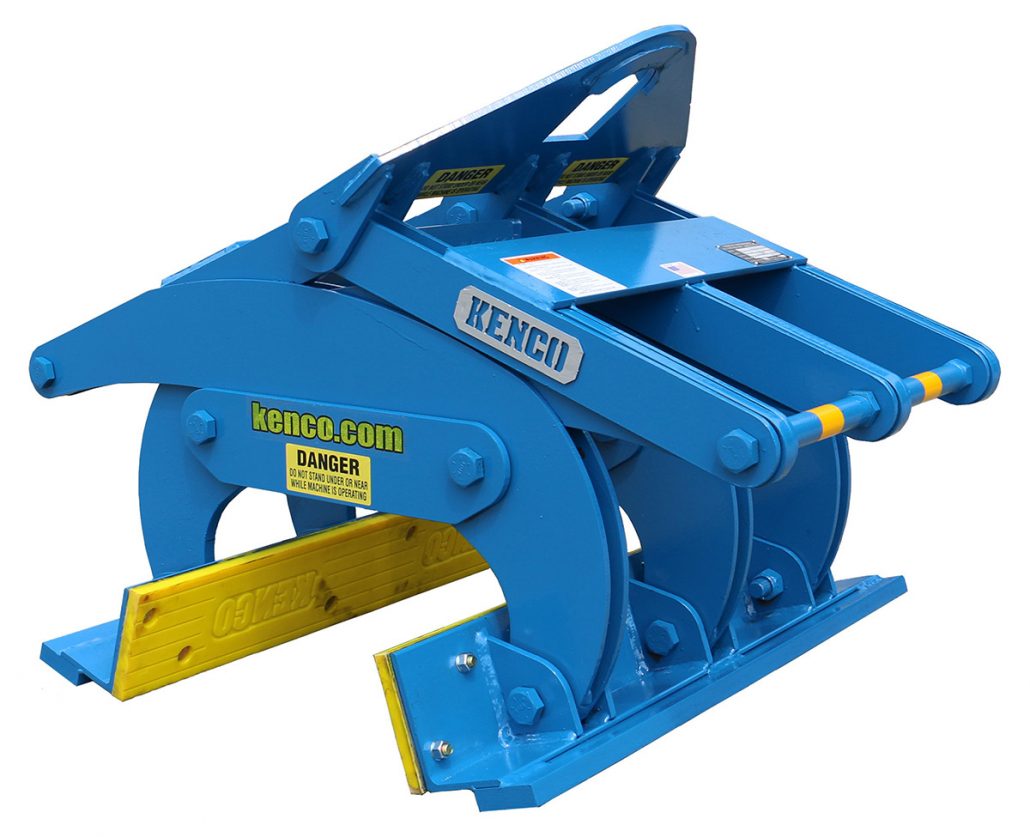

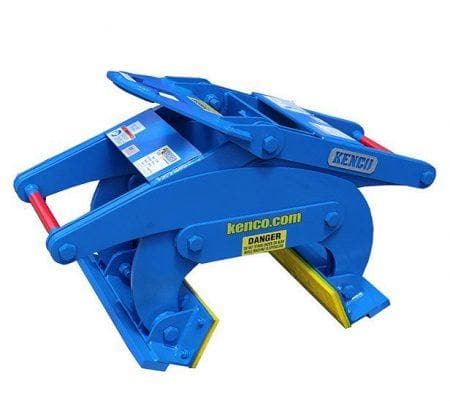

KL9000V4 Model Overview

The Kenco KL9000V4 Barrier Lift is built to handle up to 9,000 lbs. and is compatible with barrier walls from 6" to 12" wide. It is recommended for lifting up to 16-foot jersey barriers. Like all Kenco lifters, it works with typical, single slope, and F-shape barrier walls—no hydraulic hookups required.

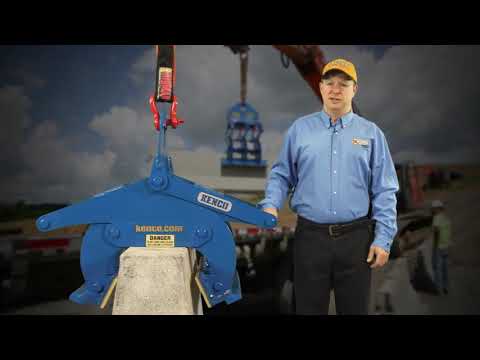

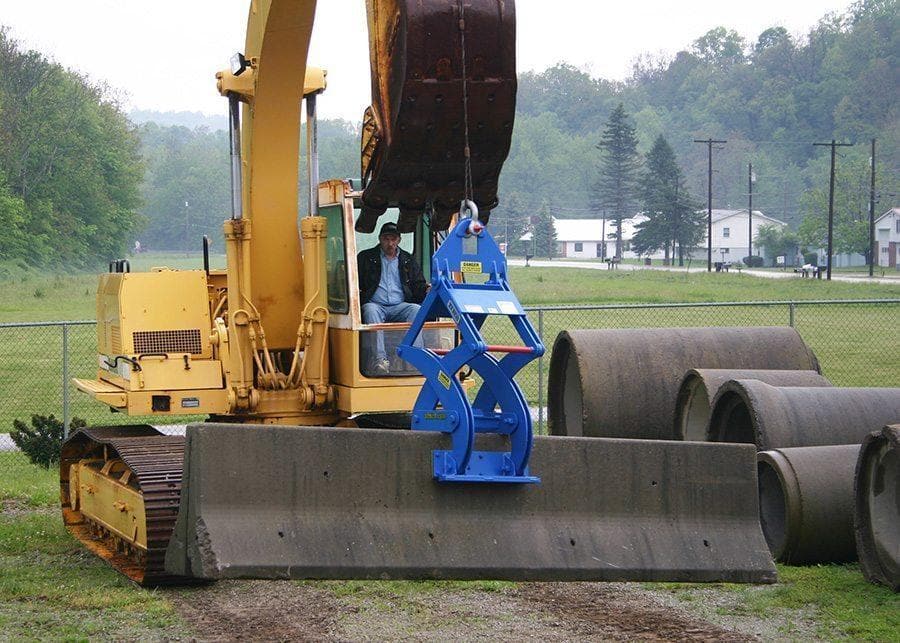

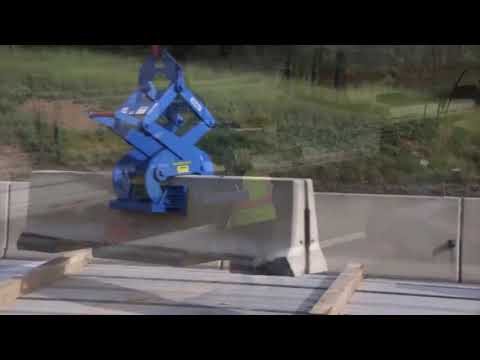

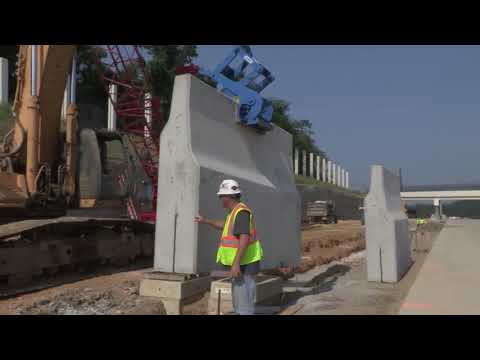

Its patented scissor action, combined with a specially designed actuator, makes lifting automatic and effortless. Simply place the KL9000V4 onto the wall top—this locks the actuator and begins the lift. Swiveling pad angles and durable elastomer pads adapt to match the slope of the barrier and grip securely. When the barrier is placed and tension is released, the tongs open automatically for quick repositioning.

• Automatic Scissor Action: Grips and releases barriers securely without manual effort or hydraulic systems.
• 9,000 lb. Capacity: Ideal for lifting barriers up to 16 feet long with a 6"–12" grip range.
• Swiveling Pad Angles: Adjust to fit both single-slope and F-shape barriers.
• Elastomer Pads: Provide a strong, damage-free grip.
• Wide Compatibility: Custom models available for other barrier types or sizes.
• Certified Safe: Built to ASME B30.20 and BTH-1 standards; OSHA and CanOSH compliant.

Compatible Barrier Types

• T-Wall / Bremer Wall
• F-Shape Barrier Wall
• Single Slope Barrier Wall
• Zipper Temporary Barrier Wall
• Texas Low Profile Barrier Wall
• Florida Low Profile Barrier Wall

Common Applications

• Highway and Traffic Management
• Pedestrian Safety & Crowd Control
• Military and Defense Projects
• Material Containment
• Agricultural Use
