L Bracket for Countertop

12" L-Shaped Counter Top Support Brace Support Bracket

The 12 inch L-shaped support bracket is available in a 3 pack kit with screws included for convenience. This support bracket is a great solution for knee or pony walls. In additional to those applications, these braces can be use for kitchen island support walls.

These L-shaped Counter Top Support Brackets are compatible with virtually all types of natural and engineered stone materials. Keep reading to learn about the features and benefits of using Weha 12" L-shaped support brackets.

12" L-shaped Bracket Features

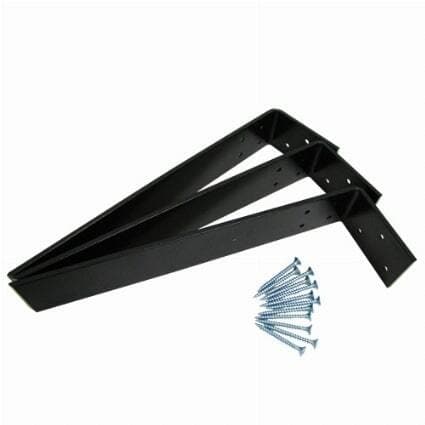

This particular bracket measures 12" in length, 2-1/2" in width and is 1/4" thick. The "bracket packet" comes with 3 braces and 12 screws for affixing the braces to the stone material.

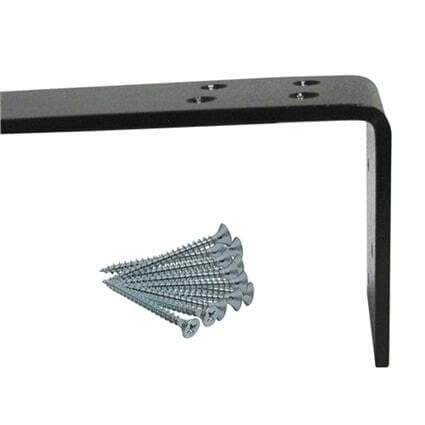

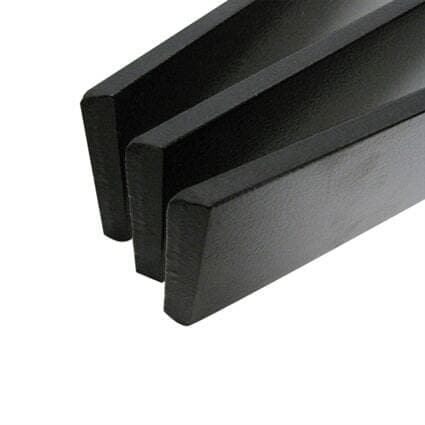

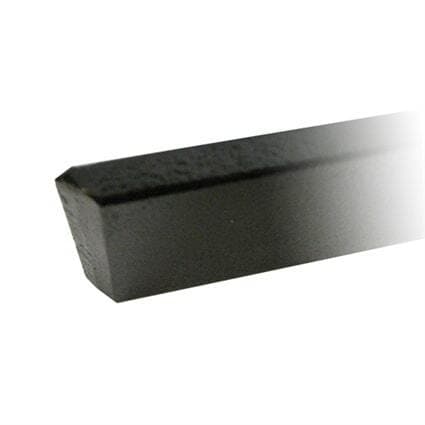

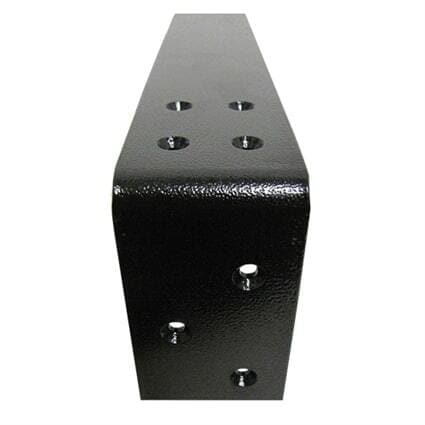

The L Countertop Support Bracket comes with predrilled recessed screw holes. 4 recessed screw holes on the top and 3 recessed screw holes down the back. Screws can go in either or both sides. The L-shaped countertop bracket is made using premium 1/4" thick steel x 2 1/2" wide for robust support with no flexing. These brackets are also finished with a high gloss black finish with a beveled end for a sleek look to fit with multiple design types.

Make no mistake, this durable, heavy duty L-shaped marble support bracket is usable for a variety of stone materials including:

• Engineered Stone
  • Quartz
  • Concrete
  • Solid Surface
• Natural Stone
  • Onyx
  • Marble
  • Granite
  • Limestone
  • Soapstone
  • Marbleite

L-shaped Counter Top Brace Functionality

The L-shaped Countertop Support Brackets are made to mount on 2 x 4 knee or pony walls, as well as full island support walls. Another excellent application is for floating vanity tops. This bracket can be screwed into the stud and then drywall or mudded over for an invisible look that offer strong support.

L-Shape Brace Specifics

• Steel Thickness: 1/4"
• Outside Long Side Length: 12"
• Inside Long Side Length: 11 3/4"
• Outside Short Side Length: 4 3/16"
• Inside Short Side Length: 3 11/16"

Packaging Details

The 12" L-shaped bracket packs come packaged for fabricator convenience and ease of installation. The packaging is as follows:

Set Specifics

• 3 Support Brackets Per Set

Box Specifics

• 4 Sets Per Box (12 Bars & 48 Screws)
