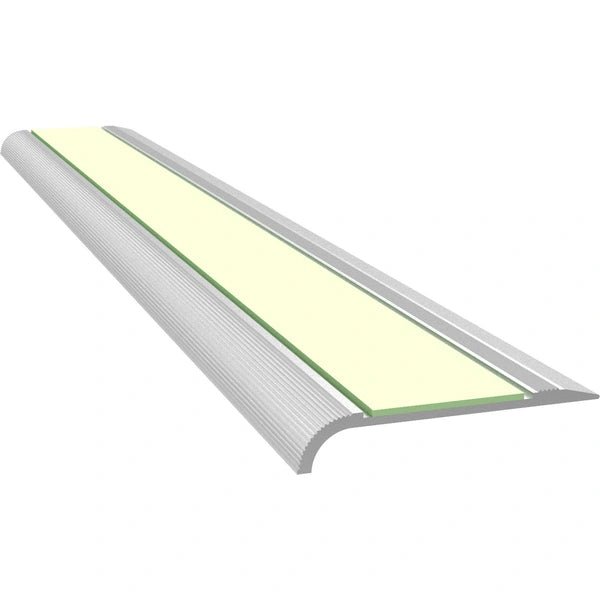

Low Profile Renovation Photoluminescent Nosing

Manufactured with the same material as our bar and full abrasive stair treads, Babcock-Davis' renovation treads are designed for restoration of all stair types.

The renovation stair treads are a quick and economical alternative to new construction and provide a safe, non-slip surface.

Features

• Anti-Slip Safety
• Continuous Color
• Easy to Install
• Photoluminescent

Specifications

Model	BSTRM-R2A
Channel	Extruded Aluminum
Application	Poured Concrete, Sloped, Steel Pan, Terrazzo or Wood, Carpet, Tile, Checker Plated Steps, Aluminum Steps
Tread	Extruded Aluminum
Width	2 inches
Length	Up to 12 linear feet
Mounting	Drilled Holes, Mechanically Fastened, Adhesive Mounted
Nosing	Rounded
Compliance	2015/2018 IBC Section 1025, 2015/2018 IFC Section 1025
Colors	Photoluminescent Resin Strip or Tape
Options	Abrasive Grit Tape, Mitered Cuts, Painted Undersides and Taped Top
Warranty	1 Year

Order Guide

Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

MODEL	WIDTH	TREAD	NOSING	INSTALL
BSTRM-R2A-T	2"	Photoluminescent Tape	Serrated-Rounded Nose	Drilled Holes, Mechanically Fastened, Adhesive Mounted
BSTRM-R2A	2"	Photoluminescent Resin Strip	Serrated-Rounded Nose	Drilled Holes, Mechanically Fastened, Adhesive Mounted

Tread Options

Photoluminescent Resin Strip	Vinyl Tape

---

---

Mounting Options

Mitered Cuts	Painted Undersides	Taped Tops

Description	Model	Shop Drawing	CAD	Revit/BIM	Data Sheet	3-Part Specs	LEED	Installation	Warranty
Photoluminescent Resin Strip
Adhesive Mount	BSTRM-R2A	PDF	DWG	ZIP	PDF	WORD	PDF	PDF	PDF
Photoluminescent Vinyl Tape
Adhesive Mount	BSTRM-R2A-T	PDF	DWG	ZIP	PDF	WORD	PDF	PDF	PDF
