Diamond Products

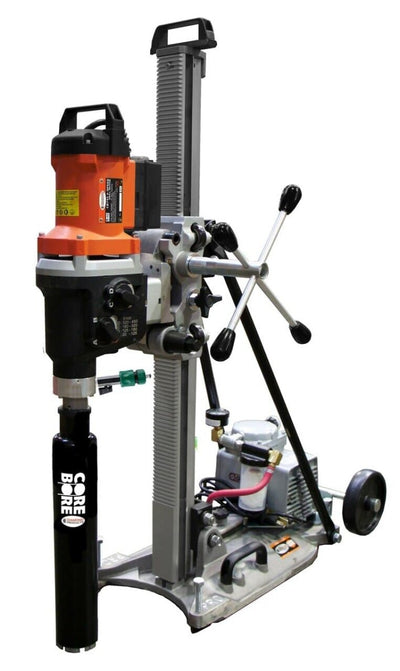

M-5 Pro Heavy Duty Q.D. Core Rig With Core Bore Motor

$5,11713 $5,49900
Shipping calculated at checkout.
(1)


Motor Options
Combination Options

Safe & Secure Payments.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

M-5 Pro Heavy Duty Q.D. Core Rigs

11" Standard Bit Capacity
The Fastest Professional Quick-Disconnect

Features & Benefits:

  • Quick disconnect motor mount that makes it easy to remove the motor
  • 4-spoke handle (can be used on right or left) on combo rig
  • Positive carriage lock and friction lock
  • Extruded aluminum light weight column (mast) that has a reinforced track with steel roller guide and rollers
  • Dual control panel/amp meter included with combination rigs
  • Quick release vacuum button
  • Convenient carrying handle
  • Level bubble on column
  • 2 gear ratios for easy carriage feed
  • Angle stand to drill up to 45°
Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig with add-on vacuum base and vacuum pump 4220092 81600
DK22F 23 amp, 110 volt Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4220040 38751
DK32F 30 amp, 110 volt Weka 230/480/720 Complete rig with add-on vacuum base and vacuum pump 4220042 38753
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig without vacuum pump 4220093 81601
DK22F 23 amp, 110 volt Weka 300/640/960 Complete rig without vacuum pump 4220064 38758
DK32F 30 amp, 110 volt Weka 230/480/720 Complete rig without vacuum pump 4220066 38761
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Anchor rig 4220094 81604
DK22F 23 amp, 110 volt Weka 300/640/960 Anchor rig 4220074 47809
DK32F 30 amp, 110 volt Weka 230/480/720 Anchor rig 4220076 47831
DK22F 11 Amp Weka DK22F (230V) Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4220041 38752
DK22F 11 Amp Weka DK22F (230V) Weka 300/640/960 Complete rig without vacuum pump 4220065 38759
DK32F 15 Amp Weka DK32F (230V) Weka 230/480/720 Complete rig with add-on vacuum base and vacuum pump 4220043 38757
DK32F 15 Amp Weka DK32F (230V) Weka 230/480/720 Complete rig without vacuum pump 4220067 38762
DK22F 11 Amp Weka DK22F (230V) Weka 300/640/960 Anchor rig 4220075 47826
DK32F 15 Amp Weka DK32F (230V) Weka 230/480/720 Anchor rig 4220077 45062
