Miter-It Auto, Electric
Save time and money by eliminating the need for a helper—wherever you would need a hand to hold the material, put a Miter-It™ Auto clamp there instead!

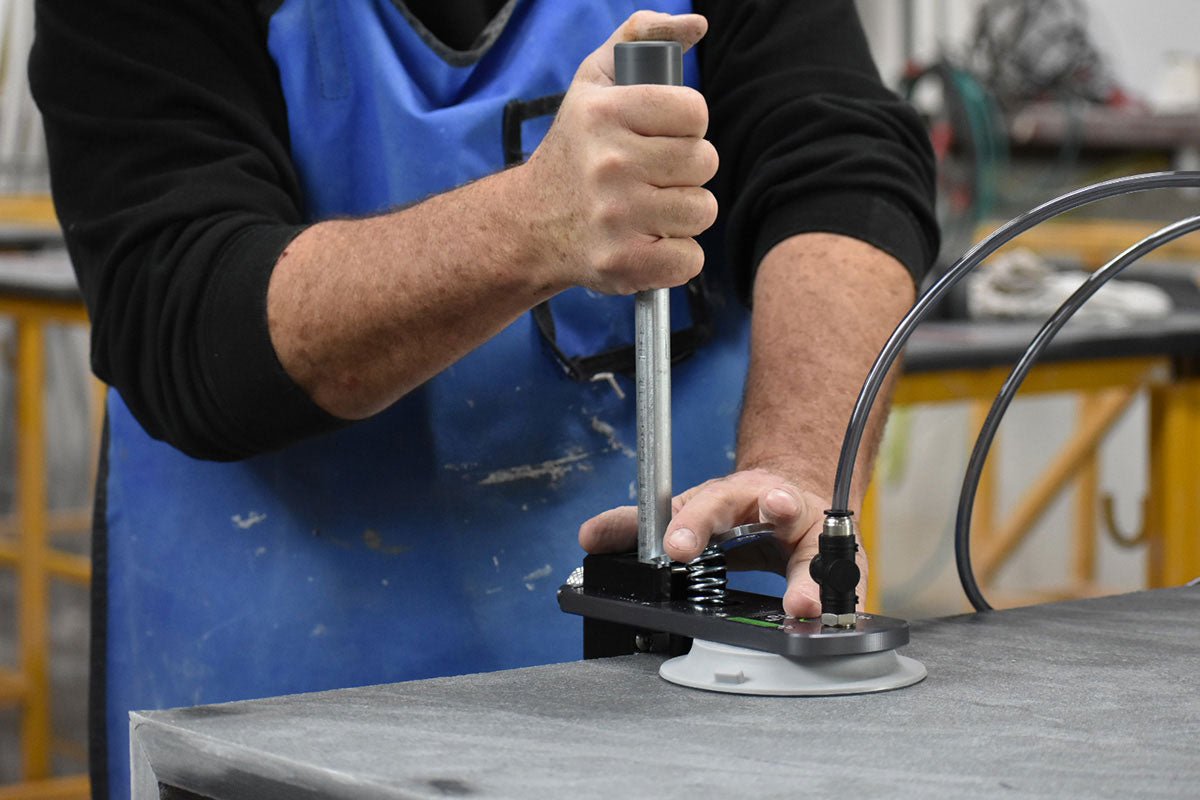

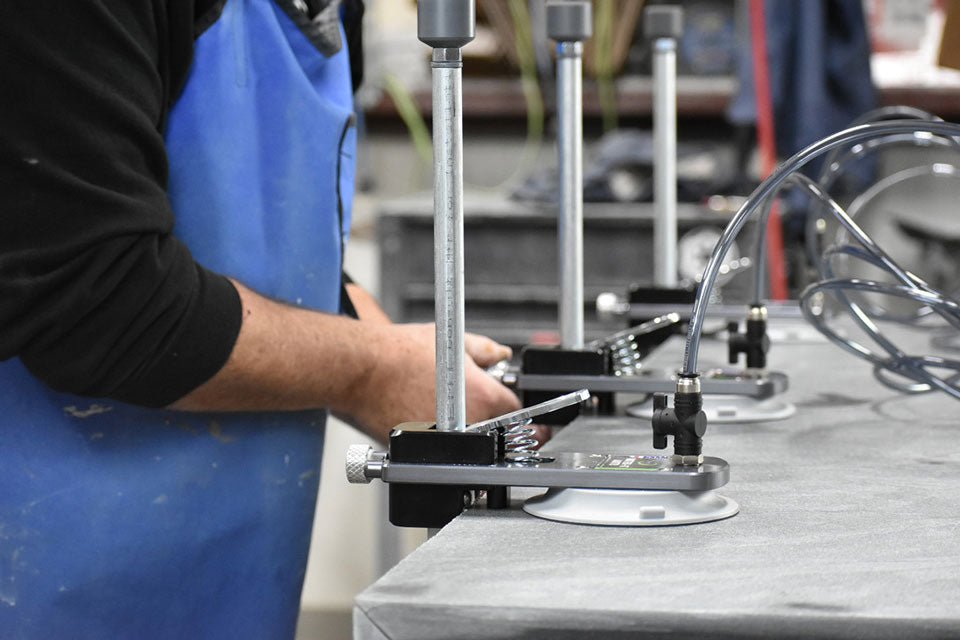

The Miter-It™ Auto, Electric system enables vacuum-powered mitered laminations “on the go”. Save time and money by eliminating the need for a helper—wherever you would need a hand to hold the material, put a Miter-It™ Auto clamp there instead! The Electric model uses a powerful, compact vacuum pump that runs on AC or battery power, so you can use this system at any jobsite. The user-friendly clamps securely and reliably hold heavy, drop-down edges at 90°, enabling finished-side-up laminations and providing better results than taping methods alone. Seaming the joint finished-side-up offers increased safety for workers and reduced risk of damage to the piece by not having to flip the material for gluing. This also keeps the seam in view for dialing-in perfect joints, and makes clean-up fast and easy. The 10-port Electric Vacuum Manifold allows adding eight additional clamps to cover more surface area. Typically, one Miter-It™ Auto clamp every 3 to 4 feet is sufficient, but more may be used for extra-long or heavy aprons.
- Mitered laminations “on the go”
- Saves labor by eliminating the need for a helper
- Miter finished side up—safer for workers and material; keep the seam in view
- Compact vacuum pump runs on AC or battery power for use at jobsite
- Reliably holds heavy drop-down edges at 90°

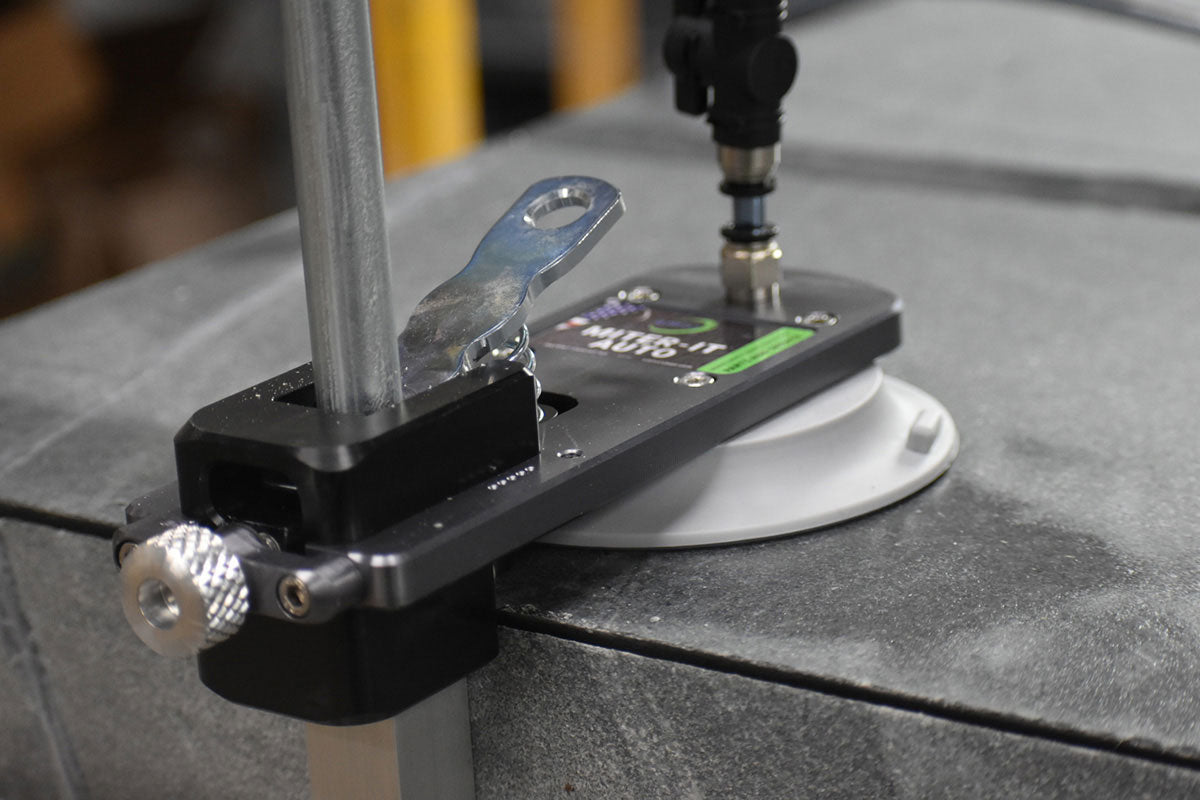

- Coarse adjustment lever for quick apron placement
- Horizontal and vertical fine-tuning knobs for ultimate seam control
- Non-marking, proprietary synthetic* rubber cups are highly-durable and feature FTS™ technology for optimum hold, even on textured materials
- Accommodates edges up to 12” tall, 3 cm thick
- The Miter-It Auto clamp allows expansion of your Miter-It Auto system.
- The Venturi Vacuum Generator highly efficient (½ CFM) vacuum source to run Miter-It Auto system or other Omni Cubed products on compressed (shop) air.
|Product Name||Miter-It™ Auto, Electric|

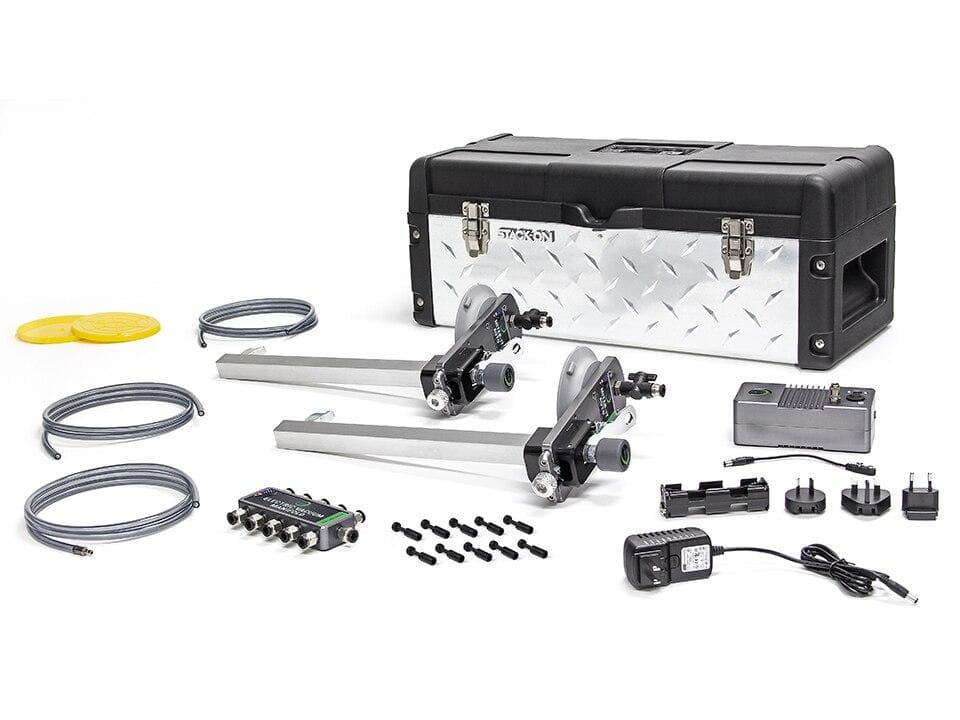

|Includes||Two miter clamp units with 5” gray cups, two cup covers, vacuum pump, international power adapter, AA battery holder, battery power adapter, 10-port Vacuum Manifold, ten port plugs, 20’ air tubing, quick-connect male coupler, storage case (may vary from image)|
|Product Dimensions||28" x 14" x 14" (all components in case)|
|Product Weight||25.4 lbs (all components in case)|
|Package Dimensions||29" x 15" x 15"|
|Shipping Weight||26 lbs|
|Clamping Range||50 mm to 304 mm (2 in. to 12 in.)|
|Materials||Anodized aluminum, aluminum, stainless steel, silicone, zinc plated steel, polyurethane air tubing|
