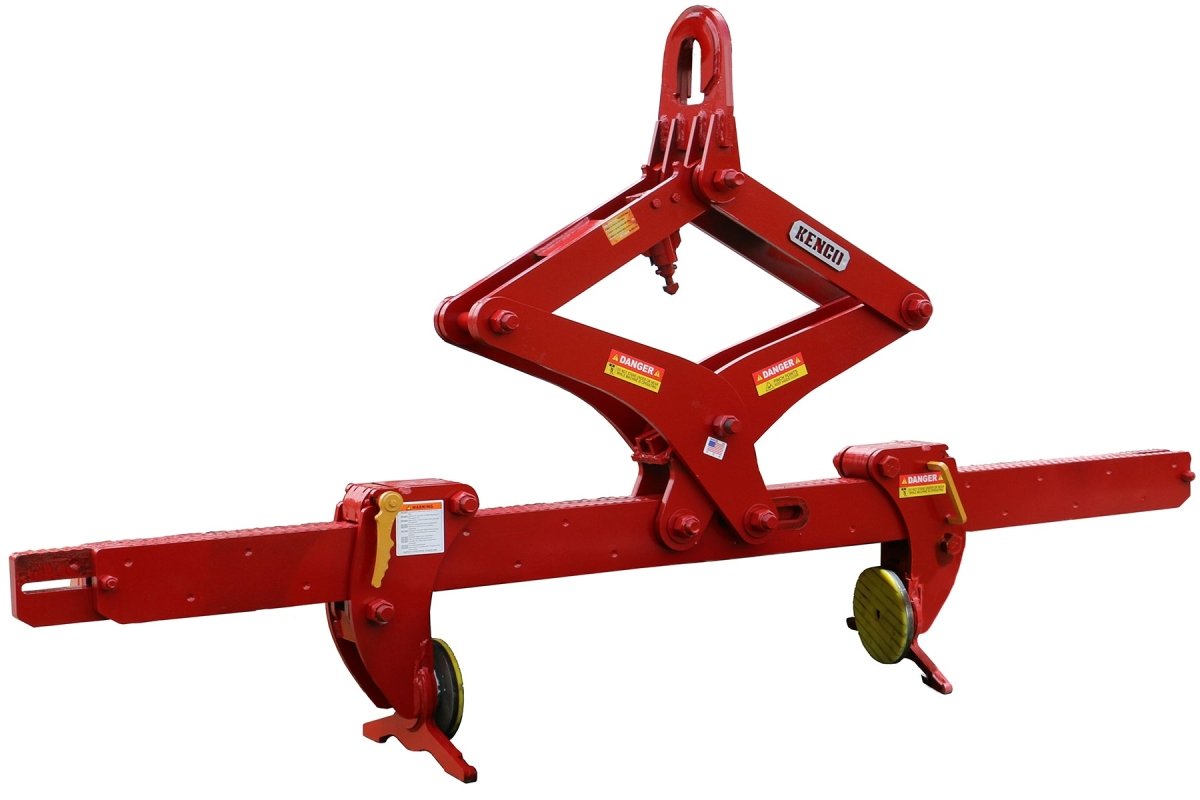

The ML12K14T88V1 Multilift has an 12,000 pound capacity with specially engineered pads that pivot in all directions to accommodate a sloped surface

This lifting grab easily adjusts with the use of a lever and can grip from the outside pushing in from 14 to 88 inches. The legs can be reversed to grip from 38 to 112 inches when placed in an inside pushing out orientation.

This lifter attaches with Kenco’s recommended Rigmax to any lifting capable machine.

WEIGHT 1230 lbs
DIMENSIONS 130 × 30 × 60 in

Multlift Specifications By Model

MODEL WEIGHT CAPACITY GRIP RANGE INSIDE – OUT GRIP RANGE
ML3K5T32V1 140 lbs
63.50 kg
3000 lbs
1360.777 kg
5 – 32 inches
12.7 – 81.28 cm
18 – 41 inches
45.72 – 104.14 cm
ML8K10T48V1 470 lbs
213.188 kg
8000 lbs
3628.739 kg
10 – 48 inches
25.4 – 121.92 cm
29 – 60 inches 73.66 – 152.4 cm
ML8K10T68V1 530 lbs
240.404 kg
8000 lbs
3628.739 kg
10 – 68 inches
25.4 – 172.72 cm
29 – 80 inches 73.66 – 203.2 cm
ML12K14T88V1 1230 lbs
557.9 kg
12,000 lbs
5443.108 kg
14 – 88 inches
35.6 – 223.5 cm
38 – 112 inches
96.5 – 284.4 cm
