Please note: Wood's Powr-Grip products are made to order and have an expected lead time of 5-6 weeks. Please contact us at +1 (800) 342-3876 for additional information.

This lifter series is specially designed to handle loads with textured surfaces.
A variety of load capacities and power systems mean there's a lifter here that's ideal for your textured material tilting needs.

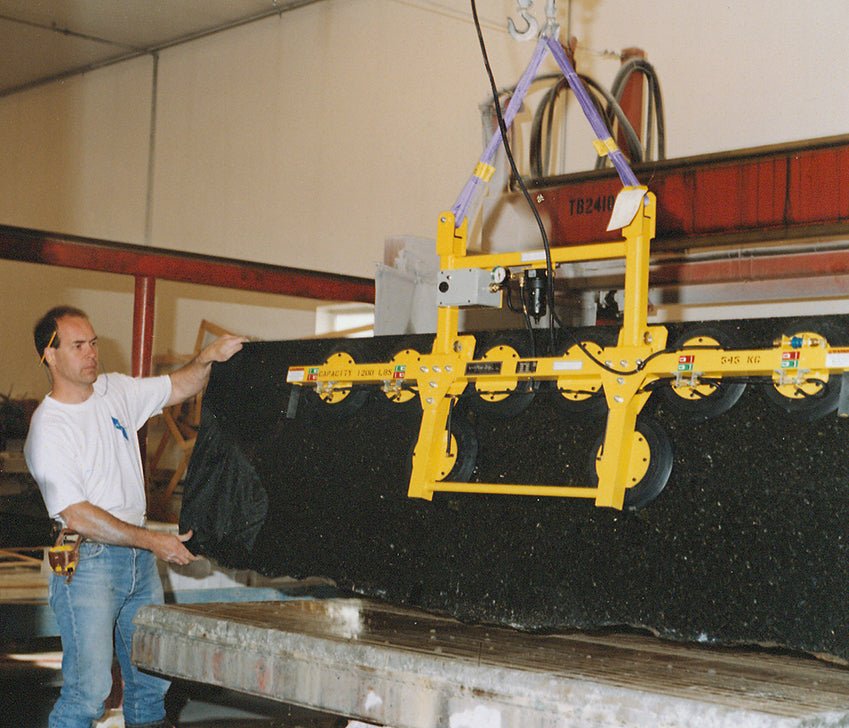

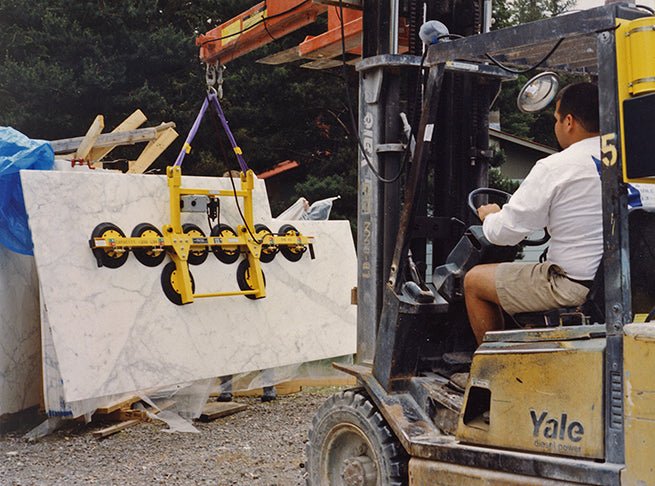

The MT Lifter Series is a popular lifter in the Stone Industry, and is perfect for stone shops & installing granite countertops.

Tilter

Lifter Instructions

Lifter Troubleshooting

Lifter Specifications



Manual Tilter 1500

Standard Pad Spread:
33-1/4" x 77-3/4" [85 cm x 197 cm]

Number / Size of Vacuum Pads:
10 / 10" [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:
1500 lbs [680 kg]

Manual Tilter 1200

Standard Pad Spread:
21-1/4" x 77-3/4" [54 cm x 197 cm]

Number / Size of Vacuum Pads:
8 / 10" [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:
1200 lbs [545 kg]

Manual Tilter 900

Standard Pad Spread:
11-3/4" x 77-3/4" [30 cm x 197 cm]

Number / Size of Vacuum Pads:
6 / 10" [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:

900 lbs [410 kg]

Manual Tilter 600

Standard Pad Spread:
11-3/4" x 53-3/4" [30 cm x 137 cm]

Number / Size of Vacuum Pads:
4 / 10" [25 cm] diameter pads with replaceable sealing rings

Maximum Load Capacity:
600 lbs [270 kg]

Stock# Model# Description Load Capacity Power
97567 MT1010TAIR Ideal for Production & Fabrication. 1500 lbs [680 kg] Air
97565 MT1010TAC Ideal for Production & Fabrication. 1500 lbs [680 kg] AC
97566 MT1010TDC Ideal for Construction & Installation. 3-SCFM Vacuum Package. 1500 lbs [680 kg] DC
97558 MT810TAIR Ideal for Production & Fabrication. 1200 lbs [545 kg] Air
97551 MT810TAC Ideal for Production & Fabrication. 1200 lbs [545 kg] AC
97555 MT810TDC Ideal for Construction & Installation. 3-SCFM Vacuum Package. 1200 lbs [545 kg] DC
97548 MT610TAIR Ideal for Production & Fabrication. 900 lbs [410 kg] Air
97546 MT610TAC Ideal for Production & Fabrication. 900 lbs [410 kg] AC
97547 MT610TDC Ideal for Construction & Installation. 3-SCFM Vacuum Package. 900 lbs [410 kg] DC
97532 MT410TAIR Ideal for Production & Fabrication. 600 lbs [270 kg] Air
97530 MT410TAC Ideal for Production & Fabrication. 600 lbs [270 kg] AC
97531 MT410TDC Ideal for Construction & Installation. 3-SCFM Vacuum Package. 600 lbs [270 kg] DC
