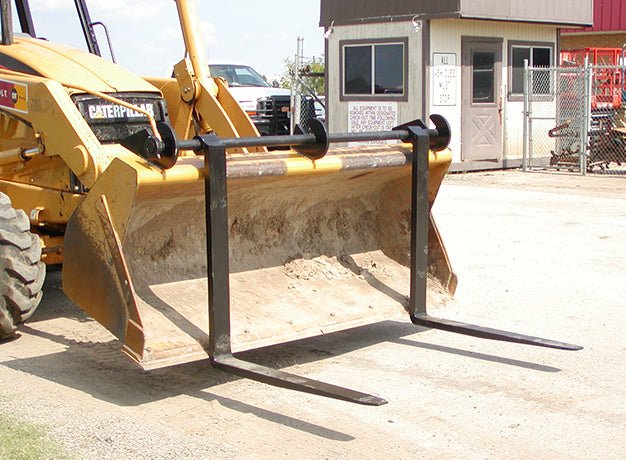

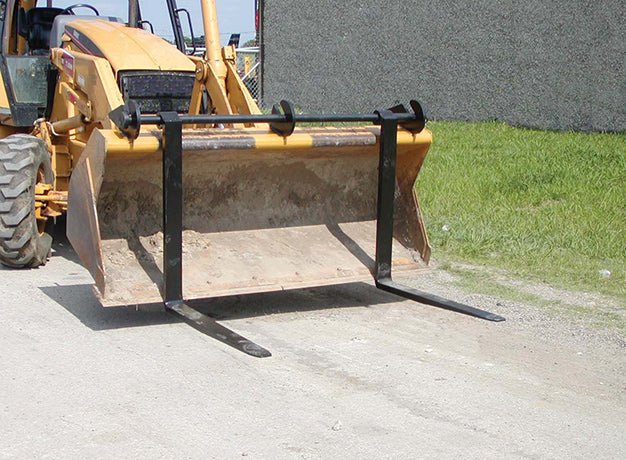

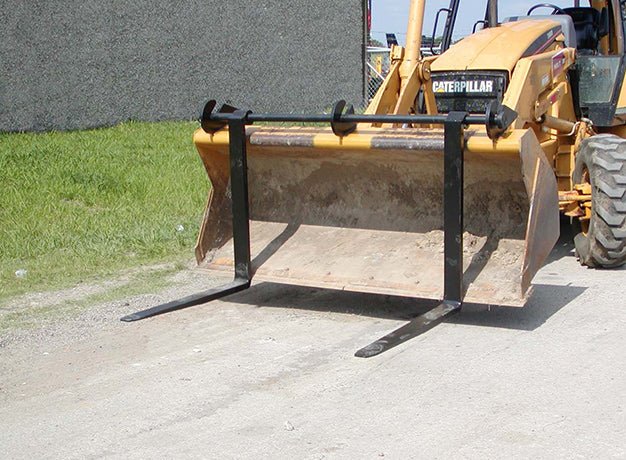

Over-The-Bucket Forks

Add the convenience of a forklift to your loader - Forks, Brackets, and Shaft sold separately.

Add the versatility of a forklift to your loader with a Star Industries Over-the-Bucket Forks. We also sell CTI buckets forks with adjustable tine spacing that will fit buckets with or without teeth and that can be use on multiple loaders.

Add and remove forks from the comfort of the operator's seat

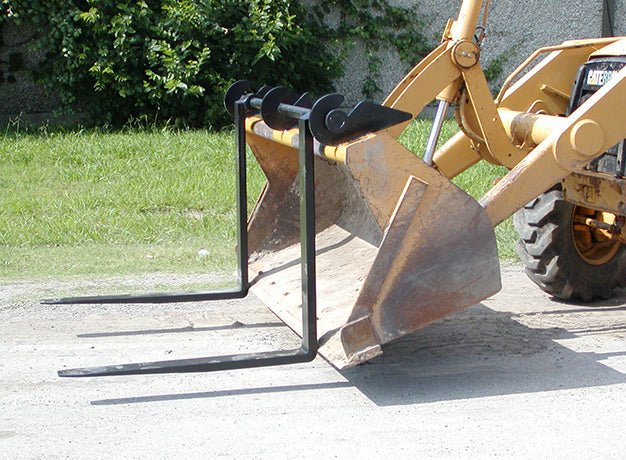

1. Roll bucket forward 2. Engage free-standing forks with brackets 3. Roll bucket back to level forks

• Forged from one piece of premium-grade carbon-steel.

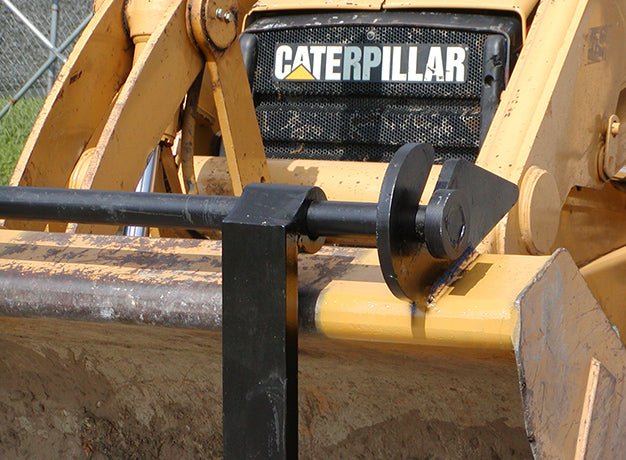

• Come with standard ¾-inch brackets.
• Operators can fit and remove the forks alone.
• No tools needed and operators don’t even have to leave their seat.

Over-The-Bucket Tines Only

Set of two 1½” x 4” x 42” Tines. 5500 lbs. cap. per pair

Model	Description	Fork Back
LBA170-36	Fits vertical bucket openings up to 36”	43”
LBA170-42	Fits vertical bucket openings up to 42”	49”



Over-The-Bucket Tines Only

Set of two 1¾” x 4” x 48” Tines. 6900 lbs. cap. per pair

Model	Description	Fork Back
LBA180-36	Fits vertical bucket openings up to 36”	43”
LBA180-42	Fits vertical bucket openings up to 42”	49”
LBA180-48	Fits vertical bucket openings up to 48”	55”
LBA180-54	Fits vertical bucket openings up to 54”	61”



Brackets only

Model	Description
LBA170B	Set of 3 “Universal-Fit” weld-on brackets required for LBA170 and LBA180



Shaft only

Model	Description
LBA170-02	Shaft 2” x 80” solid steel shaft with retainers required for LBA 170 and 180
