Pallet Master/Servers

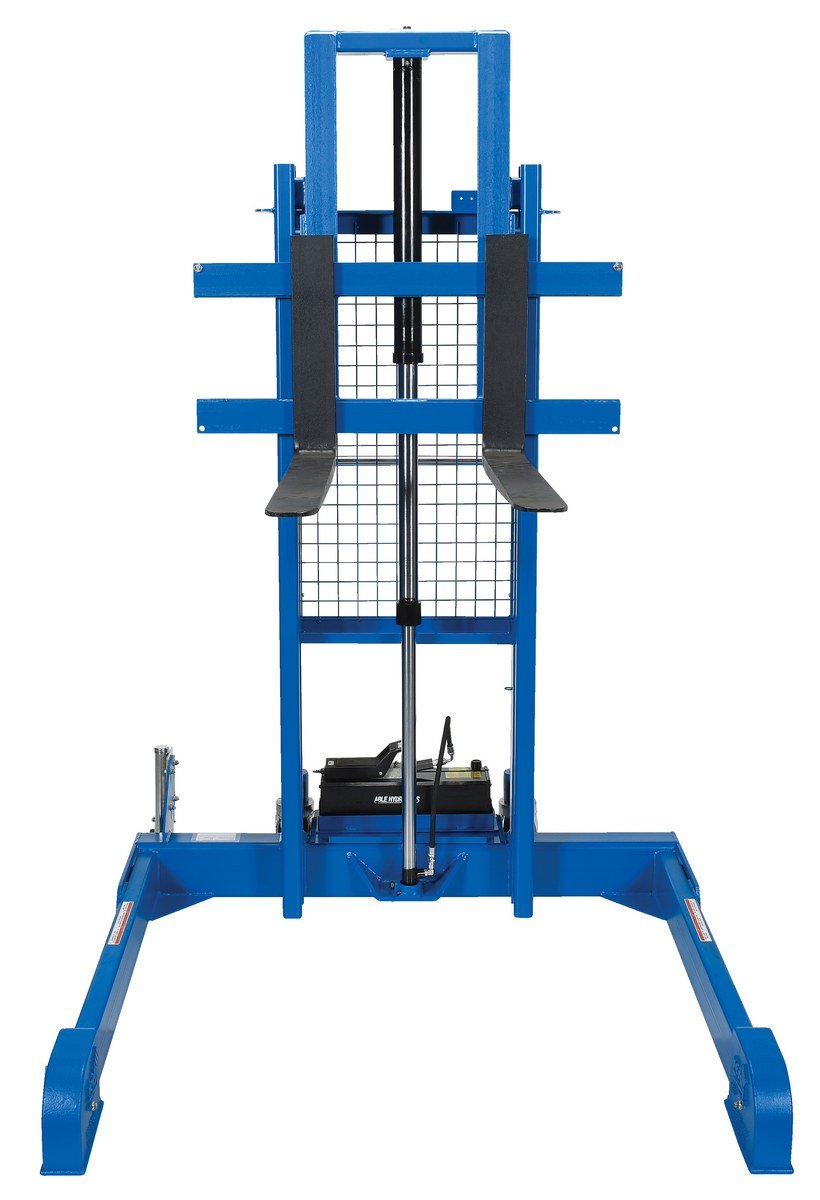

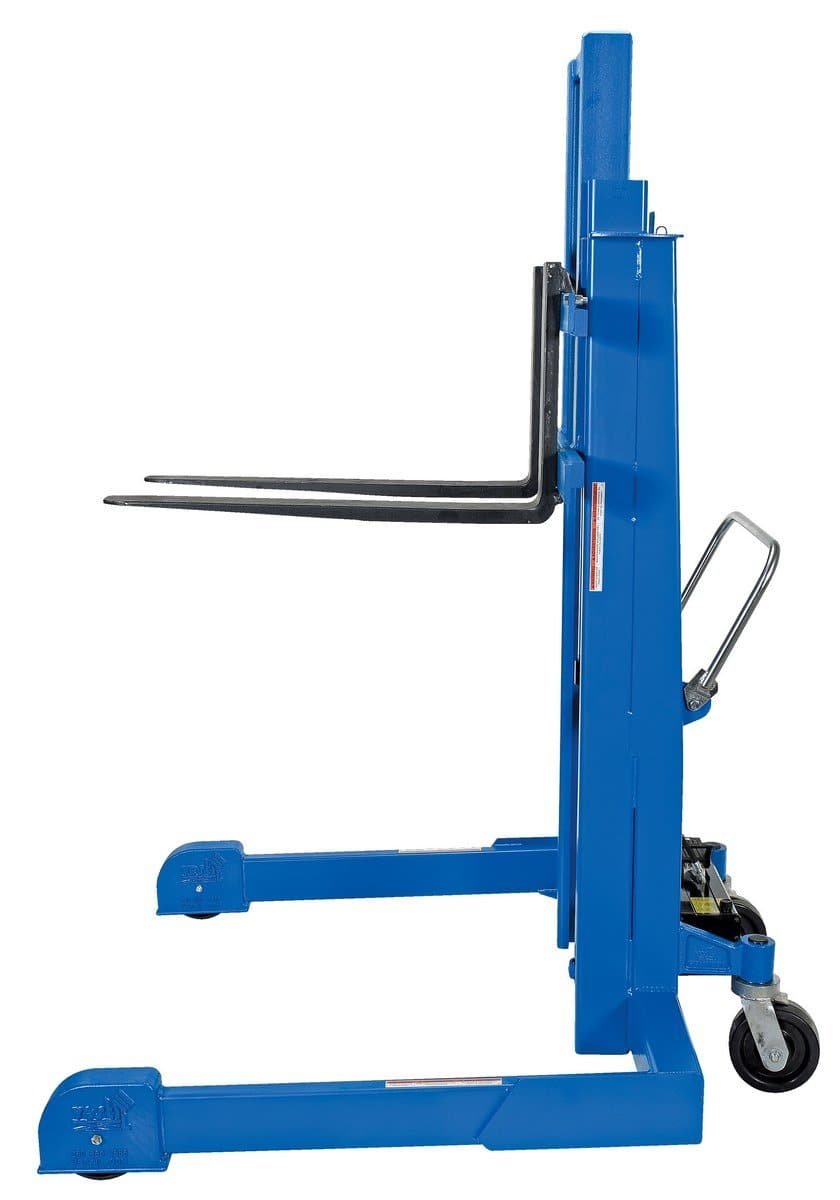

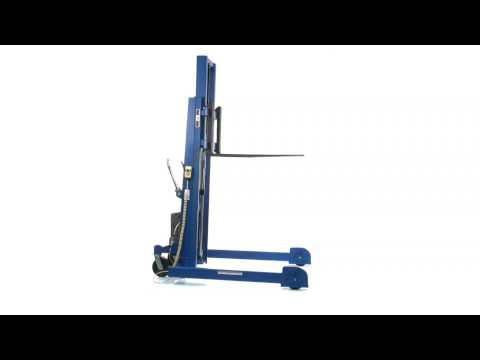

The Pallet Master/Servers, are designed to be used when a fork truck is not available.

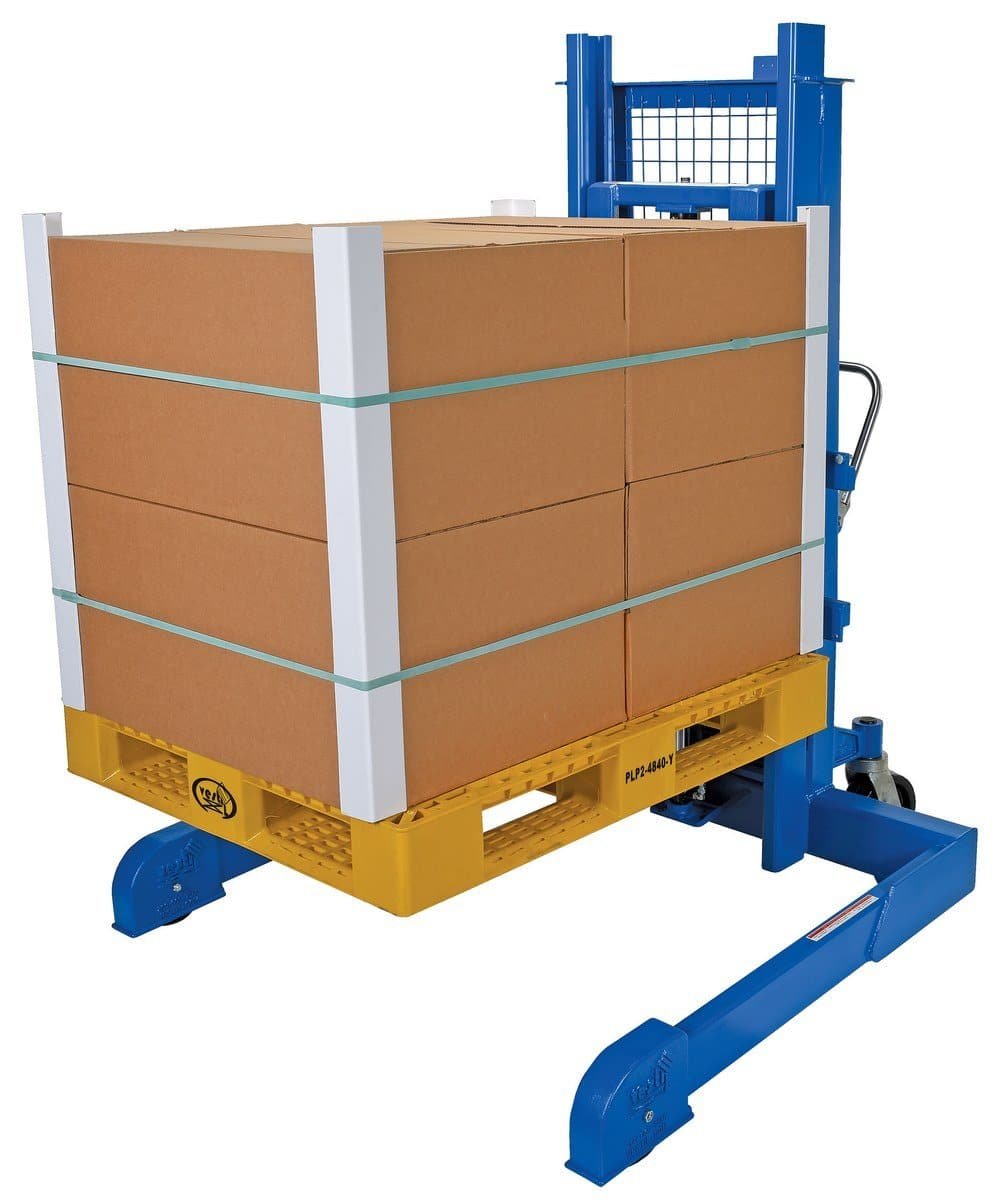

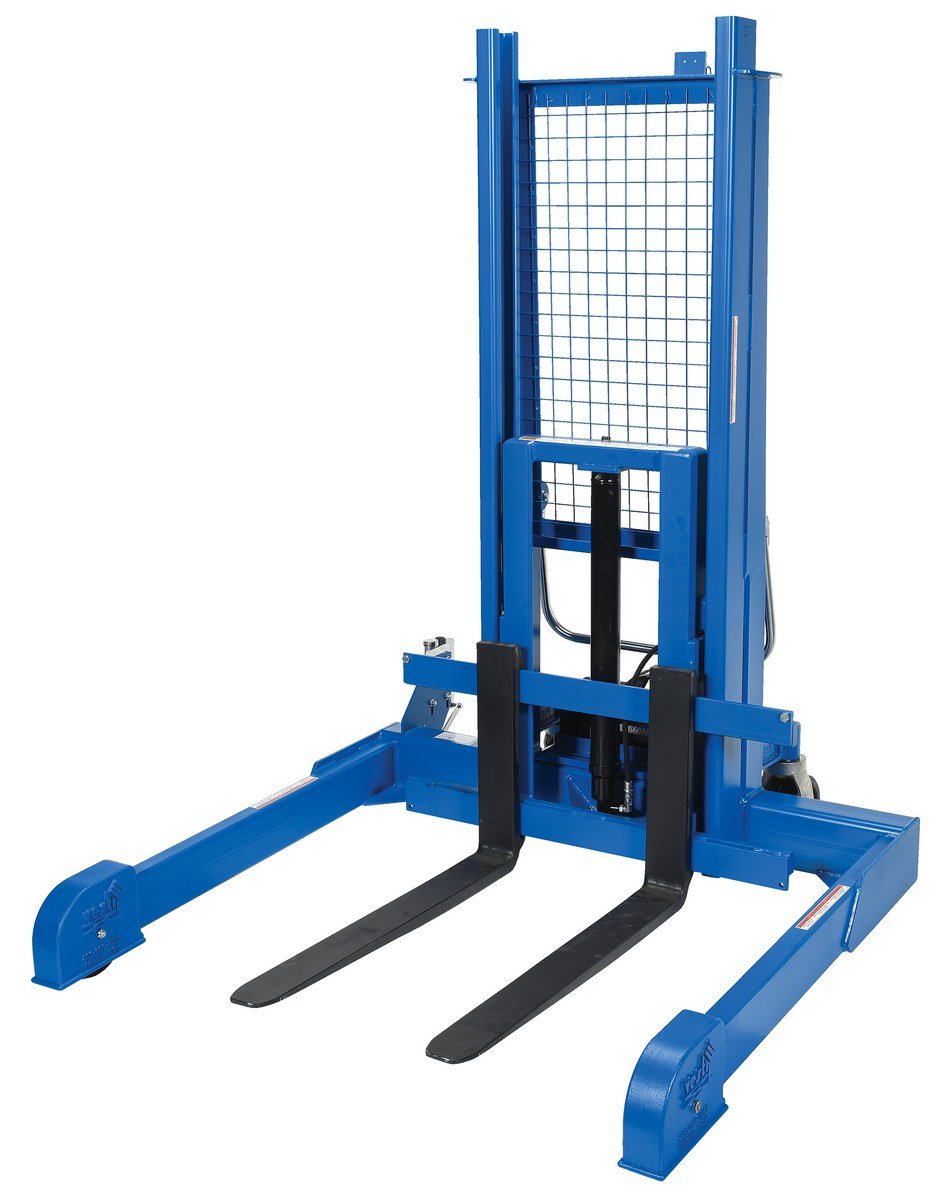

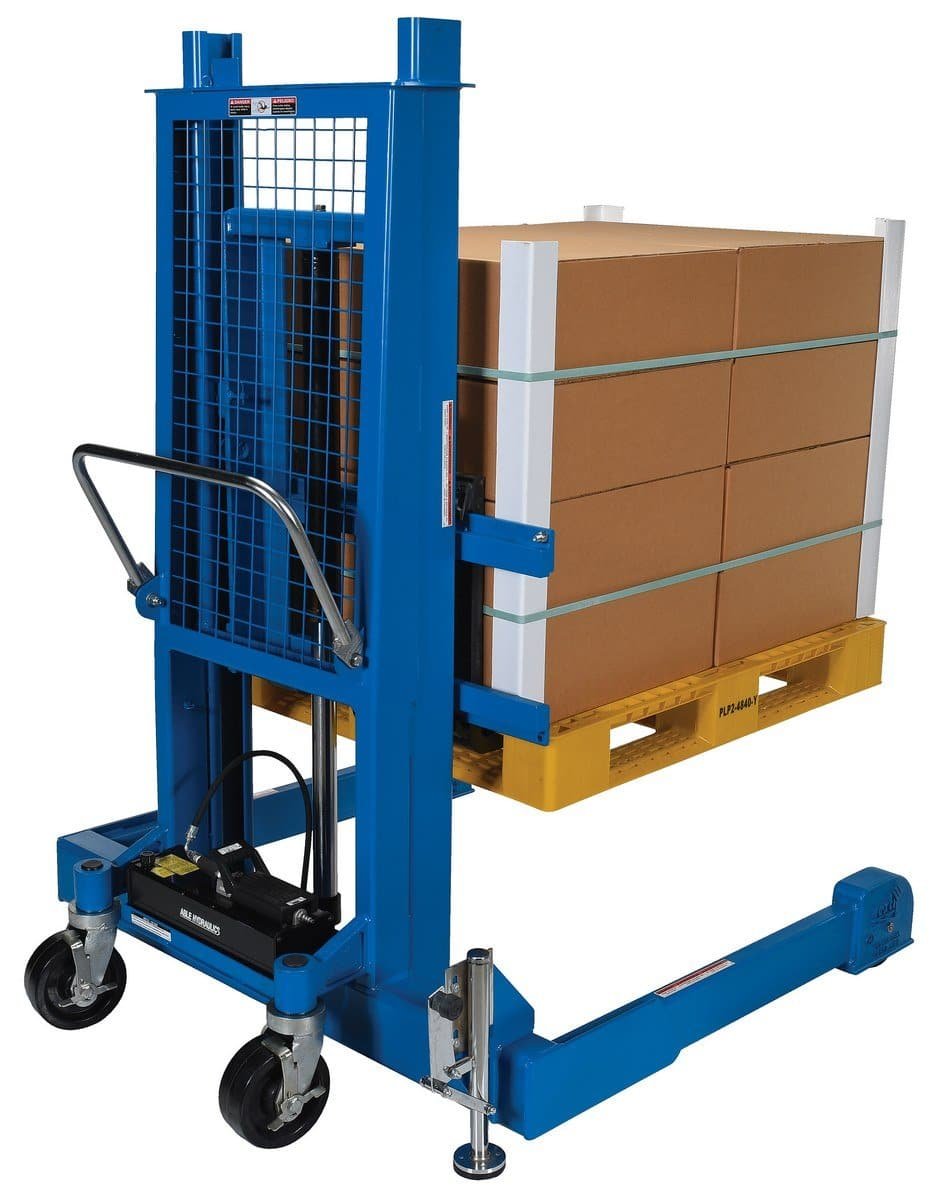

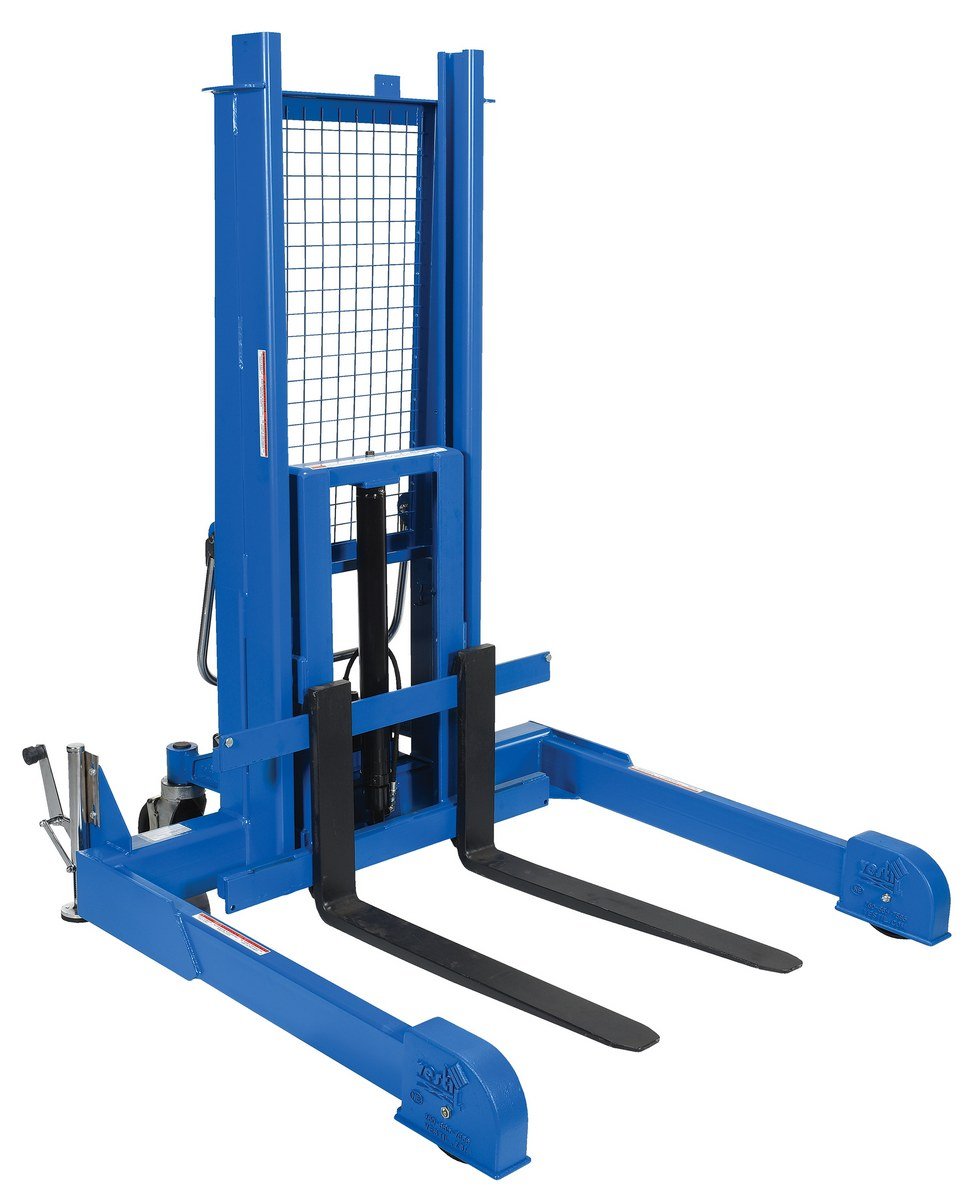

The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18" regardless of fork length. The forks are 36" long for handling a wide variety of pallet sizes. Move the unit around easily on 8" x 3" (8" x 2" locking standard on LL-PMPS) phenolic swivel rear casters Floor lock standard on PMPS series. Handle height is 36". Outriggers are adjustable on series LL-PMPS, inside straddle width is adjustable between 34" to 50-1/2".

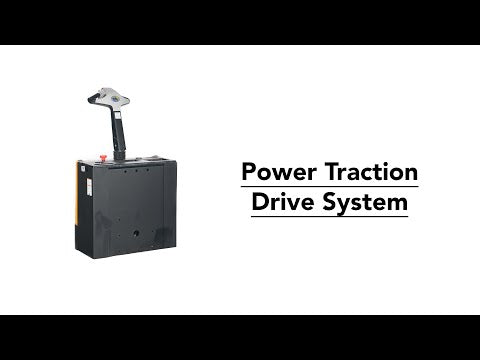

PTDS-E -- Power Traction Drive option reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.
Three Power Options to choose from:
- Suffix-AC is 115V 1 phase power with a push-button hand control

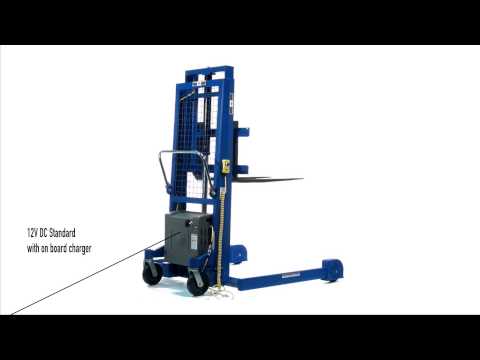

- Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charege indicator gauge.
- Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control/
| Pallet Server | |||||||
| Model | Image | PDF's | Capacity (lbs) |
Description | Forks (WxL) | Lift Height | Wt. (lbs) |
| PMPS-50-AC |  |

|
4,000 | 115V AC Powered | 4"x36" | 50" | 1081 |
| PMPS-50-AIR |  |
|
4,000 | Reciprocating Air/Oil Powered | 4"x36" | 50" | 962 |
| PMPS-50-DC |  |
|
4,000 | �12V DC Powered | 4"x36" | 50" | 1046 |
| PMPS-60-AC |  |
|
4,000 | 115V AC Powered | 4"x36" | 60" | 1065 |
| PMPS-60-AIR |  |
|
4,000 | Reciprocating Air/Oil Powered | 4"x36" | 60" | 1029 |

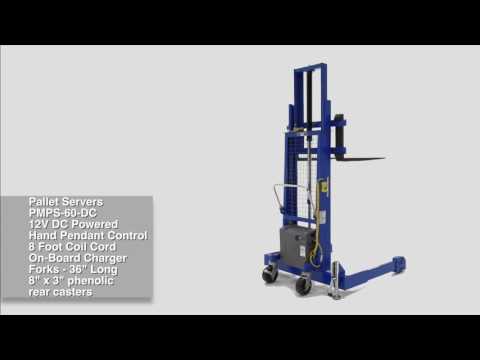

| PMPS-60-DC |  |
|
4,000 | 12V DC Powered | 4"x36" | 60" | 1096 |
| LL-PMPS-50-AC | |
|
1,200 | 115V AC Powered | 4"x36" | 50" | 860 |
| LL-PMPS-50-AIR | |
|
1,200 | Reciprocating Air/Oil Powered | 4"x36" | 50" | 860 |
| LL-PMPS-50-DC | |
|
1,200 | 12V DC Powered | 4"x36" | 50" | 911 |
| LL-PMPS-60-AC |  |
|
1,200 | 115V AC Powered | 4"x36" | 60" | 875 |
| LL-PMPS-60-AIR |  |
|
1,200 | Reciprocating Air/Oil Powered | 4"x36" | 60" | 875 |
| LL-PMPS-60-DC |  |
|
1,200 | 12V DC Powered | 4"x36" | 60" | 935 |
| LL-PMPS-72-AC |  |
|
1,200 | 115V AC Powered | 4"x36" | 72" | 910 |
| LL-PMPS-72-AIR |  |
|
1,200 | Reciprocating Air/Oil Powered | 4"x36" | 72" | 910 |
| LL-PMPS-72-DC |  |
|
1,200 | 12V DC Powered | 4"x36" | 72" | 950 |
KEY: = Approval Drawing --
= Warranty -- = Testing Certificate
