PH30000 Mechanical Pipe Hook has a capacity rating of 30,000 pounds and will handle any shape or type of pipe from 30 inches

  • 30000 pound capacity
  • Fits minimum I.D 30.00 inches pipe of any shape or type
  • Weighs 1500 pounds

DESCRIPTION

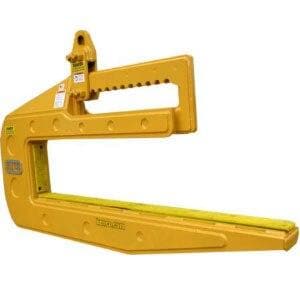

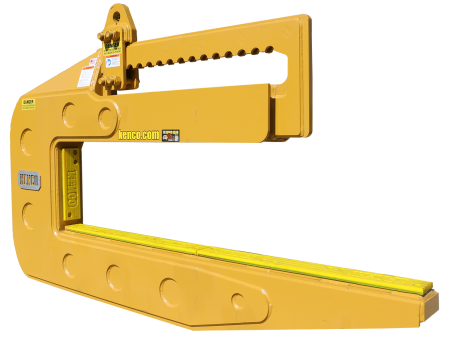

PH30000 MECHANICAL PIPE HOOK

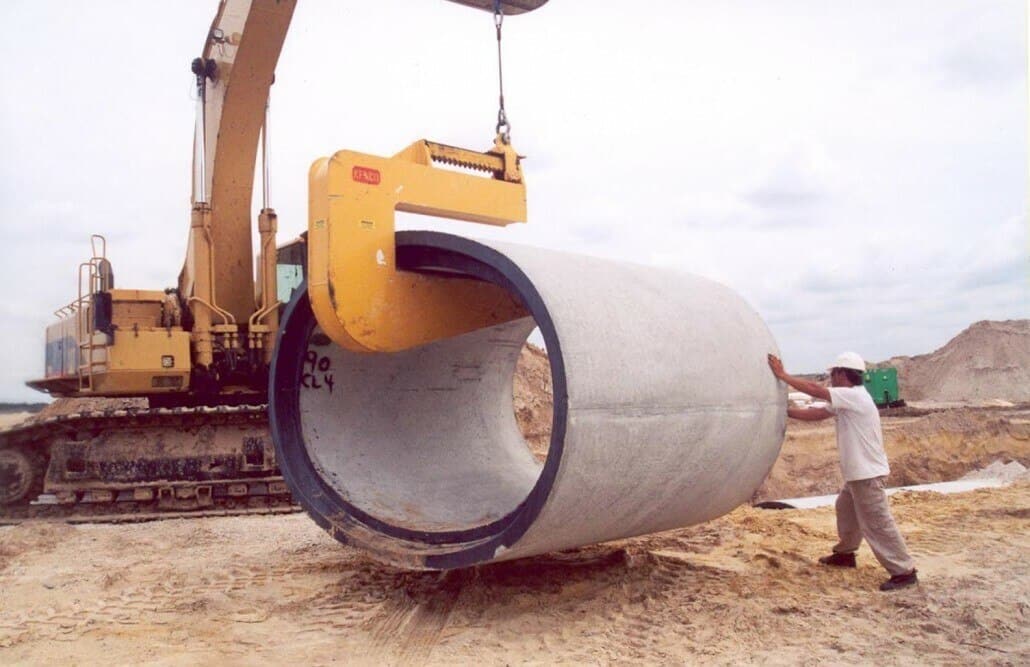

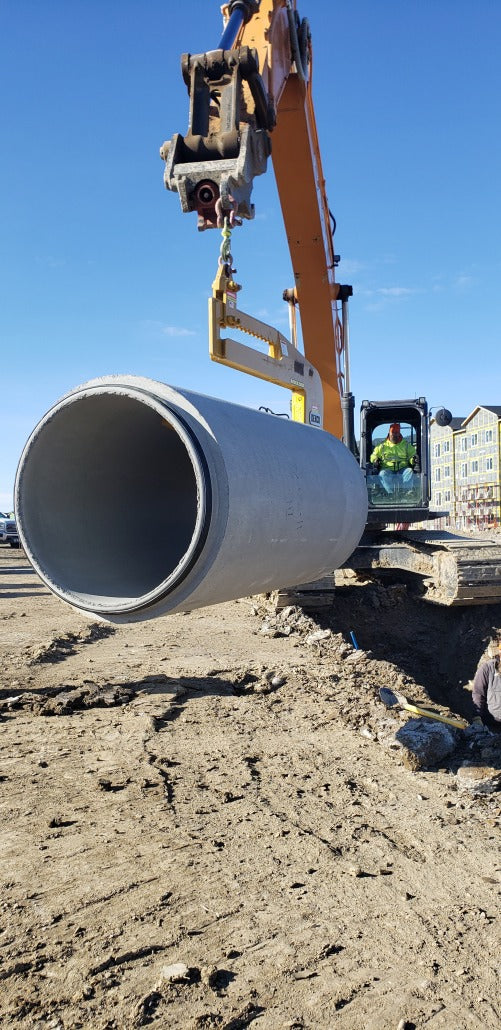

The PH30000 Mechanical Pipe Hook provides a safe and efficient way to place, move and set 8 foot sections of pipe. This mechanical model of the Pipe Hook has a manual slide that is positioned to adjust the the pipe to its proper balance point. It has a capacity rating of 30,000 pounds. This version of our pipe hook will handle any shape or type of pipe from 30 inches ID and up to any size under capacity. It hooks up to any machine capable of lifting the required capacity with a shackle/sling assembly like the Kenco RigMax.

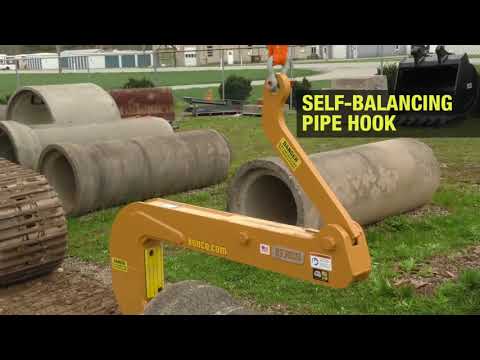

Kenco pipe hooks will handle any shape or type of 8 foot pipe sections and are also available in a self balancing version to handle up to 9,000 pound capacities.

ADDITIONAL INFORMATION

WEIGHT 1500 lbs
DIMENSIONS 54 × 48 × 48 in


MODEL CAPACITY MINIMUM PIPE OPENING MAXIMUM PIPE OPENING PAD SIZE/QTY UNIT WEIGHT
PH9000 9,000 lbs 12 inches 48 inches (2) 4" x 36"

(1) 4" x 10" back pad

700 lbs
PH12000 12,000 lbs 18 inches 60 inches (2) 4" x 36"

(1) 4" x 13" back pad

920 lbs
PH18000 18,000 lbs 24 inches 72 inches (2) 4" x 36"

(1) 4" x 13" back pad

1120 lbs
PH30000 30,000 lbs 30 inches Note: as long as weight of pipe is at or under specified capacity, there
is no maximum size requirement
(2) 4" x 36"

(1) 4" x 15" back pad

1500 lbs
PH60000 60,000 lbs 36 inches Note: as long as weight of pipe is at or under specified capacity, there
is no maximum size requirement
(4) 4" x 36" 3300 lbs
