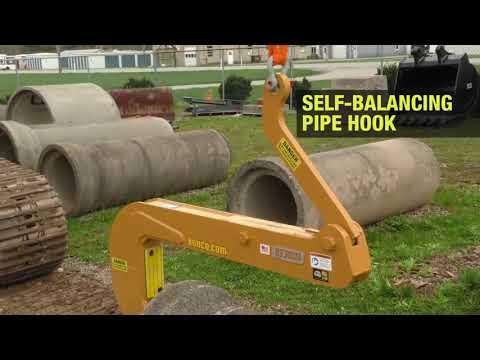

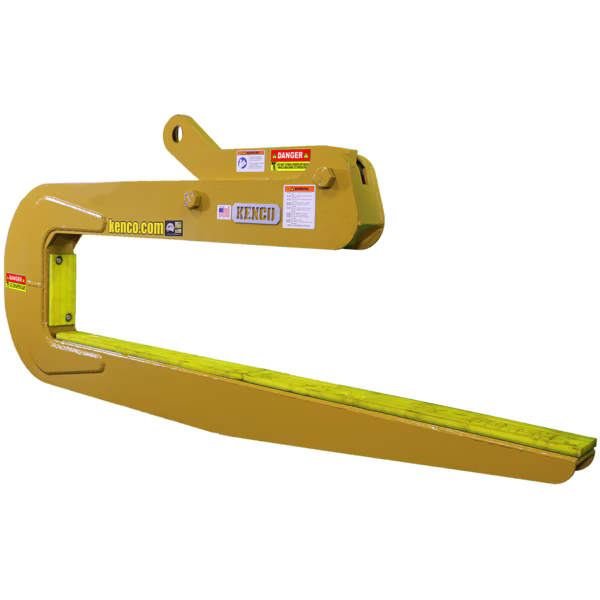

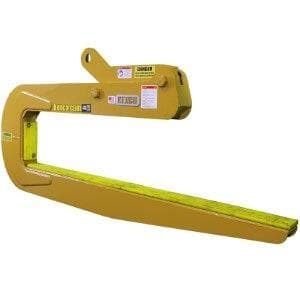

PH9000SB Self Balancing Pipe Hook for lifting and moving any shaped pipe

  • 9,000 pound capacity
  • Fits I.D 12.00 to 48.00 inch pipe of any shape
  • Weighs 520 pounds

DESCRIPTION

PH9000 SELF BALANCING PIPE HOOK

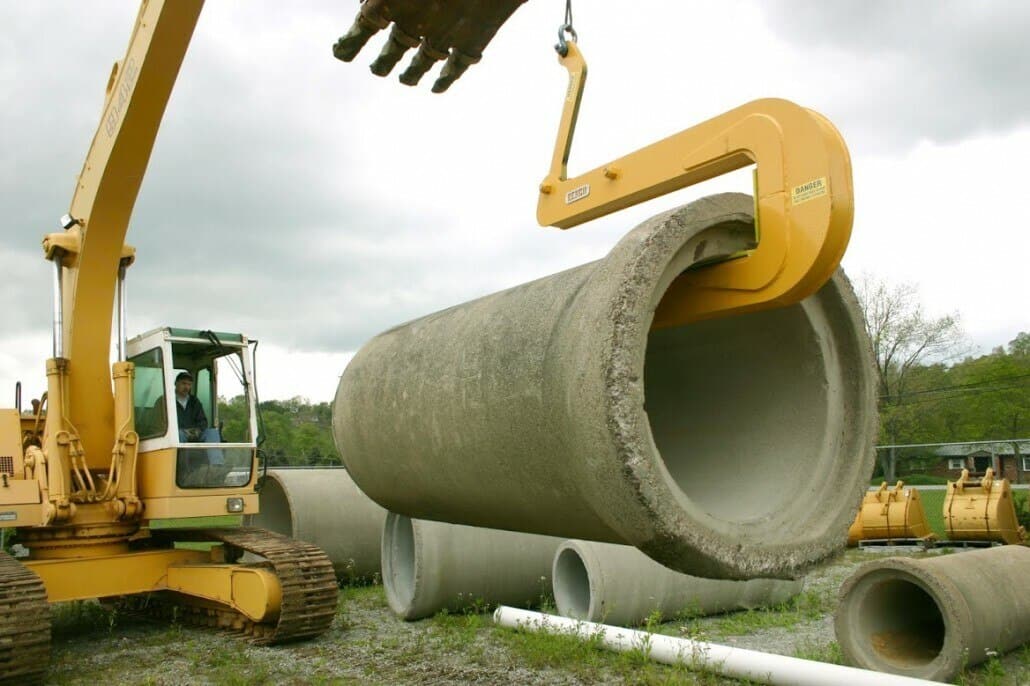

The PH9000SB Self Balancing Pipe Hook is a self leveling version that provides a safe and efficient way to place, move and set 8 foot sections of pipe. This particular model of the Pipe Hook has a built-in cylinder that automatically adjusts the weight of the pipe to achieve the proper balance point. It has a capacity rating of 9,000 pounds. This is the largest version of our self leveling pipe hook and will handle any shape or type of pipe from 12 inches ID up to 48 inches ID. It hooks up to any machine capable of lifting the required capacity with a shackle/sling assembly like the Kenco RigMax.

Kenco pipe lifting hooks will handle any shape or type of 8-foot pipe sections and is also available in a mechanical version to handle up to 60,000 pound capacities.

SELF LEVELING PIPE HOOK TECHNICAL SPECIFICATIONS

ADDITIONAL INFORMATION

WEIGHT 520 lbs
DIMENSIONS 48 × 48 × 48 in
MODEL CAPACITY MINIMUM PIPE OPENING MAXIMUM PIPE OPENING UNIT WEIGHT PAD SIZE/QTY
PH3500SB 3,500 pound capacity 10 inches 36 inches 450 lbs (2) 4" x 36"

(1) 4" x 10" back pad

PH9000SB 9,000 pound capacity 12 inches 48 inches 550 lbs (2) 4" x 36"

(1) 4" x 10" back pad
