Phenolic Resin Tooling

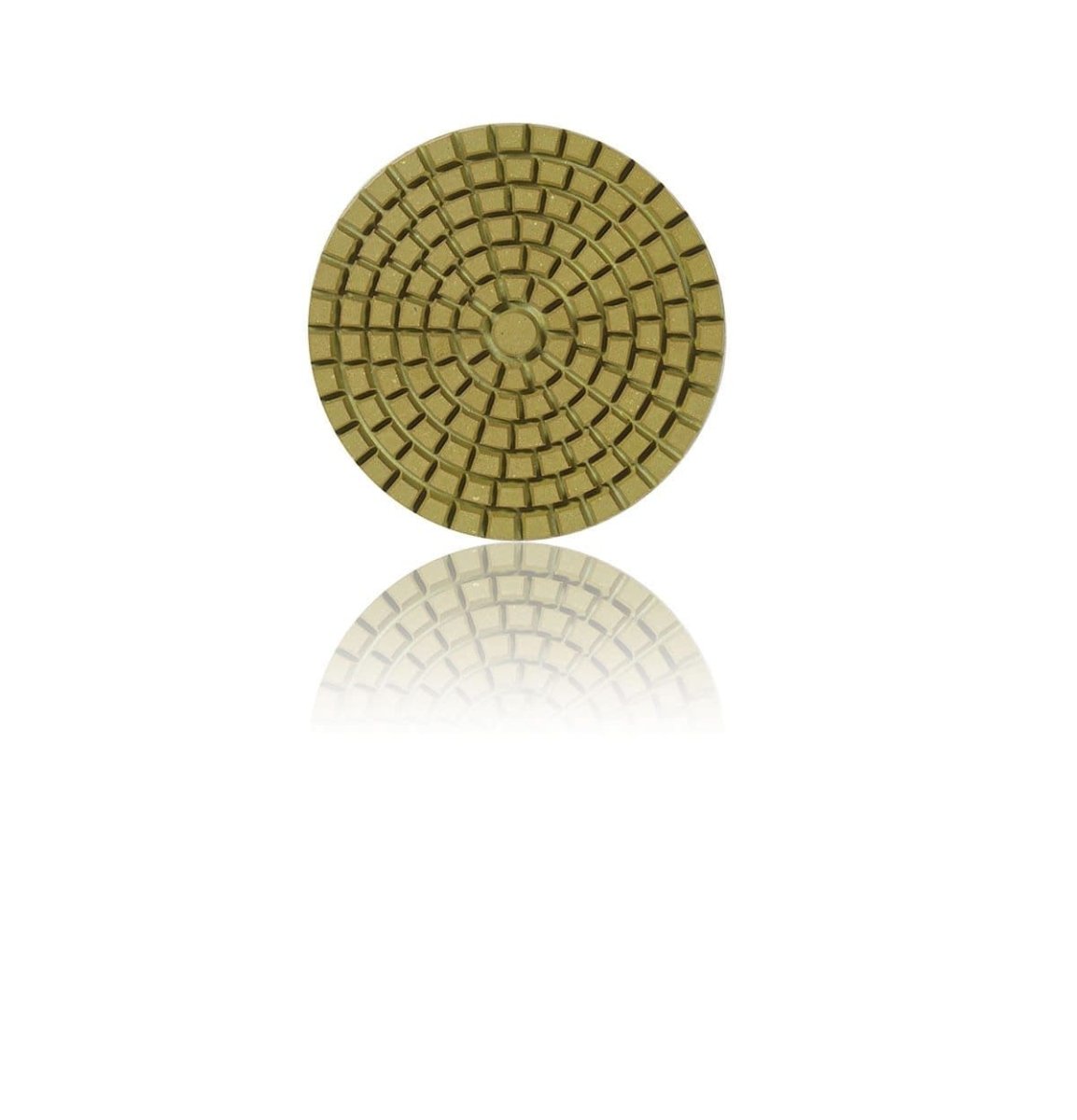

The Series 25 Phenolic Resin Tooling is a high-performance diamond polishing system engineered with a proprietary resin-bond matrix designed for durability, flexibility, and consistent polishing results.

Formulated for dry-only applications, the 25 Series features an advanced face design that efficiently channels dust while maintaining strong cutting and polishing performance. Precision manufacturing ensures even diamond distribution throughout the resin bond, resulting in extended tool life and consistent surface finishing.

Key Features

• High-quality phenolic resin-bond diamond matrix
• Designed exclusively for dry applications
• Excellent dust channeling design
• High flexibility for uneven or wavy surfaces
• Long-lasting and consistent performance
• Even diamond distribution for uniform wear
• Strong friction for enhanced surface reflectivity

Recommended Uses

The 25 Series is primarily used in the final stages of polishing, especially on:

• Medium to hard concrete (400 grit and higher polishing stages)
• Terrazzo surfaces
• Natural stone
• Decorative concrete floors

It is especially effective where high reflectivity and a refined finish are required on both soft and hard concrete surfaces.

Application

The 25 Series is designed for use on:

• Medium to hard concrete (Mohs hardness 5 and above)
• Terrazzo
• Natural stone surfaces

Its flexible construction allows it to adapt to uneven or wavy floors, maintaining consistent contact and improving polishing uniformity.

Technical Data

Packaging

• Varies by diameter

Coverage

Coverage varies based on surface condition, porosity, and application method.

• Typical range: 3,000 – 6,000 sq. ft. per set on flat, dense surfaces
• Dry use may increase dust generation but does not reduce polishing efficiency when used properly

Specifications

• Bond Color: Green

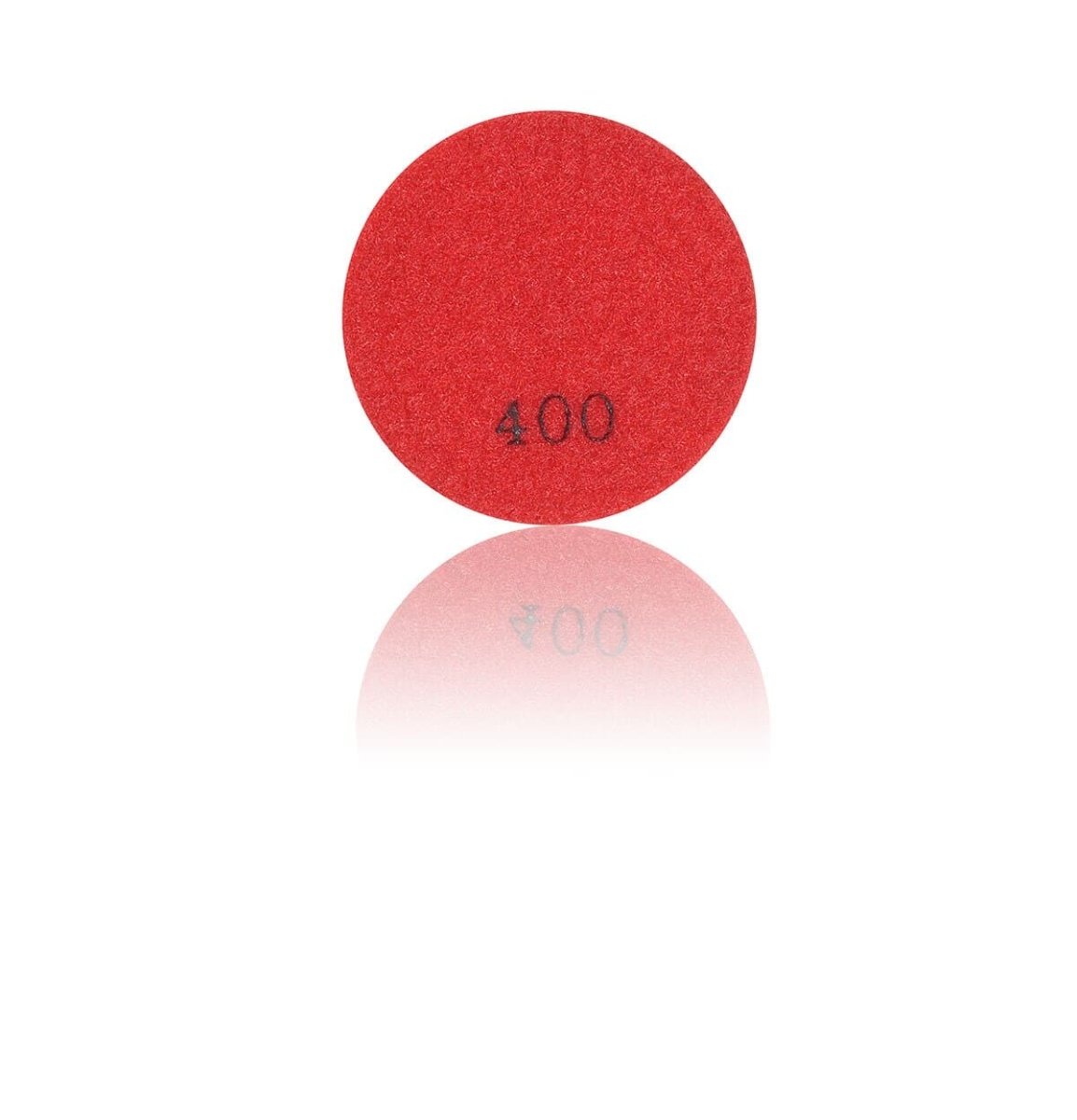

• Grit / Velcro Color: Red (all grits)
  • 200 Grit – Red
  • 400 Grit – Red
  • 800 Grit – Red
  • 1500 Grit – Red
  • 3000 Grit – Red
• Diameters: 3", 5", 7"
• Thickness: 3 mm
• Maximum Speed: 6,000 RPM
• Use: Dry Only
