Babcock-Davis  |  SKU: BSTSF

Photoluminescent Full Abrasive Nosing

Call for Pricing

Shipping calculated at checkout.


Safe & Secure Payments.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

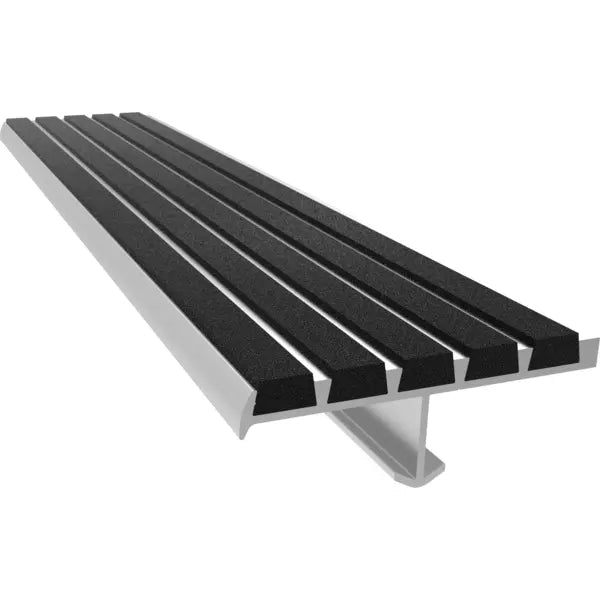

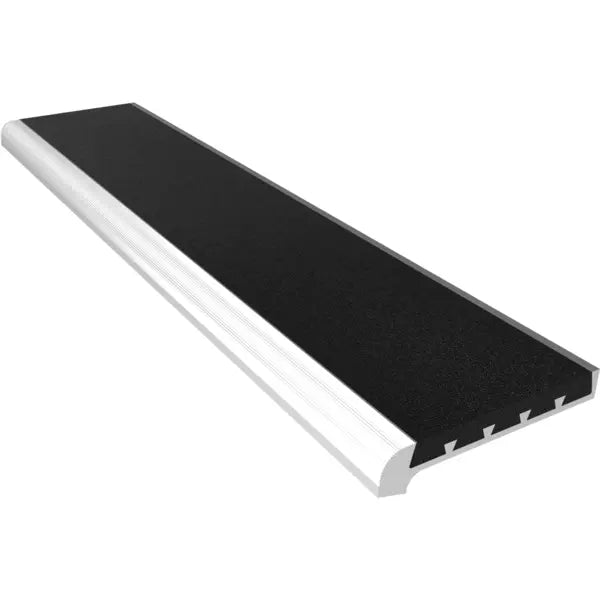

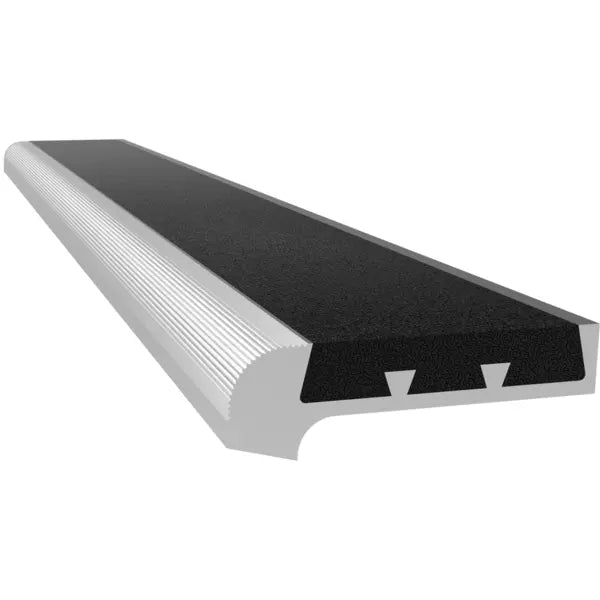

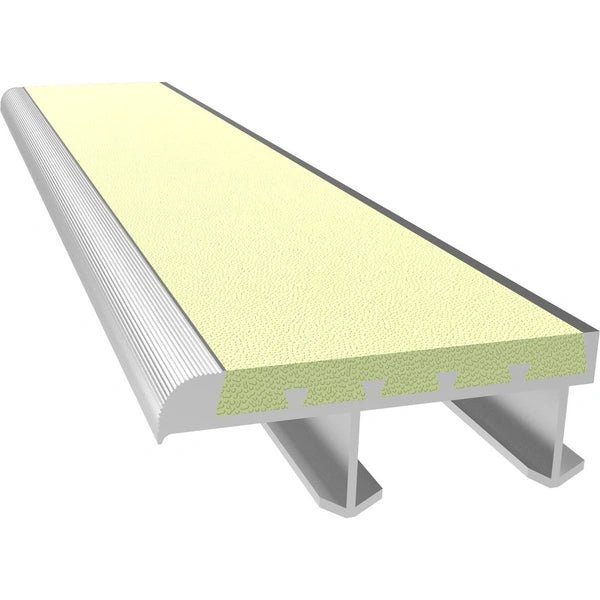

The Full Abrasive Nosing is designed for use on stairs and is made from an extruded aluminum base with aluminum oxide silicon carbide abrasive material locked into the extruded channels.

The material is consistent throughout the tread. Ideal for indoor and outdoor applications, the full abrasive tread is easy to install and an economical option.

Features

  • Anti-Slip Safety
  • Continuous Color
  • Barrier Free
  • Title 24 Compliant*
Title 24 Compliant/Vision Impairment requires 2 inches of a contrasting color at the edge of the stair indicating a change of plane.



Sweets ProductTAG Sweets ProductTAG

Specifications

Model BSTSF
Channel Extruded Aluminum
Color Photoluminescent
Application Poured Concrete, Steel Pan, Terrazzo or Wood
Tread Full Abrasive
Width 2, 3, or 4 inches
Mounting Extruded Anchor or Drilled Holes
Nosing Short, Short-Tipped or Long
Compliance California Title 24, Section 3306
Options Abrasive Colors, Mitered Cuts, Painted Undersides and Taped Tops
Warranty 1 Year

Order Guide

Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

MODEL WIDTH TREAD INSTALL
BSTSF-C2E 2" Short Nose Cast-In, Extruded Anchor
BSTSF-C2D 2" Short Nose Drilled Hole, Mech. Fastener
BSTSF-C3E 3" Short Nose Cast-In, Extruded Anchor
BSTSF-C3D 3" Short Nose Drilled Hole, Mech. Fastener
BSTSF-C4E 4" Short Nose Cast-In, Extruded Anchor
BSTSF-C4D 4" Short Nose Drilled Hole, Mech. Fastener
BSTSF-L2E 2" Long Nose Cast-In, Extruded Anchor
BSTSF-L2D 2" Long Nose Drilled Hole, Mech. Fastener
BSTSF-L3E 3" Long Nose Cast-In, Extruded Anchor
BSTSF-L3D 3" Long Nose Drilled Hole, Mech. Fastener
BSTSF-L4E 4" Long Nose Cast-In, Extruded Anchor
BSTSF-L4D 4" Long Nose Drilled Hole, Mech. Fastener
BSTSF-P2E 2" Short Tipped Nose Cast-In, Extruded Anchor
BSTSF-P2D 2" Short Tipped Nose Drilled Hole, Mech. Fastener
BSTSF-P3E 3" Short Tipped Nose Cast-In, Extruded Anchor
BSTSF-P3D 3" Short Tipped Nose Drilled Hole, Mech. Fastener
BSTSF-P4E 4" Short Tipped Nose Cast-In, Extruded Anchor
BSTSF-P4D 4" Short Tipped Nose Drilled Hole, Mech. Fastener

Abrasive Colors





Photoluminescent
Photo-
luminescent

Nosing Options

Short Short-Tipped Long
Short Short-Tipped Long

Mounting Options

Drilled Holes, Mech. Fastened Extruded Anchor
Drilled Holes,
Mech. Fastenend
Extruded Anchor

Mounting Options

Custom Cuts Painted Undersides Taped Tops
Custom Cuts Painted Undersides Taped Tops
Description Model Shop Drawing CAD Revit/BIM Data Sheet 3-Part Specs LEED Installation Warranty
2" Width,
Short Nose
BSTSF-C2D PDF DWG LINK PDF WORD PDF PDF PDF
3" Width,
Short Nose
BSTSF-C3D PDF DWG LINK PDF WORD PDF PDF PDF
4" Width,
Short Nose
BSTSF-C4D PDF DWG LINK PDF WORD PDF PDF PDF
2" Width,
Long Nose
BSTSF-L2D PDF DWG LINK PDF WORD PDF PDF PDF
3" Width,
Long Nose
BSTSF-L3D PDF DWG LINK PDF WORD PDF PDF PDF
4" Width,
Long Nose
BSTSF-L4D PDF DWG LINK PDF WORD PDF PDF PDF
2" Width,
Short Nose
BSTSF-C2E PDF DWG LINK PDF WORD PDF PDF PDF
3" Width,
Short Nose
BSTSF-C3E PDF DWG LINK PDF WORD PDF PDF PDF
4" Width,
Short Nose
BSTSF-C4E PDF DWG LINK PDF WORD PDF PDF PDF
2" Width,
Short Tipped Nose
BSTSF-P2E PDF DWG LINK PDF WORD PDF PDF PDF
3" Width,
Short Tipped Nose
BSTSF-P3E PDF DWG LINK PDF WORD PDF PDF PDF
4" Width,
Short Tipped Nose
BSTSF-P4E PDF DWG LINK PDF WORD PDF PDF PDF
2" Width,
Long Nose
BSTSF-L2E PDF DWG LINK PDF WORD PDF PDF PDF
3" Width,
Long Nose
BSTSF-L3E PDF DWG LINK PDF WORD PDF PDF PDF
4" Width,
Long Nose
BSTSF-L4E PDF DWG LINK PDF WORD PDF PDF PDF
