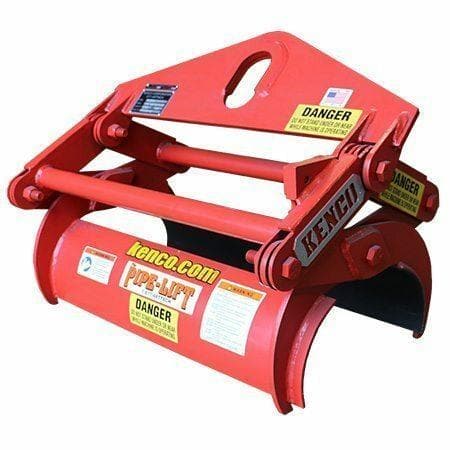

PL1500 Pipe Lift is our smallest vertical pipe lifting clamp, but it still handles the big jobs.

  • 1500 pound capacity
  • Fits O.D 4.50 inches to 9.05 inches
  • 4", 6", and 8" PVC, STEEL, Ductile Iron or C900 PVC

DESCRIPTION

PL1500 PIPE LIFT - PATENT: 6012752

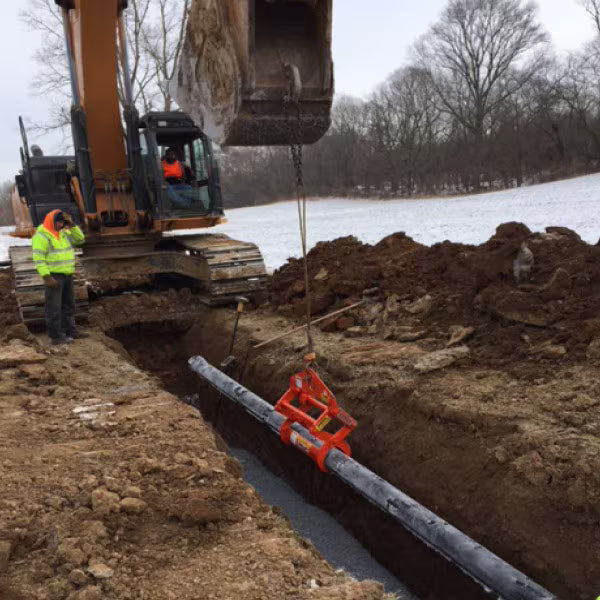

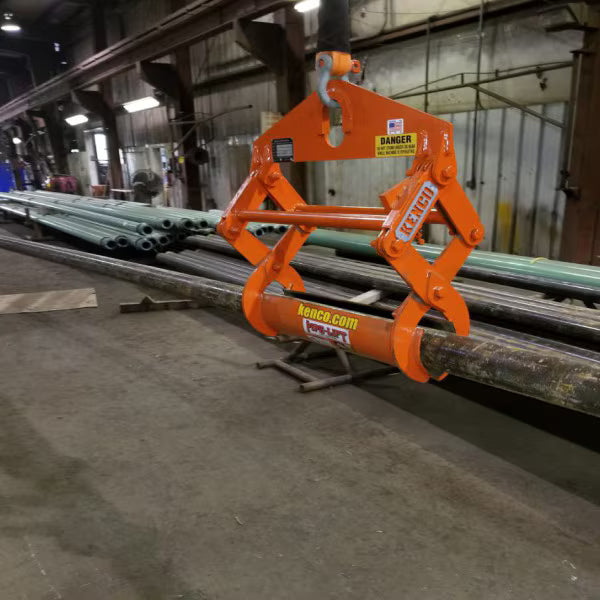

The PL1500 Pipe Lift is our smallest vertical pipe lifting clamp, but it still handles the big jobs. The pipe lifting tong reverses the power of gravity using scissor action to clamp securely on PVC, iron or concrete pipe. If you have ever tried to move pipe using straps or teacups, you'll appreciate how the Pipe Lift increases productivity. One operator can use these vertical pipe lifting clamps to grab, lift and move pipe without assistance.

Double your production output versus the sling and chain methods with vertical pipe lifting clamps. The Pipe Lift's unique, wide scissor-grip design permits a secure lift - even when the pipe is not centered. The machine operator simply sets the tongs down onto the pipe and the legs automatically grab on tightly. They won't release until the pipe has been set back down firmly into position.

This 1500 pound capacity lifter will handle outside diameter pipe sizes from 4.50 inches to 9.05 inches. It can lift 4", 6", and 8" PVC, STEEL, Ductile Iron or C900 PVC.

*The tongs are rubber lined to ensure a secure grip on the smooth surfaces.



PL1500 Through PL3500 are 30" wide. The PL4500, PL7000 and PL8500 are 36" wide.
Note: There may be pipe tongs lifting devices not listed. Pipe outside diameter and weight are the determining factors for choosing the correct lifter.

ADDITIONAL INFORMATION

WEIGHT 200 lbs
DIMENSIONS 42 × 42 × 24 in
MODEL OD RANGE
INCHES/CM
PVC, STEEL, ID / OD (TYP.) DUCTILE/ C900 PVC ID/OD (TYP.) RCP ID/OD (TYP.) CAPACTIY LBS/KG A B C WEIGHT LBS./KG
PL1500 4.50" - 9.05"
11.43 - 22.98
4"/4.50"
6"/6.63"
8"/8.63"
4"/4.80"
6"/6.90"
8"/9.05"
N/A 1500 / 680.5 25.75 19.25 11.75 115/52.3
PL2000 8.63" - 13.20"
21.92 - 33.52
8"/8.63"
10"/10.75"
12"/12.75"
8"/9.05"
10"/11.10"
12"/13.20"
N/A 2000 / 907.2 29 22 16 150 / 68.2
PL2150 10.75" - 15.30"
27.30 - 38.86
10"/10.75"
12"/12.75"
14"/14.00"
10"/11.10"
12"/13.20"
14"/15.30"
N/A 2150 / 975.2 35 26 17.5 180 / 81.8
PL2250 12.75" - 17.40"
32.38 - 44.19
12"/12.75"
14"/14.00"
16"/16.00"
12"/13.20"
14"/15.30"
16"/17.40"
12"/16.00" 2250 / 1021 37.25 32 18.75 270 / 122.7
PL2500 14.00" - 23.00"
35.56 - 58.42
14"/14.00"
16"/16.00"
14"/15.30"
16"/17.40"
18"/19.50"
20"/21.60"
12"/16.00"
15"/19.50"
18"/23.00"
2500 / 1134 43.5 35.75 25.25 320 / 145.5
PL2750 18.00" - 25.80"
45.72 - 65.53
18"/18.00"
24"/24.00"
18"/19.50"
20"/21.60"
24"/25.80"
15"/19.50"
18"/23.00"
2750 / 1247 46.5 38.5 28.25 350 / 159.1
PL3000 23.00" - 32.00"
58.42 - 81.28
24"/24.00"
30"/30.00"
24"/25.80"
30"/32.00"
18"/23.00"
21"/26.50"
24"/31.50"
3000 / 1361 52.75 48 33.25 500 / 227.3
PL3500 30.00" - 38.50"
76.20 - 97.79
30"/30.00"
36"/36.00"
30"/32.00"
36"/38.30"
24"/31.50"
27"/35.00"
30"/38.50"
3500 / 1688 52.75 54.75 41 580 / 263.6
PL4500 36.00" - 45.50"
91.44 - 115.57
36"/36.00"
42"/42.00"
36"/38.30"
42"/44.50"
30"/38.50"
36"/45.50"
4500 / 2041 66.5 72 50 1240 / 563.6
PL7000 42.00" - 52.50"
106.68 - 133.35
42"/42.00"
48"/48.00"
42"/44.50"
48"/50.80"
36"/45.50"
42"/52.50"
7000/3175 72.75 74.5 55.25 1380/627.3
PL8500 48.00" - 59.50"
121.92 - 151.13
48"/48.00"
54"/54.00"
48"/50.80"
54"/57.56"
42"/52.50"
48"/59.50"
8500/3856 77 84.5 62.75 1530/695.5
