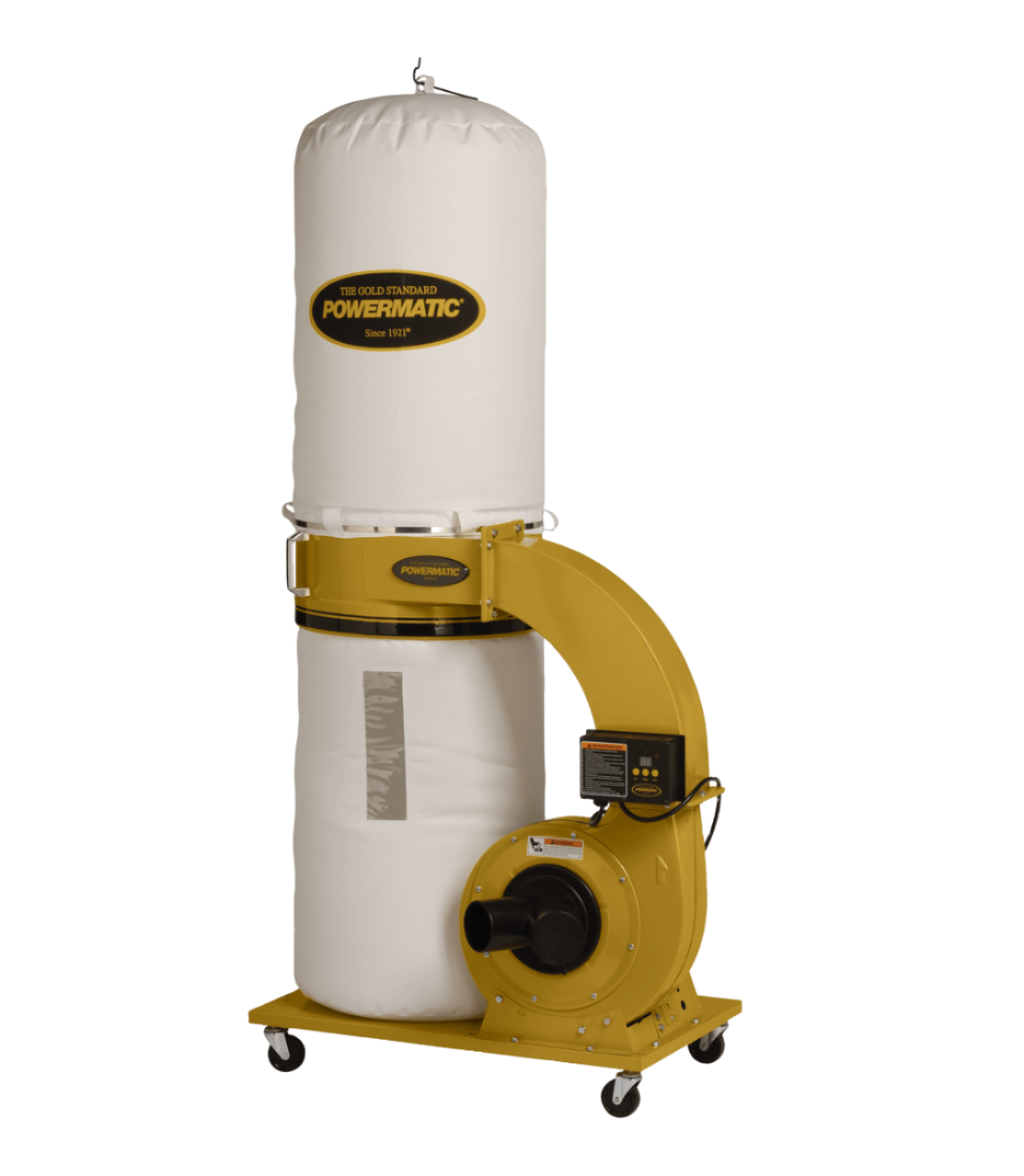

PM1300TX-BK Dust Collector, 1.75HP 1PH 115/230V, 30-Micron Bag Filter Kit

SKU 1791078K
Save $217.14 Save $217.14
Original price $1,167.13
Original price $1,167.13 - Original price $1,167.13
Original price $1,167.13
Current price $949.99
$949.99 - $949.99
Current price $949.99
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag.

The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.

  • 10 Cubic feet capacity collection bag reduces number of bag changes
  • All-metal duct construction for rigidity and improved air flow
  • Cloth collection bag with view window uses snap ring for rapid installation/removal
  • Dual 4" dust ports for simultaneous collection from two machines
  • Eliminates premature filter clogging for sustained performance
  • Four swivel casters for easy maneuverability
  • Remote-controlled digital timer can be programmed for up to 99 minutes
  • The large steel impeller is powered by a 1-3/4HP motor for peak performance.
  • TurboCone™ improves chip separation and collector bag packing efficiency
More Information
Stock Number 1791078K
1-Hose Connection Diameter (In.) 6
2-Hoses Connection Diameter (In.) 4
Bag Diameter (In.) 20
Collection Bag Length (In.) 30
Efficiency (Micron) 30
Filter Bag/Canister Length (In.) 48
Gross Weight (Lbs) 150
Impeller Diameter (In.) 12
Impeller Fins 6
Impeller Material Steel
Motor Amps 18/9
Motor Phase 1
Motor Power (HP) 1-3/4
Motor Voltage (V.) 115/230
Net Weight (Lbs.) 140
Overall Dimensions (L x W x H) (In.) 37 x 29 x 79
Prewired Voltage (V.) 115
Prop 65 Cancer and Reproductive Harm
Sound Rating (Db.) 75-90
Static Pressure (Wc.) 11.31
Style (Type) Dust Collector
