PM2200 Cyclonic Dust Collector - with HEPA Filter Kit
SKU: PM9-1792200HK

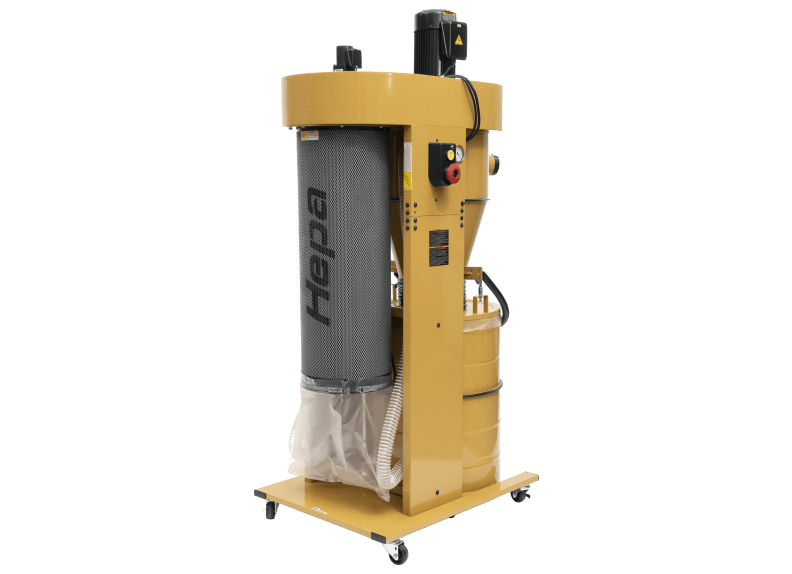

Introducing the Powermatic PM2200 Cyclonic Dust Collector with HEPA filtration.
The PM2200 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stable base for quiet operation and minimal vibration. The Powermatic Cyclone is only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.97% of all particles at 0.3 micron. With other market leading features such as a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention, the Powermatic PM2200 Cyclone Dust Collector is an innovative addition to the Powermatic family.
Features
- HEPA Filter collects 99.97% of all particles passing through as small as 0.3 Micron

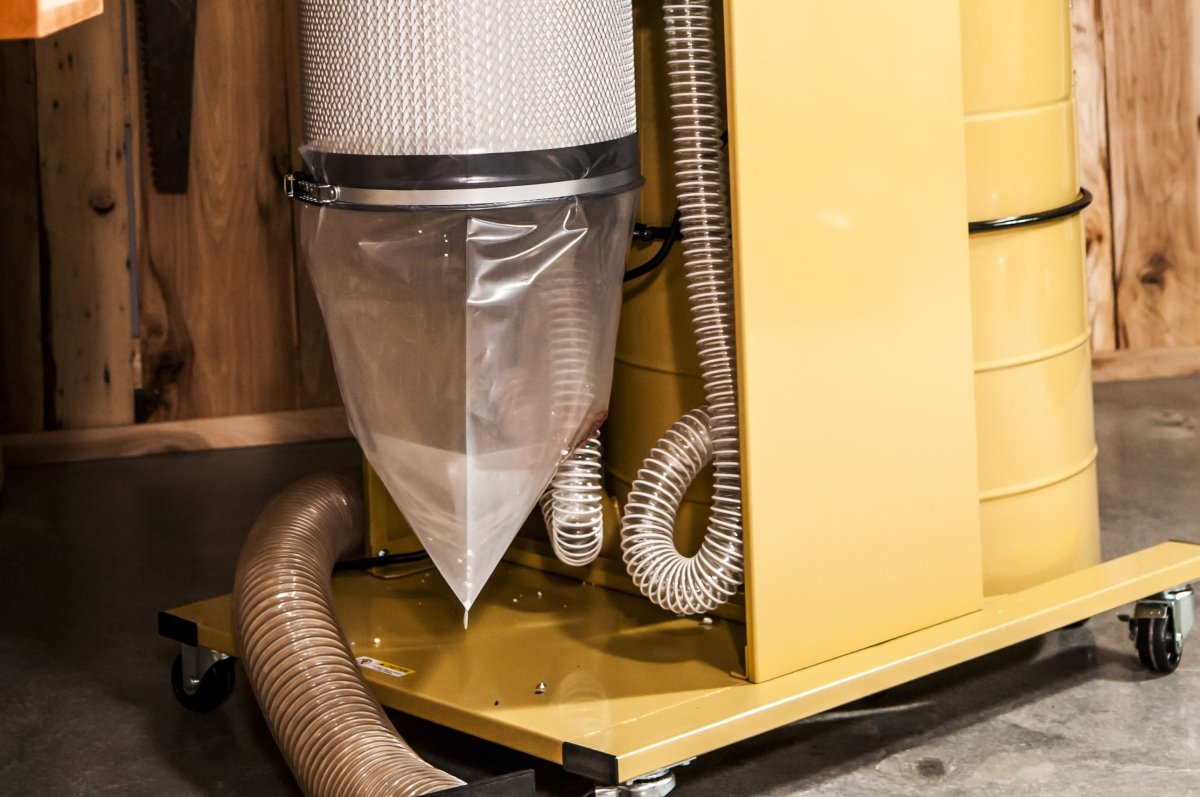

- Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
- Multiple hose mounting options: three 4" dust ports or one 8" dust port

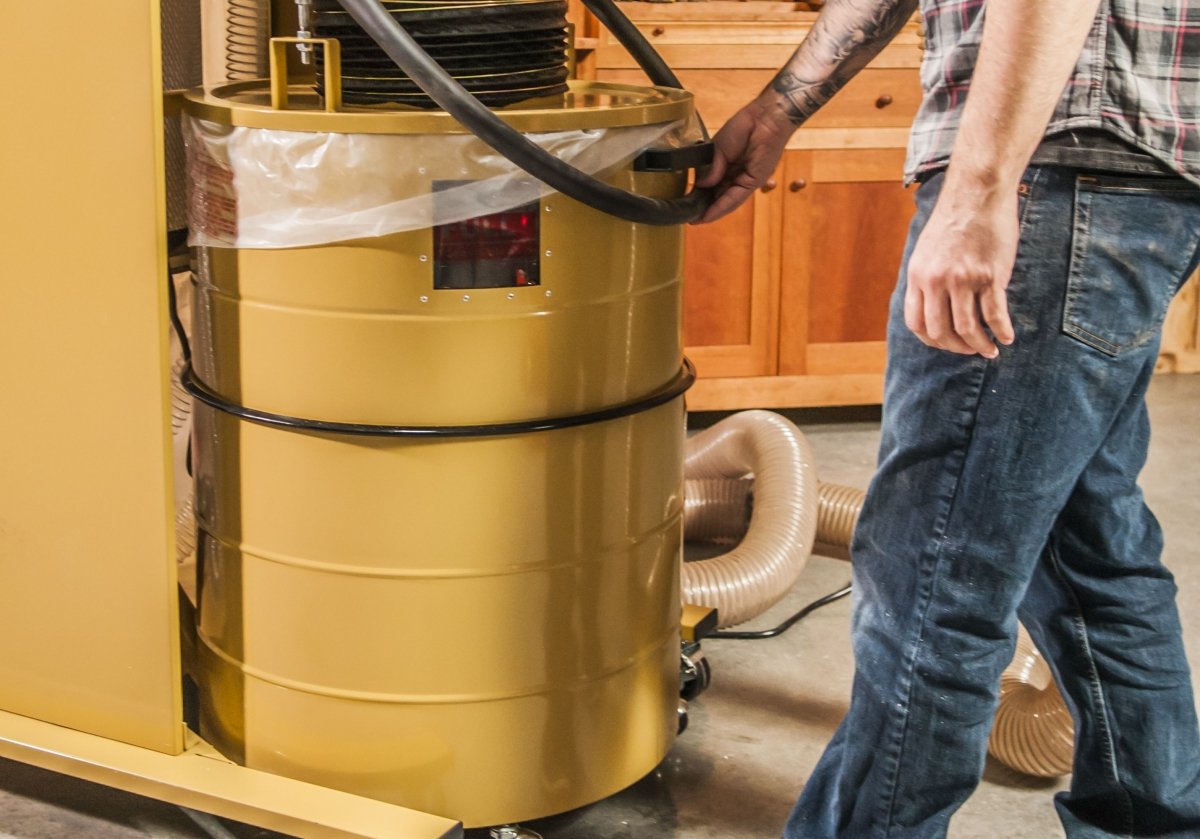

- One-handed drum release allows for simple removal of the drum for bag changes
- Powerful 3 HP motor moves 1,543 Cubic Feet of air per Minute
- Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life
- Vacuum pressure gauge for greater user feedback
Specifications
| Stock Number | 1792200HK |
|---|---|
| 1-Hose Connection Diameter (In.) | 8 |
| 3-Hoses Connection Diameter (In.) | 4 |
| Efficiency (Micron) | 100% of 2 micron particles, 100% of 1 micron particles |
| Gross Weight (Lbs) | 425.5 |
| Impeller Material | Steel |
| Motor Amps | 6 |
| Motor Phase | 1 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Net Weight (Lbs.) | 370 |
| Overall Dimensions (L x W x H) (In.) | 54-1/2 x 31-7/8 x 85-1/4 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 30 |
| Sound Rating (Db.) | 78 |
| Static Pressure (Wc.) | 2.24 |
| Style (Type) | Dust Collector |
