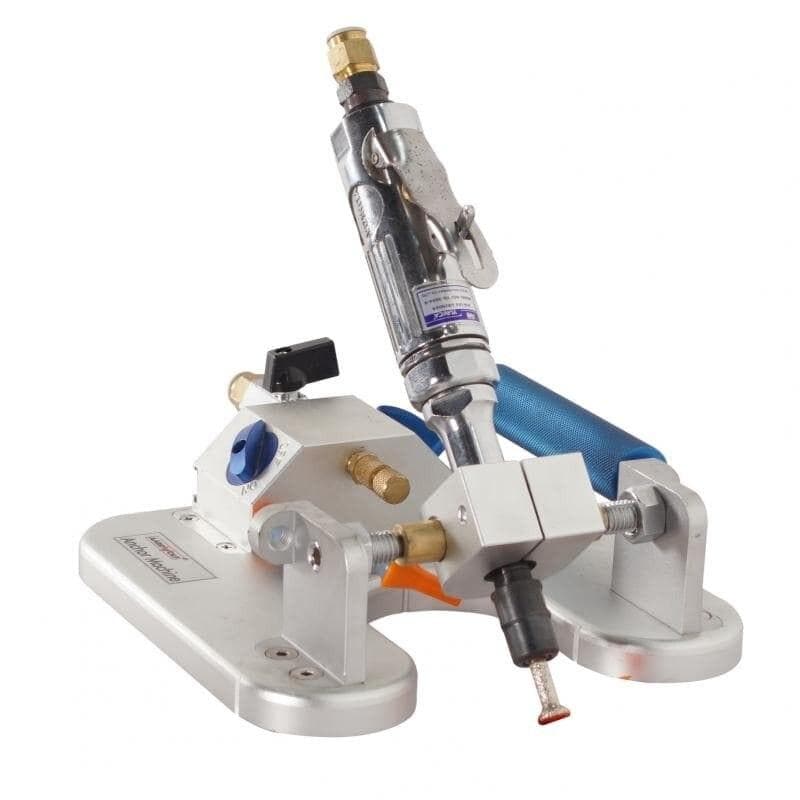

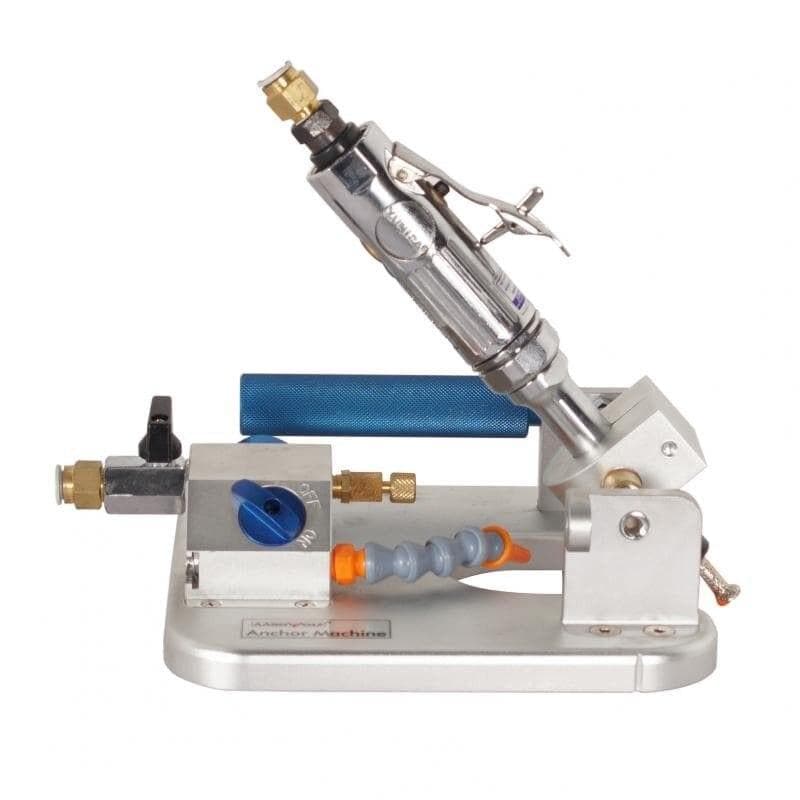

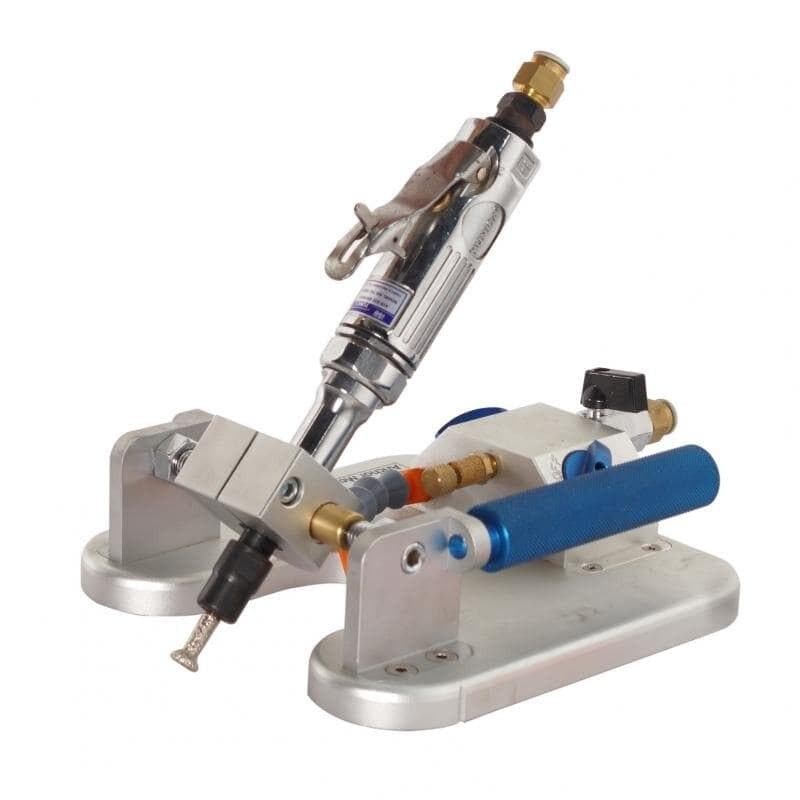

Pneumatic Anchor Machine

Product Code: APAM

General

The Pneumatic Anchor Machine manufactured by Aardwolf Industries LLC features pneumatic grinders and a vacuum-powered base. It is used to cut T-slots in the back of vanity tops for the attachment of anchor bolts used in under-counter sink or architectural facing systems. Two separate vacuum zones on the base can be turned on or off, enabling the machine to be used near edges.

Features

  • Industrial quick-couplers for both air and water
  • Combination port that allows vacuum to be applied with compressed air via the built-in venturi vacuum generator
  • The grinders accept any T diamond bit with a 6mm shank
  • Water hose with ball valve and quick-coupler can be quickly detached and used to spray work area
  • Machine cuts in both push and pull directions
  • Alignment indicators on machine base
  • Machined, anodized aluminium components
  • Moulded rubber vacuum base seal
Note: The Portable Water Supply Tank is sold upon request.

Specifications

Metric
(mm-kg)
Imperial
(inch-lb)
Net weight 3 6.6
Collet diameter 6 0.2''
No load speed 25,000 RPM
Water connection hose thread- 1/4" PT
Air connection 1/4" industrial series coupler plug
Vacuum base -80 kPa vacuum
