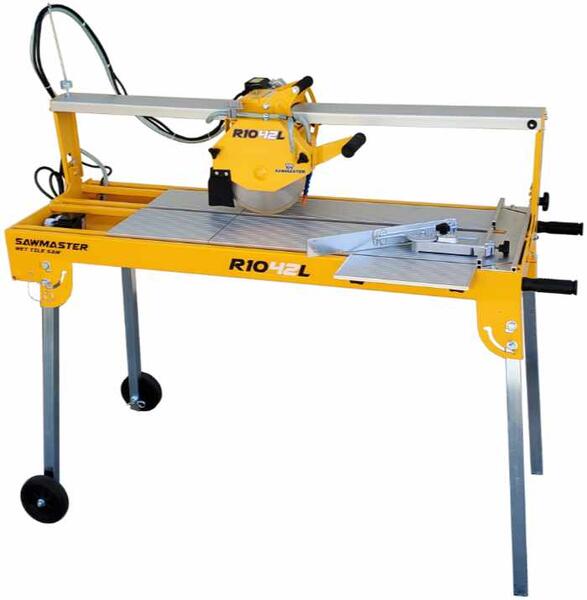

The R1042L is the successor to the successful R1040 professional rail saw.

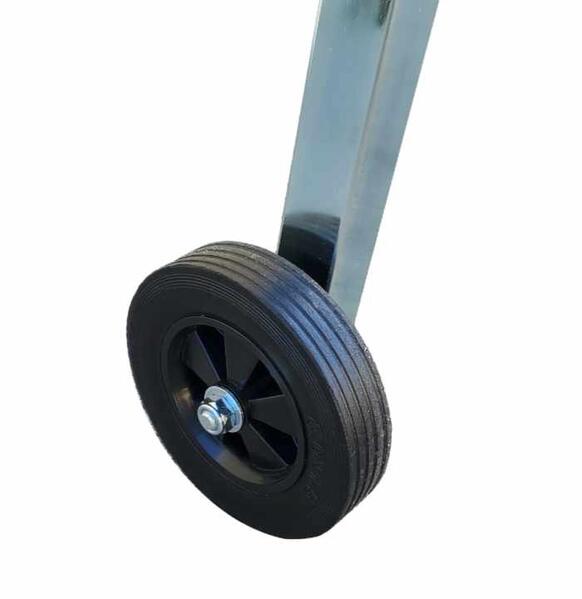

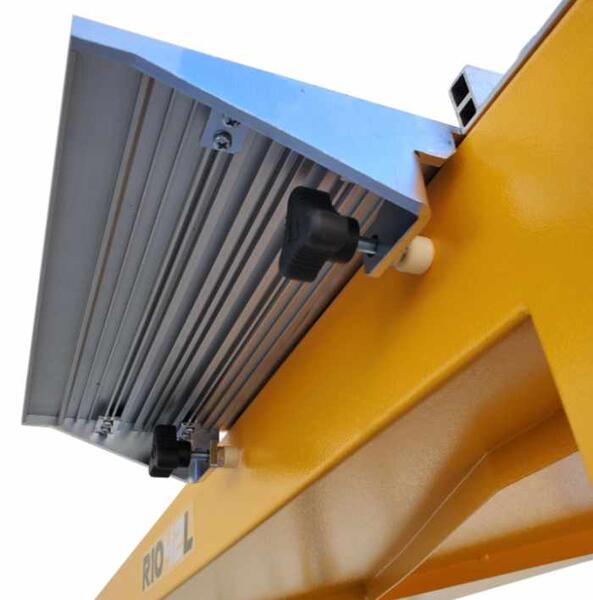

It carries on its legacy by inheriting all of its strength such as having an all steel frame, integrated folding legs with wheels, a reliable direct drive induction motor and a miter-able rail system to make 45-degree cuts.  There has also been a modest improvement to its cutting capacity so it can now cut 48-inches on a plunge while only adding a few inches to its foot print.  In addition, the tables now feature a slide in reinforced aluminum extrusion system that help reduce the saws overall weight while retain its original strength.

  • Saw Type: Stone
  • Motor: 115V/60 Hz
  • Horsepower: 1-1/2HP
  • Blade Capacity: 8"~10"
  • Blade Arbor: 5/8"
  • RPM: 3240
Motor Induction motor
Power 1.5 HP (1.1 kW)
Voltage 115V
Amperage 15 A
Rip Cut (max cut parallel to tile edge) 42 in (1067 mm) tiles
Rip Cut (with plunge) 48 in (1219 mm) tiles
Diagonal Cut (max cut 45 degree to tile edge) 30 in (762 mm) tiles
Max Cutting Depth 2.4 in (61 mm)
Arbor Diameter 0.625 in (15.88 mm)
Blade Shaft Rotation per Minute 3240 RPM
Water Tray Embedded with steel frame
Weight 164 lbs (74.5 kg)
Blade Guard Capacity 8 in - 10 in (203 mm - 254 mm)
