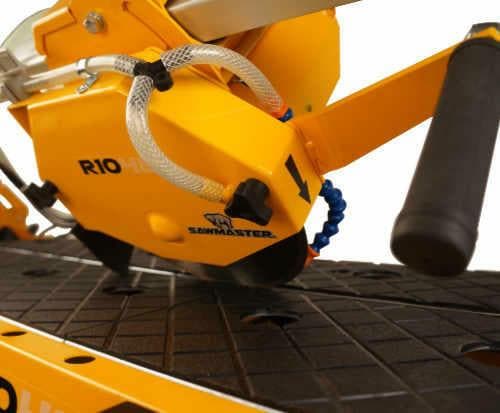

Stone Saw capable of handling large material

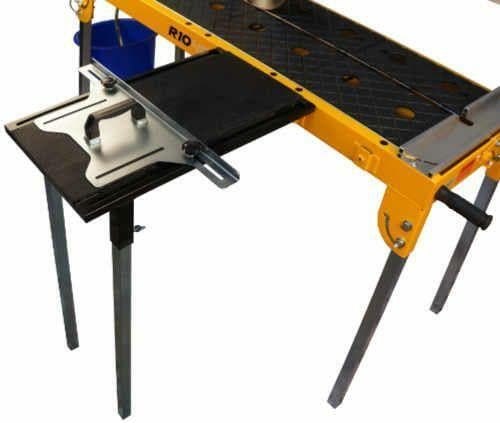

The R1048 is an extended version of the R1040 stone saw capable of handling even larger material while retaining all of its features. With the optional long side extension table, it can handle extremely wide material to make 48" rip cuts or diagonal cuts of massive 34" square tiles. While the saw is longer it is still robust enough to handle being transported and can fit most conventional work vehicles without a problem.

  • Saw Type: Stone
  • Motor: 115V/60 Hz
  • Horsepower: 1-1/2HP
  • Blade Capacity: 8"~10"
  • Blade Arbor: 5/8"
  • RPM: 3240

Motor Induction motor
Power 1.5 HP (1.1 kW)
Voltage 115V
Amperage 15 A
Rip Cut (max cut parallel to tile edge) 48 in (1219 mm) tiles
Diagonal Cut (max cut 45 degree to tile edge) 34 in (863 mm) tiles
Max Cutting Depth 2.4 in (61 mm)
Arbor Diameter 0.625 in (15.88 mm)
Blade Shaft Rotation per Minute 3240 RPM
Water Tray Embedded with steel frame
Weight 225 lbs (102.3 kg)
Blade Guard Capacity 8 in - 10 in (203 mm - 254 mm)
