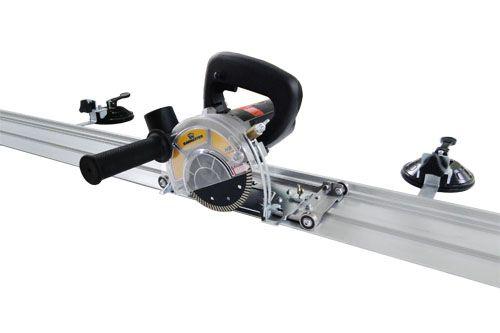

The R5 kit is SawMaster’s lightweight rail system for cutting granite, natural stone, engineered stone, and more.

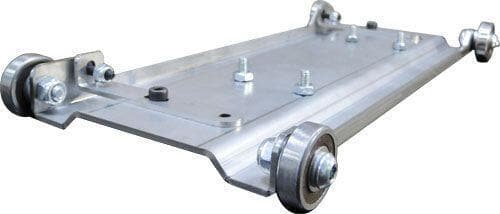

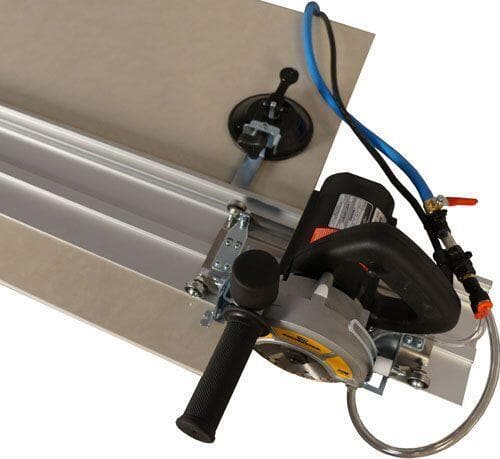

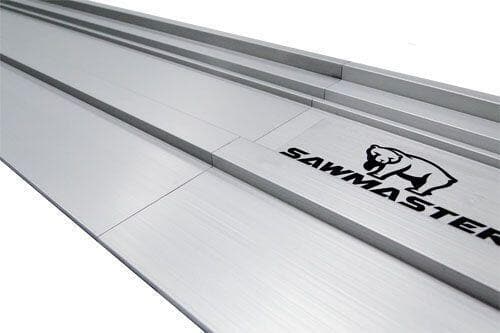

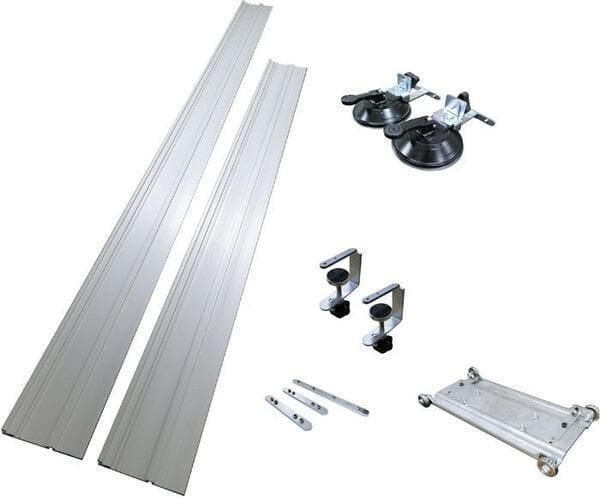

It is comprised of two aluminum rails, hardware to join the rails, and a skid assembly for the SawMaster H5 hand tile saw to mount too.  Kit choice will determine which combination of 5.5- or 7.5-feet rails are included.  The metal skid arrangement uses high-quality ball bearing and adjustable PFOA guides to make travel on the rail effortless and stable.  In addition, pairs of c-clamp and suction cup mounting hardware are included to anchor the assembled rails to any flat material that need to be cut.

  • Product Type: Kit For Hand Saw
  • Rail Lengths: 5.5'/7.5'
  • Rail Material: Aluminum
  • Compatible Saw: H5
  • 90 Deg Cutting Depth: 1-3/16"
  • 45 Deg Cutting Depth: 7/8"
Product Type Kit for Hand Saw
Rail Lengths 5.5'/7.5'
Rail Material Aluminum
Compatible Saw H5
90 Deg Cutting Depth 1-3/16"
45 Deg Cutting Depth 7/8"
Rip Cut (with single rail) 4.5'/6.5'
Rip Cut (with multiple rail) Unlimited


H5 Saw - Specs

  • Product: Wet/Dry Hand Saw
  • Motor: 115V/60 Hz
  • Horsepower: 1/2HP
  • Blade Capacity: 5"
  • Blade Arbor: 20mm
  • RPM: 12,000
  • Vacuum outlet: 1-1/2"
  • Water inlet: Female 3/4" Garden Hose

ProductWet and dry hand sawMotor115V/60 HzHorsepower1/2 HPBlade Capacity5"Blade Arbor20 mmRPM12000Weight8.4 lbsVacuum Outlet1-1/2"Water Inlet3/4" G
