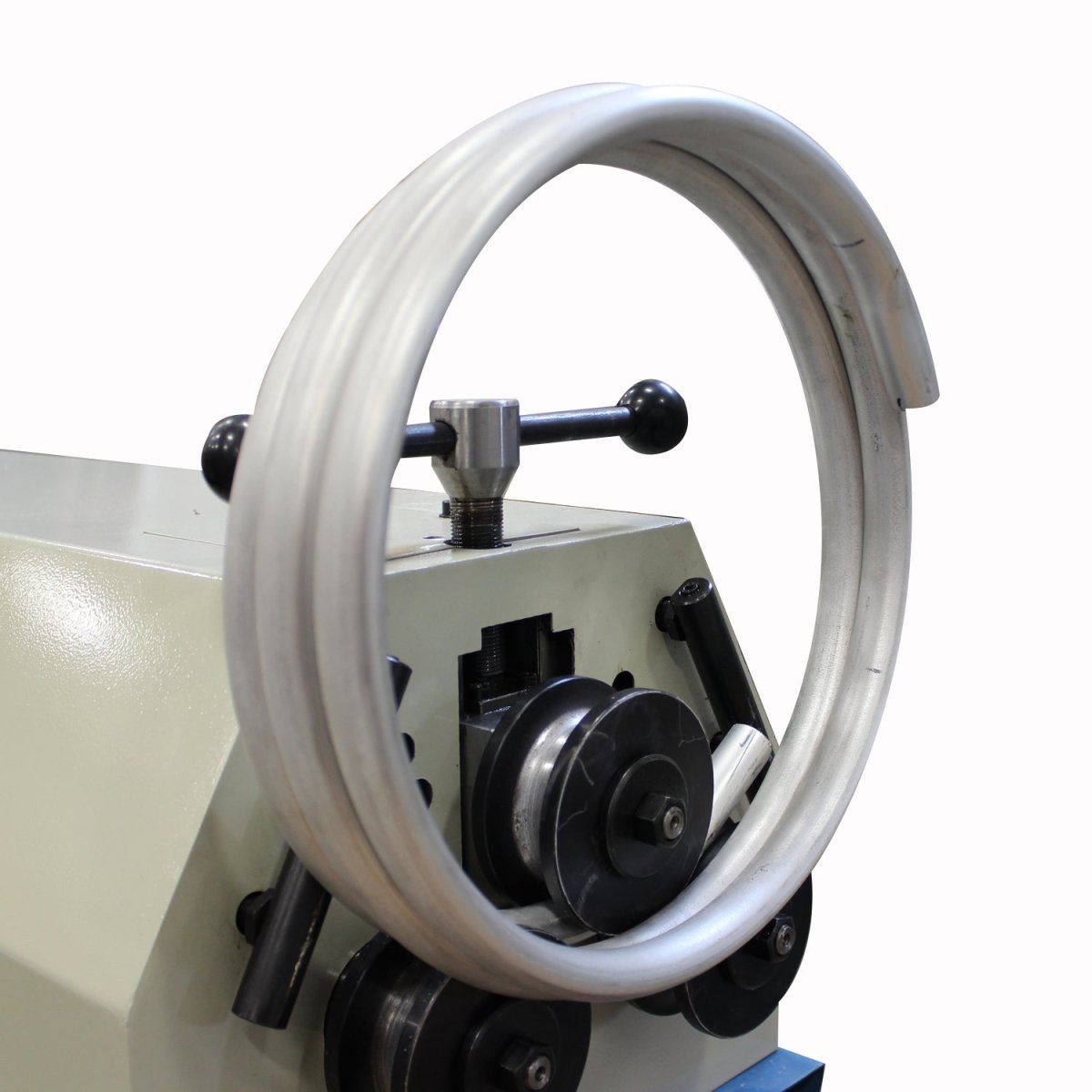

We designed the R-M20 ring roller with tight, compact roll formation to shape small diameter material and roll coils without trouble.

  • Runs on 220-volt 3-phase power.
  • Maximum capacity of .5" schedule 40 pipe and 1" round tube.
  • Adjustable lateral guides let you bend to just about any coil width imaginable.

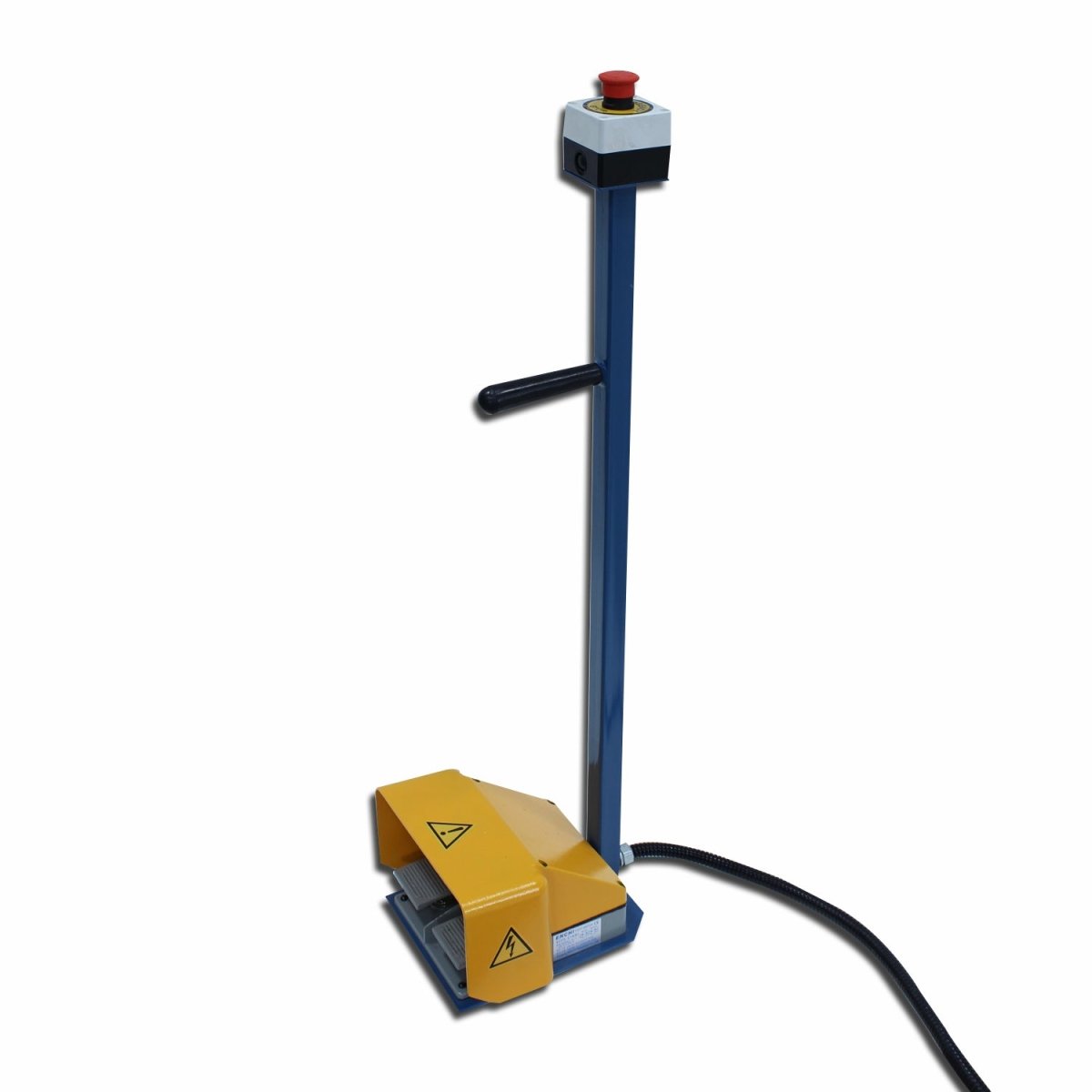

  • Convenient foot pedals control forward and reverse roll direction.

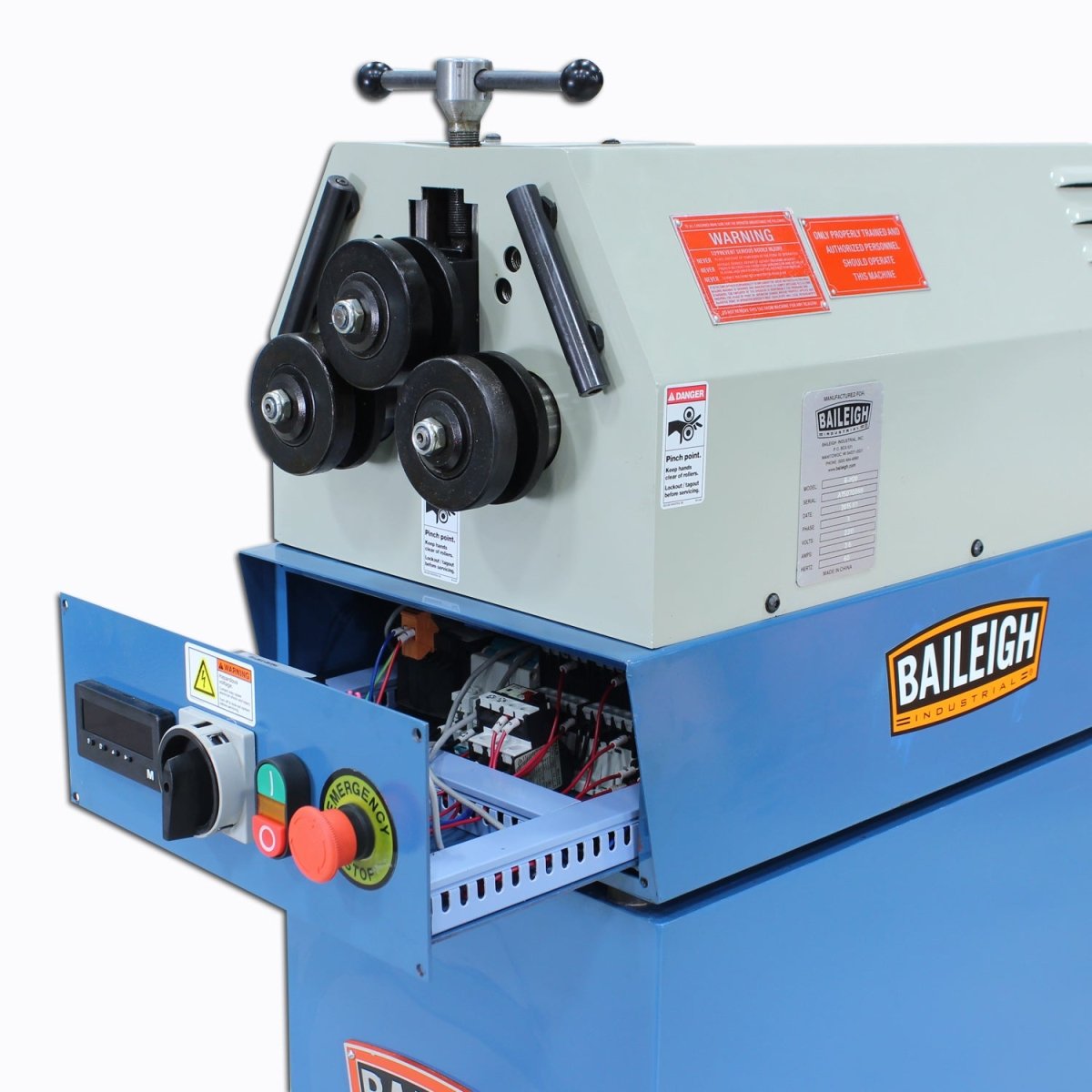

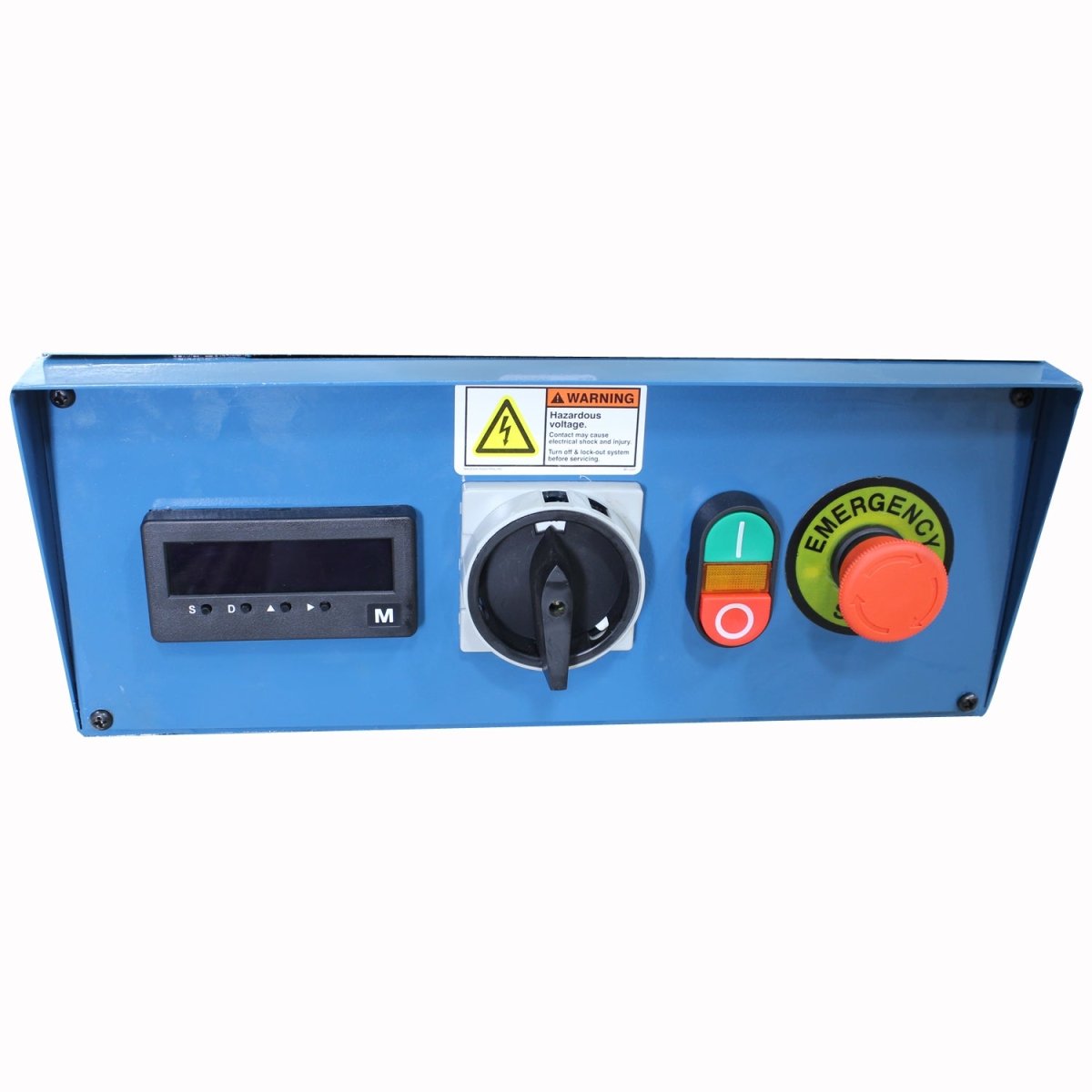

  • Easy-to-read digital display shows top roll position, making bend repeatability a cinch.
  • Emergency stop protects your safety, as well as the machine.

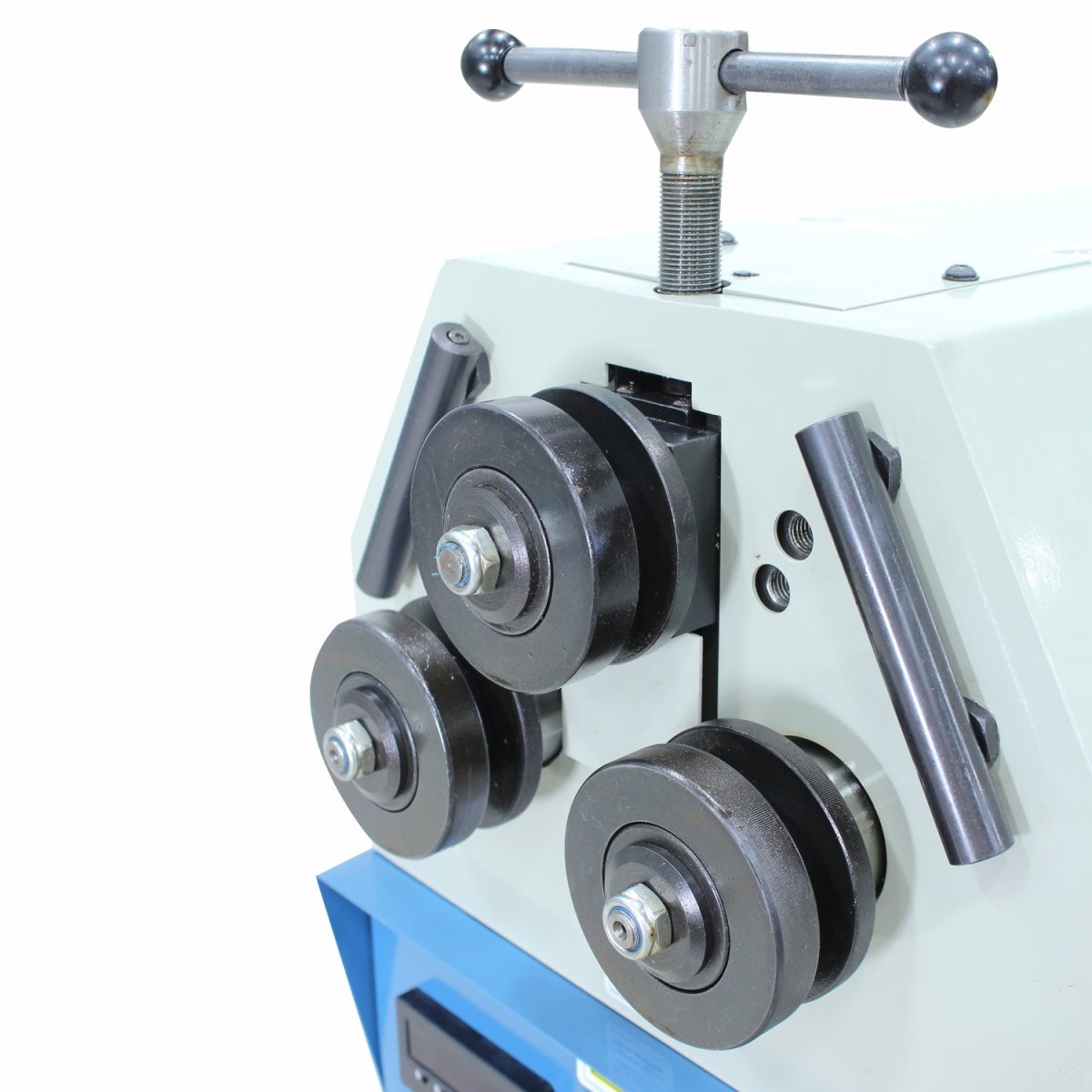

  • Rugged steel frame plus hardened, ground, and polished steel shafts ensure accuracy and years of productivity.

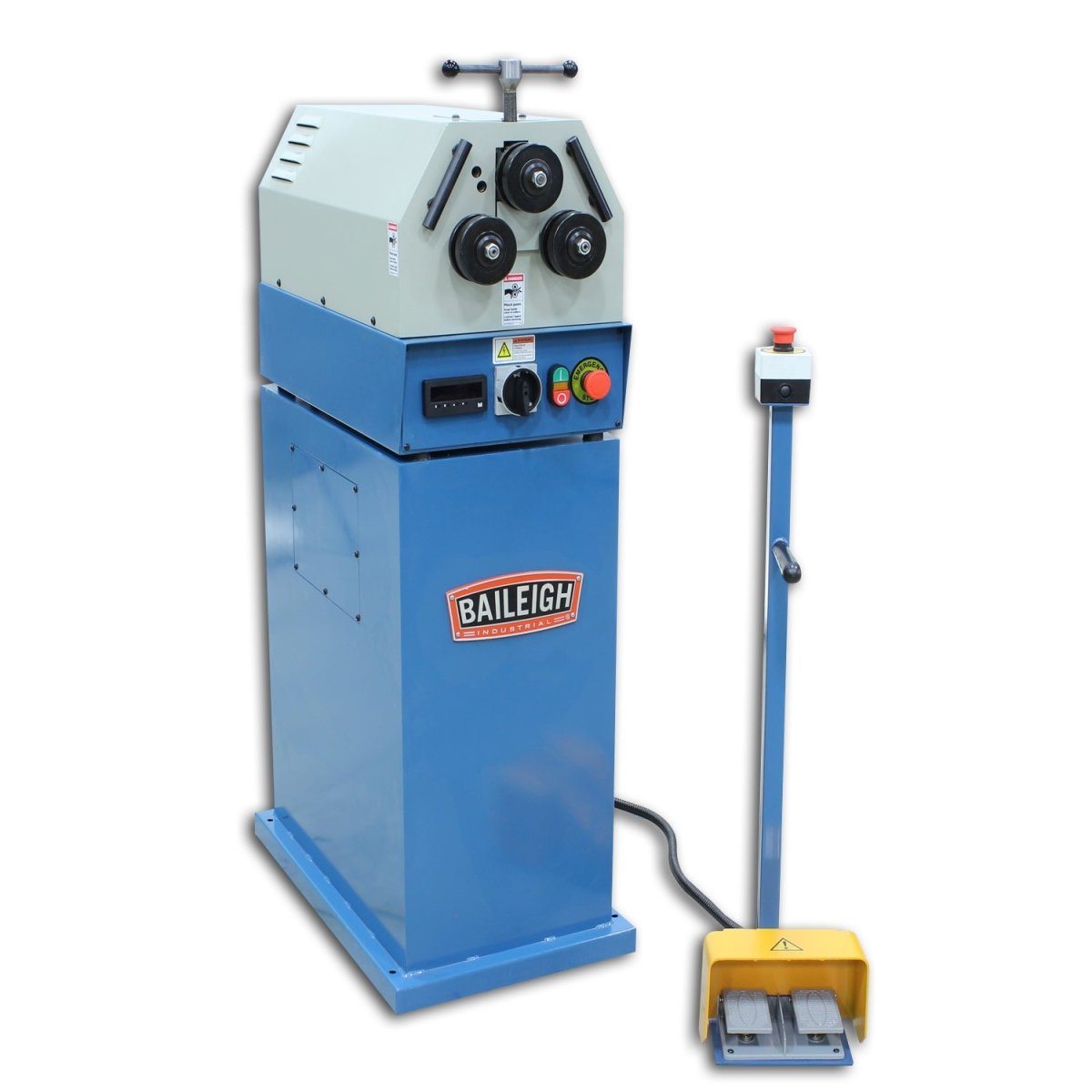

  • Machine head separates from included stand to make the machine portable and easy to store—an advantage for working in small shops or traveling to work on-site.
  • Covered by a 1-year parts warranty and lifetime technical support from Baileigh’s experienced reps.
Item Number R-M20-220
Driven Rolls 2
Roll Adjustment Manual
Pipe Capacity Size: .5” (sch.40) / Min. Dia.: 14”
Round Tube Capacity Size: 1" (.0625") Min. Dia.: 16"
Square Tube Capacity .75" (.0625") Min. Dia.: 12"
Solid Round Capacity Size: .5" Min. Dia.: 5"
Flat Bar Easy Way Size: 1.75" Min. Dia.: 12"
Flat Bar Hard Way Size: 1" Min. Dia.: 8"
Angle Iron Capacity Size: .75" (.125") Min. Dia.: 10"
Shaft Diameter .78"
Shaft Center Distance Lower Rolls 10.88"
Upper Roll Dia. 3.38"
Lower Roll Dia. 3.38”
Pinch Single
Power 220V - 3-Phase
Shipping Weight 420lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Speeds 14285
Shipping Dimensions (Inches) 60x44x59

* specifications subject to change without notice.
