SawMaster SDT-710SR Tile Saw

SKU SDT-710SR

Original price $774.00 - Original price $774.00
Original price
$774.00
$774.00 - $774.00
Current price $774.00
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

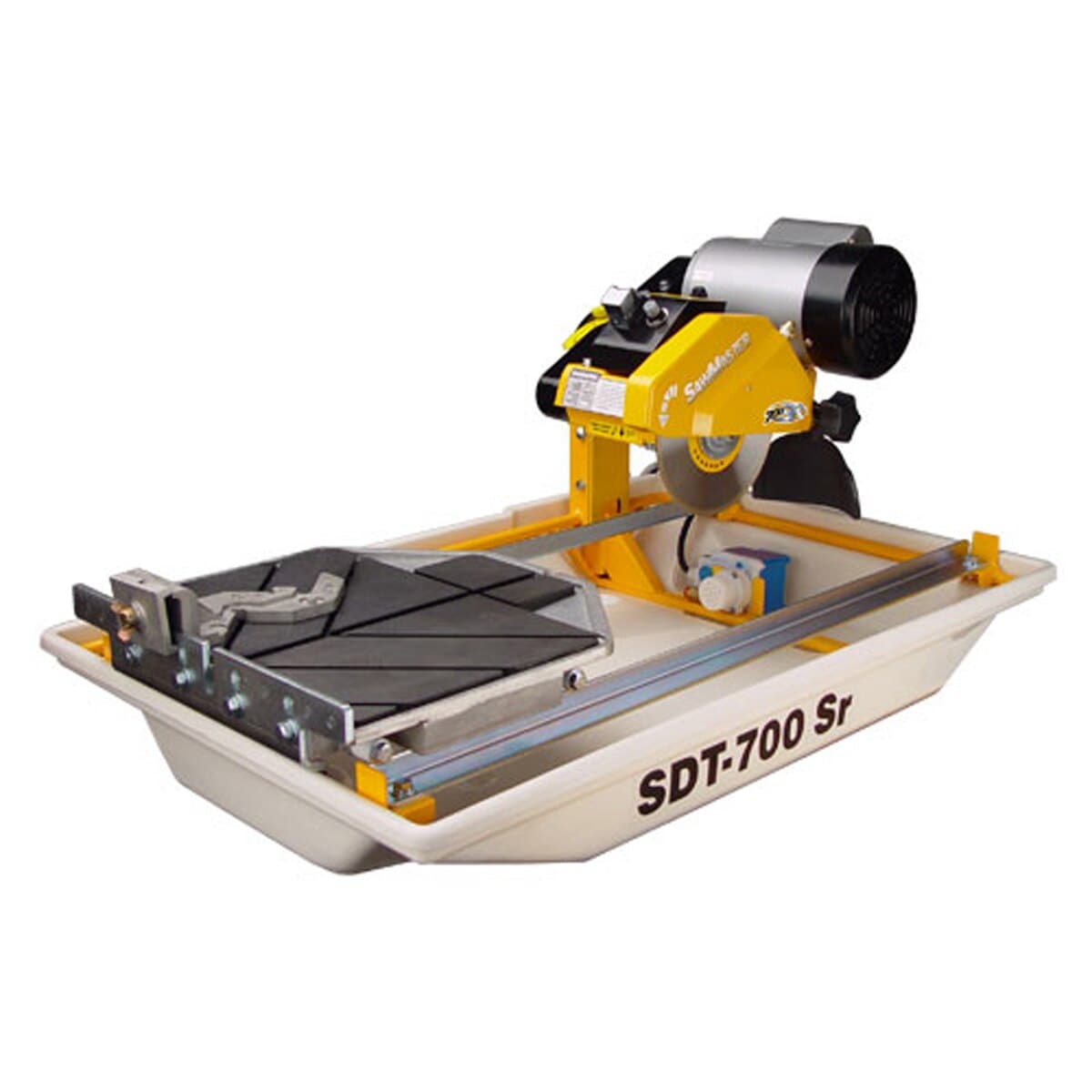

SDT-700SR Tile Saw allowing for cutting lengths up to 20 inches straight and 14 inches diagonally

Combining high performance, increased cutting capacity and improved durability, the SDT-710SR is the de facto standard of the SDT-710 series. Driving the 7" blade is a patented 1 HP carbon brush motor which delivers enough torque to handle virtually any tile job with relative ease. The power is complemented by a generous cutting capacity, that allows for cutting lengths of up to 20" straight and 14" diagonal. This unit is ideal for contractors in need of an affordable, portable wet tile saw, capable of performing on a par with heavy-duty saws but at a fraction of their weight.


Features

Water Pump

A high-output water pump provides sufficient cooling water flow for maximum protection of the diamond blade.

ABS Water Tray

The provided ABS water tray is durable, yet lightweight, which helps minimize the saw's overall weight.

Adjustable Cutting Height

Cutting depth can be easily adjusted to accommodate 6" to 7" blades and to provide plunge cutting functionality.

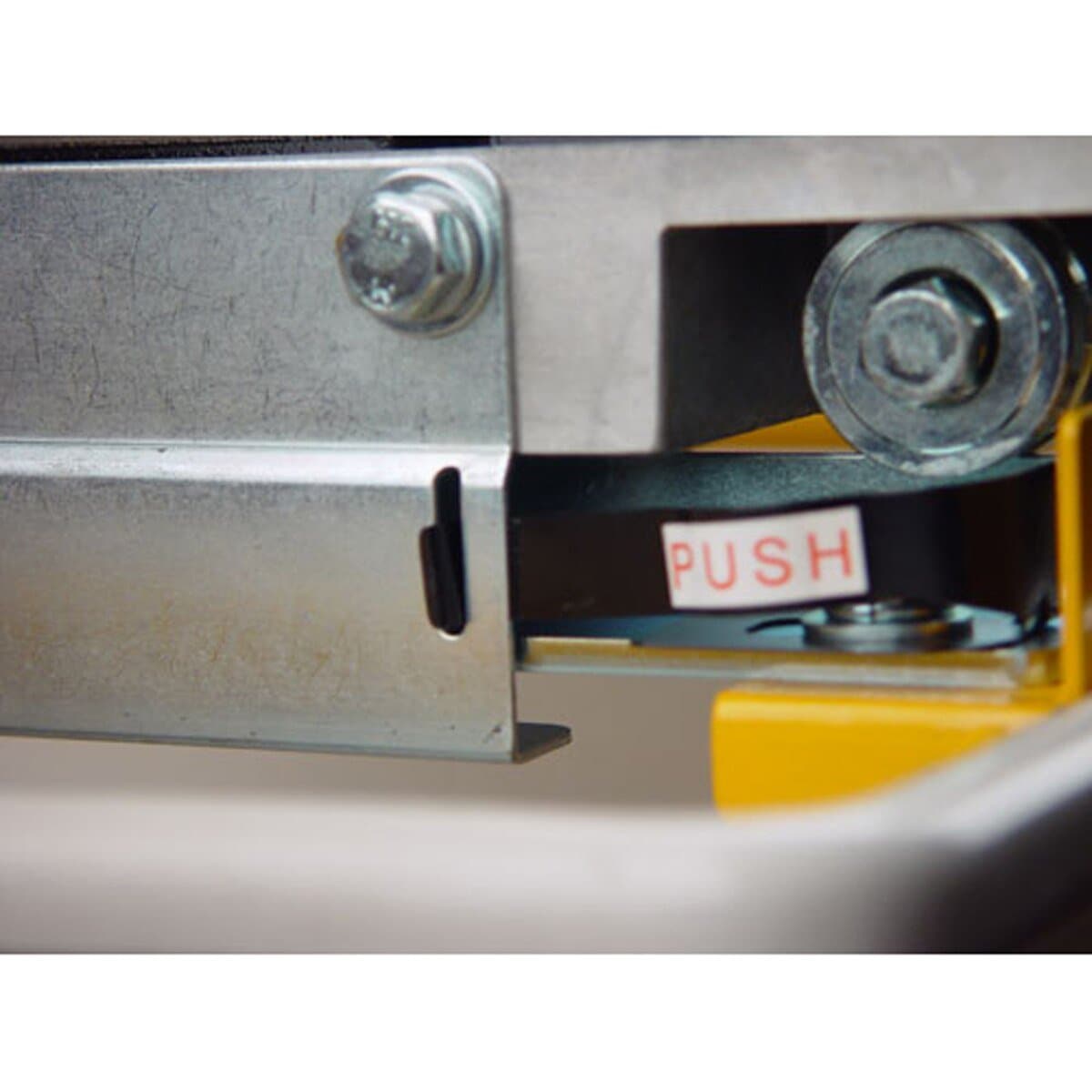

Table Retention Device

The cutting table is equipped with a spring lock to secure the cutting table when transporting the saw in between job sites.

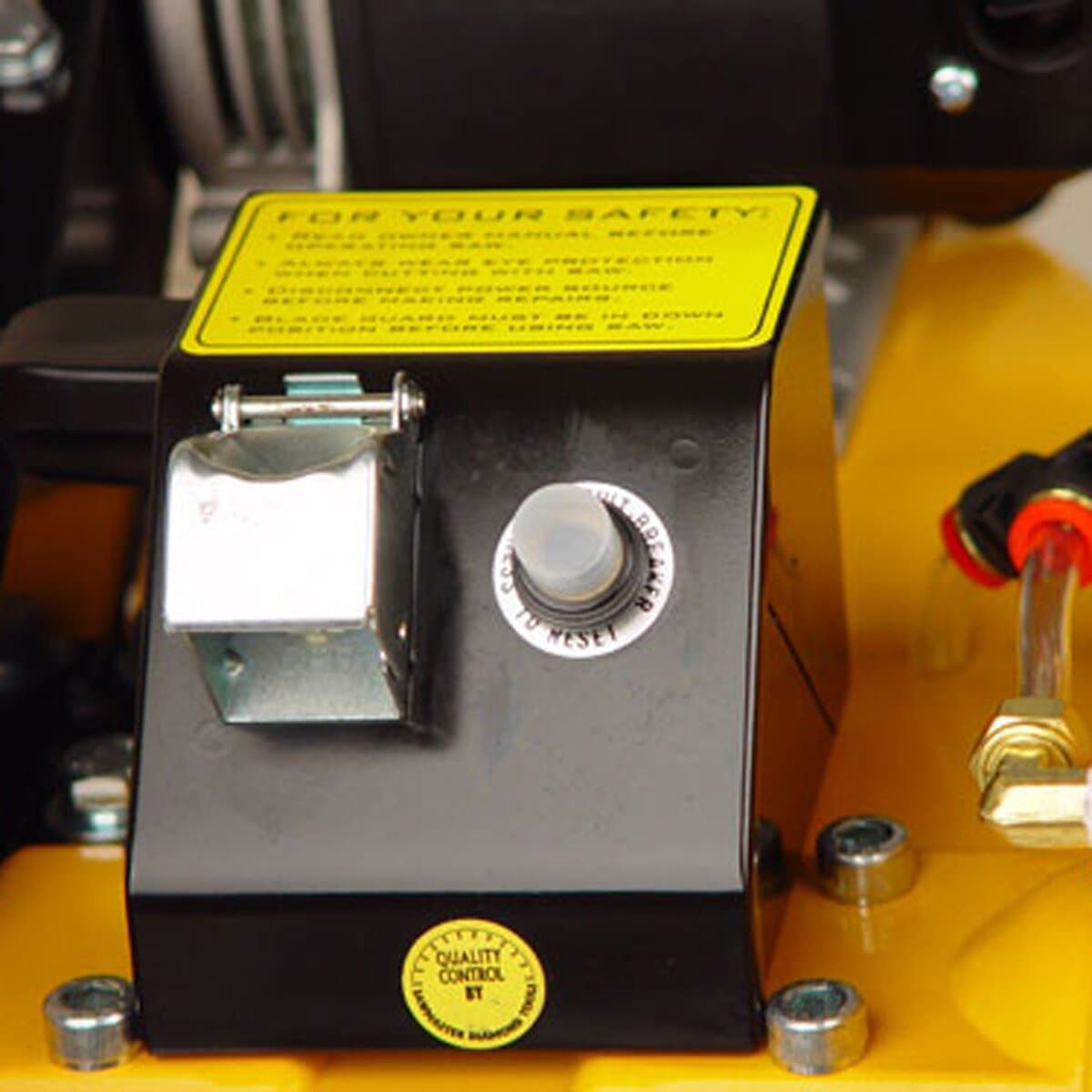

Thermal Overload Protection

Automatic thermal overload protection prevents the motor from overheating and protects the saw from power surges.

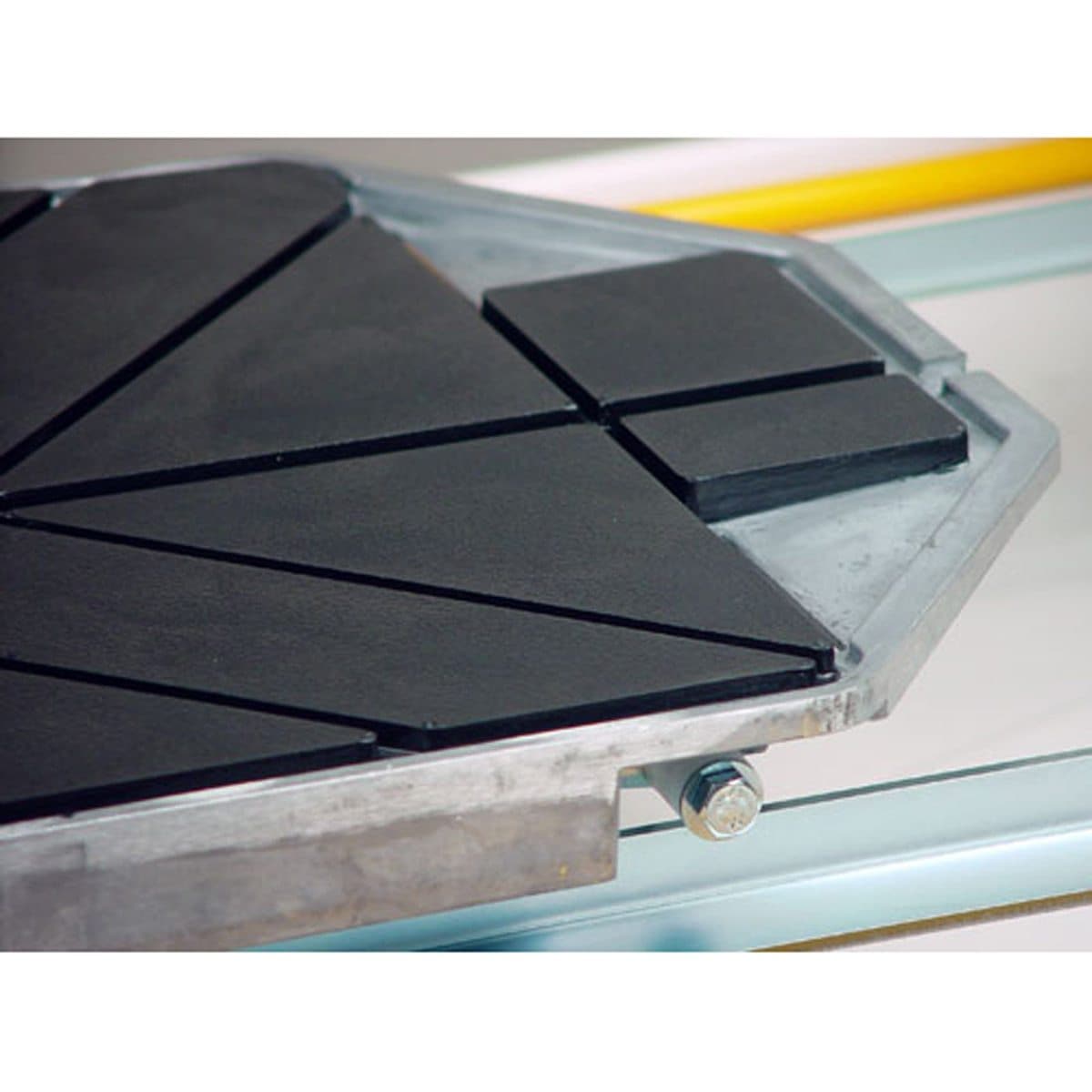

Rubber Matted Cutting Table

The new cast aluminum cutting tables are covered by a rubber mat that is injected directly onto the table and chemically bond for ehanced durability.

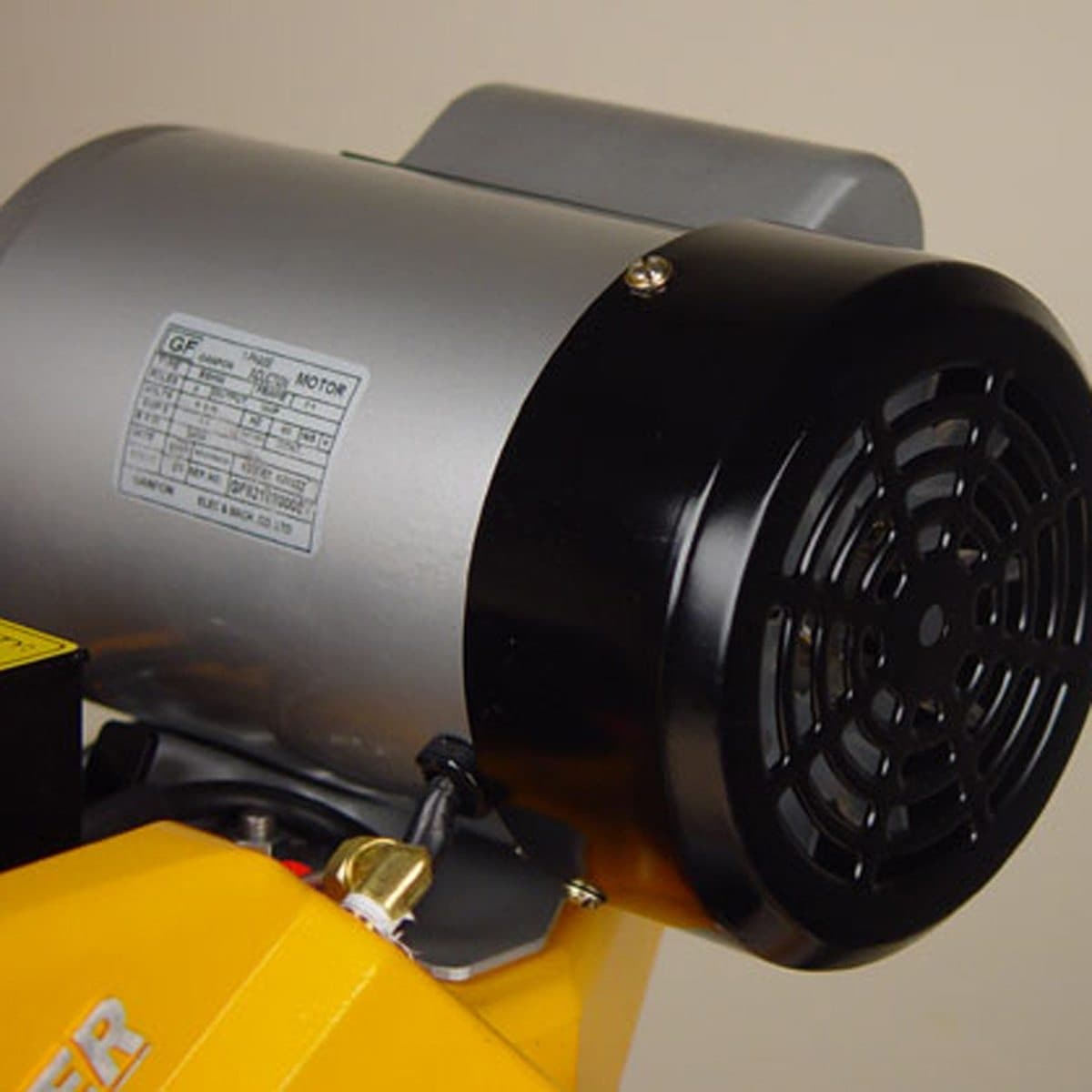

Carbon Brush Motor

The 1 HP carbon brush motor generates a tremendous amount of torque for incredible cutting performance.

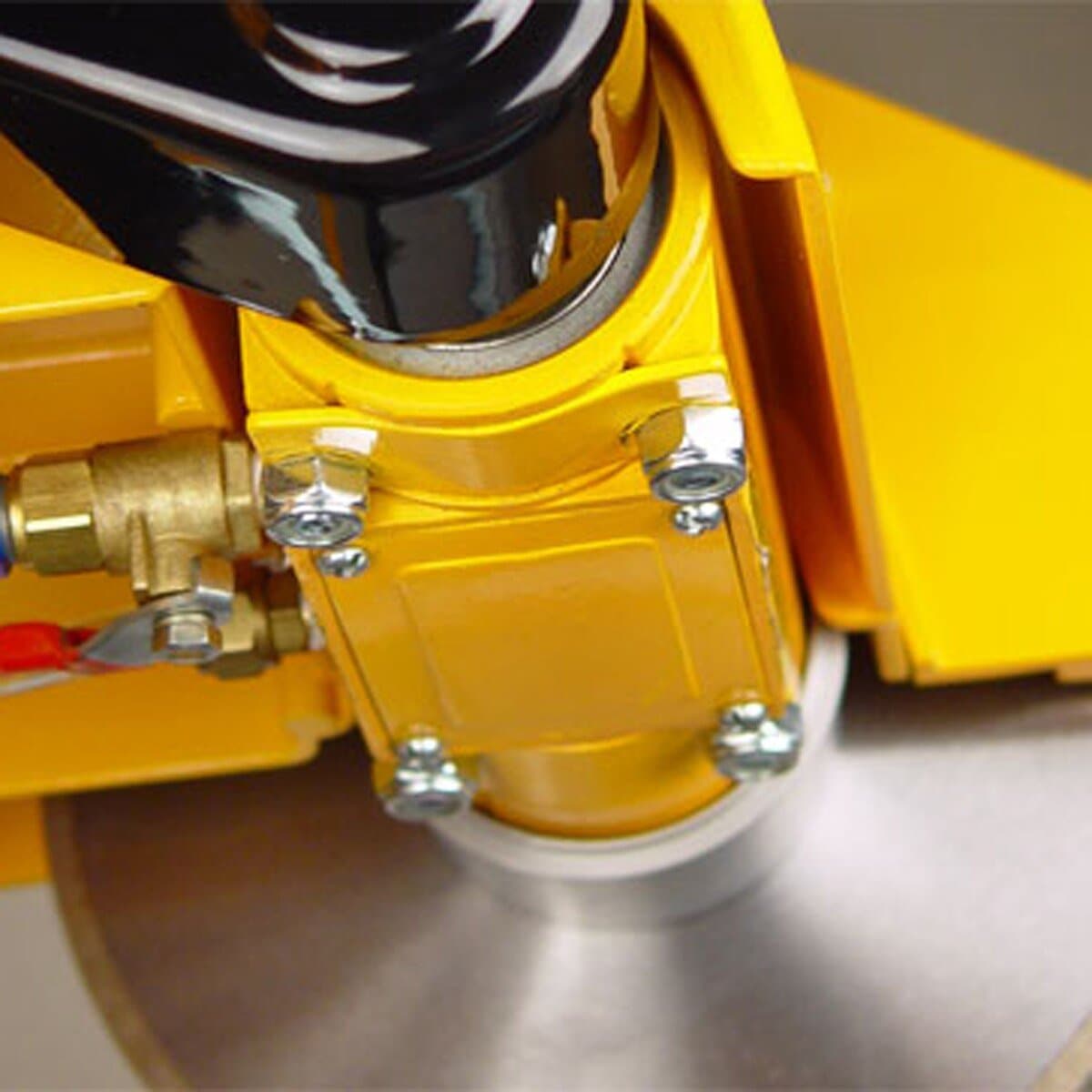

LCBH

The patented LCBH (Liquid Cooled Bearing Housing) works in conjunction with the water pump to cool down the bearing housing during saw operation. This feature increases the service life of the bearing housing even under heavy loads.


Specifications

Saw Type Tile
Motor 115 V/60 Hz
Horsepower 1 HP
Blade Capacity 6" - 7"
Blade Arbor 5/8"
RPM 6000
Weight 55 lbs
Cutting Depth 1 3/4"
Rip Cutting 20"
Diagonal Cutting 14" x 14"
Thermal Protection Equipped
ABS Water Tray Equipped
LCBH Equipped


Recommend Using...

  • Blade CR0780R(7" General Purpose Wet Tile Blades)
  • Stand SDT-700ST
