BN Products | SKU: DBM-40P

Sigma Series Professional DBM-40P Rebar Bender | 240/415V 3-Phase

Name: Sigma Series Professional DBM-40P Rebar Bender | 240/415V 3-Phase
Brand: BN Products
SKU: DBM-40P
Price: 13455.00 USD
Availability: InStock

$13,455⁰⁰ ~~$14,416⁰⁷~~

Shipping calculated at checkout.

Safe & Secure Payments.

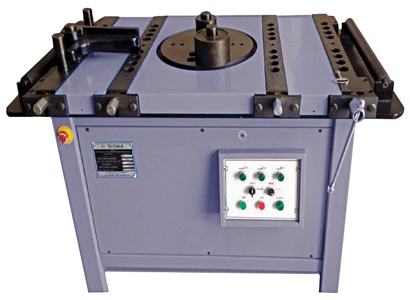

Our Sigma Series Professional DBM-40P Production Rebar Bender is used to accurately shape reinforcement bars.

It is equipped with high-quality gears and an motor that is easy to program and use. This in-shop production tool can be programmed to bend in
both directions.

The steel frame and housing have a powder coated exterior finish for long-lasting durability.
The DBM-40P mechanical gears are manufactured with special heat treated alloy steel to stand up to the demands of heavy-duty production rebar bending.
Please note that the power requirements to operate the DBM-40P are 240/415V 3-Phase AC.

Specifications

Capacity	#11 (40mm), Grade 60 Rebar
Width x Length x Height	29.5" (750mm) x 48.43" (1230mm) x 33.46" (850mm)
Motor	7.5 hp (5.5 kW), 60 Hz, 240/415V 3-phase AC
Weight	1300 lbs ( 590 Kg)
Gear Motor Type	Planerary Gear Motor
Capable of Bending	#11 (32mm) grade 60 rebar or 2 #6 (20mm) or 3 # 4 (12mm)
