The Sink Hole Saver™ Manual v6 is a surface-mounted reinforcement system that strengthens fragile materials during lifting, transportation, and installation.



MATERIAL REINFORCEMENT REIMAGINED

Neolith Approved ToolingThe Sink Hole Saver™ Manual v6 is a surface-mounted reinforcement system that strengthens fragile materials during lifting, transportation, and installation. This product features proprietary, non-marking concaved vacuum cups with triple sealing rings for a strong, reliable hold—even on textured and leathered surfaces. The vacuum cups can be re-pumped in place without loss of remaining suction, and red-collar indicators on thumb pumps allow vacuum pressure to be monitored at a glance. The six fluted knobs allow quick repositioning of cups around cutouts.

The Sink Hole Saver™ Manual models are equipped with all fittings to easily become Auto models with the purchase of a VMP 750.

  • Pays for itself with one prevented break!™
  • Surface-mounted reinforcement system for fragile materials
  • Perfect solution for thin materials, curved countertops, vertical panels, and high-low drops
  • Non-marking 6" cups feature a concave design for quick attachment, even to bowed surfaces
  • FTS™ (flexible triple seal) vacuum cups provide secure, reliable hold on textured or leathered materials
  • Re-pumpable cups, without remaining pressure loss
  • Easy to read vacuum pressure indicators
  • High flow vacuum release valves for fast and hassle-free removal of product
  • Quickly extend or collapse to completely support fragile materials (applicable to the Sink Hole Saver™ Slider Manual)

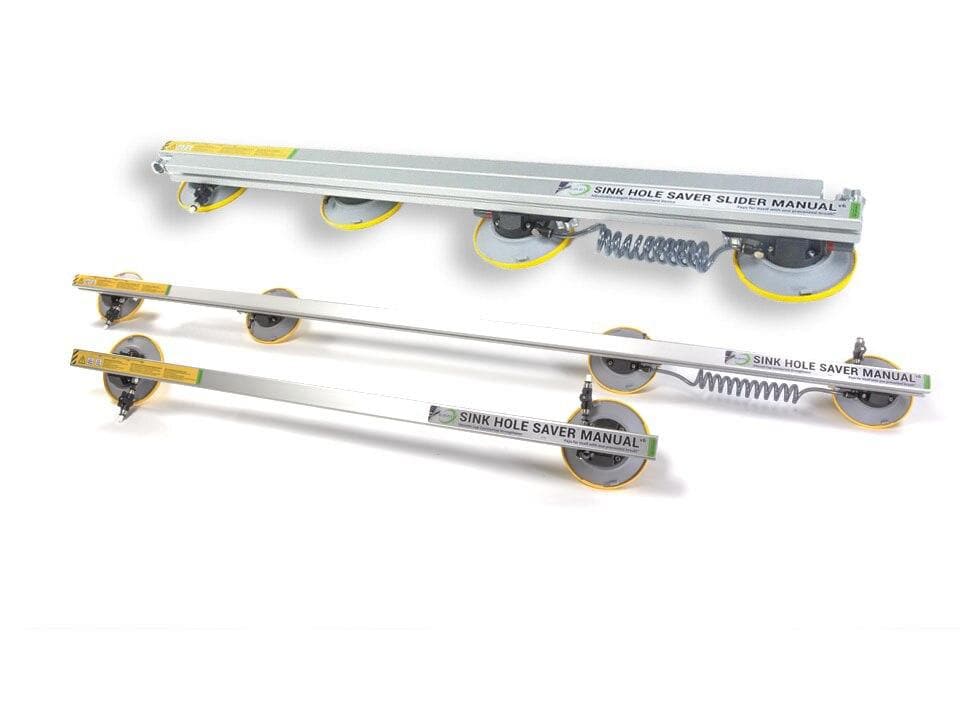

  • Available sizes:

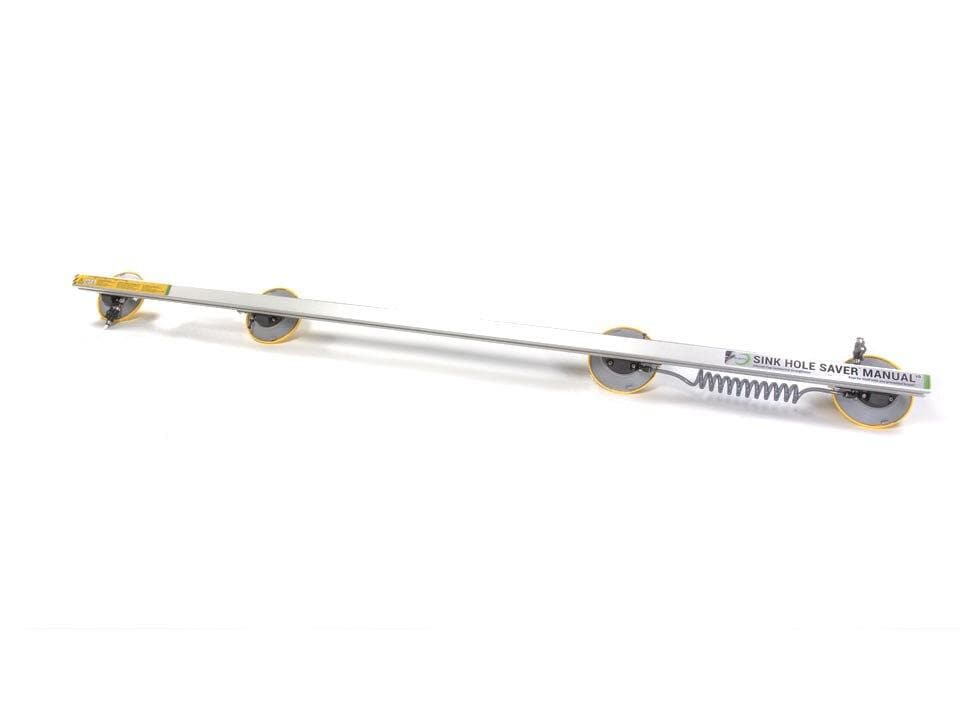

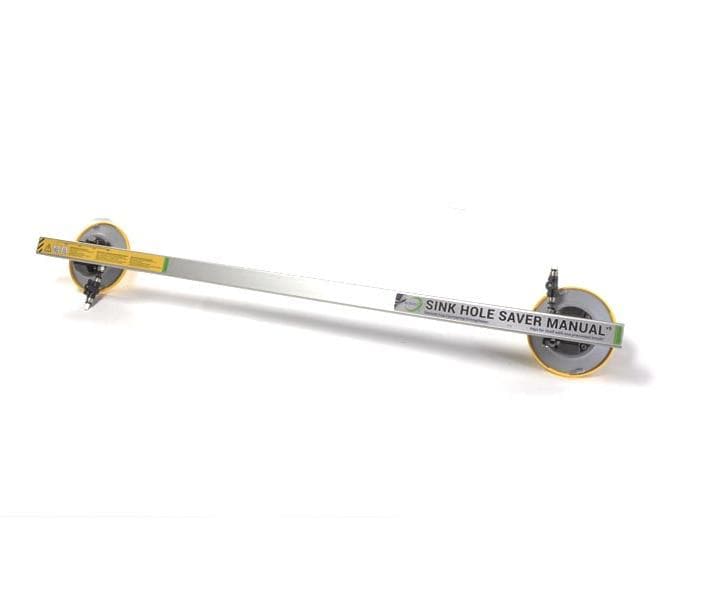

    • Sink Hole Saver™ Manual: 4' and 7'

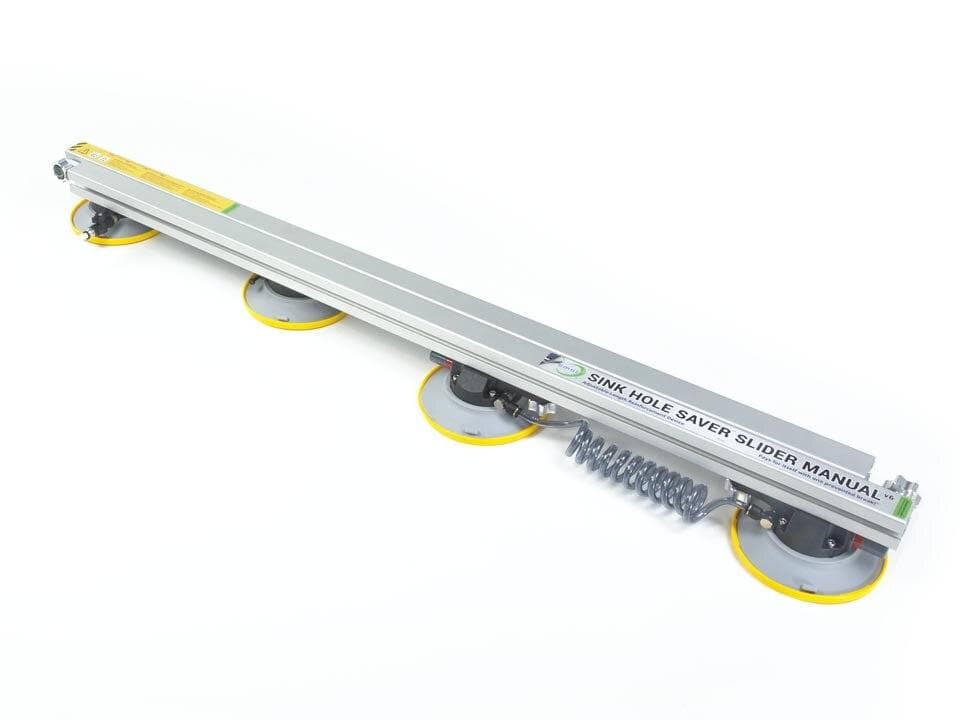

    • Sink Hole Saver™ Slider Manual: Extension Range: 51" - 90" (1.3 m - 2.28 m)

ACCESSORIES

  • The Sink Hole Saver™ Rigid Cross-Brace Kit (part # RCB-S4-19) attaches perpendicular to any two Omni Cubed® vacuum cup Sink Hole Savers to minimize flexing and twisting of large and fragile materials.
  • The Sink Hole Saver™ Angle Bracket (part # AB-SHS) connects two Sink Hole Savers to create a rigid joint at any angle up to 270° for safe transportation of uniquely shaped countertops.
  • The Sink Hole Saver™ Extension Bracket Kit (part # ESB-19) combines two Sink Hole Saver™ Manuals or Autos into one adjustable-length rail for greater versatility and convenience.
  • The Sink Hole Saver™ Vertical Lifting Handle Kit (part # VLH-19) attaches to vacuum cup Sink Hole Savers to make vertical panel installations safer, faster, and easier.
  • The Sink Hole Saver™ Horizontal Lifting Handle Kit (part # HLH-19) provides a comfortable gripping point beyond both ends of any one Sink Hole Saver™ rail or Rigid Cross-Brace bar.
  • The Rigid Cross-Brace Clamp Kit (part # RCBC-2-19), with one or more Rigid Cross Brace Kits, connects additional rails to your Omni Cubed® vacuum cup Sink Hole Savers or Slim Slab Savers. This clamp kit can also be used as a replacement for lost or broken clamps.

    Product Name Sink Hole Saver™ Manual v6
    Part # SHS-4M-20, SHS-7M-20,
    MSRP 4' Sink Hole Saver™ Manual v6: $275.00
    7' Sink Hole Saver™ Manual v6: $475.00
    Patent Applicable Patents
    Product Dimensions 4' Sink Hole Saver™ Manual v6: 48" x 5" x 6.5"
    7' Sink Hole Saver™ Manual v6: 84" x 5" x 6"
    Product Weight 4' Sink Hole Saver™ Manual v6: 6.4 lb
    7' Sink Hole Saver™ Manual v6: 11.7 lb
    Package Dimensions 4' Sink Hole Saver™ Manual v6: 48" x 5" x 6.5"
    7' Sink Hole Saver™ Manual v6: 84" x 5" x 6.5"
    Shipping Weight 4' Sink Hole Saver™ Manual v6: 8 lb
    7' Sink Hole Saver™ Manual v6: 13 lb
    Includes One rail, 6" vacuum cups with covers (2 vacuum cups for the 4'; 4 vacuum cups for the 7')
    Rated Capacity 70 lb (31 kg) per cup; 200 lb (90 kg) per rail
    Materials Aluminum, reinforced polymer, stainless steel, silicone, zinc plated steel
