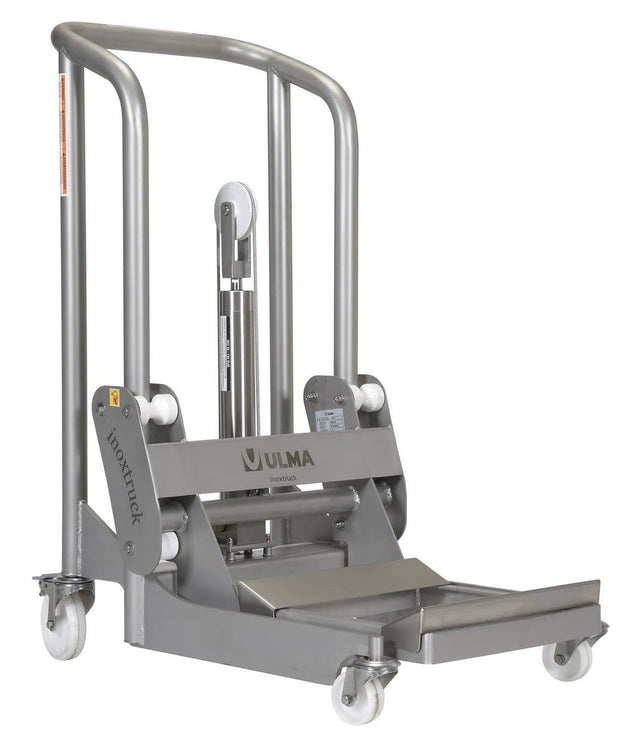

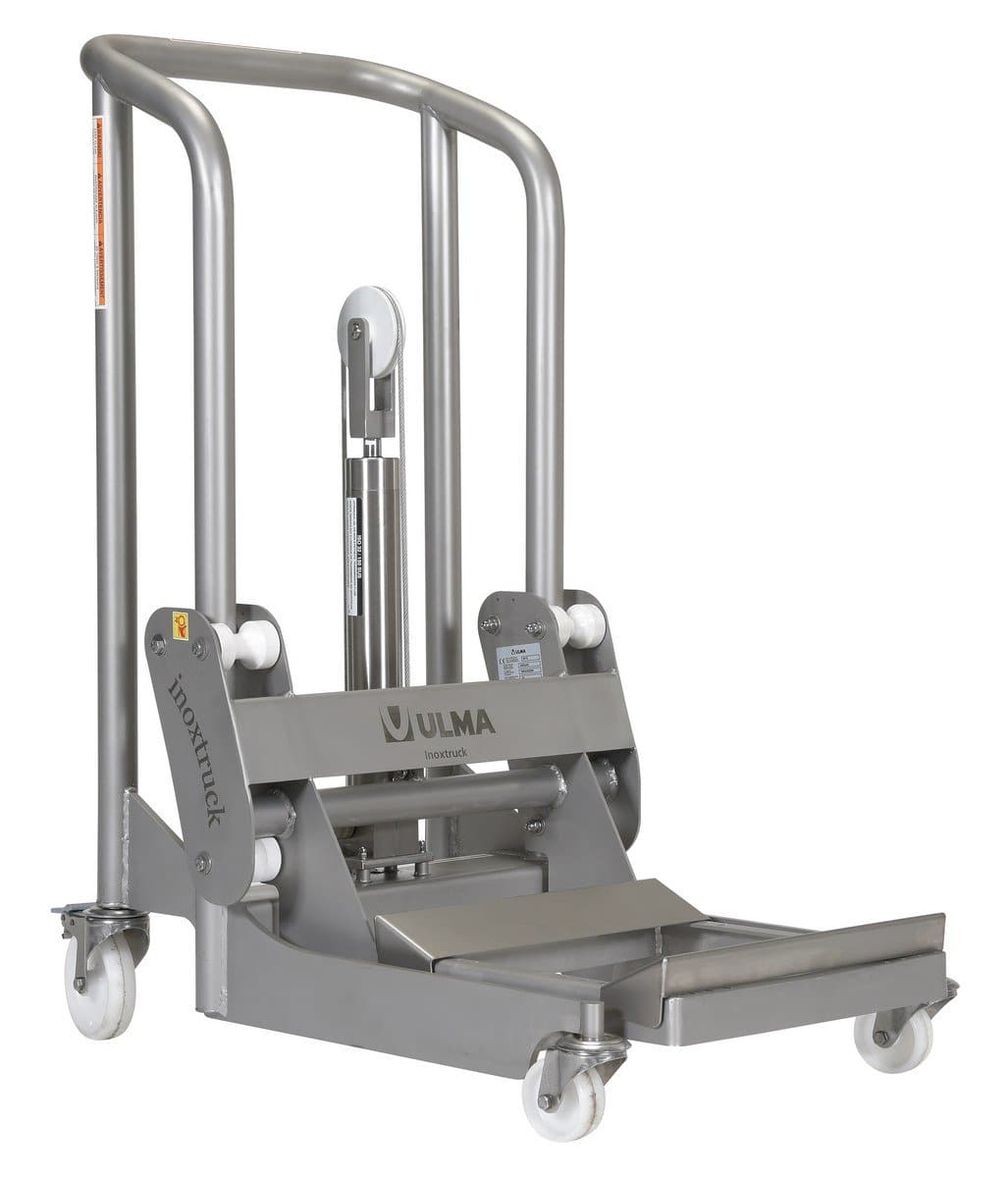

A 304 Stainless Steel Hydraulic Foot Pump Roll Handler is great for an assortment of areas including the food handling service industries.

The design is sleek, smooth, and easily washable for before and after use in hygienic areas. The raising and lowering of the platform to the precise position is made easy by the hydraulic foot pump design, which diminishes needless bending when loading/unloading material. The 304L stainless steel construction including hydraulic cylinders as well as the piston provides a strong structure for transferring heavy loads between work areas. A rounded handle style allows for a proper two handed grip when maneuvering around work areas, while the perfect open cradle platform lets the user load material from three sides. Cradle adjusts in 1" increments up to 16" wide. The handler rolls smoothly on four swivel casters with two attached rear brakes for safe functionality when in a resting position.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Stainless Steel Hydraulic Foot Pump Roll Handler
Model Image PDF's Cradle Size
(W x L)
Max. Roll
ULM-HRH-850 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16" x 16" 24" 850 5-3/8" to 23" 138

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
