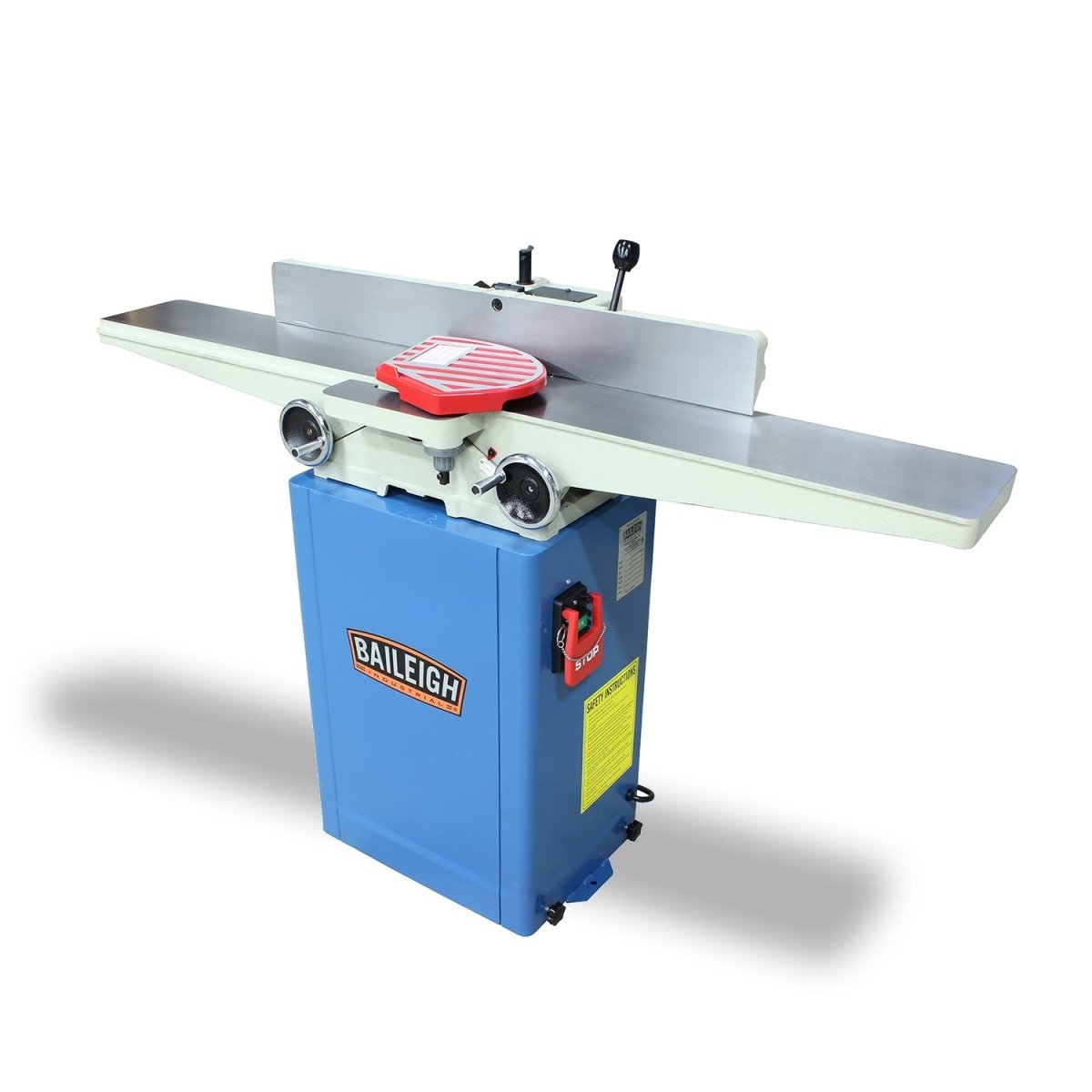

Looking for an entry-level wood jointer? Want to upgrade from a small benchtop model? This affordable wood jointer is perfect for home shops or anyone working with 6”-wide pieces.

  • 1 hp motor spins the blade at 4,800 rpm.
  • Runs on 110-volt single-phase power, so it will work almost anywhere.
  • Tried and true wedge bed design is durable and simple to use.
  • 7” x 55” oversized steel table, mounted on dovetailed ways, gives you support and minimizes vibrations.

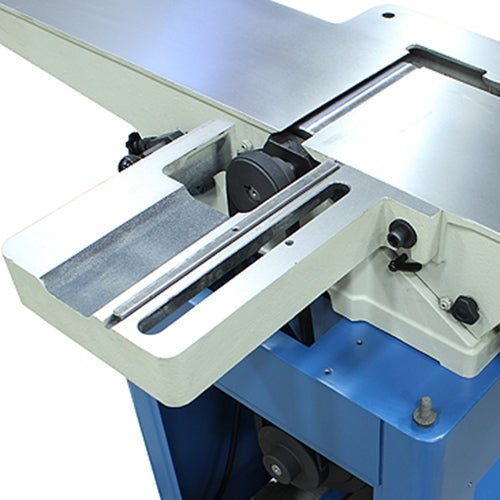

  • Built-in rabbeting ledge helps you easily make grooves down the sides of boards for edge joining.
  • 29”-long, 4”-tall fence has positive stops at 90° and 45° right and left.
  • Lever on the infeed table allows you to adjust the cut depth up to 1/2” for quick set-ups.
  • Straight 3-knife cutting head comes standard with the jointing machine.
  • 4” dust port can connect to your dust collection system and keep your shop clean.
  • Covered by a 1-year parts warranty.
  • We offer lifetime technical support by phone. Call a Baileigh woodworking expert whenever you need help.
Item Number IJ-655-1.0
Shipping Weight 335lbs
Table Size (Length) 55.5"
Table Size (Width) 7-1/4"
RPM 4800
Fence Size 4" x 29"
Maximum Rabbeting Capacity 1/2"
Cutter Head Diameter 2-1/2"
Max Stock Width 6"
Number of Knives 3
Jointer Maximum Cutting Depth 1/2"
Power 110/220V Single Phase(Prewired 110V)
Horse Power 1
Weight (lbs) 229
Rabbet Ledge 3-1/2" x 8-5/8
Rolling Base Yes
Shipping Dimensions (Inches) 69x44x38

* specifications subject to change without notice.
