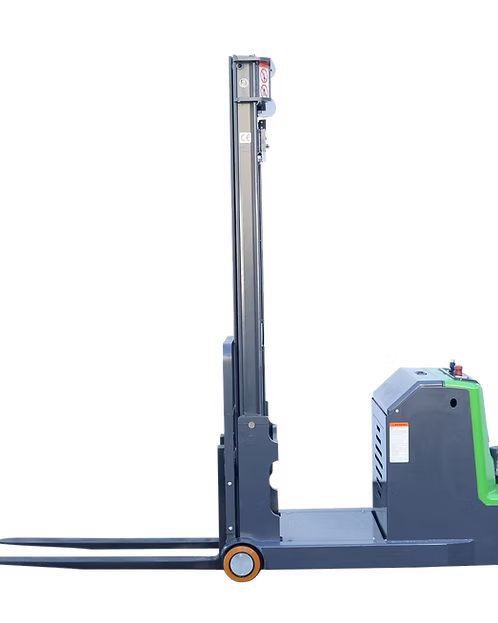

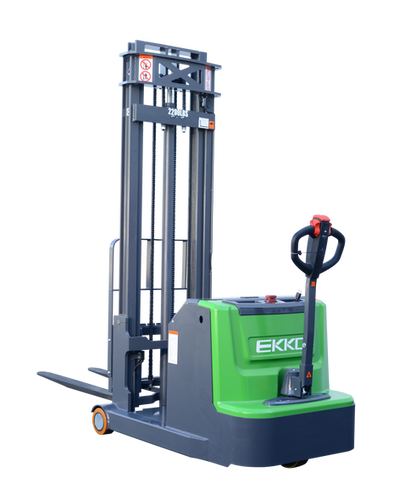

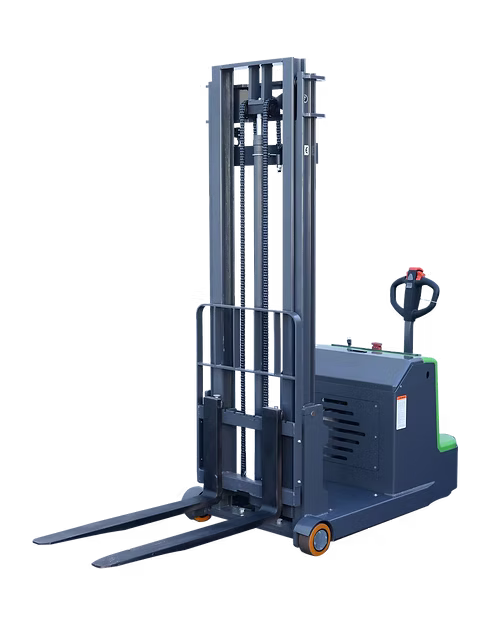

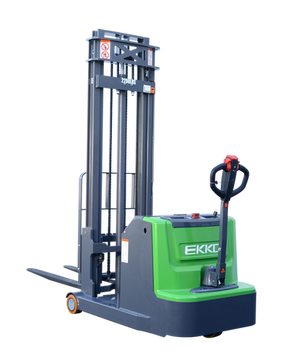

Counterbalanced Walkie Electric Stacker

Counterbalanced Walkie Electric Stacker — Lithium-Powered Precision for Tight-Space Pallet Handling

The Counterbalanced Walkie Electric Stacker is a compact, high-performance lift solution engineered for warehouse and distribution environments where maneuverability and reliable pallet handling are critical. With a 2,200 lb lift capacity and lift height options of 118 inches or 138 inches, it delivers serious vertical reach in a footprint designed for confined aisles and loading areas. Powered by a 24V/100Ah lithium-ion battery with a built-in 24/30 V/A charger, this unit is ready to work without the need for external charging infrastructure. It is purpose-built for contractors and trades professionals who need clean, quiet electric lift performance on the job.

Unlike traditional straddle-leg stackers, this counterbalanced design eliminates the outrigger arms entirely, allowing it to work directly with standard pallets and in tighter rack configurations. The integrated lithium-ion power system means no battery swaps, no lead-acid maintenance, and faster charge cycles compared to conventional battery setups.

Technical Specifications

Key Features & Benefits

Counterbalanced Design — No Straddle Legs Required

The counterbalanced chassis eliminates outrigger arms, allowing the stacker to engage standard pallets directly without requiring open-bottom pallet access. This is a significant operational advantage in racking systems and tight staging areas where straddle legs create clearance conflicts.

Integrated Lithium-Ion Battery & Built-In Charger

The 24V/100Ah Li-Ion battery is paired with a built-in 24/30 V/A charger, removing the need for a separate external charger unit. Lithium-ion chemistry provides longer cycle life and faster charging compared to lead-acid alternatives, reducing downtime between shifts.

Dual Lift Height Options

Available in 118-inch and 138-inch lift height configurations, allowing contractors to select the mast height that matches their specific rack or storage height requirements. The modest weight difference between configurations (3,535 lbs vs. 3,597 lbs) means both options remain highly maneuverable.

Compact Turning Radius

A 53-inch turning radius enables tight cornering in warehouse aisles and job-site storage areas where space is at a premium. This makes the unit well-suited for operations where larger rider forklifts cannot efficiently navigate.

3-Year Limited Warranty

Backed by a 3-year limited warranty, providing contractors with long-term coverage and confidence in the unit's durability across demanding daily use.

Common Applications

Warehouse Pallet Stacking & Retrieval

Handles standard pallet loads up to 2,200 lbs, placing and retrieving inventory at heights up to 138 inches in racking systems.

Loading Dock Operations

Efficiently moves palletized materials from dock areas to storage or staging locations without requiring a full-size rider forklift.

Tight-Aisle Inventory Management

The compact counterbalanced footprint and 53-inch turning radius allow operation in narrow aisles where straddle stackers or larger forklifts cannot maneuver.

Job-Site Material Staging

Provides contractors with on-site lift capability for palletized building materials, equipment, or supplies where quiet electric operation is preferred over propane or diesel equipment.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized building materials
• Palletized equipment and machinery
• Boxed and crated goods up to 2,200 lbs at a 24-inch load center

Frequently Asked Questions

Q: Does this stacker require an external charger?
A: No. The unit includes a built-in 24/30 V/A charger, so no separate external charger is needed.

Q: What is the maximum lift height available?
A: The stacker is available in two mast configurations: 118 inches and 138 inches lift height.

Q: What battery type does this stacker use?
A: It uses a Lithium-Ion (Li-Ion) battery rated at 24V/100Ah.

Q: What is the load center for the rated 2,200 lb capacity?
A: The rated lift capacity of 2,200 lbs is based on a 24-inch load center.

Q: What warranty is included?
A: The stacker comes with a 3-year limited warranty.
