Counterbalanced Walkie Stacker - 3,300 lb Capacity at 138" Lift Height

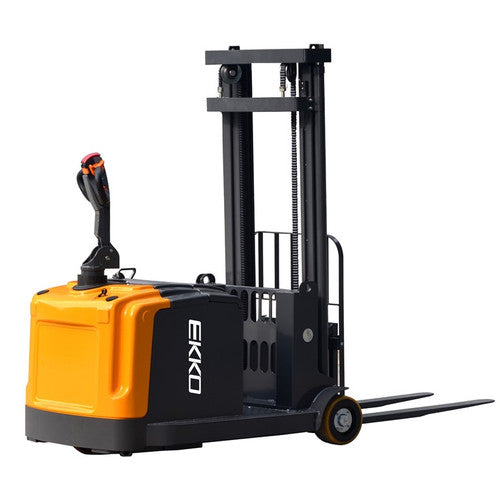

EKKO EK14-138 Counterbalanced Walkie Stacker – 3,300 lb Capacity at 138" Lift Height

The EKKO EK14-138 Fully Powered Counterbalanced Walkie Stacker is a heavy-duty material handling solution engineered to combine the versatility of a forklift with the maneuverability of a walkie stacker. Rated at 3,300 lbs load capacity with a raised height of 138" (11.5 ft), it is purpose-built for contractors and trades professionals working in loading docks, stock rooms, manufacturing floors, and warehousing environments. Its fully powered drive and lift systems allow operators to move and position heavy loads with minimal physical effort across a wide range of jobsite conditions.

Unlike standard walkie stackers, the EK14-138 features Electronic Power Steering (EPS) and a Curtis Controller paired with a 24V AC drive motor, delivering the handling precision and durability demanded in high-cycle commercial and industrial applications. The steel construction with robotic welding ensures consistent weld integrity and structural reliability under sustained use.

Technical Specifications

Key Features & Benefits

Electronic Power Steering (EPS)

EPS reduces the physical effort required to steer the unit, particularly valuable during long shifts or in tight spaces like stockrooms and loading docks. It provides consistent steering response regardless of load weight, improving operator control and reducing fatigue.

Curtis Controller with 24V AC Drive Motor

The Curtis Controller is a proven platform in material handling equipment, offering reliable motor management and smooth acceleration. Paired with a 24V AC drive motor, it delivers efficient power delivery and responsive performance across varied terrain and usage cycles.

Steel Construction with Robotic Welding

Robotic welding produces consistent, high-integrity welds throughout the frame, resulting in a structurally sound unit built to withstand impact, directional changes, and continuous use. This construction approach directly supports durability on demanding jobsites.

Adjustable Forks (8.6" – 28.3")

The wide fork adjustment range allows the EK14-138 to handle pallets and loads of varying widths without requiring separate attachments. This versatility is essential when contractors and warehouse operators are moving different SKUs or pallet configurations throughout the day.

Tilt Functionality (2° / 5°)

Fork tilt allows operators to angle loads for secure pickup and stable transport, reducing the risk of load shift during movement. This feature is particularly useful when retrieving pallets from uneven surfaces or positioning loads precisely on racking.

Polyurethane Wheels

Polyurethane wheels provide durability and floor protection, making them appropriate for finished warehouse floors and manufacturing environments where floor damage is a concern. They also maintain consistent traction across the smooth, hard surfaces common in these settings.

Ergonomic Handle and Controls

The ergonomic handle and control layout is designed to minimize operator strain during extended use. Accessible, well-positioned controls reduce the learning curve for new operators and support efficient, confident operation.

Charger Included

The EK14-138 ships with a charger, eliminating the need to source a compatible unit separately. This reduces setup time and ensures the machine is ready to deploy immediately upon delivery.

Common Applications

Loading and Unloading Trucks

The 3,300 lb capacity and 45.3" fork length make the EK14-138 well-suited for moving full pallet loads on and off delivery trucks at loading docks.

Loading Dock Operations

Compact walkie stacker format combined with full power drive allows efficient pallet staging and retrieval in the confined space typical of loading dock areas.

Stock Room Management

The adjustable fork width and 138" lift height allow operators to place and retrieve palletized inventory on multi-level racking in stock room environments.

Manufacturing Floor Material Handling

Durable steel construction and polyurethane wheels support reliable use on manufacturing floors, where the unit can move raw materials and finished goods between production areas.

Warehousing

The combination of EPS, tilt, and a 11.5 ft lift height supports standard warehousing tasks including racking, de-racking, and horizontal transport of palletized goods.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Palletized manufactured goods
• Boxed and crated loads up to 3,300 lbs

Frequently Asked Questions

Q: What is the maximum lift height of the EK14-138?
A: The EK14-138 raises loads to a maximum height of 138" (11.5 ft).

Q: Does the EK14-138 come with a charger?
A: Yes, a charger is included with the unit.

Q: What type of steering does the EK14-138 use?
A: It uses EPS (Electronic Power Steering), which reduces operator steering effort and improves maneuverability.

Q: Are the forks adjustable?
A: Yes, the forks are adjustable from 8.6" to 28.3" to accommodate different pallet and load widths.

Q: What warranty is included?
A: The EK14-138 is covered by a 3 Years Limited Warranty.
