Counterbalanced Walkie Electric Stacker

Counterbalanced Walkie Electric Stacker – Lithium-Powered Precision for Tight-Space Pallet Handling

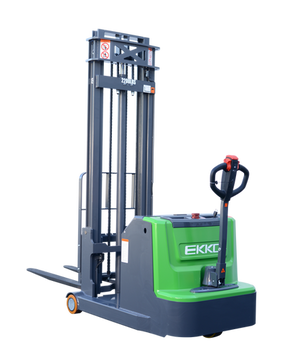

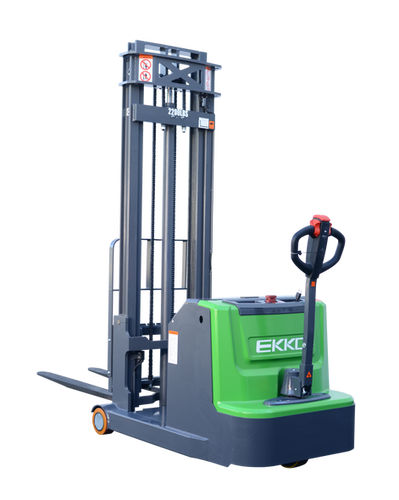

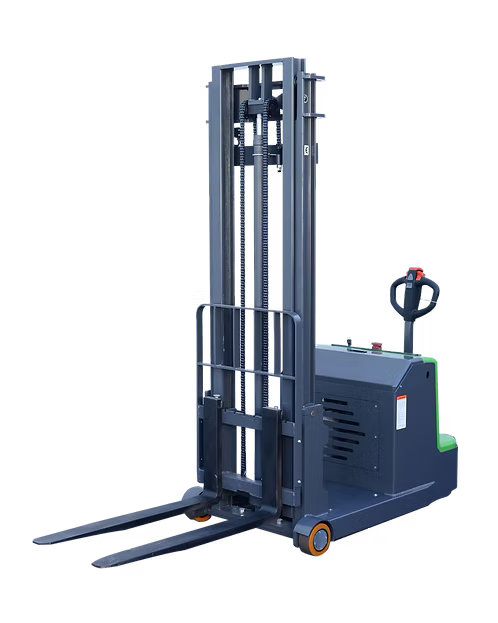

The EK10S-118LI/138LI is a counterbalanced walkie electric stacker engineered for professional warehouse and distribution environments that demand efficient pallet handling without the footprint of straddle legs. With a 2,200 lb lift capacity and selectable lift heights of 118 or 138 inches, this unit is purpose-built for contractors and trades professionals who need reliable vertical lifting in constrained spaces. The counterbalanced design eliminates the need for outrigger straddle legs, allowing operation in tighter aisle configurations than conventional walkie stackers.

Unlike lead-acid alternatives, the EK10S is equipped with a 24V/100Ah lithium-ion battery and a built-in 24/30 V/A charger, removing the need for a separate external charging station. This integrated system reduces equipment overhead, simplifies charging logistics, and delivers consistent power output throughout the shift.

Technical Specifications

Key Features & Benefits

Lithium-Ion Battery Power

The 24V/100Ah Li-Ion battery delivers long-lasting, consistent performance throughout demanding warehouse shifts. Lithium-ion chemistry maintains stable voltage output and requires no watering or equalization maintenance associated with lead-acid alternatives.

Built-In Charger

The integrated 24/30 V/A charger eliminates the need for a separate external charging unit, reducing equipment costs and simplifying floor logistics. Operators can plug in at any standard outlet without dedicated charging infrastructure.

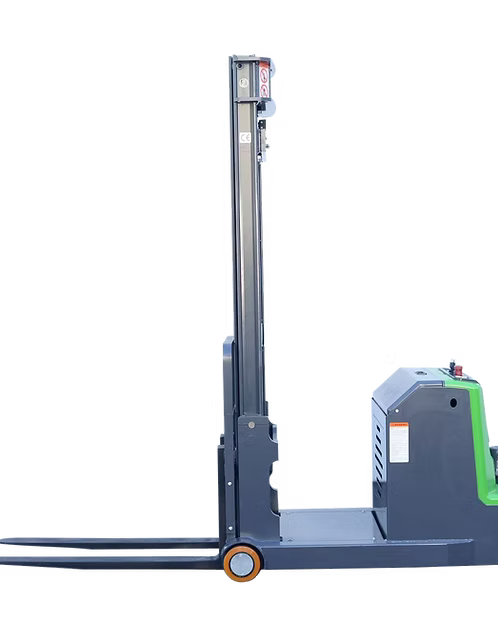

No-Straddle-Leg Counterbalanced Design

The counterbalanced configuration removes the outrigger straddle legs required by conventional walkie stackers, allowing the unit to operate in tighter aisle widths and handle pallets on floor-level racking more efficiently. This makes it practical for spaces where straddle-leg clearance is not available.

Dual Lift Height Options

Available in 118-inch and 138-inch lift heights, the EK10S can be specified to match the exact racking system in use. Contractors can select the configuration that precisely meets their storage height requirements without paying for unnecessary overhead capacity.

Clean, Quiet Electric Operation

Electric drive and lift systems produce no exhaust emissions and significantly lower noise levels compared to internal combustion alternatives. This makes the unit suitable for indoor environments where air quality and noise are operational concerns.

3-Year Limited Warranty

The included 3-year limited warranty provides professional buyers with confidence in long-term reliability and manufacturer support. For contractors and trades professionals investing in materials handling equipment, this coverage reduces total cost of ownership risk.

Common Applications

Warehouse Pallet Stacking

Lift and place palletized loads to racking heights up to 118 or 138 inches in standard warehouse environments. The 2,200 lb capacity accommodates a wide range of typical pallet loads.

Tight-Aisle Indoor Operations

The counterbalanced no-straddle-leg design and 53-inch turning radius allow the unit to maneuver in narrower aisles where conventional straddle stackers cannot fit. Well-suited for congested distribution floors and storage facilities.

Loading Dock & Staging Areas

Move and stage palletized materials efficiently in dock areas where quick, repeated lifts are required. The lithium battery sustains consistent power output across extended loading and unloading cycles.

Indoor Construction Supply Storage

Handle palletized construction materials in enclosed job-site storage buildings or contractor yards where electric, emission-free operation is required. Quiet operation is an added benefit in occupied or partially occupied structures.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Boxed and crated goods up to 2,200 lbs at 24-inch load center

Frequently Asked Questions

Q: What is the maximum lift height available for this stacker?
A: The EK10S is available in two lift height configurations: 118 inches and 138 inches. Select the appropriate model designation (118LI or 138LI) when ordering.

Q: Does this unit require an external charger?
A: No. A 24/30 V/A charger is built into the unit, eliminating the need for a separate external charging station.

Q: What type of battery does the EK10S use?
A: The EK10S uses a 24V/100Ah Lithium-Ion (Li-Ion) battery, which is included with the unit.

Q: What is the turning radius of this stacker?
A: The EK10S has a turning radius of 53 inches, allowing operation in moderately tight aisle configurations.

Q: What warranty is included?
A: The EK10S comes with a 3-year limited warranty.
