Lithium Counterbalanced Walkie Stacker - Double Mast with 3,000 lb Capacity and 130" Lift Height

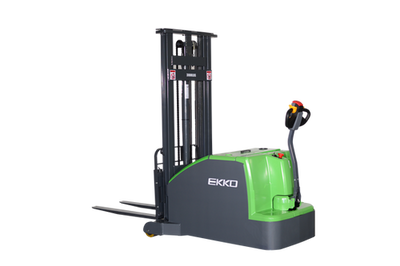

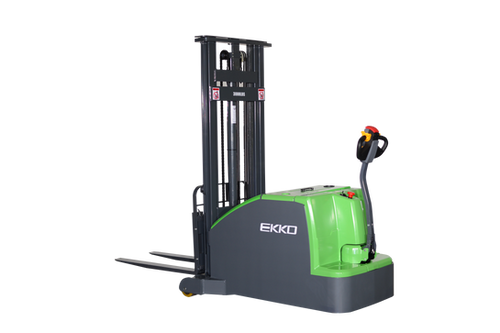

EKKO EK14C-130Li Lithium Counterbalanced Walkie Stacker — 3,000 lb Capacity with 130" Lift Height

The EKKO EK14C-130Li Lithium Counterbalanced Walkie Stacker combines the versatility of a traditional forklift with the maneuverability of a walkie stacker, delivering a 3,000 lb load capacity and a raised height of 130 inches (10.83 ft). Designed for contractors and trades professionals operating in loading docks, stock rooms, manufacturing floors, and warehousing environments, this unit handles the demands of daily material movement with confidence. Its lithium-powered drivetrain and Curtis Controller ensure reliable, responsive performance across a wide range of applications.

Unlike conventional lead-acid stacker configurations, the EK14C-130Li ships with both the battery and charger included, reducing upfront setup costs and getting operators running faster. The counterbalanced design eliminates the need for outrigger legs, providing a tighter turning radius and greater access in confined spaces compared to straddle-style stackers.

Technical Specifications

Key Features & Benefits

Counterbalanced Design

The counterbalanced configuration removes the need for straddle legs, allowing the machine to approach loads and racking directly — similar to a sit-down forklift. This makes it well-suited for narrow aisles and confined dock areas where outrigger-style stackers would be obstructed.

Curtis Controller

The industry-recognized Curtis Controller provides precise motor management for both drive and lift functions. Contractors benefit from smooth acceleration, responsive braking, and consistent lift performance under varying load conditions.

24V AC Drive Motor with 2.2 kW Lift Motor

The AC drive motor delivers efficient power across directional changes and varied terrain, while the 2.2 kW lift motor provides the muscle needed to reach the full 130-inch lift height under rated load. AC motors generally require less maintenance than DC alternatives due to fewer wearing components.

Adjustable Fork Width (8.6–26 in) with Side-Shift

Fork width adjustability from 8.6 to 26 inches accommodates a wide range of pallet sizes and load configurations without manual repositioning of the unit. The available side-shift function allows fine lateral load adjustment at height, improving racking accuracy and reducing cycle time.

Steel Construction with Robotic Welding

The all-steel frame, manufactured using robotic welding processes, provides consistent weld quality and structural integrity throughout the chassis. This construction approach is built to withstand the repeated impact, directional changes, and heavy usage typical of commercial warehouse and dock environments.

Polyurethane Wheels

Polyurethane wheels offer a balance of floor protection and durability, making them appropriate for smooth warehouse floors, loading docks, and manufacturing environments. They resist wear from frequent starts, stops, and turning better than standard rubber alternatives.

Battery and Charger Included

The EK14C-130Li ships as a complete, ready-to-operate package — the lithium battery and charger are included at no additional cost. This eliminates a common procurement gap and allows contractors to deploy the unit immediately upon delivery.

Ergonomic Handle and Controls

The ergonomic handle and control layout reduces operator fatigue during extended shifts. For contractors running multi-hour warehouse or dock operations, an intuitive control interface directly supports productivity and operator safety.

Common Applications

Loading and Unloading Trucks

The 3,000 lb capacity and 42.1-inch fork length make the EK14C-130Li well-matched for standard pallet loads at truck tailgates and loading docks.

Loading Dock Operations

The counterbalanced walkie design provides the agility needed to maneuver in dock staging areas where space is limited and turnaround speed is critical.

Stock Room Material Handling

With a raised height of 130 inches and adjustable fork width, the unit can service multi-level racking systems found in contractor supply rooms and distribution centers.

Manufacturing Floor Movement

The polyurethane wheels and steel construction allow the EK14C-130Li to handle the demands of manufacturing environments, including frequent directional changes and varied load types.

Warehousing and Racking

Side-shift capability and adjustable forks allow precise load placement into racking bays, reducing the need for repeated repositioning and improving throughput in warehouse operations.

Compatible Materials

• Standard GMA wood pallets
• Plastic pallets
• Skidded freight and packaged goods
• Bagged or bundled construction materials
• Boxed or crated equipment

Frequently Asked Questions

Q: Does the EK14C-130Li come with a battery and charger?
A: Yes. Both the lithium battery and charger are included with the unit.

Q: What is the maximum fork width adjustment?
A: The forks adjust from 8.6 inches to 26 inches to accommodate different pallet sizes and load widths.

Q: What type of wheels does the EK14C-130Li use?
A: The unit is equipped with polyurethane wheels, which are suitable for smooth warehouse floors, loading docks, and manufacturing surfaces.

Q: What warranty is provided?
A: The EK14C-130Li is covered by a 3 Years Limited Warranty.

Q: Is side-shifting available on this model?
A: Yes, side-shifting is available on the EK14C-130Li.
