ATR 30 Rammer
$4,12143
Unit price
/
Make a Selection

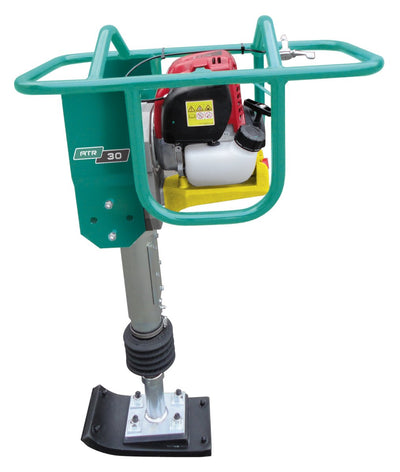

ATR 30 Rammer is powerful and lightweight compaction tool
The ATR 30 is the lightest Ammann rammer on the market. The weight of 29 kg can be handled very easy especially in trenches and all job sites where a light weight and a small rammer foot have their biggest advantages. The rammer is empowered by a small Honda GX 35 petrol engine.
Specifications
| Weights & Dimensions | |
|---|---|
| Machine weight | 28 / 29 kg |
| Foot lenght | 260 mm |
| Foot width | 80 / 130 mm |
| Handle lenght | 600 mm |
| Machine height | 950 mm |
| Handle width | 350 mm |
| Engine | |
| Engine | Honda GX 35 |
| Fuel | Petrol |
| Engine Output | 1.1 kW (1.5 HP) |
| at RPM | 5000 |
| Compaction Forces | |
| Percussion rate | 13.3 Hz |
| Stroke height | 45 mm |
| Centrifugal force | 2 kN |
| Surface capacity | 94 m²/h |
| max. compaction performance* | 30 cm |
| Miscellaneous | |
| Fuel tank capacity | 0,63 l |
| Travel speed | 12 m/min |
| Optional foot sizes width | N/A |
- Standard 130 mm foot
- Alternative with 80 mm shoe for work in tight trenches
- The ATR 30 rammer is with 29 kg one of the lightest on the market
- The compaction result is related to the mass outstanding due to the small rammer feet
- Handling of the rammer is easy
- The handle is open. This means a good view on the rammer foot and also the rammer can be grabbed from all side while working.
- The handle is also a good protection frame of all relevant components
- The access to the engine and all service points are easy so the service can be done fast
