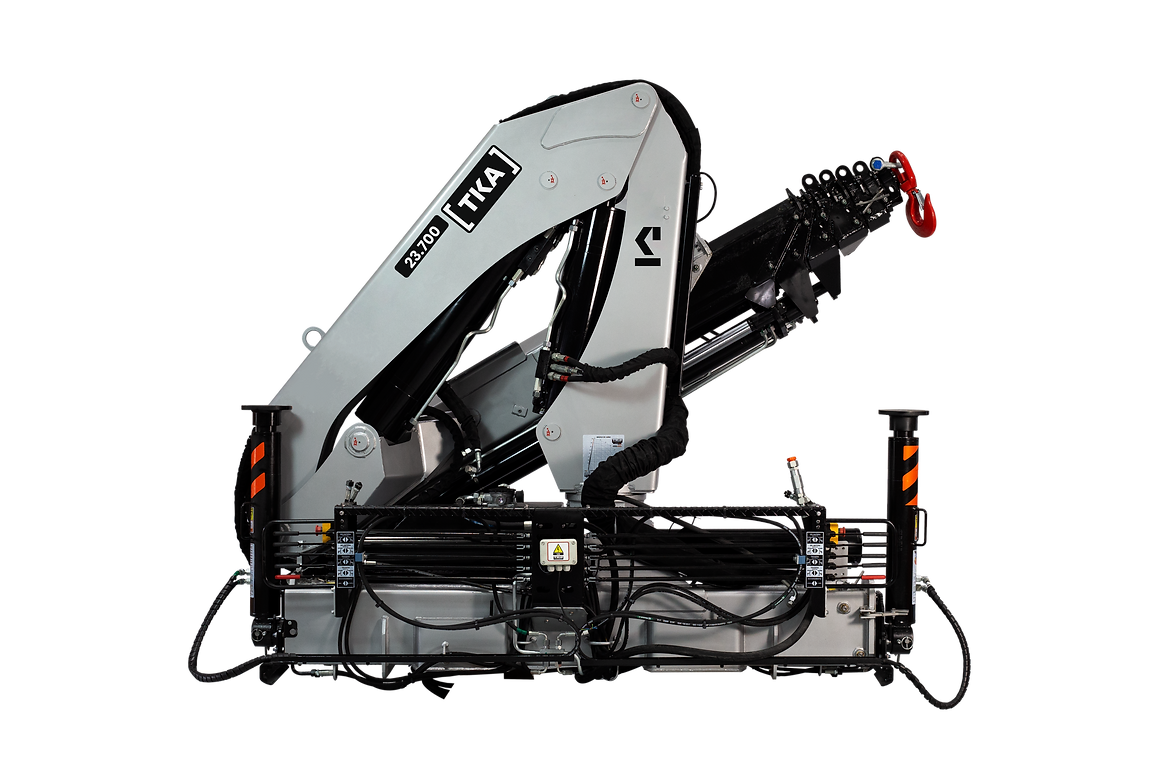

TKA Cranes 23.700 C EX 5 Hydraulic Knuckle Boom
SKU# TKA 23.700 C EX 5H0M
$69,76190
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
TKA Cranes 23.700 C EX 5 Hydraulic Knuckle Boom
$69,76190
Unit price
/
Make a Selection
Technical specifications for this crane model are listed below.
Available Accessories
- Gear Pump
- Piston pump
- Oil Radiator
- Manual Pump (for basket safety use)
- Emergency Stop for Cranes Without Remote Control
- Electrical Load Limiter + Iclinometer + Load Limiter light indicator + load sound indication, for cranes with remote Control
- Hydraulic Load Limiter
- Remote Control with 06 leavers (4+2 extras) + emergency stop
- Remote Control Scanreco With 06 leavers + emergency stop
- Mining Kit (Remote Control. Emergency Stop. Load Limiter. Truck Inclinometer. Blocked work over truck cabine)
- Remote control stabilizer drive kit for cranes with mining kit
- Truck Inclinometer for Cranes Without Remote Control
- Winch with 1.5 ton capacity with upper and lower pulleys
- Fixed Rear Stabilizers 8.5ft
- Rear stabilizer with 11.8ft manual opening
- Rear stabilizer with 11.8ft opening
- Drill or Winch hydraulic Outlet
- Drill AND Winch hydraulic Outlet
| Specification | Metric | Imperial |
|---|---|---|
| Max. Manual Vertical Reach | 21,5 m | 70.5 ft |
| Max. Hydraulic Vertical Reach | 18,2 m | 59.7 ft |
| Max. Manual Horizontal Reach | 17,3 m | 56.8 ft |
| Max. Hydraulic Horizontal Reach | 14,0 m | 45.9 ft |
| Stabilizer Spread (Front) | 5,9 m | 19.4 ft |
| Boom Elevation Angle | 81° | 81° |
| Max. Operating Pressure | 275 bar | 3,988 psi |
| Boom Slewing Angle | 400° | 400° |
| Slewing Torque | 3,25 tf·m | 23,515 lbf·ft |
| Dead Weight (3H0M / 4H0M) | 2.660 kg / 2.800 kg | 5,864 lbs / 6,173 lbs |
| Dead Weight (5H0M / 5H1M / 5H2M) | 2.925 kg / 2.970 kg / 3.010 kg | 6,448 lbs / 6,548 lbs / 6,636 lbs |
| Fitting Space Required | 1,4 m | 4.6 ft |
| Oil Tank Capacity | 100 L | 26.4 gal |
| Minimum GVW Required | 16.000 kg | 35,274 lbs |
