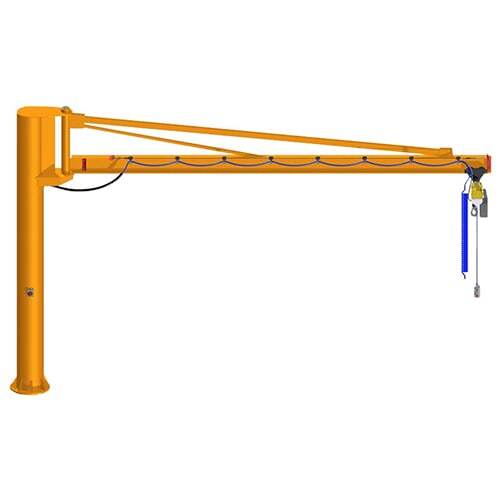

Over Braced Jib Crane - Column Mounted


Over Braced Jib Crane - Column Mounted AJCOCM

The Over Braced Jib Crane - Column Mounted provides economical hook coverage with 270° manual rotation. The over-braced, free-standing jib is useful where overhead cranes are not practical or feasible. This type of jib crane gives 270° floor coverage, allowing unrestricted placement of machinery and equipment. This device can be combined with a vacuum lifter and an electric hoist to meet your specific needs.


  • Sealed roller-bearing pivot
  • Highly durable design
  • 270orotation
  • Over-braced design protects running surface from dirt for minimal resistance
  • Easy moving hoist trolley
  • Rubber end stop

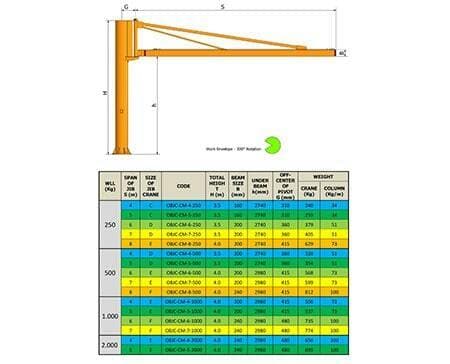

Maximum spans 7000 275.6''
Working load limit 1000 2204
Power supply 220v 1 Phase 50-60Hz -
